보쉬 GBH240 분해도 (3611B721B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 93개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

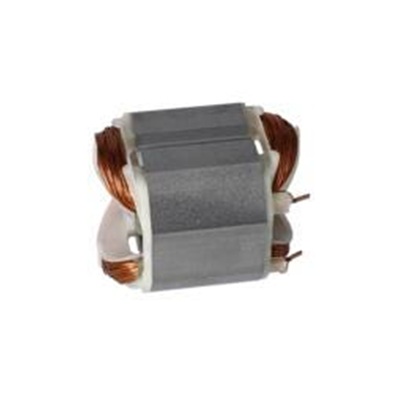

2	1619P11998	Field	1	9,900	품절
4	160720032D	Switch	1	8,800
5	1614460026	Power supply cord	1	12,430
6	1600703034	Grommet	1	1,980
9	1619P14608	Manufacturer's nameplate	1	1,980	품절
10	1619P14609	Manufacturer's nameplate	1	1,980	품절
11	1619P12827	Reference Plate	1	1,980	품절
12	1614465011	Suppression Filter	2	3,960
13	1610905025	Groove ball bearing	1	3,960	품절
14	1619P15694	Ball Bearing	1	1,980	품절
16	1619P16871	Brush Plate	1	8,030
17	1619PS5693	Switch Contact	1	2,860	품절
22	1616312004	Cylindrical Gear	1	8,030
27	1610311018	Striker	1	12,430
28	1613124081	Striker Pin	1	6,380
29	1613105012	Piston Pin	1	2,530
31	1610913016	Needle-Roller Assembly	1	2,530
32	1612026157	Clamp Handle	1	8,030
32/46	1619P09571	Driver Pin	1	1,210
32/49	1612026035	Switch Button	1	1,430
32/76	1610210046	O-Ring	1	1,650
32/83	1614611006	Compression Spring	1	2,530
33	1610590014	Holding Jacket	1	1,650	품절
34	1619P12280	Supporting Disc	1	1,650
35	1616B10325	Plain bearing	1	1,430	품절
36	1615808106	Bearing Holder	1	1,430
37	1613100019	Straight Pin	3	1,430
38	1610190048	Catch Disk	1	3,080
41	1619P12191	Housing Cover	1	3,960	품절
42	1610102073	Thrust Ring	1	3,080
45	1619P12192	Air-Deflector Ring	1	1,650	품절
46	2608670714	Guide Bushing	1	3,080
48	1611098008	Tab Washer	1	1,650
49	1615700044	End Shield	1	1,650
50	1614611020	Compression Spring	1	2,200
54	1610502016	Rubber Bushing	1	1,210
55	1619P18144	O-Ring	1	1,210
56	1610210187	O-Ring	1	1,650
57	1610210068	O-Ring	1	1,430
58	1610210178	O-Ring	1	1,430
59	1610283035	Rotary shaft lip seal	1	3,740
60	1610210176	O-Ring	1	1,210
63	1610910063	Needle bearing	1	3,740
64	1619P12278	Supporting Disc	1	1,430
66	1610202021	Plain bearing	1	1,980
68	1610283017	Rotary shaft lip seal	1	4,840
70	1903230013	Ball	1	1,650
71	1610101011	Shim washer	2	1,430
72	1604601027	Retaining ring	1	1,210	품절
74	1614601027	Retaining ring	1	1,210
75	1610101629	Retaining Washer	2	1,210
76	1613435022	Thread-forming tap. Screw	4	1,430
77	2603490024	Torx Oval-Head Screw	3	1,430
78	2603490022	Screw	1	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
81	1613435029	Thread-forming tap. Screw	2	1,210
82	1614601034	Retaining ring	1	1,650
83	1604601028	Retaining ring	2	1,210
101	1614449014	Connecting Cable	1	1,650
102	1614449015	Connecting Cable	1	1,430
103	1613435034	Lens Head Screw	1	1,210
105	1614611021	Compression Spring	1	1,430
651	1613001009	Depth-Gauge	1	2,530
691	1615438409	Lock	2	3,960
691	1615438431	Lock	2	3,960

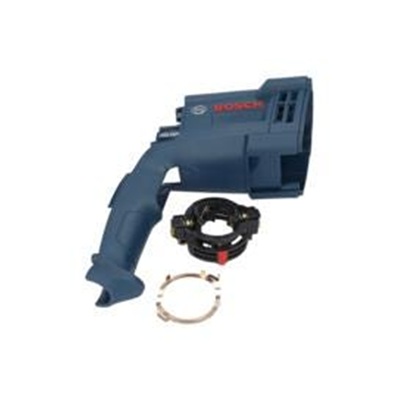

801	1619P13454	Motor Housing	1	18,480	품절

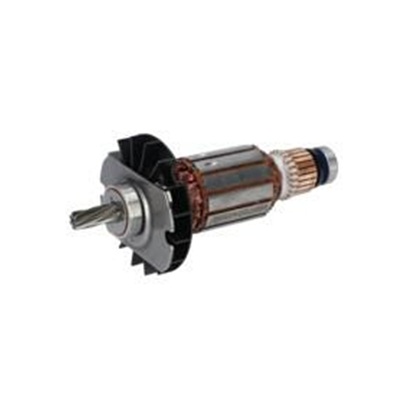

803	1619P13450	Armature	1	24,200	품절
808	1619PS3229	Nameplate	1	1,980	품절
811	1617000525	Carbon-Brush Set	1	6,930
820	1619P13451	Intermediate Flange	1	12,430	품절
821	1619P13452	Pipe	1	36,630	품절
822	160202508X	Auxiliary Handle	1	12,430	품절
822/12	160202507H	Auxiliary Handle	1	6,930
822124	1611316021	Clamping Band	1	2,200
822125	1613490002	T-Head Bolt	1	2,860
822802	1617000475	Support clamp	1	6,380
823	1619P13456	Toothed Shaft	1	12,430	품절
824	1619P13457	Toothed Shaft	1	8,800
826	1617000557	Hammer Piston	1	14,190
828	1619P13453	Striker Pin	1	12,430
829	1619P13455	Pipe	1	24,200
830	1615819028	Drive bearing	1	18,480
840	1619P13462	Gear Housing	1	16,390	품절
843	1619P13459	Protective Cap	1	4,840
861	1619P13460	Switching Element	1	1,650	품절
866	1614611022	Plain bearing	1	1,980
870/2	2603421207	Countersunk-Head Screw	1	1,430
871	1608571088	Chuck	1	21,450
872	2607950007	Chuck Wrench	1	3,960
892	1615430001	Grease Tube	1	14,190
893	1615430002	Grease Tube	1	36,630	품절
894	1615430020	Grease Tube	1	14,190
895	1615430019	Oil Reservoir	1	49,720
