보쉬 GSA1100E 분해도 (3601F4C8B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 58개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	2610956877	Housing	1	14,190

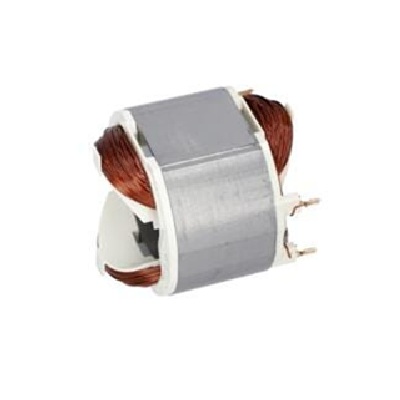

2	2610956919	Stator	1	16,390

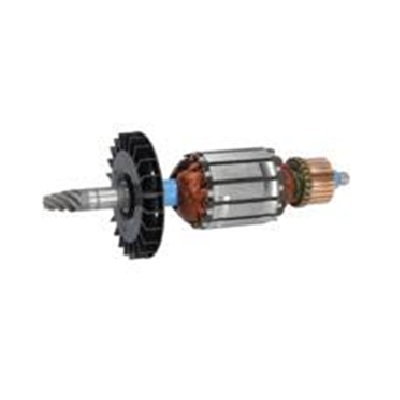

3	2610956920	Rotor	1	33,110
4	1619PA1684	On-Off Switch	1	21,450
5	2610957162	Power supply cord	1	12,430	품절
7	2610956868	Cable Clip	1	1,210
13	2610956882	Groove ball bearing	1	3,740
14	2610956893	Groove ball bearing	2	5,500	품절
16	2610956874	Brush Holder	2	1,980
19	2610956902	Tapping Screw	4	1,210	품절
22	2610956894	Thread-Forming Screw	6	1,210	품절
23	1619P04820	Spring Washer	9	1,210
24	2610956897	Gear Cover	1	8,030
25	1619P04821	Felt Seal	1	1,430
26	2610956896	Bushing	2	3,960
27	2610956895	Sealing Plate	2	1,650
28	2610956899	Self-Cutting Screw	4	1,430	품절

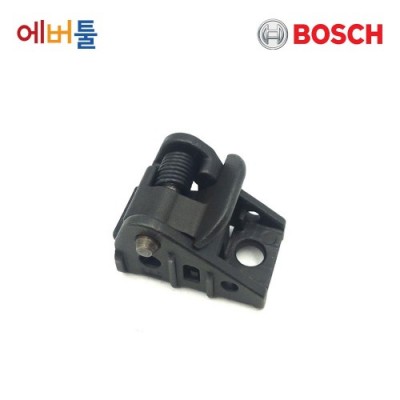

29	1619PA4168	Blade Holder	1	11,220
32	2610956881	Bearing Holder	1	1,210	품절
33	2610956887	Sealing Plate	1	3,960	품절
34	2610956884	Washer	1	1,210
35	2610956886	Bushing	1	1,210	품절
36	2610956885	Rubber Ring	1	1,430
37	1619P04823	Needle-Roller Bearing	1	6,380

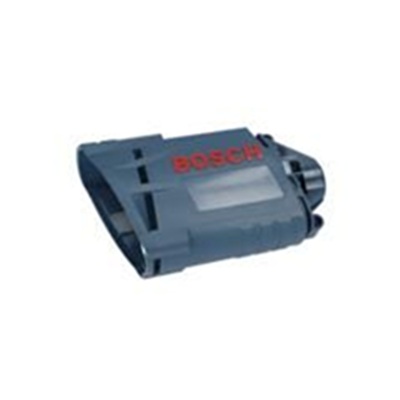

39	2610956890	Gear Cover	1	14,190
40	1619P04824	Support Plate	1	2,200
41	2610956889	Groove ball bearing	1	4,840	품절
45	2610956888	Cover	1	1,210
46	2610956901	Insulating Sleeve	1	14,190
47	1619P04826	Sealing plate	1	1,650
48	1619P04827	Thread-Forming Screw	4	1,210

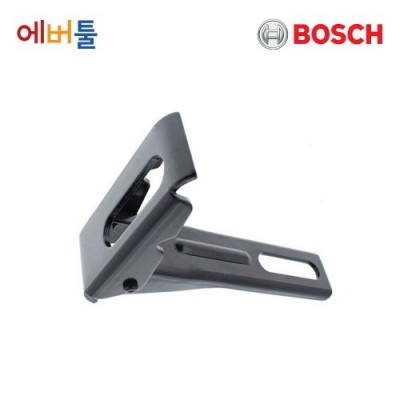

49	2610956898	Supporting foot	1	6,380
50	1619P04828	Clamp	1	1,980
51	2610956900	Cover	2	1,650
55	1619P04831	Receptacle	1	1,430
56	2610956864	Tapping Screw	2	1,650
57	2610956865	Tapping Screw	5	1,650	품절
59	2610956870	Terminal Block	1	1,980	품절
60	2610956869	Screw	1	1,210	품절
62	1619P04840	Connecting Cable	2	2,200
63	2610956907	Hook	1	6,380	품절
64	2610956878	Connecting terminal	4	1,650
65	1619P04833	Tapping Screw	2	1,650	품절
66	1619P04834	Blade terminal	1	1,430
67	2610956880	Air-Deflector Ring	1	2,530	품절
68	1619P04835	Rubber	1	1,210	품절
69	2610956867	Tapping Screw	2	1,210
71	2610956916	Printed Circuit Board	1	3,740
72	2610956866	Cord guard	1	1,650
73	1619P05408	Hex Socket Head Cap Screw	3	1,650
76	1619P03340	Clip	1	1,210	품절

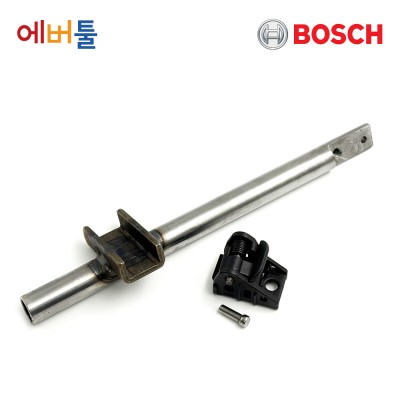

78	1619PA0471	Spindle Assembly	1	16,390
78/30	1619P04839	Pin	1	1,210

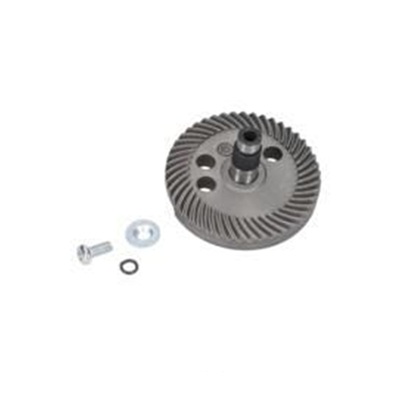

79	1619PA0474	Bevel Gear	1	21,450

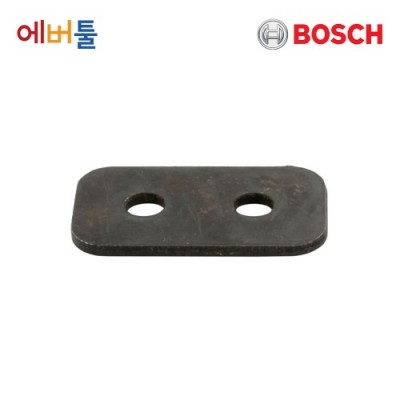

80	1619PA0475	Plate	1	2,530	품절

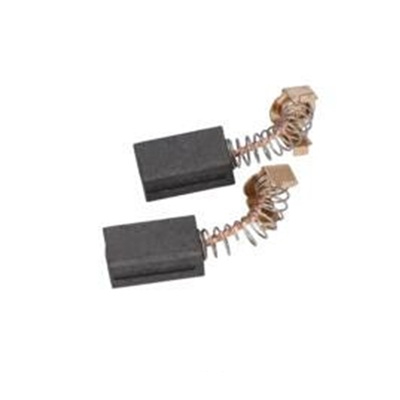

810	2610956917	Carbon-Brush Set	1	3,080

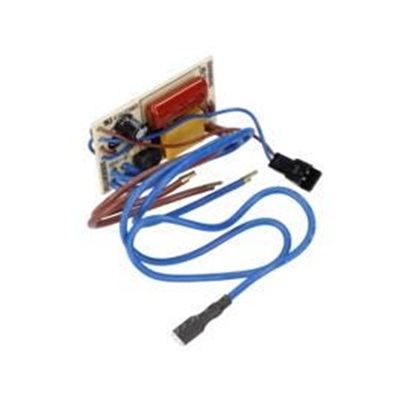

852	1619P04837	Printed Circuit Board	1	6,380
858	2610956906	Set Of Handles	1	18,480
