계양 KPB-8000D 비료살포기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 147개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	2038129	STOP PIN	1	550
1-2	2038132	CLAMP BRACKET	2	1,100
1-3	2165061	FAN(NYLON,ECOH)	1	16,500
1-4	2100696	BACK PAD(CN,YJP)	1	6,600	품절
1-5	2111307	PIPE(A)	3	2,750
1-7	3142702	TRUMPPET PIPE ASSY	1	4,400
1-7.1	2111308	BENDING PIPE	1	2,750	품절
1-8	2111352	CORRUGATED PIPE	1	4,400
1-9	2111751	FAN CASE(LEFT)	1	24,200
1-10	2165062	FAN CASE(RIGHT,ECHO)	1	24,200
1-11	2111801	FRAME	1	18,700
1-12	2111851	STOPPER	4	550
1-13	2112051	SHUTTER BODY COVER(LEFT)	1	6,600
1-14	2112052	SHUTTER BODY COVER(RIGHT)	1	6,600
1-15	2418701	COIRE CLAMP(A)	1	2,750
1-16	2418702	COIRE CLAMP(B)	1	2,750
1-17	2418753	SHOULDER BAND(CN)	1	11,000
1-18	2418801	RUBBER SCREW(A)	2	2,750
1-19	2418802	RUBBER SCREW(B)	2	2,750
1-20	2451801	렌치스패너(17X19)	1	3,300
1-21	3240249	FUEL TANK ASSY(AS전용),KPB-8000	1	39,600	품절
1-22	2073501	GUIDE PIPE PACKING	1	2,200
1-23	3151051	CLAMP ASSY(LEFT)	1	6,600
1-24	3151052	CLAMP ASSY(RIGHT)	1	6,600
1-25	3156503	파이프커넥터	1	4,400
1-26	3156551	JET HOSE ASSY	1	1,100
1-27	3156603	GUIDE PIPE ASSY	1	4,950
1-28	3156651	HANDLE ASSY	1	3,300
1-29	3159005	AUX-OIL TANK	1	3,850
1-30	3159201	CONTROL PANEL ASSY	1	51,700
1-31	3159351	ELBOW ASSY	1	16,500	품절
1-32	3159401	CHEMICAL TANK ASSY	1	35,200
1-32.1	2074067	DRAIN PLUG PACKING	1	990
1-32.3	2112251	DRAIN PLUG	1	550
1-32.4	3159402	CHEMICAL TANK CAP ASSY	1	5,500
1-33	3159451	셔터바디 아세이	1	22,000
1-34	2073551	SHUTTER BODY PACKING	1	1,650
1-35	2073852	패킹	2	1,650
1-37	2418851	ELBOW PACKING	1	1,650
1-38	2400215	HEX +HD B & SW&PW(M6*25,SUS304)	3	330	품절
1-39	2400216	HEX +HD B & SW & PW(M6*30,SUS304)	5	330	품절
1-41	2403035	HEX NUT(M6,SUS304)	4	110
1-44	2404090	SCREW (M6X45,SUS304)	4	330
1-47	2404529	SCREW (M5X14,SUS304)	4	110
1-48	2405061	+PAN HD TAP SCREW(M5*27,SUS304)	13	110	품절
1-53	2412054	RETAINING RING(D6,E형,축,SUS304)	1	110	품절
1-54	3109124	THROTTLE WIRE ASSY(ECHO)	1	7,700	품절
2-3	9360648	10151406210 COVER,CYLINDER	1	10,450	품절
2-4	9360459	GASKET,MUFFLER	1	5,500
2-5	9394436	90016205022 BOLT,H.S.	4	880	품절

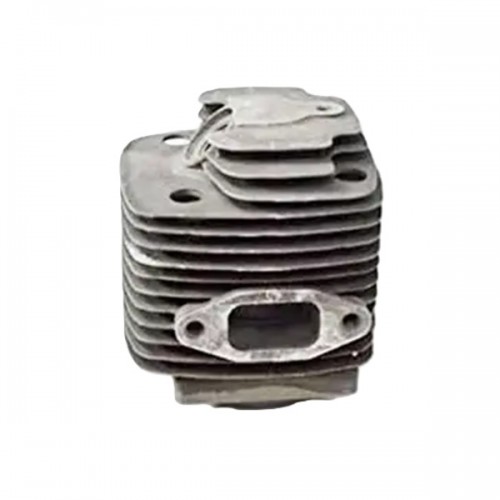

2-6	9361293	CYLINDER	1	121,000
2-7	9360022	90024205010 SCREW 5*10	1	1,100	품절
2-8	9361294	A160000680 COVER,CYLINDER	1	10,450	품절
2-9	9361307	V103001540 GASKET,INTAKE	1	2,200	품절

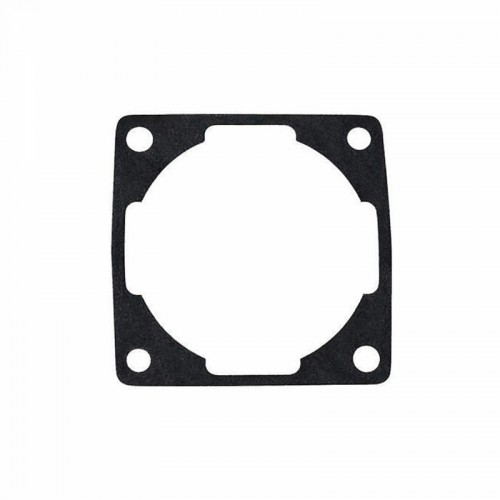

2-10	9360151	GASKET,CYL. BASE	1	880
2-11	9361302	PISTON KIT	1	49,500

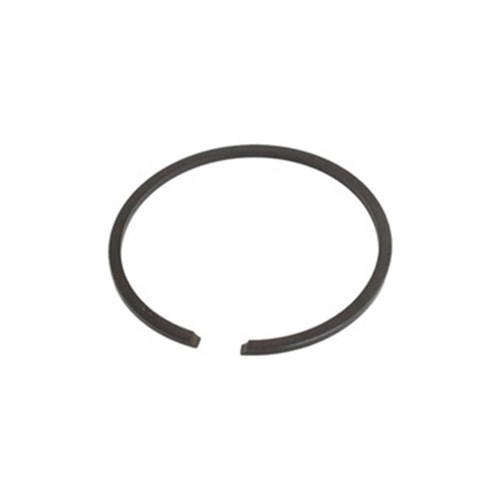

2-12	9360531	RING,PISTON	2	6,600
2-13	9360480	PIN,PISTON	1	4,950
2-14	9361310	V580000010 RING,END	2	550	품절
2-15	9360609	10001212331 BEARING,NEEDLE	1	8,800	품절
2-18	9361301	P021014700 CRANKCASE SET	1	124,300	품절
2-19	9361508	90033040080 PIN, DOWEL	2	1,100	품절
2-20	9360138	90016205040 BOLT H.S. 5*40	4	880	품절
2-22	9360150	GASKET,CRANKCASE	1	880
2-23	9360468	OILSEAL	2	4,400
2-24	9392717	볼베어링	2	8,800
2-25	9360312	15912908261 COVER,DUST	1	2,200	품절
2-26	9360039	90023805018 SCREW 5*18	1	550	품절
2-27	9360176	15011200310 BUSHING	1	1,100	품절
2-30	9360802	10010006210 CRANKSHAFT ASS'Y	1	102,300	품절
2-33	9360144	KEY WOODRUFF	1	1,100
2-34	9360744	10401606410 COVER,ENGINE	1	36,300	품절
3-4	9361287	연료뚜껑 연료캡	1	13,200
3-5	9361286	13100305330 CUP SET,VENT	1	2,200	품절
3-6	9360285	13101621060 GASKET,FUEL CAP	1	2,200	품절
3-13	9361284	9133105060 SCREW	2	550	품절
3-17	9361305	V103001520 GASKET,INTAKE	1	1,100	품절
3-18	9361517	P021010213 INSULATOR,INTAKE KIT	1	7,700	품절
3-19	9391649	90010505030 BOLT	2	1,100	품절
3-20	9361288	14571214730 WASHER	2	1,650	품절
3-21	9360237	89012165830 LABEL,CHOKE	1	1,320	품절
3-22	9361306	V103001530 GASKET,INTAKE	1	1,650	품절

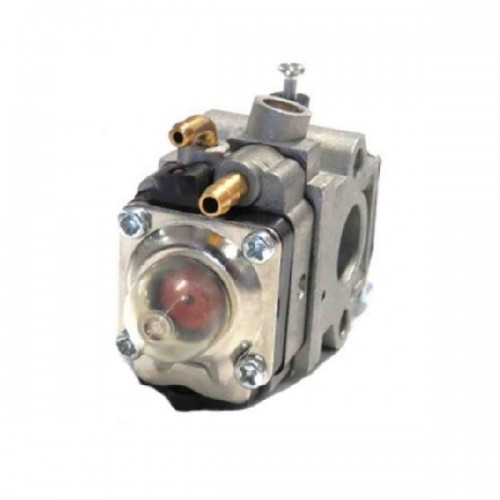

3-23	9361292	카뷰레터 아세이	1	88,000
3-27	9361309	V471000550 PIPE	1	3,300	품절
3-28	9361299	CLEANER CASE ASSY	1	14,300
3-29	9361295	A244000020 PLATE,PREVENT	1	3,850	품절
3-30	9360301	GRID,AIR CLEANER	1	2,200

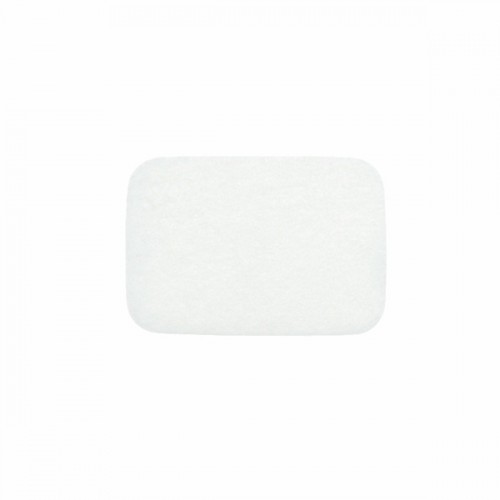

3-31	9360399	FILTER,AIR	1	3,300

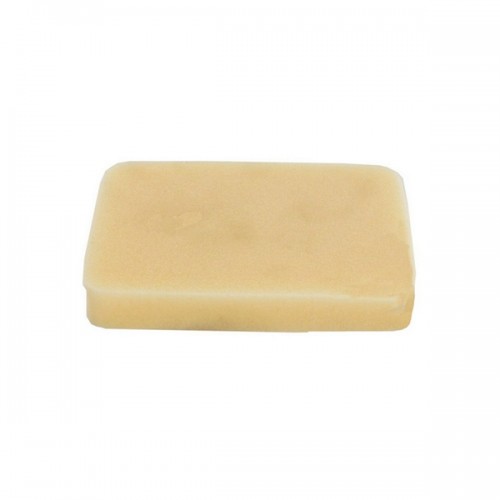

3-32	9360420	FILTER,AIR	1	3,630
3-33	9360300	GRID,AIR CLEANER	1	2,200
3-34	9361285	COVER,AIR CLEANER	1	3,850
3-38	9360345	V471000770 PIPE	1	2,420	품절
3-39	9394406	13201326630 CLIP	1	550	품절
3-40	9391505	FUEL FILTER SUBASSY	1	5,500
4-3	9360062	90050100010 NUT 10*1.25	1	550	품절
4-4	9393740	SPRING WASHER	1	550	품절
4-5	9360033	90060200010 WASHER 10	1	550	품절
4-8	9360783	ROTOR,MAGNETO	1	71,500
4-9	9360039	90023805018 SCREW 5*18	2	550	품절
4-10	9360788	C.D. IGNITION MODULE	1	80,300
4-12	9360220	튜브	1	1,320
4-13	9360522	점화플러그캡	1	5,500
4-14	9360184	COIL,SPARK PLUG	1	1,100	품절
4-15	9360605	점화플러그 NGK BPM7Y	1	13,200
4-20	9360593	PULLEY, ASM STARTER	1	8,250
4-21	9360035	E-RING 4	1	550	품절
4-24	9360307	17721840630 PAWL,STARTER	1	2,200	품절

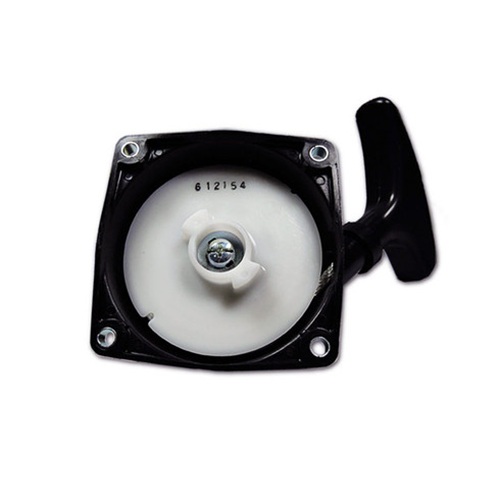

4-26	9361289	STARTER ASSY	1	55,000
4-27	9361291	17723640630 SCREW	1	2,200	품절
4-28	9361304	P022022280 WASHER	1	880	품절
4-29	9361290	17721511120 DRUM,STARTER	1	18,700	품절
4-30	9360442	17722611120 ROPE,STARTER	1	3,850	품절
4-31	9360401	GUIDE,ROPE	1	3,300	품절
4-32	9360511	17722811120 GRIP,STARTER	1	5,500	품절
4-35	9360081	90029204018 SCREW 4*18	4	550	품절
4-36	9360306	LABEL,ECHO	1	2,200	품절
4-37	9361308	V152002980 PLATE,ANGLE	1	4,400	품절
4-38	9360302	CUSHION	1	2,200	품절
4-41	9360366	GASKET,MUFFLER	1	2,750

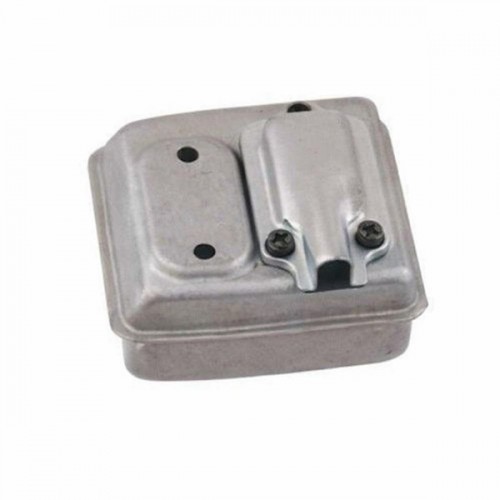

4-42	9361300	MUFFLER ASSY	1	33,000
4-43	9392788	90010506020 BOLT	2	550	품절
4-44	9360023	SCREW 5X14	1	550	품절
5-1	9361292	카뷰레터 아세이	1	88,000
5-3	9392397	12311440630 SCREW	2	1,100	품절
5-4	9361296	P003000180 BRACKET CABLE	1	6,050	품절
5-5	9392396	12317245130 SWIVEL	1	6,050	품절
5-6	9392398	12314954230 WASHER	1	1,100	품절
5-7	9392401	12317307930 E RING	1	1,100	품절
5-8	9392402	12314312110 RING GASKET	1	1,650	품절
5-9	9392104	12318340630 O RING	1	1,100	품절
5-10	9361297	P003000990 JET	1	4,400	품절
5-11	9392106	GASKET,PUMP	1	3,850
5-12	9392107	12311240630 DIAPHRAGM	1	6,600
5-13	9392422	12317905560 PUMP BODY COMP	1	55,000	품절
5-14	9391596	12312610631 SCREEN	1	1,100	품절
5-15	9361283	12313719830 VALVE,INLET NEEDLE	1	6,050	품절
5-16	9392404	12312205560 SPRING	1	2,750	품절
5-17	9391853	PIN	1	1,100	품절
5-18	9391851	LEVER	1	3,300	품절
5-19	9392405	12313905560 SCREW	1	3,300	품절
5-20	9392406	GASKET	1	1,650
5-21	9392109	DIAPHRAGM	1	11,000
5-22	9392407	12318005560 PUMP BASE COMP	1	15,400	품절
5-23	9392409	12318140630 PRIMER PUMP	1	4,400
5-24	9392410	12314205560 PUMP COVER	1	3,300	품절
5-25	9392411	12311005560 SCREW	4	1,100	품절
5-26	9361298	P003001130 NEEDLE,HIGH SPEED	1	6,050	품절
