계양 KPB-6030 비료살포기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 98개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	3140308	CRANKCASE ASSY	1	93,500	품절
1-2	2409810	DOWEL PIN	2	1,100	품절
1-3	2417090	볼베어링(6202)	2	7,700	품절
1-4	2413021	OIL SEAL(A)	1	3,300
1-5	2413022	OIL SEAL(B)	1	5,500
1-6	2054708	GASKET(CRANK CASE)	1	2,200
2-1	2054707	GASKET(CYLINDER)	1	2,200
2-2	2042203	CYLINDER	1	115,500
2-3	2402408	STUD BOLT	2	2,200
2-5	2050006	CYLINDER COVER	1	5,500	품절
3-1	2021238	CRANKSHAFT	1	165,000
3-2	2408210	WOODRUFF KEY(3X13)	1	1,650	품절
3-3	9340874	PISTON	1	22,000
3-4	2409506	PISTON PIN	1	4,400
3-5	2412618	RING(TOP)	1	6,600
3-6	2417339	NEEDLE BEARING	1	9,350
3-7	2415106	PISTON PIN CLIP	1	1,100
3-9	2459046	PISTON SET	1	48,400

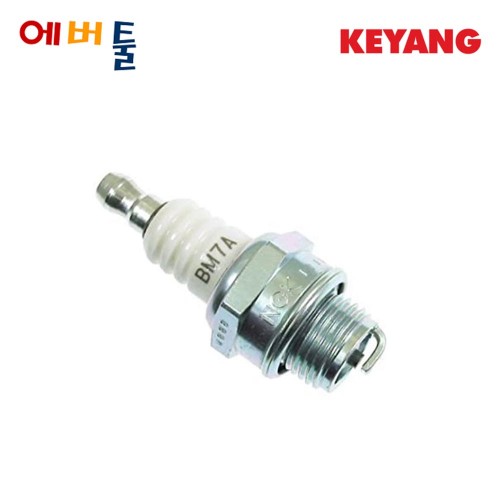

4-1	2012705	점화플러그 NGK BM7A	1	6,600
4-2	2040004	ROTOR	1	60,500
4-3	3112413	IGNITION COIL ASSY	1	110,000
4-4	2071903	PLUG CAP(A)	1	3,300	품절
4-5	2071110	GROMMET	1	1,100	품절
4-6	2071904	PLUG CAP(B)	1	1,650	품절
4-8	3159022	THROTTLE WIRE	1	8,800
5-1	2100409	INSULATOR	1	4,950	품절

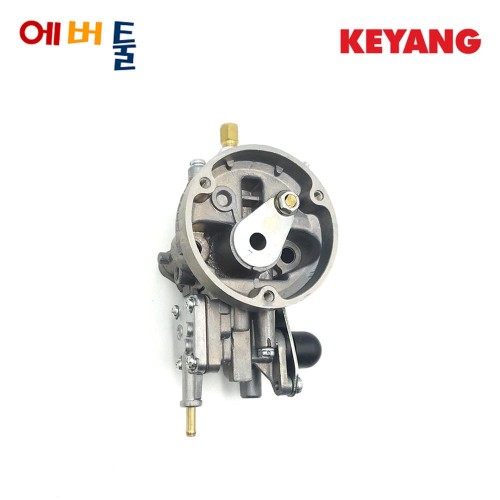

5-3	2040815	카뷰레터(D)	1	99,000
5-4	2110106	캡	1	7,150
5-5	2054709	가스켓(인슐레이터)	1	7,700
5-6	2054710	GASKET(CARBURETOR)	1	4,400
6-1	3100010	에어크리너	1	36,300

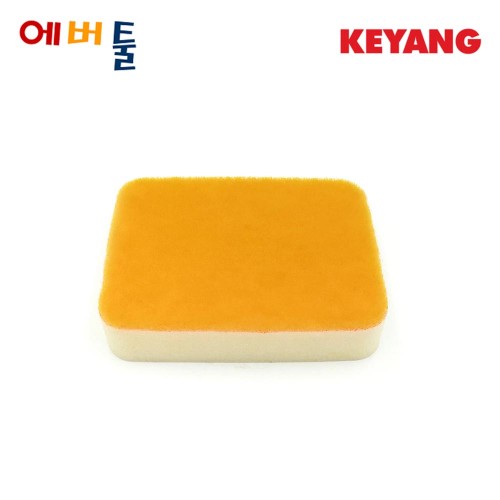

6-2	2418308	에어크리너	1	9,900
6-3	2054711	AIR CLEANER GASKET	1	2,200
7-1	2056606	MUFFLER GASKET	1	2,200
7-2	3100909	MUFFLER ASSY	1	66,000
7-3	2190043	COVER(MUFFLER)	1	13,750
8-1	2040005	STARTER PULLEY	1	12,100
8-2	3154816	RECOIL STARTER	1	66,000
8-3	9350240	NUT	1	2,200
9-1	2038129	STOP PIN	1	550
9-2	2038132	CLAMP BRACKET	2	1,100
9-3	2042604	FAN	1	18,150
9-4	2100696	BACK PAD(CN,YJP)	1	6,600	품절
9-5	2111307	PIPE(A)	2	2,750
9-7.1	3142702	TRUMPPET PIPE ASSY	1	4,400
9-8	2111352	CORRUGATED PIPE	1	4,400
9-9	2111751	FAN CASE(LEFT)	1	24,200
9-10	2111752	FAN CASE(RIGHT)	1	24,200
9-11	2111801	FRAME	1	18,700
9-12	2111851	STOPPER	1	550
9-13	2112051	SHUTTER BODY COVER(LEFT)	1	6,600
9-14	2112052	SHUTTER BODY COVER(RIGHT)	1	6,600
9-15	2418701	COIRE CLAMP(A)	1	2,750
9-16	2418702	COIRE CLAMP(B)	1	2,750
9-17	2418753	SHOULDER BAND(CN)	1	11,000
9-18	2418801	RUBBER SCREW(A)	2	2,750
9-19	2418802	RUBBER SCREW(B)	2	2,750
9-20	2451801	렌치스패너(17X19)	1	3,300
9-21	3100219	FUEL TANK ASSY(AS전용)	1	35,200
9-21.1	2073801	우레탄호스(12/9MM,77L)	1	1,650
9-21.3	2073802	FUEL HOSE(5X3X500L)	1	13,200
9-21.4	2073851	PACKING(HNBR)	1	3,300
9-21.5	2165024	FUEL TANK	1	11,000
9-21.7	2415906	FUEL FILTER	1	7,700
9-21.9	3159303	연료뚜껑 연료캡	1	1,650
9-22	2073501	GUIDE PIPE PACKING	1	2,200
9-23	3151051	CLAMP ASSY(LEFT)	1	6,600
9-24	3151052	CLAMP ASSY(RIGHT)	1	6,600
9-25	3156503	파이프커넥터	1	4,400
9-26	3156551	JET HOSE ASSY	1	1,100
9-27	3156603	GUIDE PIPE ASSY	1	4,950
9-28	3156651	HANDLE ASSY	1	3,300
9-29	3159005	AUX-OIL TANK	1	3,850
9-30	3159201	CONTROL PANEL ASSY	1	51,700
9-3016	2111702	CONTROL LEVER HINGE(A)	1	4,400
9-3017	2403047	HEX NUT(M6 TYPE2,3+CR)	1	1,100
9-30.4	3109574	CONNECTOR SUB ASSY(A/S)	1	2,200
9-30.9	2038301	ROD	1	1,650
9-31	3159351	ELBOW ASSY	1	16,500	품절
9-31.2	2112001	ELBOW	1	3,850
9-32	3159401	CHEMICAL TANK ASSY	1	35,200
9-32.1	2074067	DRAIN PLUG PACKING	1	990
9-32.2	2112151	CHEMICAL TANK	1	29,700
9-32.3	2112251	DRAIN PLUG	1	550
9-32.4	3159402	CHEMICAL TANK CAP ASSY	1	5,500
9-33	3159451	셔터바디 아세이	1	22,000
9-33.3	2038135	셔터게이트	1	6,600
9-34	2073551	SHUTTER BODY PACKING	1	1,650
9-35	2073852	패킹	2	1,650
9-37	2418851	ELBOW PACKING	1	1,650
9-38	2400215	HEX +HD B & SW&PW(M6*25,SUS304)	3	330	품절
9-39	2400216	HEX +HD B & SW & PW(M6*30,SUS304)	4	330	품절
9-41	2403035	HEX NUT(M6,SUS304)	4	110
9-44	2404090	SCREW (M6X45,SUS304)	4	330
9-47	2404529	SCREW (M5X14,SUS304)	4	110
9-48	2405061	+PAN HD TAP SCREW(M5*27,SUS304)	13	110	품절
9-53	2412054	RETAINING RING(D6,E형,축,SUS304)	1	110	품절
9-60	2111305	BENDING PIPE	1	3,300
