에코 SHP-800S 엔진분무기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 256개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9360023 SCREW 5X14 1 550

품절
1-2 9360684 COVER,CYLINDER 1 14,850

품절

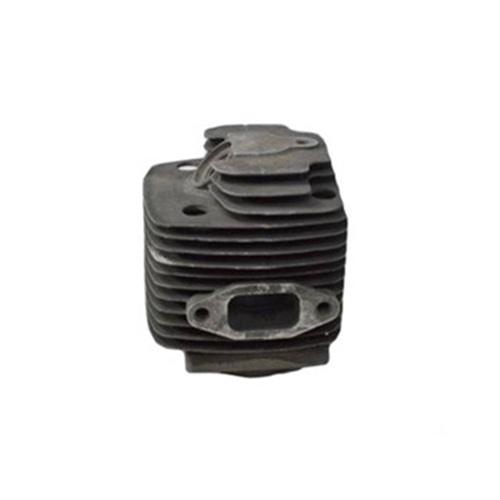

1-4 9360801 CYLINDER 1 102,300
1-5 9394436 90016205022 BOLT,H.S. 2 880

품절
1-6 9360298 GASKET,CYL. BASE 1 2,200

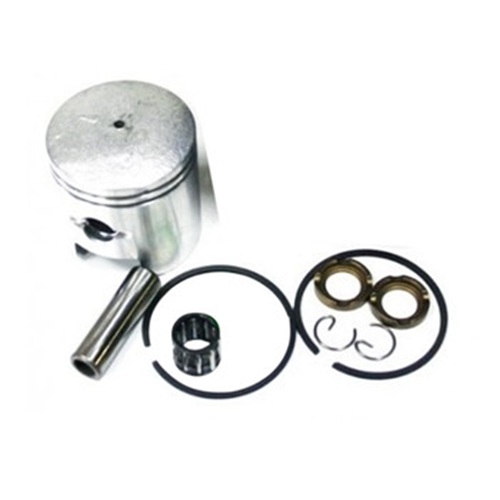

1-7 9360825 PISTON KIT 1 44,000
1-8 9360581 LID,HANDLE 2 7,700
1-9 9360072 CIRCLIP,PISTON PIN 2 1,100

품절
1-10 9360449 PIN,PISTON 1 4,400

품절
1-11 9360612 BEARING,NEEDLE 8 1 8,800

품절
1-12 9360457 SPACER, PISTON PIN 2 4,400

품절
1-13 9360813 CRANKSHAFT ASSY 1 126,500

품절
1-15 9360811 CRANKCASE KIT 1 126,500
1-16 9360472 OILSEAL 1 6,050
1-17 9360519 BEARING,BALL 6001 2 5,500
1-18 9360113 CIRCLIP 28 1 1,100

품절
1-19 9360281 GASKET,CRANKCASE 1 2,200

품절
1-20 9360025 SCREW 5X25 4 550

품절
1-21 9360458 OILSEAL ISCD 12X28X7 1 4,400

품절
2-2 9360478 SHAFT,CLUTCH 2 4,400

품절
2-4 9360131 WASHER,CIRCULAR 8 2 1,100

품절
2-5 9360680 SHOE,CLUTCH 2 14,300

품절
2-6 9360344 SPRING,TENSION 1 4,400
2-7 9360202 WASHER,CIRCULAR 6 2 1,100

품절
2-8 9360043 NUT 8 1 1,100

품절
2-10 9360005 와셔 8 1 1,100
2-11 9360791 ROTOR,MAGNETO 1 84,700

품절
2-12 9360122 OLT HSH 2 880

품절
2-13 9360219 SPACER 2 1,320

품절
2-14 9360157 GROMMET 1 880

품절

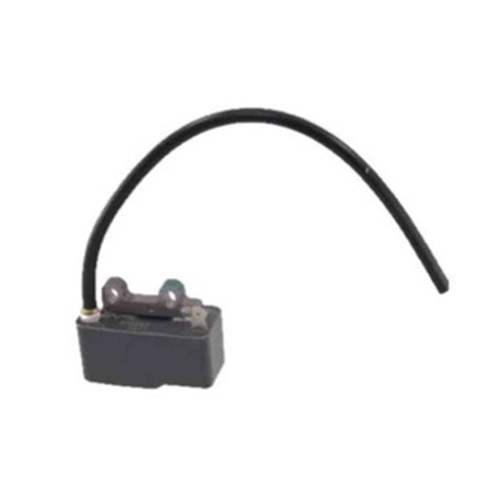

2-15 9360782 COIL,IGNITION 1 72,600
2-16 9360522 점화플러그캡 1 5,500
2-17 9360184 COIL,SPARK PLUG 1 1,100

품절
2-18 9360605 점화플러그 NGK BPM7Y 1 13,200
2-19 9360371 LEAD 1 2,750

품절
2-20 9360594 PAWL ASSY,STARTE R 1 12,100
2-21 9360035 E-RING 4 2 550

품절
2-22 9360222 SPRING,PAWL 2 1,650

품절
2-23 9360308 PAWL,STARTER 2 2,200

품절
2-25 9394445 SCREW 3 550
2-26 9360796 STARTER,RECOIL 1 93,500
2-27 9360538 GRIP,STARTER 1 6,050

품절
2-28 9360401 GUIDE,ROPE 1 3,300

품절
2-29 9360241 PLATE,STARTER 1 1,320

품절
2-31 9360634 SPRING,SPIRAL 1 9,900

품절
2-32 9360132 COLLAR 8 1 1,100

품절
2-33 9360070 PIN,SNAP 2 550

품절
2-35 9360677 REEL,ROPE 1 14,300

품절
2-36 9360477 ROPE 1 4,400

품절
2-37 9360309 PAWL 2 2,200

품절
2-38 9360253 SPRING,COMPRESSION 2 1,650

품절
2-42 9360086 SCREW 5 1 1,100

품절
2-43 9360489 SPACER 1 4,950
2-44 9360120 BOLT,H.S. 4X14 4 880

품절
2-46 9360374 PLATE,ANGLE 1 2,750

품절
2-50 9360279 LABEL,CAUTION 1 1,650

품절
2-52 9360302 CUSHION 1 2,200

품절
2-53 9360754 SPRING,ASM POWER 1 44,000

품절
3-1 9360162 GASKET,INTAKE 1 880
3-2 9360432 INSULATOR 1 4,400

품절
3-3 9360111 볼트 H.S. 5X25 2 550

품절
3-4 9360152 GASKET,INTAKE 1 880

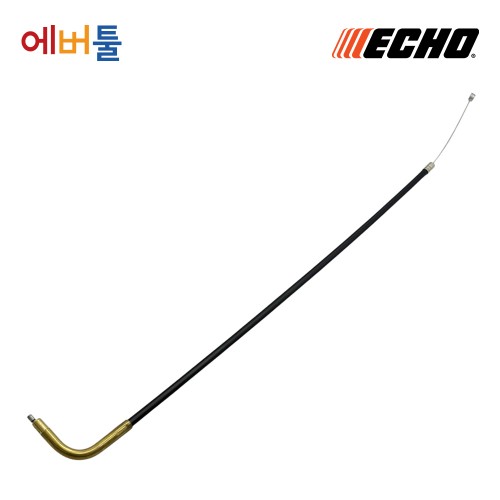

3-5 9360588 THROTTLE WIRE 1 7,700

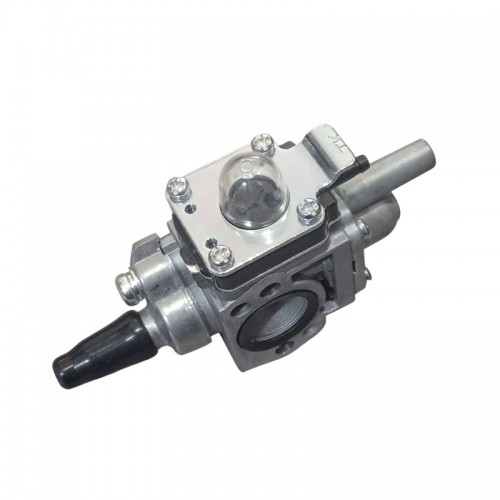

3-6 9360792 카뷰레터 1 84,700
3-7 9360048 SCREW 5X50 2 550

품절
3-8 9360726 CLEANER ASM,AIR 1 24,200

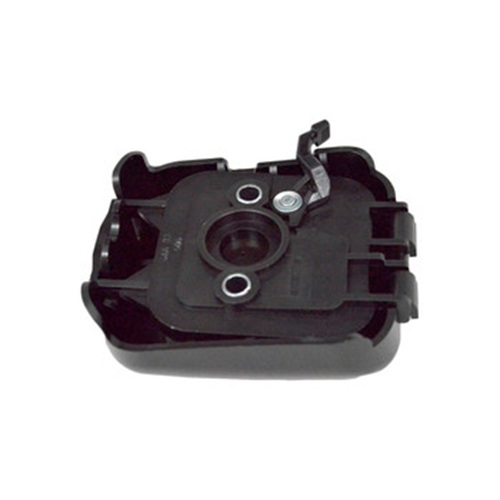

3-9 9360663 CASE,AIR CLEANER 1 12,100

품절

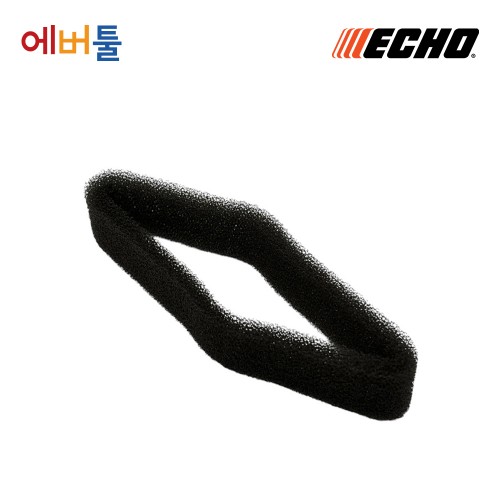

3-10 9360338 FILTER,AIR 1 3,300
3-11 9360568 COVER,AIR CLEANER 1 7,150
3-12 9360038 SCREW 5X16 1 550

품절
3-13 9360697 COVER,MUFFLER 1 17,600
3-14 9360067 BOLT,H.S. 5X8 2 550

품절
3-15 9392224 90010505055 BOLT 2 1,100

품절
3-16 9391871 와셔 2 1,100

품절
3-17 9360766 MUFFLER 1 55,000
3-18 9360624 GASKET,MUFFLER 1 9,900

품절
3-19 9360214 G231000021 PIPE,EXHAUST 1 1,320

품절
4-1 9360019 SCREW 5X16 1 550

품절
4-2 9360474 COVER,TOP 1 4,400

품절
4-3 9393780 SPRING 1 1,100

품절
4-4 9393781 SPRING RECEIVE 1 1,100
4-5 9360510 NEEDLE,JET 2 5,500

품절
4-6 9360073 12411605530 E-RING 1 550

품절
4-7 9360649 VALVE,THROTTLE 2 10,450

품절
4-8 9393805 SPRING 1 1,100

품절
4-9 9360197 SCREW 1 1,100

품절
4-10 9360198 GASKET,FRANGE 1 1,100

품절
4-11 9360606 JET,MAIN 4 8,800

품절
4-12 9360284 GASKET,CHAMBER 1 2,200

품절
4-13 9360639 CHAMBER,FLOAT 1 10,450

품절
4-14 9360014 SCREW 3X10 2 550

품절
4-15 9360318 WIRE,DRAIN 3 2,200

품절
4-16 9360174 SPRING,ADJUSTMENT 1 1,100

품절
4-17 9360369 GASKET 1 2,750
4-18 9360504 DIAPHRAGM,FUEL PUMP 1 5,500
4-19 9360326 PLATE,PUMP 1 2,200
4-20 9360328 GASKET,FUEL PUMP 1 2,200
4-21 9360656 COVER,PUMP 1 11,000

품절
4-22 9360441 PUMP,PRIMING 1 3,850
4-23 9360431 PLATE,PUMP 1 3,850

품절
4-24 9360015 SCREW 3X14 1 550

품절
4-25 9360353 CAP,RUBBER 1 2,420

품절
4-26 9360494 ADJUST,CABLE 1 4,950

품절
4-27 9393779 NUT 1 1,100

품절
4-29 9360630 JET,NEEDLE 1 9,900

품절
4-30 9360173 PACKING 1 1,100

품절
4-31 9360267 SPRING,BACK UP 1 1,650

품절
4-35 9360792 카뷰레터 1 84,700
5-1 9360513 OIL GAUGE 1 5,500
5-2 9360078 O-RING 1 550
5-3 9360591 GEAR CASE LID 1 7,700

품절
5-4 9360227 O-RING 1 1,320

품절
5-5 9392139 90080006001 BALL BEARING 2 6,600

품절
5-6 9360525 OILING BOLT 1 5,500

품절
5-7 9360116 O-RING 2 550

품절
5-8 9360769 PUMP BODY W/PIN 1 60,500
5-9 9360185 캡 1 1,100
5-10 9360433 GASKET 1 3,850
5-11 9360110 볼트 H.S. 5X18 4 550

품절
5-12 9360747 FAN COVER 1 37,400

품절
5-13 9360720 CLUTCH DRUM 1 24,200

품절
5-14 9360111 볼트 H.S. 5X25 2 550

품절
5-15 9360020 SCREW 4X12 3 550

품절
5-16 9360389 OIL SEAL 1 3,300
5-17 9360461 DRAIN CAP 1 4,400

품절
5-18 9360691 CONNECTING ROD 1 14,300

품절
5-19 9360715 CRANK SHAFT 1 23,100
5-20 9360289 KEY 1 2,200

품절
5-22 9360716 SPUR GEAR 1 23,100

품절
5-23 9360005 와셔 8 1 1,100
5-25 9360142 NUT 1 880

품절
5-26 9392160 볼베어링 1 7,700
5-27 9360696 PINION SHAFT 1 17,600
5-28 9360339 OIL SEAL 1 2,420

품절
5-30 9360406 PISTON PIN 1 3,300

품절
5-31 9360753 PLUNGER W/SPRINGSEAT 1 41,800
5-32 9360210 VALVE SPRING 1 1,650
5-33 9360313 DISK,VALVE 1 2,200
5-34 9360600 PISTON PACKING 1 8,800
5-35 9360659 VALVE SEAT 1 12,650
5-36 9360314 STUD BOLT 2 2,200

품절
5-37 9360566 NUT GLAND 1 6,600

품절
5-38 9360228 L-PACKING 1 1,650
5-39 9360502 GREASE RING 1 4,950
5-40 9360674 V-PACKING SET 1 13,200
5-41 9360229 ADAPTER 1 2,200
5-42 9360464 GREASE CUP 1 4,400
5-43 9360752 CYLINDER 1 41,800
5-44 9360644 JOINT 1 10,450

품절
5-45 9360434 PACKING 1 3,850
5-46 9360727 SLEEVE 1 26,400
5-47 9360077 O-RING 1 550
5-49 9360586 VALVE ASSY 1 7,700
5-50 9360704 INTAKE PIPE 1 27,500

품절
5-51 9360064 NUT 2 550

품절
5-52 9360413 GASKET DRAIN 1 3,300
5-53 9360287 CAP,DRAIN 1 2,200
5-54 9360330 밴드 2 2,200

품절
5-55 9360485 SUCTION HOSE 1 4,950
5-56 9360668 CONNECTOR 1 11,000
5-57 9360734 AIR CHAMBER 1 33,000
5-58 9360177 와셔 1 1,100
5-59 9360417 VALVE SEAT 1 3,300
5-61 9360454 VALVE CASING 1 6,050
5-62 9360637 SPRING CASING 1 9,900
5-63 9360465 볼밸브 1 4,400
5-64 9360469 SPRING SEAT 1 4,400

품절
5-65 9360321 PRESSURE SPRING 1 2,200

품절
5-66 9360083 O-RING 7 1 550
5-67 9360329 SPRING SEAT 1 2,200

품절
5-68 9360322 LOCK NUT 1 2,200

품절
5-69 9360523 REGULATOR CAP 1 5,500
5-70 9360100 REGULATOR LABEL 1 550

품절
5-71 9360748 REGULATOR ASSY 1 38,500
5-72 9360206 밴드 2 1,320
5-73 9360372 RETURN HOSE 1 2,750

품절
5-74 9360382 ADAPTER 1 2,750

품절
5-82 9360025 SCREW 5X25 4 550

품절
5-84 9360821 O-RING 12.5 2 2,200
5-85 9360114 O-RING 16 2 550
5-86 9360274 SPRING SEAT 1 1,650
5-90 9360662 VALVE CASING ASSY 1 12,100
6-1 9360533 PIPE,OIL 1 6,050

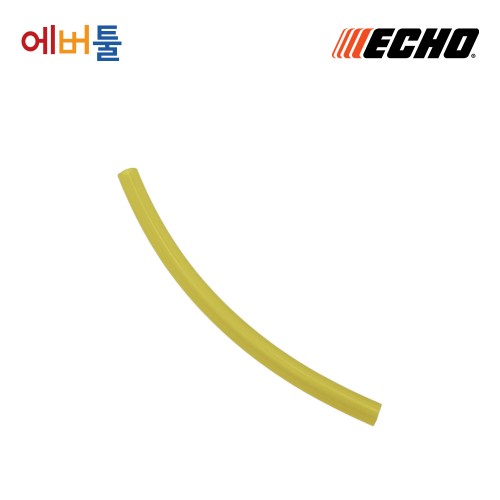

6-2 9360527 FUEL HOSE 1 6,050
6-3 9394408 GROMMET 1 1,650

품절
6-4 9391505 FUEL FILTER SUBASSY 1 5,500
6-5 9360206 밴드 2 1,320
6-6 9360211 FUEL OUTLET HOSE 1 2,750

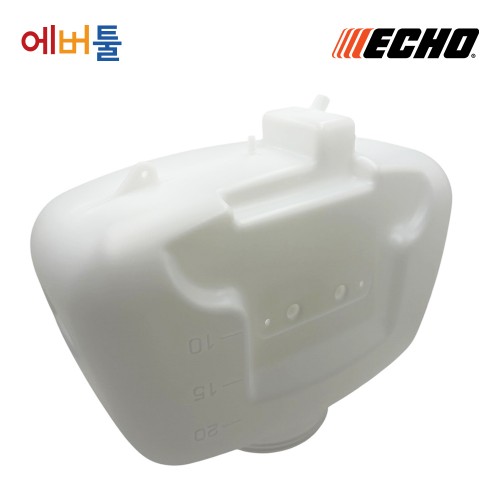

6-7 9360713 FUEL TANK 1 22,000
6-8 9360435 FUEL TANK CAP 1 3,850

품절
6-10 9360661 KNAPSACK FRAME 2 12,100
6-12 9360049 SCREW 6X15 4 550

품절
6-13 9360105 볼트 6X16 4 550

품절
6-14 9360046 와셔 4 550

품절
6-15 9360476 BRACKET,FUEL TANK 1 4,400

품절
6-16 9360232 CUSHION,FUEL TANK 2 1,320

품절
6-17 9360620 CUSHION 2 9,350
6-18 9360497 BRACKET ENGINE 1 4,950

품절
6-19 9360187 NUT,FLANGE 5 4 1,100

품절
6-20 9360040 SCREW 5X12 5 550

품절
6-21 9360407 BRACKET FUEL TANK 1 3,300

품절
6-22 9360182 NUT,FLANGE 4 1,100
6-23 9360615 PLATE,ANGLE 1 8,800

품절
6-24 9360619 CUSHION 2 9,350
6-25 9360498 PLATE,ANGLE 1 4,950

품절
6-26 9392127 NUT 2 1,100
6-27 9360290 FIXED PLATE 1 2,200

품절
6-28 9360582 BRACKET,THROTTLE 1 7,700
6-29 9360675 THROTTLE,CONTORL 1 13,200
6-30 9360024 SCREW 5X20 2 550

품절
6-31 9360818 STOP SWITCH 1 7,700
6-32 9360819 LEAD 1 3,300
6-33 9360103 PROTECTED PIPE 1 550

품절
6-34 9360331 PLATE ANGLE 1 2,200

품절
6-35 9360304 CUSHION 1 2,200

품절
6-36 9360160 GROMMET 1 880

품절
6-37 9394406 13201326630 CLIP 1 550

품절
6-38 9360234 SCREW 2 1,320

품절
6-39 9360079 와셔 2 550

품절
6-45 9360445 FUEL TANK CAP ASSY 1 3,850

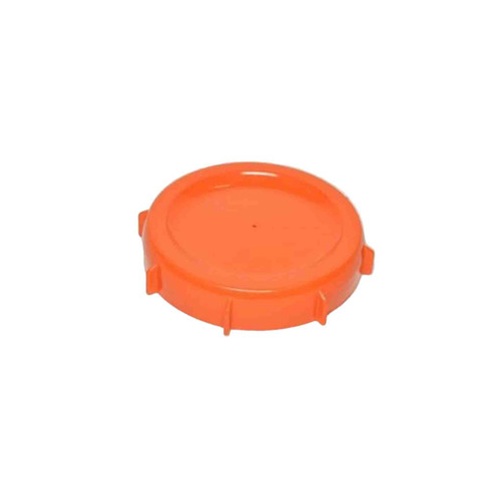

7-1 9360683 C.TANK CAP ASSY 1 15,400
7-3 9360503 PACKING,CH.TANK 1 4,950
7-4 9360595 FILTER,CH.TANK 1 8,250
7-5 9360780 CHEMICAL TANK 1 55,000
7-6 9360452 볼트 2 4,400
7-7 9360093 O-RING P-10A 2 2,200
7-8 9360437 LABEL,ECHO 1 3,850

품절
7-9 9360233 LABEL,MODEL 1 1,320

품절
7-10 9360234 SCREW 4 1,320

품절
7-11 9360079 와셔 4 550

품절
7-12 9360236 LABEL,CAUTION S-S 1 1,320

품절
7-13 9360567 BRACKET TANK 1 6,600
7-14 9360182 NUT,FLANGE 2 1,100
7-15 9360231 LABEL,CAUTION L-S 1 1,320

품절
7-16 9360774 FRAME BACKPACK ASSY 1 62,700
7-17 9360199 NUT,FLANGE 2 1,100

품절
7-18 9360711 CUSHION,KNAPSACK 1 22,000
7-19 9360104 클립 4 550

품절

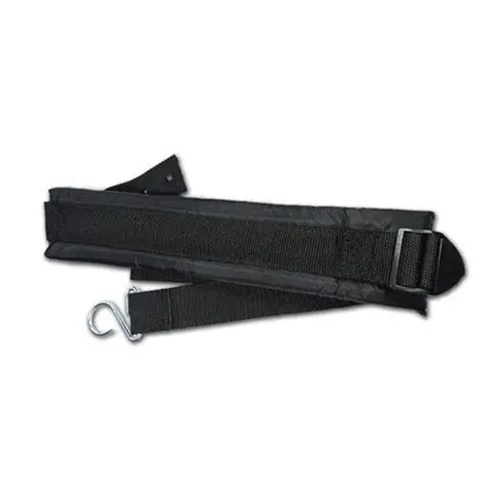

7-20 9360721 HARNESS BACKPACK 2 24,750
7-21 9360009 SCREW 5X14 2 550

품절
7-22 9360101 WASHER,HARNESS 4 550

품절
7-23 9360076 NUT,LOCK 5 2 550

품절
7-29 9360596 WRENCH,W/S. DRIVER 1 8,250

품절
7-30 9360065 POLY BAG 1 550

품절
7-31 9360466 SPANNER 14X17 1 4,400

품절
7-32 9360383 SPANNER 10X12 1 2,750

품절
7-55 9360692 TOOL,DRIVER 1 16,500

품절

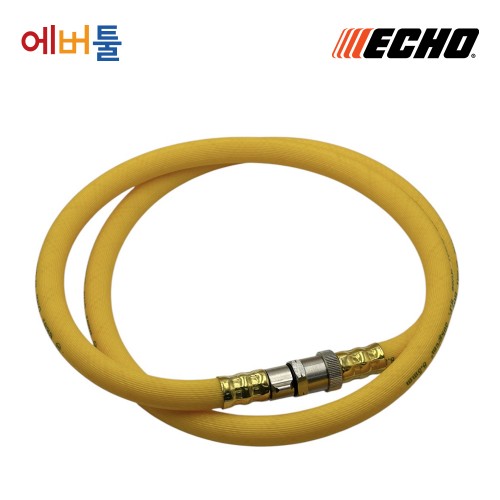

8-24 9360703 SPRAY HOSE ASSY 1 22,000
8-25 9360550 NOZZLE GRIP 1 6,600
8-26 9360589 NOZZLE VALVE 1 8,800
8-27 9360633 NOZZLE PIPE 1 22,000

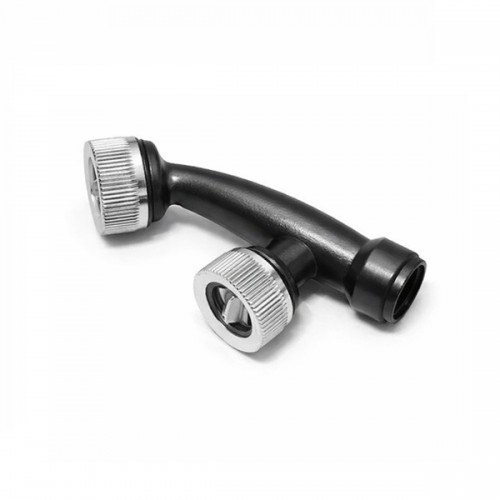

8-37 9360717 2NOZZLE PLASTIC D-5 1 23,100
8-40 9360075 SCREEN 2 550

품절
8-41 9360066 PACKING 2 550

품절
8-42 9360436 NOZZLE 2 3,850
8-43 9360291 CAP,NOZZLE 2 2,200

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
