에코 SHP-800BS 엔진분무기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 260개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9360023	SCREW 5X14	1	550	품절
1-2	9360684	COVER,CYLINDER	1	14,850	품절
1-4	9360801	CYLINDER	1	102,300
1-5	9394436	90016205022 BOLT,H.S.	2	880	품절
1-6	9360298	GASKET,CYL. BASE	1	2,200

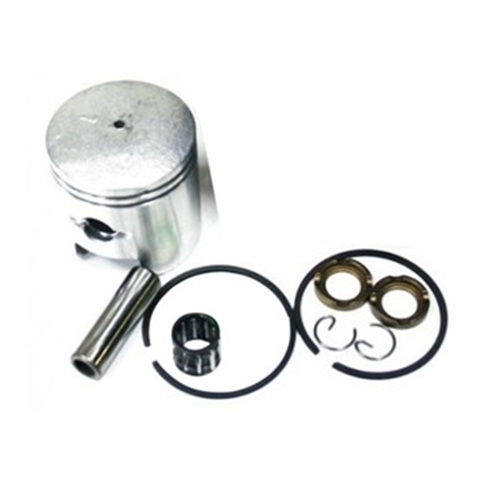

1-7	9360825	PISTON KIT	1	44,000
1-8	9360571	RING,PISTON	2	7,150	품절
1-9	9360072	CIRCLIP,PISTON PIN	2	1,100	품절
1-10	9360449	PIN,PISTON	1	4,400	품절
1-11	9360612	BEARING,NEEDLE 8	1	8,800	품절
1-12	9360457	SPACER, PISTON PIN	2	4,400	품절
1-13	9360813	CRANKSHAFT ASSY	1	126,500	품절
1-15	9360811	CRANKCASE KIT	1	126,500
1-16	9360472	OILSEAL	1	6,050
1-17	9360519	BEARING,BALL 6001	2	5,500
1-18	9360113	CIRCLIP 28	1	1,100	품절
1-19	9360281	GASKET,CRANKCASE	1	2,200	품절
1-20	9360025	SCREW 5X25	4	550	품절
1-21	9360458	OILSEAL ISCD 12X28X7	1	4,400	품절
2-2	9360478	SHAFT,CLUTCH	2	4,400	품절
2-4	9360131	WASHER,CIRCULAR 8	2	1,100	품절
2-5	9360680	SHOE,CLUTCH	2	14,300	품절
2-6	9360344	SPRING,TENSION	1	4,400
2-7	9360202	WASHER,CIRCULAR 6	2	1,100	품절
2-8	9360043	NUT 8	1	1,100	품절
2-10	9360005	와셔 8	1	1,100
2-11	9360791	ROTOR,MAGNETO	1	84,700	품절
2-12	9360122	OLT HSH	2	880	품절
2-13	9360219	SPACER	2	1,320	품절
2-14	9360157	GROMMET	1	880	품절

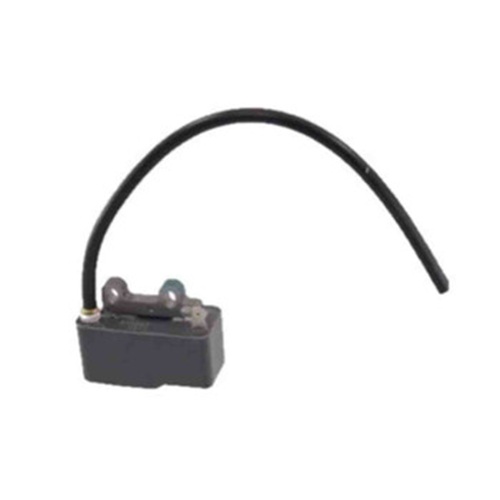

2-15	9360782	COIL,IGNITION	1	72,600
2-16	9360522	점화플러그캡	1	5,500
2-17	9360184	COIL,SPARK PLUG	1	1,100	품절
2-18	9360605	점화플러그 NGK BPM7Y	1	13,200
2-19	9360371	LEAD	1	2,750	품절
2-20	9360594	PAWL ASSY,STARTE R	1	12,100
2-21	9360035	E-RING 4	2	550	품절
2-22	9360222	SPRING,PAWL	2	1,650	품절
2-23	9360308	PAWL,STARTER	2	2,200	품절
2-25	9394445	SCREW	3	550
2-26	9360796	STARTER,RECOIL	1	93,500
2-28	9360401	GUIDE,ROPE	1	3,300	품절
2-29	9360241	PLATE,STARTER	1	1,320	품절
2-31	9360634	SPRING,SPIRAL	1	9,900	품절
2-32	9360132	COLLAR 8	1	1,100	품절
2-33	9360070	PIN,SNAP	2	550	품절
2-35	9360677	REEL,ROPE	1	14,300	품절
2-36	9360477	ROPE	1	4,400	품절
2-37	9360309	PAWL	2	2,200	품절
2-38	9360253	SPRING,COMPRESSION	2	1,650	품절
2-42	9360086	SCREW 5	1	1,100	품절
2-43	9360489	SPACER	1	4,950
2-44	9360120	BOLT,H.S. 4X14	4	880	품절
2-46	9360374	PLATE,ANGLE	1	2,750	품절
2-50	9360279	LABEL,CAUTION	1	1,650	품절
2-52	9360302	CUSHION	1	2,200	품절
2-53	9360754	SPRING,ASM POWER	1	44,000	품절
3-1	9360162	GASKET,INTAKE	1	880
3-2	9360432	INSULATOR	1	4,400	품절
3-3	9360111	볼트 H.S. 5X25	2	550	품절
3-4	9360152	GASKET,INTAKE	1	880
3-5	9360588	THROTTLE WIRE	1	7,700

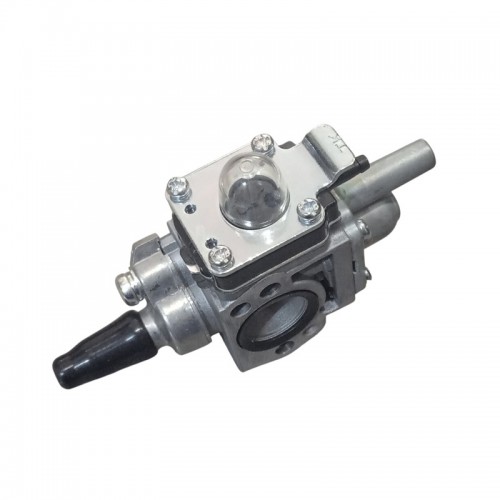

3-6	9360792	카뷰레터	1	84,700
3-7	9360048	SCREW 5X50	2	550	품절
3-8	9360726	CLEANER ASM,AIR	1	24,200
3-9	9360663	CASE,AIR CLEANER	1	12,100	품절

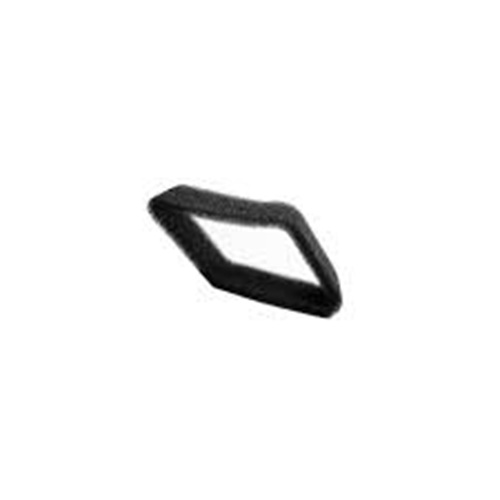

3-10	9360338	FILTER,AIR	1	3,300
3-11	9360568	COVER,AIR CLEANER	1	7,150
3-12	9360038	SCREW 5X16	1	550	품절
3-13	9360697	COVER,MUFFLER	1	17,600
3-14	9360067	BOLT,H.S. 5X8	2	550	품절
3-15	9392224	90010505055 BOLT	2	1,100	품절
3-16	9391871	와셔	2	1,100	품절
3-17	9360766	MUFFLER	1	55,000
3-18	9360624	GASKET,MUFFLER	1	9,900	품절
3-19	9360214	G231000021 PIPE,EXHAUST	1	1,320	품절
4-1	9360019	SCREW 5X16	1	550	품절
4-2	9360474	COVER,TOP	1	4,400	품절
4-3	9393780	SPRING	1	1,100	품절
4-4	9393781	SPRING RECEIVE	1	1,100
4-5	9360510	NEEDLE,JET	1	5,500	품절
4-6	9360073	12411605530 E-RING	1	550	품절
4-7	9360649	VALVE,THROTTLE	1	10,450	품절
4-8	9393805	SPRING	1	1,100	품절
4-9	9360197	SCREW	1	1,100	품절
4-10	9360198	GASKET,FRANGE	1	1,100	품절
4-11	9360606	JET,MAIN	1	8,800	품절
4-12	9360284	GASKET,CHAMBER	1	2,200	품절
4-13	9360639	CHAMBER,FLOAT	1	10,450	품절
4-14	9360014	SCREW 3X10	4	550	품절
4-15	9360318	WIRE,DRAIN	1	2,200	품절
4-16	9360174	SPRING,ADJUSTMENT	1	1,100	품절
4-17	9360369	GASKET	1	2,750
4-18	9360504	DIAPHRAGM,FUEL PUMP	1	5,500
4-19	9360326	PLATE,PUMP	1	2,200
4-20	9360328	GASKET,FUEL PUMP	1	2,200
4-21	9360656	COVER,PUMP	1	11,000	품절
4-22	9360441	PUMP,PRIMING	1	3,850
4-23	9360431	PLATE,PUMP	1	3,850	품절
4-24	9360015	SCREW 3X14	4	550	품절
4-25	9360353	CAP,RUBBER	1	2,420	품절
4-26	9360494	ADJUST,CABLE	1	4,950	품절
4-27	9393779	NUT	1	1,100	품절
4-29	9360630	JET,NEEDLE	1	9,900	품절
4-30	9360173	PACKING	1	1,100	품절
4-31	9360267	SPRING,BACK UP	1	1,650	품절
4-35	9360792	카뷰레터	1	84,700
5-1	9360513	OIL GAUGE	1	5,500
5-2	9360078	O-RING	1	550
5-3	9360591	GEAR CASE LID	1	7,700	품절
5-4	9360227	O-RING	1	1,320	품절
5-5	9392139	90080006001 BALL BEARING	2	6,600	품절
5-6	9360525	OILING BOLT	1	5,500	품절
5-7	9360116	O-RING	2	550	품절
5-8	9360769	PUMP BODY W/PIN	1	60,500
5-9	9360185	캡	1	1,100
5-10	9360433	GASKET	1	3,850
5-11	9360110	볼트 H.S. 5X18	4	550	품절
5-12	9360747	FAN COVER	1	37,400	품절
5-13	9360720	CLUTCH DRUM	1	24,200	품절
5-14	9360111	볼트 H.S. 5X25	2	550	품절
5-15	9360020	SCREW 4X12	3	550	품절
5-16	9360389	OIL SEAL	1	3,300
5-17	9360461	DRAIN CAP	1	4,400	품절
5-18	9360691	CONNECTING ROD	1	14,300	품절
5-19	9360715	CRANK SHAFT	1	23,100
5-20	9360289	KEY	1	2,200	품절
5-22	9360716	SPUR GEAR	1	23,100	품절
5-23	9360005	와셔 8	1	1,100
5-25	9360142	NUT	1	880	품절
5-26	9392160	볼베어링	1	7,700
5-27	9360696	PINION SHAFT	1	17,600
5-28	9360339	OIL SEAL	1	2,420	품절
5-30	9360406	PISTON PIN	1	3,300	품절
5-31	9360753	PLUNGER W/SPRINGSEAT	1	41,800
5-32	9360210	VALVE SPRING	1	1,650
5-33	9360313	DISK,VALVE	1	2,200
5-34	9360600	PISTON PACKING	1	8,800
5-35	9360359	P003000100 GASKET,PUMP	1	2,420	품절
5-36	9360314	STUD BOLT	2	2,200	품절
5-37	9360566	NUT GLAND	1	6,600	품절
5-38	9360228	L-PACKING	1	1,650
5-39	9360502	GREASE RING	1	4,950
5-40	9360674	V-PACKING SET	1	13,200
5-41	9360229	ADAPTER	1	2,200
5-42	9360464	GREASE CUP	1	4,400
5-43	9360752	CYLINDER	1	41,800
5-44	9360644	JOINT	1	10,450	품절
5-45	9360434	PACKING	1	3,850
5-46	9360727	SLEEVE	1	26,400
5-47	9360077	O-RING	1	550
5-48	9360662	VALVE CASING ASSY	1	12,100
5-49	9360586	VALVE ASSY	1	7,700
5-50	9360704	INTAKE PIPE	1	27,500	품절
5-51	9360064	NUT	2	550	품절
5-52	9360413	GASKET DRAIN	1	3,300
5-53	9360287	CAP,DRAIN	1	2,200
5-54	9360330	밴드	1	2,200	품절
5-55	9360485	SUCTION HOSE	2	4,950
5-56	9360668	CONNECTOR	1	11,000
5-57	9360734	AIR CHAMBER	1	33,000
5-58	9360177	와셔	1	1,100
5-59	9360417	VALVE SEAT	1	3,300
5-61	9360454	VALVE CASING	1	6,050
5-62	9360637	SPRING CASING	1	9,900
5-63	9360465	볼밸브	1	4,400
5-64	9360469	SPRING SEAT	1	4,400	품절
5-65	9360321	PRESSURE SPRING	1	2,200	품절
5-66	9360083	O-RING 7	1	550
5-67	9360329	SPRING SEAT	1	2,200	품절
5-68	9360322	LOCK NUT	1	2,200	품절
5-69	9360523	REGULATOR CAP	1	5,500
5-70	9360100	REGULATOR LABEL	1	550	품절
5-71	9360748	REGULATOR ASSY	1	38,500
5-72	9360206	밴드	2	1,320
5-73	9360372	RETURN HOSE	1	2,750	품절
5-74	9360382	ADAPTER	1	2,750	품절
5-82	9360025	SCREW 5X25	4	550	품절
5-84	9360821	O-RING 12.5	2	2,200
5-85	9360114	O-RING 16	2	550
5-86	9360274	SPRING SEAT	1	1,650
5-90	9360662	VALVE CASING ASSY	1	12,100
6-1	9360533	PIPE,OIL	1	6,050
6-2	9360527	FUEL HOSE	1	6,050
6-3	9394408	GROMMET	1	1,650	품절
6-4	9391505	FUEL FILTER SUBASSY	1	5,500
6-5	9360206	밴드	2	1,320
6-6	9360211	FUEL OUTLET HOSE	1	2,750
6-7	9360713	FUEL TANK	1	22,000
6-8	9360435	FUEL TANK CAP	1	3,850	품절
6-10	9360661	KNAPSACK FRAME	2	12,100
6-12	9360049	SCREW 6X15	4	550	품절
6-13	9360105	볼트 6X16	4	550	품절
6-14	9360046	와셔	4	550	품절
6-15	9360476	BRACKET,FUEL TANK	1	4,400	품절
6-16	9360232	CUSHION,FUEL TANK	2	1,320	품절
6-17	9360620	CUSHION	2	9,350
6-18	9360497	BRACKET ENGINE	1	4,950	품절
6-19	9360187	NUT,FLANGE 5	4	1,100	품절
6-20	9360040	SCREW 5X12	5	550	품절
6-21	9360407	BRACKET FUEL TANK	1	3,300	품절
6-22	9360182	NUT,FLANGE	4	1,100
6-23	9360615	PLATE,ANGLE	1	8,800	품절
6-24	9360619	CUSHION	2	9,350
6-25	9360498	PLATE,ANGLE	1	4,950	품절
6-26	9392127	NUT	1	1,100
6-27	9360290	FIXED PLATE	1	2,200	품절
6-28	9360582	BRACKET,THROTTLE	1	7,700
6-29	9360675	THROTTLE,CONTORL	1	13,200
6-30	9360024	SCREW 5X20	2	550	품절
6-31	9360818	STOP SWITCH	1	7,700
6-32	9360819	LEAD	1	3,300
6-33	9360103	PROTECTED PIPE	1	550	품절
6-36	9360160	GROMMET	1	880	품절
6-37	9394406	13201326630 CLIP	1	550	품절
6-38	9360234	SCREW	2	1,320	품절
6-39	9360079	와셔	2	550	품절
6-45	9360445	FUEL TANK CAP ASSY	1	3,850
6-50	9360575	GRIP,STARTER	1	8,800	품절
6-51	9360006	CREW	2	550	품절
6-52	9360133	NUT FLANGE	2	880	품절
6-53	9360486	BRACKET,HANDLE	1	4,950
6-54	9360403	GUIDE,ROPE	1	3,300	품절
6-55	9360628	GUIDE,ROPE	1	9,900

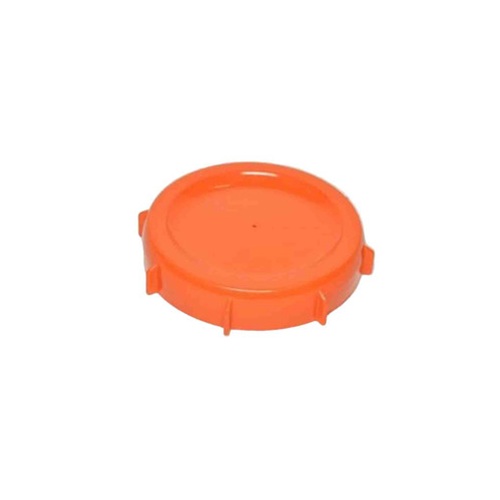

7-1	9360683	C.TANK CAP ASSY	1	15,400
7-3	9360503	PACKING,CH.TANK	1	4,950
7-4	9360595	FILTER,CH.TANK	1	8,250

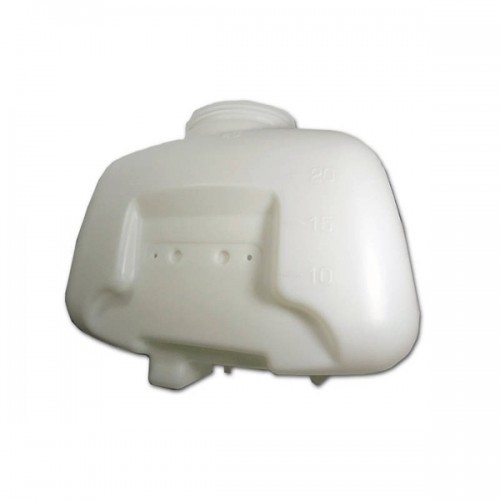

7-5	9360780	CHEMICAL TANK	1	55,000
7-6	9360452	볼트	2	4,400
7-7	9360093	O-RING P-10A	2	2,200
7-8	9360437	LABEL,ECHO	1	3,850	품절
7-9	9360239	LABEL,MODEL	1	1,320	품절
7-10	9360234	SCREW	4	1,320	품절
7-11	9360079	와셔	4	550	품절
7-12	9360235	LABEL,CAUTION S-E	1	1,320	품절
7-13	9360567	BRACKET TANK	1	6,600
7-14	9360182	NUT,FLANGE	2	1,100
7-15	9360230	LABEL,CAUTION L-E	1	1,320	품절
7-16	9360774	FRAME BACKPACK ASSY	1	62,700
7-17	9360199	NUT,FLANGE	2	1,100	품절
7-18	9360711	CUSHION,KNAPSACK	1	22,000
7-19	9360104	클립	4	550	품절

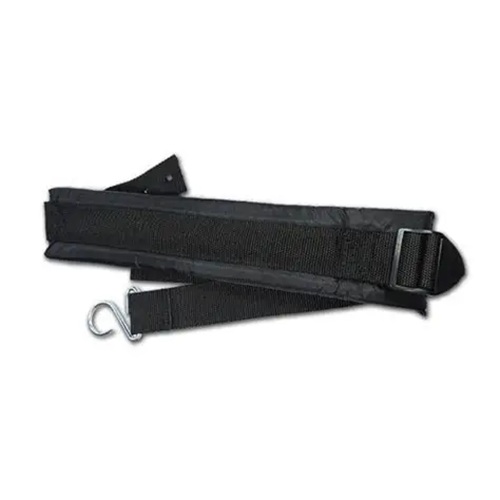

7-20	9360721	HARNESS BACKPACK	2	24,750
7-21	9360009	SCREW 5X14	2	550	품절
7-22	9360101	WASHER,HARNESS	4	550	품절
7-23	9360076	NUT,LOCK 5	2	550	품절
7-29	9360596	WRENCH,W/S. DRIVER	1	8,250	품절
7-30	9360065	POLY BAG	1	550	품절
7-31	9360466	SPANNER 14X17	1	4,400	품절
7-32	9360383	SPANNER 10X12	1	2,750	품절
7-55	9360692	TOOL,DRIVER	1	16,500	품절

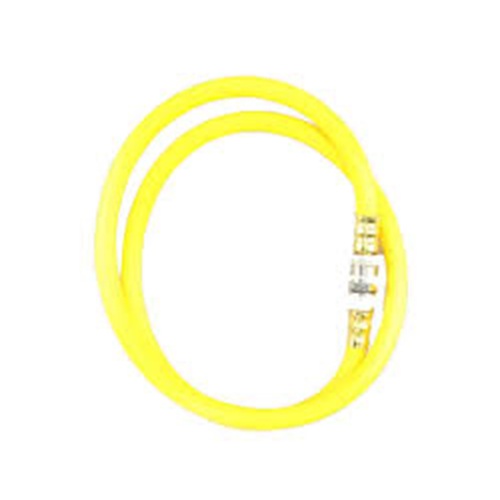

8-1	9360703	SPRAY HOSE ASSY	1	22,000
8-2	9360550	NOZZLE GRIP	1	6,600
8-3	9360589	NOZZLE VALVE	1	8,800
8-4	9360633	NOZZLE PIPE	1	22,000

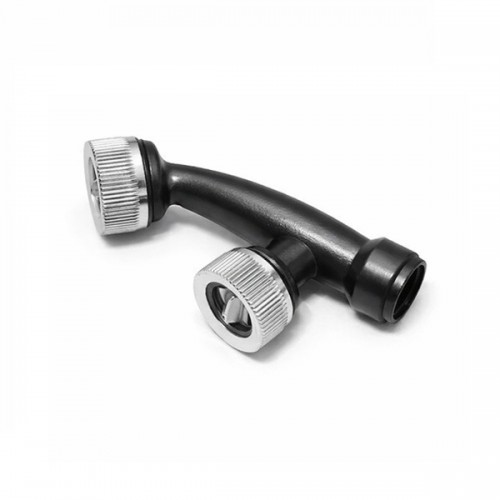

8-5	9360717	2NOZZLE PLASTIC D-5	1	23,100
8-6	9360075	SCREEN	2	550	품절
8-7	9360066	PACKING	2	550	품절
8-8	9360436	NOZZLE	2	3,850
8-9	9360291	CAP,NOZZLE	2	2,200	품절
