에코 DM-6110 동력살분무기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 212개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-3 9360648 10151406210 COVER,CYLINDER 1 10,450

품절
1-4 9360459 GASKET,MUFFLER 1 5,500
1-5 9394436 90016205022 BOLT,H.S. 4 880

품절
1-6 9361293 CYLINDER 1 121,000
1-7 9360022 90024205010 SCREW 5*10 1 1,100

품절
1-8 9361294 A160000680 COVER,CYLINDER 1 10,450

품절
1-9 9360097 GASKET,INTAKE 1 550
1-10 9360151 GASKET,CYL. BASE 1 880
1-11 9361302 PISTON KIT 1 49,500
1-12 9360531 RING,PISTON 2 6,600
1-13 9360480 PIN,PISTON 1 4,950
1-14 9360071 10001500120 CIRCLIP,PISTON PIN 2 550

품절
1-15 9360609 10001212331 BEARING,NEEDLE 1 8,800

품절
1-18 9361301 P021014700 CRANKCASE SET 1 124,300

품절
1-19 9361508 90033040080 PIN, DOWEL 2 1,100

품절
1-20 9360138 90016205040 BOLT H.S. 5*40 4 880

품절
1-22 9360150 GASKET,CRANKCASE 1 880
1-23 9360468 OILSEAL 2 4,400
1-24 9392717 볼베어링 2 8,800
1-25 9360312 15912908261 COVER,DUST 1 2,200

품절
1-26 9360039 90023805018 SCREW 5*18 1 550

품절
1-27 9360176 15011200310 BUSHING 1 1,100

품절
1-28 9360180 90029205025 SCREW 5*25 6 1,100

품절
1-30 9360802 10010006210 CRANKSHAFT ASS'Y 1 102,300

품절
1-33 9360144 KEY WOODRUFF 1 1,100
1-34 9360744 10401606410 COVER,ENGINE 1 36,300

품절
1-35 9360179 90029205020 SCREW 5*20 3 1,100

품절
1-36 9360279 LABEL,CAUTION 1 1,650

품절
2-4 9361287 연료뚜껑 연료캡 1 13,200
2-5 9361286 13100305330 CUP SET,VENT 1 2,200

품절
2-6 9360285 13101621060 GASKET,FUEL CAP 1 2,200

품절
2-8 9361511 TANK,FUEL 1 19,800
2-9 9360011 90022006014 SCREW 6*14 2 550

품절
2-10 9392415 90060500006 SPRING WASHER 2 550

품절
2-11 9360058 14564200760 WASHER 6.5*18*1.6 2 550

품절
2-13 9361284 9133105060 SCREW 2 550

품절
2-17 9361519 V103000000 GASKET,INTAKE 1 1,650

품절
2-18 9361517 P021010213 INSULATOR,INTAKE KIT 1 7,700

품절
2-19 9360108 볼트 H.S.H. 5X30 2 550

품절
2-20 9361518 P021040350 GASKET,INTAKE 1 13,200

품절
2-21 9360237 89012165830 LABEL,CHOKE 1 1,320

품절
2-23 9361292 카뷰레터 아세이 1 88,000
2-27 9361309 V471000550 PIPE 1 3,300

품절
2-28 9361299 CLEANER CASE ASSY 1 14,300
2-29 9361295 A244000020 PLATE,PREVENT 1 3,850

품절
2-30 9360301 GRID,AIR CLEANER 1 2,200
2-31 9360399 FILTER,AIR 1 3,300
2-32 9360420 FILTER,AIR 1 3,630
2-33 9360300 GRID,AIR CLEANER 1 2,200
2-34 9361285 COVER,AIR CLEANER 1 3,850
2-37 9361459 13211556230 GROMMET, FUEL 1 2,200

품절
2-38 2075131 DRAIN FUEL HOSE (ECHO) 1 2,420
2-39 9394406 13201326630 CLIP 1 550

품절
2-40 9391505 FUEL FILTER SUBASSY 1 5,500
3-3 9360062 90050100010 NUT 10*1.25 1 550

품절
3-4 9393740 SPRING WASHER 1 550

품절
3-5 9360033 90060200010 WASHER 10 1 550

품절
3-6 9360771 FAN 1 62,700
3-7 9360080 90014805035 BOLT 5*35 4 550

품절
3-8 9360783 ROTOR,MAGNETO 1 71,500
3-9 9360039 90023805018 SCREW 5*18 2 550

품절
3-10 9360788 C.D. IGNITION MODULE 1 80,300
3-12 9360220 튜브 1 1,320
3-13 9361460 CAP, SPARK PLUG 1 5,500
3-14 9361461 ADAPTER, PLUG CAP 1 1,100

품절

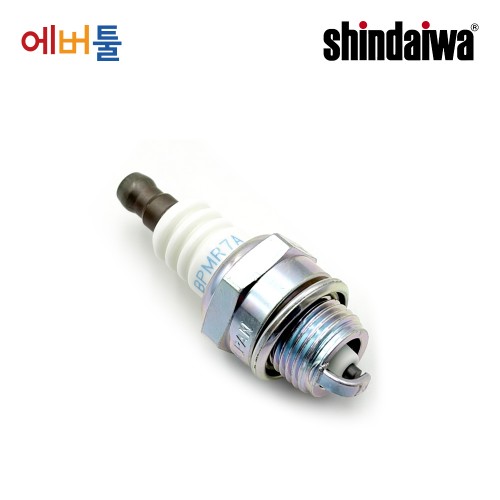

3-15 9391582 SPARK PLUG 1 10,450
3-20 9360593 PULLEY, ASM STARTER 1 8,250
3-21 9360035 E-RING 4 1 550

품절
3-24 9360307 17721840630 PAWL,STARTER 1 2,200

품절
3-26 9361289 STARTER ASSY 1 55,000
3-27 9361291 17723640630 SCREW 1 2,200

품절
3-28 9361304 P022022280 WASHER 1 880

품절
3-29 9361290 17721511120 DRUM,STARTER 1 18,700

품절
3-30 9360442 17722611120 ROPE,STARTER 1 3,850

품절
3-31 9360401 GUIDE,ROPE 1 3,300

품절
3-32 9360511 17722811120 GRIP,STARTER 1 5,500

품절
3-35 9360081 90029204018 SCREW 4*18 4 550

품절
3-36 9360306 LABEL,ECHO 1 2,200

품절
3-37 9360583 30002906210 PLATE,ANGLE 1 7,700

품절
3-38 9360302 CUSHION 1 2,200

품절
3-41 9360366 GASKET,MUFFLER 1 2,750
3-42 9361300 MUFFLER ASSY 1 33,000
3-43 9392788 90010506020 BOLT 2 550

품절
3-44 9360023 SCREW 5X14 1 550

품절
4-4 9360051 SCREW 5X25 11 550
4-5 9361514 E103001021 CASE, FAN 1 72,600

품절
4-6 9360252 21042504110 BOLT 2 1,650

품절
4-7 9360034 90060900005 WASHER,SPRING 2 550

품절
4-8 9360044 90060400005 WASHER 5 2 550

품절
4-9 9360729 TANK,LOWER 1 27,500
4-10 9360453 PACKING 1 4,400
4-11 9360226 PLATE 1 1,320
4-12 9360136 GUIDE,AIR 1 880
4-13 9360695 PIPE,DUST OUTLET 1 17,600
4-14 9360186 NUT 5B 2 1,100
4-15 9361462 20010507713 CASE, FAN 1 72,600

품절
4-16 9361502 70103306211 PIN, STRAIGHT 10 1 5,500

품절
4-17 9361510 90070300008 E-RING 8 1 550

품절
5-1 9361481 FRAME, BACKPACK 1 68,200
5-2 9360636 CUSHION 2 9,900
5-3 9360631 CUSHION 2 9,900
5-4 9360191 25091606210 NUT 4 1,100

품절
5-5 9360711 CUSHION,KNAPSACK 1 22,000
5-6 9360351 30033306160 CLIP 4 2,420

품절
5-7 9361482 30030204711 HARNESS, W/PAD 2 24,200

품절
5-9 9360010 90021605016 SCREW 5*16 2 550

품절
5-10 9360135 30032803210 WASHER,HARNESS 4 880

품절
5-11 9360076 NUT,LOCK 5 2 550

품절
6-5 9361506 89034805060 LABEL, SPEED 1 550

품절
6-6 9394428 89015739130 LABEL,SWITCH 1 1,650

품절
6-7 9360180 90029205025 SCREW 5*25 2 1,100

품절
6-8 9361456 7011106213 DIAL 1 6,600

품절
6-9 9360186 NUT 5B 2 1,100
6-10 9361503 70111206414 BRACKET, DIAL 1 7,700

품절
6-11 9360273 KNOB,LEVER 1 1,650
6-12 9361513 C453000131 LEVER,THROTTLE 1 8,800

품절
6-13 9360051 SCREW 5X25 4 550
6-14 9360178 90029205014 SCREW 5*14 2 1,100

품절
6-15 9360584 70100706610 KNOB,LEVER 1 7,700

품절
6-16 9392193 NUT 1 1,100
6-17 9361500 70101006610 LEVER, CONTROL 1 13,200

품절
6-18 9360379 CONNECTOR 1 2,750
6-19 9392127 NUT 1 1,100
6-20 9361501 70101406510 ROD, CONTROL LEVER 1 6,600

품절
6-21 9361499 60561206510 PIN, SNAP 1 1,100

품절
6-22 9361521 CABLE, BOWDEN 1 11,000
6-23 9360005 와셔 8 1 1,100
6-24 9360303 HOLDER,STOPPER 1 2,200
6-25 9361509 90050300006 NUT 2 550

품절
6-26 9393423 90060000006 WASHER 2 1,100

품절
7-5 9361464 PIPE, CURVED (GY) 1 6,600

품절
7-6 9361463 21001401610 PIPE, STRAIGHT 1 8,800

품절
7-7 9360460 PACKING,FLX. PIPE 1 4,400
7-8 9360828 CLAMP,FLEXIBLE PIPE 1 6,050
7-9 9360749 PIPE,FLEXIBLE 1 40,700
7-10 9360501 GASKET,FLX. PIPE 1 5,500
7-11 9361520 V419001201 CLAMP, FLEXIBLE PIPE 1 5,500

품절
7-12 9360698 ELBOW,BLOWING 1 17,600
7-13 9360023 SCREW 5X14 1 550

품절
7-14 9392127 NUT 1 1,100
7-15 9361471 CAP, CHEMICAL TANK 1 13,200
7-16 9361472 25001300310 CAP, INSIDE 1 1,100

품절
7-17 9360559 PACKING 1 6,600

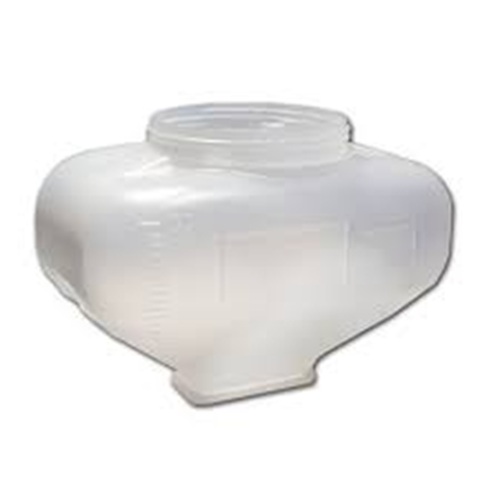

7-18 9361473 TANK, CHEMICAL 1 121,000
7-19 9361523 X502000440 LABEL,ECHO 1 4,400

품절
7-20 9361505 89016009461 LABEL, CAUTION 1 2,200

품절
7-21 9361524 X503008360 LABEL, MODEL 1 2,200

품절
7-22 9361480 HOLDER ASSY, C.TANK 1 68,200

품절
7-23 9360141 9114805035 BOLT HS FL TAPP 4 880

품절
7-24 9361475 25091006310 HOLDER, C. TANK 2 11,000

품절
7-25 9361476 25091406210 PIN, TANK HOLDER 2 3,850

품절
7-26 9361474 BRACKET ASSY, C.TANK 2 27,500

품절
7-27 9361477 25091506310 BOLT, TANK HOLDER 2 19,800

품절
7-28 9360257 25093006210 CONNECTOR,BRACKET 2 1,650

품절
7-29 9360539 25093206210 BRACKET,TANK 2 6,050

품절
7-30 9360213 90033370380 PIN,STRAIGHT 1 1,320

품절
8-1 9360206 밴드 1 1,320
8-2 9361494 36301900310 NUT, CONNECTOR 1 1,100

품절
8-3 9361493 36301800310 WASHER 1 550

품절
8-4 9361496 36302200510 PLUG 1 2,200

품절
8-5 9361492 36301700310 CONNECTOR, PIPE 1 2,200

품절
8-6 9361490 36301100210 PIPE, AIR (OUTER) 1 1,100

품절
8-7 9361495 36302101110 PLUG 1 2,200

품절
8-8 9361515 E105000000 PIPE, AIR 1 4,400

품절
8-9 9361491 36301400310 PIPE (INNER) 1 2,200

품절
8-10 9361479 25421003210 FILTER 1 6,600

품절
8-12 9361046 밴드 5 550
8-13 9361478 PLATE, TANK BOTTOM 1 17,600
8-14 9360482 GASKET,SHUTTER 1 4,950
8-15 9361483 35701001110 NIPPLE, OUTLET 1 2,200

품절
8-16 9361485 35701401110 O-RING 1 1,100

품절
8-17 9361486 35701501110 NUT, HOLLOW 1 2,200

품절
8-18 9361497 36302301110 CLIP 1 1,100

품절
8-19 9361488 35791100111 CLIP, PIPE 1 1,100

품절
8-20 9361484 35701102410 PIPE (L-650) 1 1,650

품절
8-21 9361489 35810001111 COCK, LIQUID 1 9,900

품절
8-22 9361487 35703201110 PIPE (L-720) 1 2,200

품절
8-23 9361465 21250001112 NOZZLE ASS'Y 1 27,500

품절
8-24 9361469 21251501110 COLLAR, NOZZLE 1 6,600

품절
8-25 9361468 NUT, MISTING NOZZLE 1 2,200

품절
8-26 9361467 RING, MISTING NOZZLE 1 1,100

품절
8-27 9361470 22200001110 NOZZLE 1 4,400

품절
8-28 9361466 21250101111 HEAD, NOZZLE 1 11,000

품절
8-29 9361507 90024605012 SCREW 5*12 1 550

품절
8-30 9360565 X602000020 TOOL,WRENCH 1 6,600

품절
8-31 9361504 89003101110 LABEL, MIST 1 550

품절
8-32 9360041 90028605016 SCREW 5*16 1 550

품절
9-2 9361292 카뷰레터 아세이 1 88,000
9-3 9392397 12311440630 SCREW 2 1,100

품절
9-4 9361296 P003000180 BRACKET CABLE 1 6,050

품절
9-5 9392396 12317245130 SWIVEL 1 6,050

품절
9-6 9392398 12314954230 WASHER 1 1,100

품절
9-7 9392401 12317307930 E RING 1 1,100

품절
9-8 9392402 12314312110 RING GASKET 1 1,650

품절
9-9 9392104 12318340630 O RING 1 1,100

품절
9-10 9361297 P003000990 JET 1 4,400

품절
9-11 9392106 GASKET,PUMP 1 3,850
9-12 9392107 12311240630 DIAPHRAGM 1 6,600
9-13 9392422 12317905560 PUMP BODY COMP 1 55,000

품절
9-14 9391596 12312610631 SCREEN 1 1,100

품절
9-15 9391602 NEEDLE VALVE 1 4,400

품절
9-16 9392404 12312205560 SPRING 1 2,750

품절
9-17 9391853 PIN 1 1,100

품절
9-18 9391851 LEVER 1 3,300

품절
9-19 9392405 12313905560 SCREW 1 3,300

품절
9-20 9392406 GASKET 1 1,650
9-21 9392109 DIAPHRAGM 1 11,000
9-22 9392407 12318005560 PUMP BASE COMP 1 15,400

품절
9-23 9392409 12318140630 PRIMER PUMP 1 4,400
9-24 9392410 12314205560 PUMP COVER 1 3,300

품절
9-25 9392411 12311005560 SCREW 4 1,100

품절
9-26 9361298 P003001130 NEEDLE,HIGH SPEED 1 6,050

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
