에코 DMC-800F 비료살포기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 249개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-3	9360648	10151406210 COVER,CYLINDER	1	10,450	품절
1-4	9360459	GASKET,MUFFLER	1	5,500
1-5	9394436	90016205022 BOLT,H.S.	4	880	품절
1-6	9360809	CYLINDER	1	121,000
1-7	9360022	90024205010 SCREW 5*10	1	1,100	품절
1-8	9360557	10157606210 COVER,CYLINDER	1	6,600
1-9	9360097	GASKET,INTAKE	1	550
1-10	9360151	GASKET,CYL. BASE	1	880
1-11	9361302	PISTON KIT	1	49,500
1-12	9360531	RING,PISTON	2	6,600
1-13	9360480	PIN,PISTON	1	4,950
1-14	9360071	10001500120 CIRCLIP,PISTON PIN	2	550	품절
1-15	9360609	10001212331 BEARING,NEEDLE	1	8,800	품절
1-18	9360810	CRANKCASE KIT	1	124,300
1-19	9360508	NEEDLE,IDLE	2	5,500	품절
1-20	9360060	90024205040 SCREW 5*40	4	550	품절
1-22	9360150	GASKET,CRANKCASE	1	880
1-23	9360468	OILSEAL	2	4,400
1-24	9392717	볼베어링	2	8,800
1-25	9360312	15912908261 COVER,DUST	1	2,200	품절
1-26	9360039	90023805018 SCREW 5*18	1	550	품절
1-27	9360176	15011200310 BUSHING	1	1,100	품절
1-28	9360180	90029205025 SCREW 5*25	6	1,100	품절
1-30	9360802	10010006210 CRANKSHAFT ASS'Y	1	102,300	품절
1-31	9360144	KEY WOODRUFF	1	1,100
1-32	9360744	10401606410 COVER,ENGINE	1	36,300	품절
1-33	9360179	90029205020 SCREW 5*20	3	1,100	품절
1-34	9360718	10110006810 RELEASE ASS'Y	1	24,200	품절
1-35	9360270	10111252030 GASKET,V.SEAT	1	1,650	품절
1-37	9360036	E-RING 3	1	550
2-3	9360062	90050100010 NUT 10*1.25	1	550	품절
2-4	9393740	SPRING WASHER	1	550	품절
2-5	9360033	90060200010 WASHER 10	1	550	품절
2-6	9360771	FAN	1	62,700
2-7	9360080	90014805035 BOLT 5*35	4	550	품절
2-8	9360783	ROTOR,MAGNETO	1	71,500
2-9	9360039	90023805018 SCREW 5*18	2	550	품절
2-10	9360788	C.D. IGNITION MODULE	1	80,300
2-12	9360220	튜브	1	1,320
2-13	9360522	점화플러그캡	1	5,500
2-14	9360184	COIL,SPARK PLUG	1	1,100	품절
2-15	9360605	점화플러그 NGK BPM7Y	1	13,200
2-20	9360593	PULLEY, ASM STARTER	1	8,250
2-21	9360035	E-RING 4	1	550	품절
2-23	9360307	17721840630 PAWL,STARTER	1	2,200	품절
2-24	9360805	17720006910 STARTER ASS'Y	1	137,500
2-25	9360320	17723606910 SCREW	1	2,200	품절
2-26	9360700	17721506910 DRUM,STARTER	1	18,700	품절
2-28	9392099	A522000040 STOPPER	1	2,200	품절
2-30	9360442	17722611120 ROPE,STARTER	1	3,850	품절
2-31	9360401	GUIDE,ROPE	1	3,300	품절
2-32	9360511	17722811120 GRIP,STARTER	1	5,500	품절
2-33	9360268	17723406910 SPRING,RETURN	1	1,650	품절
2-34	9360271	17728006910 PLATE,CAM	1	1,650	품절
2-35	9360084	P022005100 PIN,SPLIT	1	550	품절
2-36	9360081	90029204018 SCREW 4*18	4	550	품절
2-37	9360305	89011849330 LABEL,ECHO	1	2,200	품절
2-38	9360583	30002906210 PLATE,ANGLE	1	7,700	품절
2-39	9360302	CUSHION	1	2,200	품절
2-41	9360366	GASKET,MUFFLER	1	2,750
2-42	9360736	MUFFLER,EXHAUST	1	36,300
2-43	9392788	90010506020 BOLT	2	550	품절
2-44	9360023	SCREW 5X14	1	550	품절

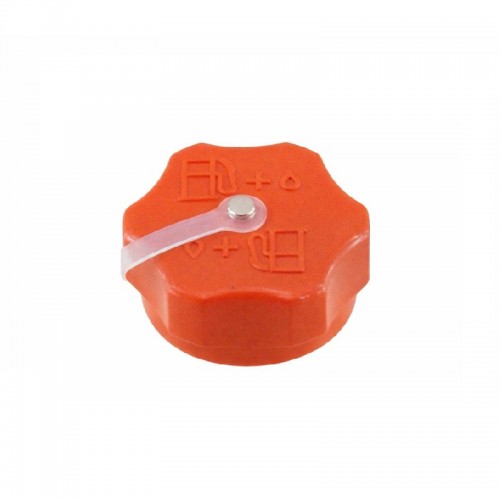

3-5	9360673	13160042230 CAP ASS'Y,FUEL TA NK	1	13,200	품절
3-6	9360319	13100321230 CUP SET,VENT	1	2,200	품절
3-7	9360285	13101621060 GASKET,FUEL CAP	1	2,200	품절
3-8	9360814	13100506214 TANK,FUEL	1	19,800	품절
3-9	9360572	13201035431 PIPE	1	7,150	품절
3-10	9394407	GROMMET	1	880
3-11	9394406	13201326630 CLIP	1	550	품절
3-12	9360537	STRAINER,FUEL	1	6,050
3-14	9360373	PAWL	1	2,750	품절
3-15	9360088	13201305060 CLIP,PIPE	1	550	품절
3-16	9360250	13201006530 PIPE 36 85	1	1,650	품절
3-17	9360096	GASKET,INTAKE	1	550
3-18	9360299	INSULATOR	1	2,200
3-19	9360153	GASKET,CARBURETOR	1	880
3-21	9360237	89012165830 LABEL,CHOKE	1	1,320	품절
3-23	9360795	카뷰레터 아세이	1	88,000	품절
3-24	9360112	90024206065 SCREW 6*65	2	550	품절
3-25	9360261	13032005510 GASKET,INTAKE	1	1,650	품절
3-26	9360206	밴드	2	1,320
3-27	9360411	PIPE	1	3,300
3-28	9360579	CASE,AIR CLEANER	1	7,150
3-29	9360021	90024204014 SCREW 4*14	3	550	품절
3-30	9360301	GRID,AIR CLEANER	1	2,200
3-31	9360399	FILTER,AIR	1	3,300
3-32	9360420	FILTER,AIR	1	3,630
3-33	9360300	GRID,AIR CLEANER	1	2,200
3-34	9360444	LID,CLEANER	1	3,850
3-36	9360249	X505001740 LABEL,CAUTION	1	1,320	품절
3-40	9360058	14564200760 WASHER 6.5181.6	2	550	품절
3-41	9392415	90060500006 SPRING WASHER	2	550	품절
3-42	9360011	90022006014 SCREW 6*14	2	550	품절
4-1	9360760	SHUTTER ASSY	1	51,700
4-2	9360082	90072000004 O-RING	1	550	품절
4-3	9360293	90053900005 NUT,WING 5	1	2,200	품절
4-4	9360451	25011006212 STABILIZER	1	4,400	품절
4-5	9360225	27001506211 BOLT,STUD	1	1,320	품절
4-7	9360052	90029504014 SCREW 4*14	4	550	품절
4-20	9390707	263984 WASHER	1	330	품절
4-22	9360031	90026604012 SCREW 5*14	1	550	품절
4-23	9360549	27011407610 PIECE,SHUTTER	1	6,600	품절
4-24	9360272	27011306310 PIECE,SHUTTER	1	1,650	품절
4-25	9360098	27511507610 SCREW 5	1	550	품절
4-26	9360068	90022604010 SCREW 4*10	2	550	품절
4-27	9360288	27015306210 SHAFT,SHUTTER	1	2,200	품절
4-28	9360059	27512305510 SPACER 1019.50.3	2	550	품절
4-29	9360421	27012206211 PLATE,EYE	1	3,630	품절
4-30	9360481	27011006210 SHUTTER	1	4,950	품절
4-31	9360045	21003506310 PACKING,DUST	1	550	품절
4-32	9360632	27011206211 SHUTTER,METERING	1	9,900	품절
4-33	9360482	GASKET,SHUTTER	1	4,950
4-35	9360378	ARM	1	3,300
4-36	9360738	SHAFT,SHUTTER	1	35,200
4-37	9360729	TANK,LOWER	1	27,500
4-38	9360092	SCREW 4X14	2	550
4-39	9360083	O-RING 7	1	550
4-42	9360051	SCREW 5X25	11	550
4-43	9360785	CASE,FAN	1	105,600
4-44	9360252	21042504110 BOLT	2	1,650	품절
4-45	9360034	90060900005 WASHER,SPRING	2	550	품절
4-46	9360044	90060400005 WASHER 5	2	550	품절
4-48	9360453	PACKING	1	4,400
4-49	9360226	PLATE	1	1,320
4-50	9360136	GUIDE,AIR	1	880
4-51	9360695	PIPE,DUST OUTLET	1	17,600
4-52	9360186	NUT 5B	2	1,100
4-53	9360784	CASE,FAN	1	102,300
5-1	9361481	FRAME, BACKPACK	1	68,200
5-2	9360636	CUSHION	2	9,900
5-3	9360631	CUSHION	2	9,900
5-4	9360191	25091606210 NUT	4	1,100	품절
5-5	9360711	CUSHION,KNAPSACK	1	22,000
5-6	9360351	30033306160 CLIP	4	2,420	품절
5-7	9360719	HARNESS,W/PAD	2	24,200
5-9	9360010	90021605016 SCREW 5*16	2	550	품절
5-10	9360135	30032803210 WASHER,HARNESS	4	880	품절
5-11	9360076	NUT,LOCK 5	2	550	품절
6-5	9360484	70102706212 STOPPER,DIAL	1	4,950	품절
6-6	9360090	70111406210 PLATE,EYE	1	550	품절
6-7	9360193	70101606210 SPRING	1	1,100	품절
6-8	9360089	70101706210 WASHER	1	550	품절
6-9	9360042	90029604012 SCREW 4*12	1	550	품절
6-10	9360180	90029205025 SCREW 5*25	2	1,100	품절
6-11	9360816	DIAL	1	7,150
6-12	9360186	NUT 5B	2	1,100
6-13	9360817	BRACKET,DIAL	1	7,700
6-14	9360273	KNOB,LEVER	1	1,650
6-15	9360616	LEVER,THROTTLE	1	9,350
6-16	9360051	SCREW 5X25	4	550
6-17	9360041	90028605016 SCREW 5*16	2	550	품절
6-18	9360584	70100706610 KNOB,LEVER	1	7,700	품절
6-19	9392193	NUT	1	1,100
6-20	9360682	LEVER,METERING	1	14,300
6-21	9360005	와셔 8	1	1,100
6-22	9360379	CONNECTOR	1	2,750
6-23	9392127	NUT	1	1,100
6-24	9360303	HOLDER,STOPPER	1	2,200
6-25	9360585	ROD,CONTROL LEVER	1	7,700
6-26	9360099	SPRING	1	1,100
6-27	9360512	PLATE,ANGLE	1	5,500
6-28	9360036	E-RING 3	1	550
6-30	9360599	WIRE,THROTTLE	1	8,250
7-5	9360686	CAP,CHEMICAL TANK	1	15,400
7-7	9360559	PACKING	1	6,600
7-8	9360808	TANK,CHEMICAL	1	121,000
7-9	9360246	X503006770 LABEL,MODEL	1	1,320	품절
7-10	9360365	X505002100 LABEL,CAUTION	1	2,420	품절
7-12	9360292	89008107310 LABEL,CAUTION	1	2,200	품절
7-13	9360355	89001607011 LABEL,CAUTION	1	2,420	품절
7-14	9360354	89001606213 LABEL,CAUTION	1	2,420	품절
7-15	9360356	89009806211 LABEL,CAUTION	1	2,420	품절
7-16	9360732	P021005861 HOLDER SET	1	30,800	품절
7-17	9360141	9114805035 BOLT HS FL TAPP	4	880	품절
7-18	9360638	E115000001 FIXTURE,TANK	2	9,900	품절
7-20	9360315	C649000110 HOOK	2	2,200	품절
7-21	9360347	V626000050 PIN,STRAIGHT 8	2	2,420	품절
7-22	9360342	V225000052 BOLT,STUD 8	2	2,420	품절
7-23	9360257	25093006210 CONNECTOR,BRACKET	2	1,650	품절
7-24	9360539	25093206210 BRACKET,TANK	2	6,050	품절
7-25	9360213	90033370380 PIN,STRAIGHT	2	1,320	품절
7-30	9360398	X505001760 LABEL,CAUTION	1	3,300	품절
7-32	9360362	X505001751 LABEL,CAUTION	1	2,420	품절
7-33	9360363	X505001771 LABEL,CAUTION	1	2,420	품절
7-34	9360249	X505001740 LABEL,CAUTION	1	1,320	품절
8-1	9360532	22010501610 CONNECTER KIT	1	6,600	품절
8-2	9360475	22002801611 CONNECTOR	1	4,400	품절
8-3	9360327	22003301610 NUT,HOLLOW	1	2,200	품절
8-4	9360460	PACKING,FLX. PIPE	2	4,400
8-5	9360622	PIPE,CURVED	1	9,900
8-6	9360658	PIPE,STRAIGHT	1	12,100
8-7	9360665	PIPE,STRAIGHT	1	12,100
8-8	9360640	PIPE,SWIVEL	1	10,450
8-9	9360828	CLAMP,FLEXIBLE PIPE	1	6,050
8-11	9360749	PIPE,FLEXIBLE	1	40,700
8-12	9360501	GASKET,FLX. PIPE	1	5,500
8-13	9360829	CLAMP,FLEXIBLE PIPE	1	6,050
8-14	9360698	ELBOW,BLOWING	1	17,600
8-15	9360178	90029205014 SCREW 5*14	1	1,100	품절
8-16	9360082	90072000004 O-RING	1	550	품절
8-17	9360186	NUT 5B	1	1,100
8-20	9360820	89854401112 MASK	1	6,600	품절
8-21	9360565	X602000020 TOOL,WRENCH	1	6,600	품절
8-23	9360422	89855202910 GRAUND LEAD	1	3,630	품절
8-24	9360516	V451000410 SPRING,TENSION	1	5,500	품절
9-2	9360714	HANDLE KIT	1	23,650
9-3	9360483	35232506910 KNOB,FASTENER	1	4,950	품절
9-4	9360055	90063000006 WASHER 6.5162T	2	550	품절
9-5	9360560	35102806810 BRACKET,HANDLE	2	6,600	품절
9-6	9360701	30581106810 HANDLE,FRONT	2	18,700	품절
9-7	9360137	90010406030 BOLT 6*30 SUS	1	880	품절
9-8	9360722	P021003620 NOZZLE DMK-2 NO.1	2	25,300	품절
9-9	9360397	X503003050 LABEL,MODEL	1	3,300	품절
9-10	9360358	E287000010 GUIDE,BLOW HEAD	1	2,420	품절
9-11	9360061	90029403006 SCREW 3*6	4	550	품절
9-12	9360723	NOZZLE DMK-2 NO.2	2	25,300
9-13	9360488	E287000000 GUIDE,BLOW HEAD	3	4,950	품절
9-15	9360724	P021003650 NOZZLE DMK-2 NO.4	1	25,300	품절
9-17	9360430	X524000820 LABEL	1	3,630	품절
10-1	9393777	ADJUSTER CAP	1	2,750	품절
10-2	9360569	12415805510 ADJUSTER	1	7,150	품절
10-3	9360216	12411105510 NUT	1	1,320	품절
10-4	9360017	90024104012 SCREW 4*12	2	550	품절
10-5	9360473	12411305510 COVER,TOP	1	4,400	품절
10-6	9360217	12411405510 SPRING,THROTTLE	1	1,320	품절
10-7	9360171	12411505510 SEAT,SPRING	1	1,100	품절
10-8	9360073	12411605530 E-RING	1	550	품절
10-9	9360440	P004000110 NEEDLE,JET	1	3,850	품절
10-10	9360653	12411805510 VALVE,THROTTLE	1	11,000	품절
10-11	9360207	12417205511 GASKET,BODY TOP	1	1,320	품절
10-12	9360317	12418205510 WIRE,DRAIN	1	2,200	품절
10-13	9360603	12416205510 JET,NEEDLE	1	8,800	품절
10-14	9393608	P021022130 CRANKCASE,M COMP	1	70,400	품절
10-15	9360380	12412305510 GASKET,CHAMBER	1	2,750	품절
10-16	9360260	GASKET,PUMP DIAPH.	1	1,650
10-17	9360643	DIAPHRAGM,FUEL PUMP	1	11,000
10-18	9360655	12436505510 COVER,PUMP	1	11,000	품절
10-19	9360014	SCREW 3X10	4	550	품절
10-20	9360266	SPRING,COIL	2	1,650
10-21	9360654	12412405910 CHANBER	1	11,000	품절
10-22	9360018	90024104030 SCREW 4*30	2	550	품절
10-23	9360172	12416305510 PLATE	1	1,100	품절
10-25	9360547	캡	1	6,600
10-26	9360509	12414206210 LEVER,CHOKE	1	5,500	품절
10-27	9360337	12414306210 SHUTTER,CHOKE	1	2,420	품절
10-28	9393779	NUT	1	1,100	품절
10-29	9392415	90060500006 SPRING WASHER	1	550	품절
10-35	9360795	카뷰레터 아세이	1	88,000	품절
