에코 PB-500 송풍기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 190개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9360067 BOLT,H.S. 5X8 2 550

품절
1-2 9360573 A160001040 COVER,CYLINDER 1 7,150

품절
1-3 9394436 90016205022 BOLT,H.S. 4 880

품절

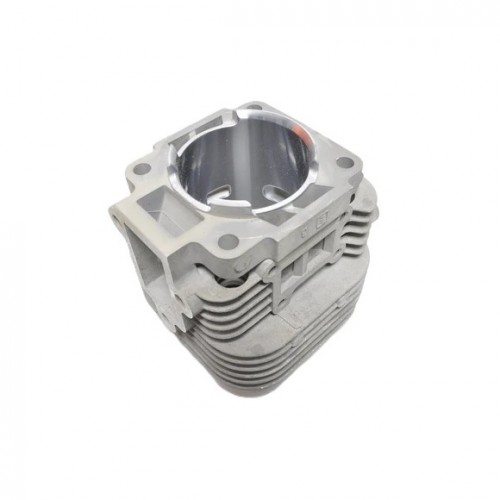

1-4 9360799 CYLINDER 1 95,700
1-5 9360295 GASKET,CYL 1 2,200

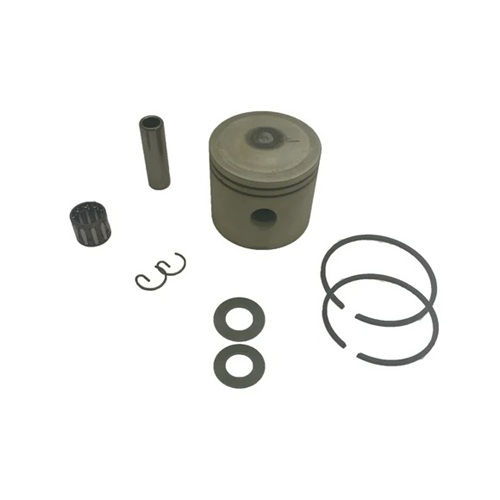

1-6 9360763 PISTON KIT 1 52,800
1-7 9360590 A101000200 RING,PISTON 1 14,300

품절
1-8 9360450 10001339730 PIN,PISTON 1 4,400

품절
1-9 9360071 10001500120 CIRCLIP,PISTON PIN 2 550

품절
1-10 9360614 니들베어링 10 1 8,800
1-11 9360471 10001417330 SPACER,PISTON PIN 2 4,400

품절
1-12 9360144 KEY WOODRUFF 1 1,100
1-13 9360806 A011000530 CRANKSHAFT ASS'Y 1 115,500

품절
1-14 9360804 P021014982 SET,CRANKCASE 1 110,000

품절
1-15 9360138 90016205040 BOLT H.S. 5*40 4 880

품절
1-16 9360468 OILSEAL 2 4,400
1-17 9360087 10021503930 PIN,DOWEL 2 550

품절
1-18 9360587 9403236302 BEARING BALL 1 7,700

품절
1-19 9360215 V102000050 GASKET,CRANKCASE 1 1,320

품절
1-20 9392717 볼베어링 1 8,800
1-21 9360125 90016205032 BOLT H.S. 5*32 6 880

품절
1-22 9360154 15111204630 BUSHING 1 880

품절
1-23 9360312 15912908261 COVER,DUST 1 2,200

품절
1-24 9360039 90023805018 SCREW 5*18 1 550

품절
2-1 9360062 90050100010 NUT 10*1.25 1 550

품절
2-2 9393740 SPRING WASHER 1 550

품절
2-3 9360033 90060200010 WASHER 10 1 550

품절
2-4 9360787 A409000331 ROTOR,MAGNETO 1 77,000

품절
2-5 9360039 90023805018 SCREW 5*18 2 550

품절
2-6 9360775 COIL,IGNITION 1 62,700
2-7 9360156 15611106160 TUBE 6.3*8*380 1 880

품절
2-8 9360522 점화플러그캡 1 5,500
2-9 9360184 COIL,SPARK PLUG 1 1,100

품절
2-10 9394469 A425000000 SPARK PLUG 1 13,200
2-11 9360376 V485000190 LEAD 1 2,750

품절
2-12 9360593 PULLEY, ASM STARTER 1 8,250

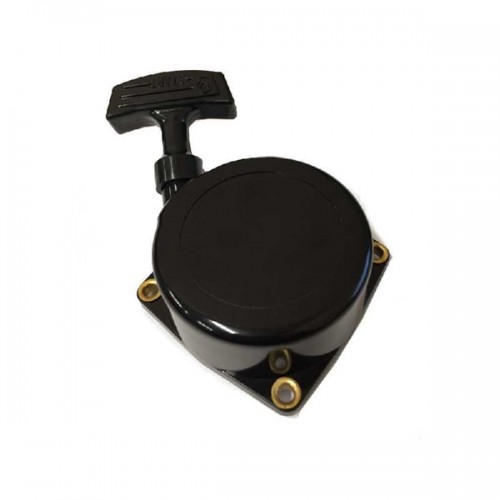

2-16 9360755 STARTER,RECOIL ASSY 1 48,950
2-24 9360110 볼트 H.S. 5X18 4 550

품절
2-25 9360306 LABEL,ECHO 1 2,200

품절
2-26 9360767 MUFFLER ASSY 1 55,000
2-27 9360012 90023804010 SCREW 4*10 5 550

품절
2-28 9360543 A313001030 GUIDE,EXHAUST 1 6,600

품절
2-29 9360175 14586604261 GASKET 1 1,100

품절
2-30 9360400 14586206720 SCREEN,MUFFLER 1 3,300

품절
2-31 9360446 V104000900 GASKET,EXHAUST 1 3,850

품절
2-32 9360143 볼트 H.S. 5X16 1 1,100

품절
2-33 9392788 90010506020 BOLT 2 550

품절
3-1 9360688 P021016130 FIXTURE,VALVE KIT M 1 15,400

품절
3-2 9360119 V202000140 BOLT,4 4 550

품절
3-3 9360167 V103000440 GASKET,INTAKE 1 880

품절
3-4 9360693 P021016140 FIXTURE,VALVE KIT R 1 16,500

품절
3-5 9360117 V140000020 GROMMET,HOSE 2 550

품절
3-6 9360384 G213000090 HOSE,AIR 2 2,750

품절
3-7 9360332 V103000450 GASKET,INTAKE 1 2,200

품절
3-8 9360730 P021014991 INSULATOR VALVE KIT 1 27,500

품절
3-9 9360129 V203000310 BOLT 5 3 880

품절
3-10 9360333 V103000461 GASKET,INTAKE 1 2,200

품절
3-11 9360195 C483000032 BOOT,CONNECTOR 2 1,100

품절

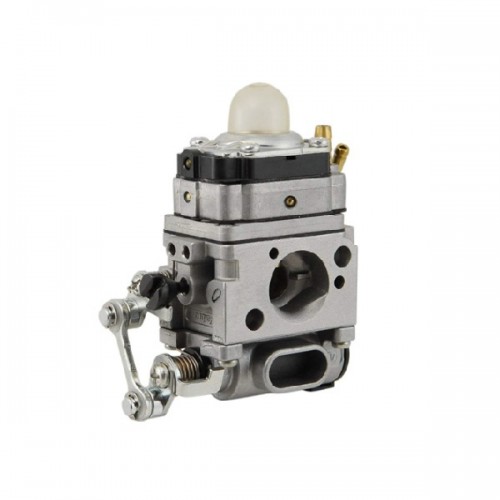

3-12 9360803 카뷰레터 아세이 1 137,500
3-13 9360145 V103000471 GASKET,INTAKE 1 880

품절
3-14 9360238 89033252730 LABEL,CHOKE 1 1,320

품절
3-15 9360690 P021015001 CASE,AIR CLEANER 1 16,500

품절
3-16 9360212 90016205065 BOLT,H.S. 5*65 2 1,320

품절
3-17 9360499 A221000020 FIXTURE,CLEANER 1 4,950

품절
3-18 9360026 90024604014 SCREW 4*14 2 550

품절

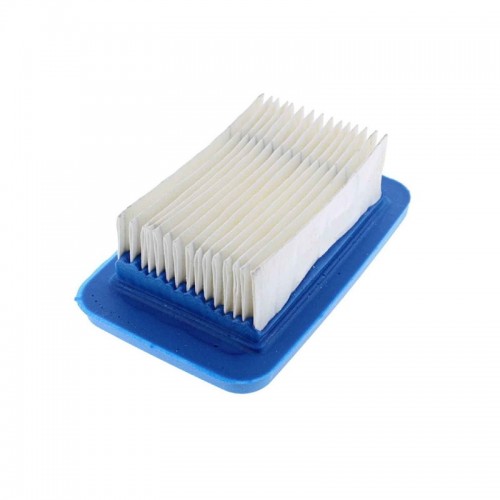

3-19 9360678 ELEMENT,AIR FILTER 1 14,300
3-20 9360542 A232000461 LID,CLEANER 1 6,600

품절
3-21 9360386 V299000290 KNOB,FASTENER 2 5,500

품절
4-1 9360672 13160009861 CAP ASS'Y,FUEL 1 13,200

품절
4-2 9360032 90031930070 RIVET 3*7 1 550

품절
4-3 9360208 13105127230 LINK 1 1,320

품절
4-4 9360004 90060000003 WASHER 3 1 550

품절
4-5 9360057 13105303060 NUT 1 550

품절
4-6 9360496 13131406320 VALVE,CHECK 1 4,950

품절
4-7 9360275 A358000000 HOLDER,CHECK VALVE 1 1,650

품절
4-8 9360285 13101621060 GASKET,FUEL CAP 1 2,200

품절
4-9 9394448 NUT,FLANGE 3 880
4-10 9360008 90020905020 SCREW 5*20 3 550

품절
4-12 9360405 V475004110 TUBE 1 3,300

품절
4-13 9360368 V471002150 PIPE 1 2,750

품절
4-14 9360419 V471002160 PIPE 1 3,300

품절
4-15 9360381 13201108260 CONNECTOR,FUEL PIPE 1 2,750

품절
4-16 9360218 13202108260 CONNECTOR,PIPE 1 1,320

품절
4-17 9360255 13211502960 GROMMET 1 1,650

품절
4-18 9394406 13201326630 CLIP 2 550

품절
4-19 9360345 V471000770 PIPE 1 2,420

품절
4-20 9391505 FUEL FILTER SUBASSY 1 5,500
4-21 9360263 17812143230 BAND 1 1,650

품절
5-1 9360170 V491000120 CLIP 8 880

품절
5-2 9360647 E104000061 GRID,BLOWER 1 10,450

품절
5-4 9360340 C617000230 STOPPER 1 2,420

품절
5-5 9360095 9114505025 BOLT,TAPPING 9 550

품절
5-6 9360794 E103000540 CASE,FAN 1 85,800

품절
5-7 9394435 90016205020 BOLT,H.S. 4 880

품절
5-8 9360768 20001009861 FAN 1 59,400

품절
5-10 9360002 90024603012 SCREW 3*12 4 550

품절
5-11 9360705 10491308360 BRACKET,ENGINE 2 18,700

품절
5-12 9360056 V354000130 COLLAR 6 6 550

품절
5-13 9392418 90010505060 BOLT 2 880

품절
5-14 9391871 와셔 2 1,100

품절
5-15 9360349 X503009520 LABEL,MODEL 1 2,420

품절
5-16 9360777 E103000531 CASE,FAN 1 66,000

품절
5-18 9360350 X505002080 LABEL,CAUTION 1 2,420

품절
5-19 9394448 NUT,FLANGE 2 880
5-20 9360545 P021015010 BRACKET KIT 1 6,600

품절
5-21 9360095 9114505025 BOLT,TAPPING 1 550

품절
5-22 9360708 A190000721 COVER,ENGINE 1 19,800

품절
5-23 9360279 LABEL,CAUTION 1 1,650

품절
5-24 9394377 9114505020 BOLT HS TAPPING 5 550

품절
6-1 9360694 C061000111 HARNESS,ASM BACKPACK 2 17,600

품절
6-2 9360149 V491000040 CLIP 2 880

품절
6-3 9360735 30010508261 CUSHION,KNAPSACK 1 33,000

품절
6-4 9360170 V491000120 CLIP 6 880

품절
6-5 9394435 90016205020 BOLT,H.S. 4 880

품절
6-6 9360127 V150001350 PLATE,EYE 2 880

품절
6-7 9360123 9114705020 BOLT HS FL TAPP 2 1,100

품절
6-9 9360757 C620000212 FRAME,BACKPACK 1 48,400

품절
6-10 9360396 V456000010 HOLDER,SPRING 2 3,300

품절
6-11 9360427 V450000390 SPRING,COMPRESSION 2 3,630

품절
6-12 9360425 V263000050 NUT 5 2 3,630

품절
6-14 9360651 V401000110 CUSHION 5 1 11,000

품절
6-15 9360054 90063000005 WASHER 5 2 550

품절
6-16 9394448 NUT,FLANGE 2 880
6-17 9360200 C622000000 CONNECTOR,FRAME 4 1,100

품절
6-18 9360130 V304000040 WASHER,CIRCULAR 6 4 880

품절
6-19 9392914 90010506025 BOLT 4 550

품절
6-20 9360265 V491000110 CLIP 1 1,650

품절
7-1 9360702 E165000160 PIPE,BLOWER 1 18,700

품절
7-2 9360650 E165000141 PIPE,BLOWER 1 10,450

품절
7-3 9360685 PIPE,BLOWER 1 14,850
7-4 9360824 E160000061 ELBOW,BLOWING 1 22,000

품절
7-5 9360259 V495000430 BAND 2 1,650

품절
7-6 9360611 E164000000 PIPE,FLEXIBLE 1 8,800

품절
7-7 9360563 89541039131 WRENCH,W/S-DRIVER 1 6,600

품절
7-8 9360205 V491000191 CLIP 1 1,100

품절

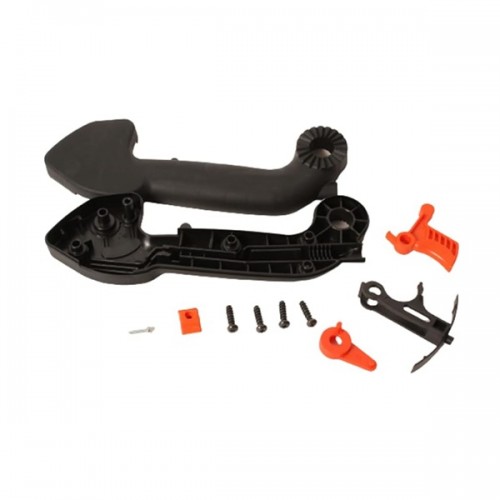

8-1 9360741 FRONT HANDLE ASSY 1 33,000
8-2 9360063 9154503014 SCREW TAPTITE-P 1 550

품절
8-3 9360391 E151000000 KNOB,LEVER 1 3,300

품절
8-5 9360558 17801007561 CONTROL,THROTTLE 1 6,600

품절
8-6 9360554 C453000203 LEVER,THROTTLE 1 6,600

품절
8-7 9360047 88995021060 SCREW 5 4 550

품절
8-8 9360447 X505000950 LABEL,CAUTION 1 3,850

품절
8-9 9360414 30581208260 KNOB, FASTENER 1 3,300

품절
8-10 9394377 9114505020 BOLT HS TAPPING 1 550

품절
8-12 9360699 CABLE ASSY,CONTRO L 1 17,600
8-13 9360552 C405000230 BRACKET,HANDLE 1 6,600

품절
8-15 9360263 17812143230 BAND 1 1,650

품절
8-16 9360124 88995021560 SCREW 5 1 880

품절
9-1 9360733 P003001970 AIR VALVE ASS'Y 1 30,800

품절
9-1.1 9360803 카뷰레터 아세이 1 137,500
9-2 9360392 P003002010 COVER AIR VALVE 1 3,300

품절
9-3 9360666 P003002020 VALVE AIR 1 12,100

품절
9-4 9360166 P003002050 WASHER 1 880

품절
9-6 9360324 P003002060 SEAL DUST 1 2,200

품절
9-7 9360335 P003002000 COVER DUST 1 2,420

품절
9-8 9360393 P003002040 SPRING RETURN 1 3,300

품절
9-9 9360652 P003001990 LINK ASSEMBLY-AIR 1 11,000

품절
9-10 9360165 P003002030 SCREW 1 880

품절
9-11 9392397 12311440630 SCREW 4 1,100

품절
9-12 9392036 12314926030 WASHER 4 1,650

품절
9-13 9360415 P003002080 LINK ROD 1 3,300

품절
9-14 9392038 STOPPER 3 550

품절
9-15 9392031 SCREW 2 2,200

품절
9-16 9360418 P003002070 LEVER OUTER 1 3,300

품절
9-17 9360687 P003002170 SHAFT ASS'Y THROTT LE 1 15,400

품절
9-18 9360623 P003002100 SHAFT THROTTLE 1 9,350

품절
9-19 9360529 P003002090 LINK ASS'Y THROTTLE 1 6,050

품절
9-20 9392031 SCREW 1 2,200

품절
9-21 9360282 12311605230 VALVE,THROTTLE 1 2,200

품절
9-22 9360536 P003002130 SCREW IDLE SPEED 1 6,050

품절
9-23 9360264 P003002150 SPRING 1 1,650

품절
9-24 9360388 12318539130 PISTON ASS'Y 1 3,300

품절
9-26 9360367 GASKET PASSAGE 1 2,750
9-27 9360617 P003002160 PLATE PASSAGE 1 9,350

품절
9-28 9360359 P003000100 GASKET,PUMP 1 2,420

품절
9-29 9392107 12311240630 DIAPHRAGM 1 6,600
9-30 9392422 12317905560 PUMP BODY COMP 1 55,000

품절
9-31 9391596 12312610631 SCREEN 1 1,100

품절
9-32 9392405 12313905560 SCREW 1 3,300

품절
9-33 9391602 NEEDLE VALVE 1 4,400

품절
9-34 9392404 12312205560 SPRING 1 2,750

품절
9-35 9391851 LEVER 1 3,300

품절
9-36 9391853 PIN 1 1,100

품절
9-37 9392406 GASKET 1 1,650
9-38 9392974 DIAPHRAGM 1 11,000

품절
9-39 9392407 12318005560 PUMP BASE COMP 1 15,400

품절
9-40 9392410 12314205560 PUMP COVER 1 3,300

품절
9-41 9392409 12318140630 PRIMER PUMP 1 4,400
9-42 9360196 P003002120 SCREW 1 1,100

품절
9-43 9394394 12317815030 PLUG,FRICTION 1 1,650

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
