에코 PB-8010 송풍기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 188개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9350857 CRANKSHAFT ASSY 1 121,000

품절
1-2 9350898 볼베어링 1 8,800

품절
1-3 9350899 볼베어링 1 7,700

품절

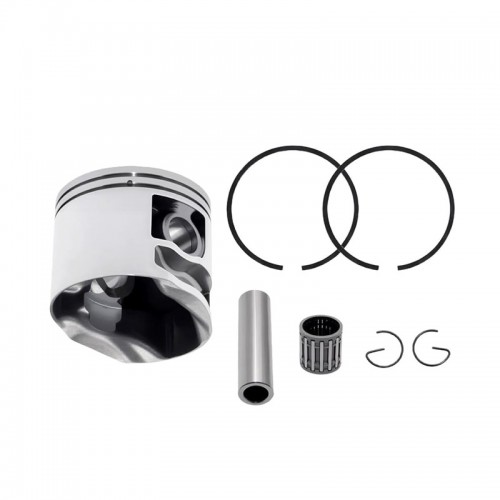

1-4 9350854 PISTON KIT 1 66,000
1-5 9350921 RING, PISTON 2 5,500

품절
1-6 9350900 PIN,ENG 13 1 4,400

품절
1-7 9350896 니들베어링 13 1 7,700

품절
1-8 9350909 CIRCLIP, PISTON PIN 2 1,100

품절

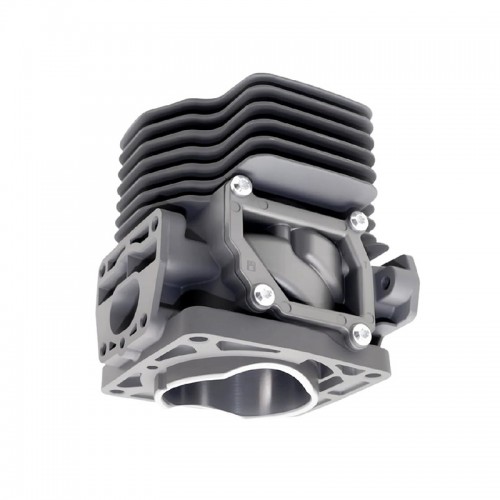

1-9 9350851 CYLINDER ASSY 1 132,000

품절

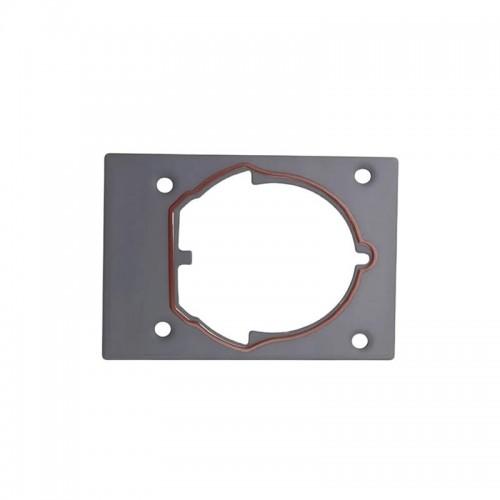

1-10 9350859 GASKET,CYL 1 4,400
1-11 9350906 BOLT, TORX 5 4 1,100

품절
1-12 9350922 COVER,CYLINDER 1 7,700

품절
1-14 9350924 COVER,ENGINE 1 28,600

품절
1-15 9394713 BOLT,TORX 5 4 1,100
2-1 9350852 CRANKCASE SET 1 88,000
2-2 9350895 SEAL,OIL 15 1 3,300
2-3 9392721 OIL SEAL 1 6,600
2-4 9350860 GASKET,CRANKCASE 1 1,100

품절
2-5 9350904 BOLT, TORX 5 4 1,100

품절
2-6 9350870 볼트,6 5 1,650

품절
2-7 9350888 LEAD 1 1,650

품절
3-1 9350798 COIL, IGNITION 1 60,500
3-2 9350797 ROTOR, MAGNETO 1 66,000
3-3 9350442 COLLAR,4 2 1,100

품절
3-4 9350868 볼트 4 2 1,650

품절
3-5 9350885 튜브 1 1,100

품절
3-6 9360926 NUT, FLANGE 10 1 33,000

품절
3-7 9360144 KEY WOODRUFF 1 1,100
3-8 9350889 LEAD 1 3,300

품절
3-9 9350436 SPARKPLUG 1 12,100

품절
3-10 9350799 점화플러그캡 1 5,500

품절
3-11 9360184 COIL,SPARK PLUG 1 1,100

품절
4-1 9350925 INSULATOR, INTAKE 1 11,000
4-2 9350863 GASKET,INTAKE 1 3,300
4-3 9350869 볼트,5 4 2,200

품절

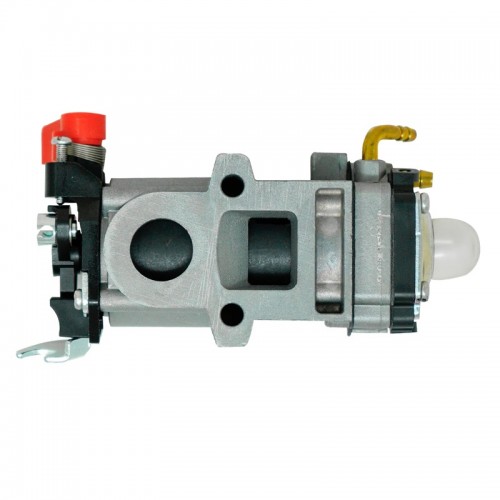

4-4 9350917 카뷰레터 아세이 1 99,000
4-5 9350791 CAP,CARBURETOR 1 1,100

품절
4-6 9350861 GASKET,INTAKE 1 2,200

품절
4-7 9350862 GASKET,INTAKE 1 1,100
4-8 9350926 FIXTURE, CLEANER 1 8,800

품절
4-9 9350923 DUCT, AIR 1 3,300

품절
4-10 9394710 BOLT,TORX 4 1 1,100
4-11 9361839 V805000100 BOLT,TORX 5 2 1,100

품절
4-12 9350790 PIPE, INTAKE 1 34,100
4-13 9350892 밴드 1 3,300

품절
4-14 9350893 밴드 1 2,200

품절
4-15 9350927 크리너케이스 1 14,300

품절
4-16 9350897 RING,SNAP 2 2,200

품절
4-17 9394713 BOLT,TORX 5 4 1,100
4-18 9350930 LID,CLEANER 1 11,000
4-19 9350789 KNOB,CLEANER LID 2 2,750

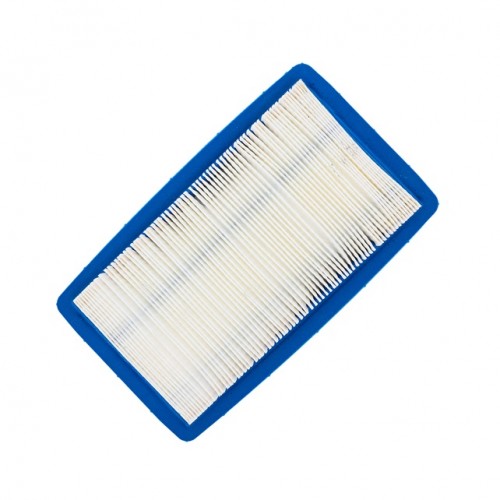

4-20 9350928 ELEMENT, AIR FILTER 1 16,500
4-21 9350929 ELEMENT, AIR FILTER 1 5,500

품절
4-22 9350908 LABEL,MODEL 1 15,400

품절
5-1 9350917 카뷰레터 아세이 1 99,000
5-2 9350836 BODY ASSEMBLY, PUMP 1 15,400

품절
5-3 9391596 12312610631 SCREEN 1 1,100

품절
5-4 9361283 12313719830 VALVE,INLET NEEDLE 1 6,050

품절
5-5 9392404 12312205560 SPRING 1 2,750

품절
5-6 9350833 SCREW 1 2,200

품절
5-7 9391853 PIN 1 1,100

품절
5-8 9394331 LEVER, METERING 1 2,750

품절
5-9 9350831 BODY, AIR PURGE 1 24,200

품절
5-10 9392410 12314205560 PUMP COVER 1 3,300

품절
5-11 9392409 12318140630 PRIMER PUMP 1 4,400
5-12 9392974 DIAPHRAGM 1 11,000

품절
5-13 9392406 GASKET 1 1,650
5-14 9350834 DIAPHRAGM, FUEL PUMP 1 6,600
5-15 9350832 GASKET, PUMP 1 3,300
5-16 9392401 12317307930 E RING 1 1,100

품절
5-17 9392398 12314954230 WASHER 1 1,100

품절
5-18 9392396 12317245130 SWIVEL 1 6,050

품절
5-19 9392397 12311440630 SCREW 2 1,100

품절
5-20 9350837 BRACKET CABLE 1 7,700

품절
5-21 9392411 12311005560 SCREW 4 1,100

품절
5-22 9350835 NEEDLE 1 8,800

품절
5-23 9392104 12318340630 O RING 1 1,100

품절
5-24 9350838 JET 1 17,600

품절
6-1 9350794 TANK, FUEL 1 60,500

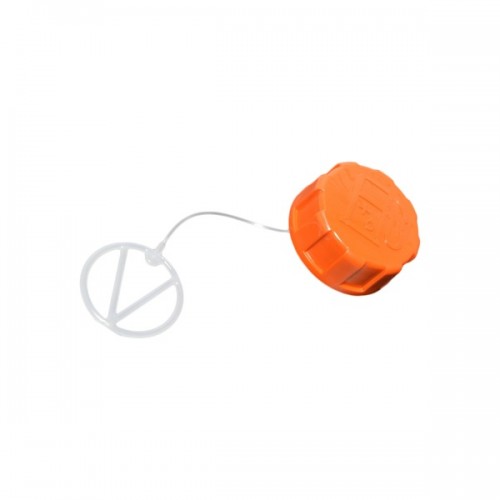

6-2 9350839 P021012211 CAP,FUEL ASSY 1 6,600
6-3 9350866 GASKET,FUEL CAP 1 2,200

품절
6-5 9350796 연료탱크 밴드 1 9,900

품절
6-6 9350875 CUSHION 1 4,400

품절
6-7 9350910 와셔 4 1,100

품절
6-8 9350871 SCREW,5 4 2,200

품절
6-9 9350912 GROMMET, FUEL 1 2,200

품절
6-10 9350882 PIPE 1 4,400
6-11 9350867 JOINT,PIPE 1 1,100
6-12 9350881 PIPE 1 2,200

품절
6-13 9394405 13201309820 CLIP 1 1,100

품절
6-14 9350795 STRAINER, FUEL 1 5,500

품절
6-15 9394405 13201309820 CLIP 1 1,100

품절
6-16 9394596 VALVE,CHECK 1 4,400
6-17 9394402 COVER, VENT 1 1,100
6-18 9350883 PIPE 1 1,100
6-19 9361669 클립 1 1,100
6-20 9350884 PIPE 1 1,100
6-21 9350867 JOINT,PIPE 1 1,100
6-22 9350886 튜브 1 1,100

품절
7-1 9350853 MUFFLER ASSY 1 104,500
7-2 9350792 SCREEN, ARRESTOR 1 2,200

품절
7-4 9350793 PLATE, EXHUST 1 4,400

품절
7-5 9350865 GASKET,EXHAUST 1 2,200

품절
7-6 9350864 GASKET,EXHAUST 1 5,500

품절
7-7 9350905 BOLT, TORX 6 3 1,100

품절
8-1 9350873 SPACER 1 5,500

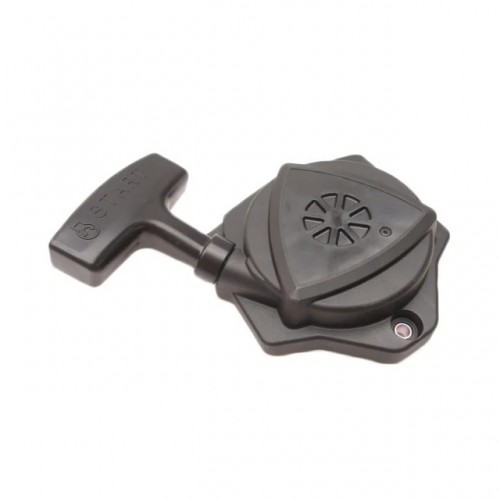

8-2 9350918 STARTER,RECOIL ASSY 1 38,500
8-3 9350842 CASE, STARTER 1 24,200

품절
8-4 9350841 GUIDE, ROPE 1 4,400

품절
8-5 9350843 DRUM, STARTER 1 7,700

품절
8-6 9350844 SPRING, SPIRAL 1 22,000

품절
8-7 9394416 SCREW 1 2,200

품절
8-8 9350845 ROPE, STARTER 1 4,400

품절
8-9 9350913 GRIP, STARTER 1 7,700

품절
8-10 9350840 CAP, GRIP 1 3,300

품절
8-11 9350846 WASHER, THRUST 1 1,100

품절
8-12 9350847 와셔 1 2,200

품절
8-13 9350848 SPRING, FRICTION 1 2,200

품절
8-14 9350849 PLATE, FRICTION 1 5,500

품절
8-15 9350850 COLLAR 1 4,400

품절
8-16 9394713 BOLT,TORX 5 3 1,100
8-17 9350907 LABEL,ECHO 1 6,600

품절
9-1 9350823 CASE,FAN 1 77,000

품절
9-2 9350874 SPACER 1 4,400

품절
9-3 9350818 PLATE, ENG 1 14,300

품절
9-4 9350877 SPRING,COMPRESSION 2 2,200

품절
9-5 9350879 HOLDER,SPRING 2 3,300

품절
9-6 9350880 HOLDER,SPRING 2 2,200

품절
9-7 9394713 BOLT,TORX 5 2 1,100
9-8 9350824 CASE,FAN 1 71,500

품절
9-9 9350874 SPACER 1 4,400

품절
9-10 9350876 CUSHION 4 2,200

품절
9-11 9394713 BOLT,TORX 5 9 1,100
9-12 9350822 FAN,BLOWER 1 51,700
9-13 9360926 NUT, FLANGE 10 1 33,000

품절
9-14 9360144 KEY WOODRUFF 1 1,100
9-15 9394713 BOLT,TORX 5 2 1,100
9-16 9350887 LEAD 1 5,500

품절
9-17 9350821 BELT, HARNESS 1 7,700

품절
9-18 9350910 와셔 1 1,100

품절
9-19 9394713 BOLT,TORX 5 1 1,100
9-20 9350825 GRID, BLOWER 1 11,000

품절
9-21 9394713 BOLT,TORX 5 2 1,100
9-22 9350911 CLIP, FUEL PIPE 1 2,200

품절
9-23 9394713 BOLT,TORX 5 1 1,100
9-24 9350920 LABEL,CAUTION 1 9,900

품절
10-1 9350816 FRAME, BACKPACK 1 110,000

품절
10-2 9350877 SPRING,COMPRESSION 3 2,200

품절
10-3 9350879 HOLDER,SPRING 3 3,300

품절
10-4 9394713 BOLT,TORX 5 3 1,100
10-5 9350817 SEAT, BACKPACK 1 15,400

품절
10-6 9350891 클립 3 2,200
10-7 9350855 HARNESS KIT 1 25,300

품절
10-8 9350820 BUCKLE, HARNESS 2 1,100

품절
10-9 9350890 클립 1 1,100

품절
10-10 9350856 HARNESS KIT 1 25,300

품절
10-11 9350820 BUCKLE, HARNESS 2 1,100

품절
10-12 9350890 클립 1 1,100

품절
10-13 9350919 LABEL,CAUTION 1 13,200

품절
10-14 9350819 LID,SEAT 1 5,500

품절
10-15 9343615 PAD, HARNESS 1 33,000
11-1 9350814 CONNECTOR, CABLE 1 19,800

품절

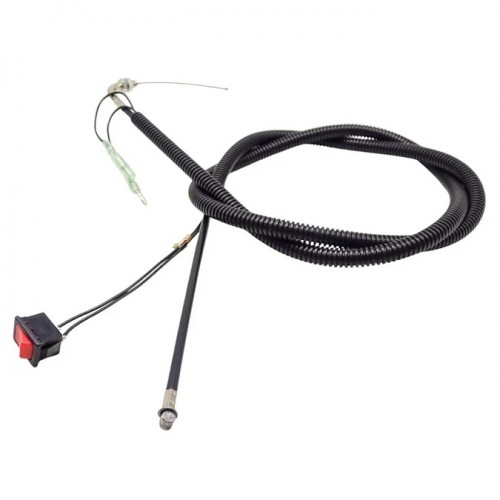

11-2 9350858 V043001210 CABLE ASSY, CONTROL 1 39,600
11-3 9392193 NUT 2 1,100
11-4 9350800 HANDLE,FRONT 1 16,500

품절
11-5 9350808 HANDLE,FRONT 1 16,500

품절
11-6 9350901 PIN,STRAIGHT 3 1 2,200

품절
11-7 9350813 LEVER, THROTTLE 1 5,500

품절
11-8 9350812 LEVER, THROTTLE 1 6,600

품절
11-9 9350811 CONTROL, THROTTLE 1 5,500
11-10 9350914 WASHER, WAVE 12 1 1,100

품절
11-11 9350878 SPRING,TORSION 1 2,200

품절
11-12 9360126 LOCK NUT 5 2 1,100
11-13 9350902 BOLT, TORX 5 1 1,100

품절
11-14 9350903 BOLT, TORX 5 1 1,100

품절
11-15 9394712 BOLT,TORX 5 4 1,100

품절
11-16 9350809 BRACKET,HANDLE 1 6,600
11-17 9350810 BRACKET,HANDLE 1 6,600
11-18 9350872 KNOB,FASTENER 1 5,500
11-19 9394713 BOLT,TORX 5 1 1,100
12-1 9350826 PIPE,MAIN 1 14,300

품절
12-2 9350916 O-RING 1 5,500

품절

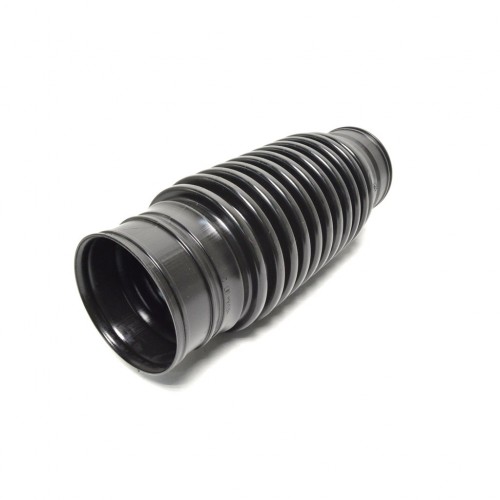

12-3 9350827 PIPE,FLEXIBLE 1 26,400
12-4 9350894 밴드 2 4,400

품절

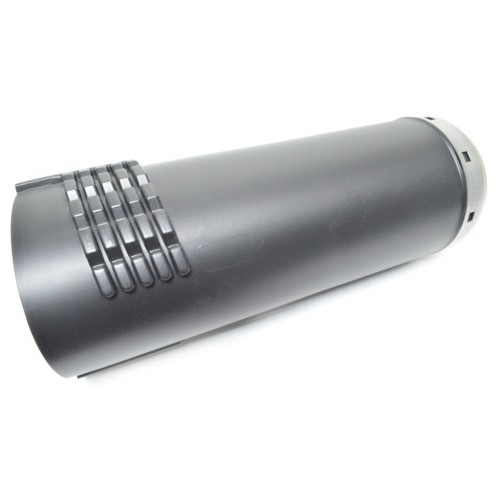

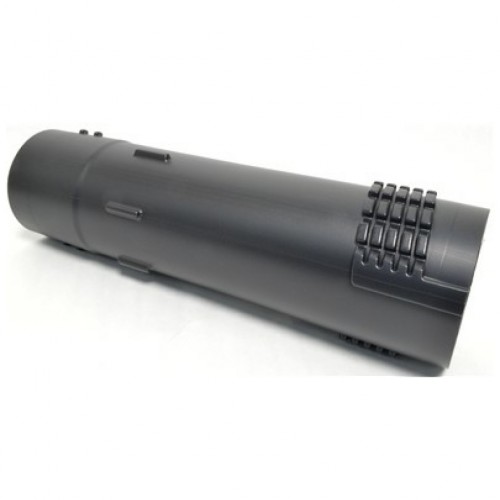

12-6 9350830 PIPE,BLOWER 1 23,100
12-7 9350829 PIPE,BLOWER 1 15,400

품절
12-8 9350828 PIPE,BLOWER 1 20,900
12-9 9350915 LABEL, ECHO 2 2,200

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
