신다이와 DH202 전정기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 151개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9342081	A011001550 CRANKSHAFT,ASSY	1	99,000	품절
1-2	9342082	A130001960 CYLINDER	1	60,500	품절
1-3	9342103	V100000720 GASKET,CYL	1	2,200	품절

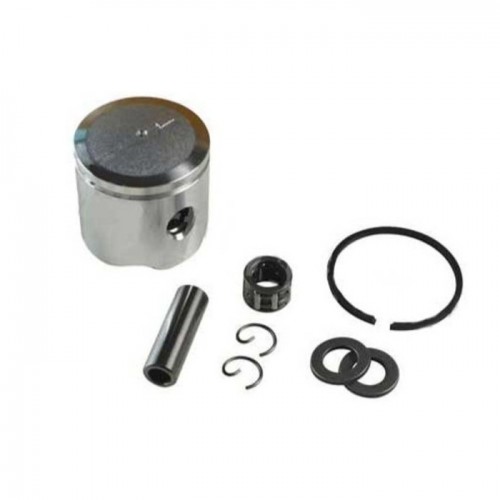

1-4	9361782	PISTON KIT	1	44,000
1-5	9361743	A101000090 RING,PISTON	1	5,500	품절
1-6	9361694	10001311520 PIN,PISTON	1	3,300	품절
1-7	9360072	CIRCLIP,PISTON PIN	2	1,100	품절
1-8	9361696	10011305930 BEARING,NEEDLE	1	7,700	품절
1-9	9361695	10001408960 SPACER,PISTON PIN	2	2,750	품절
1-10	9394717	BOLT,TORX 5	2	1,100	품절
1-11	9342083	A160003580 COVER,CYLINDER	1	9,900	품절
1-12	9361842	BOLT,TORX 5	1	1,100	품절
1-13	9342084	90056500005 NUT, SQUARE	1	1,100	품절
2-1	9342085	P100006080 CRANKCASE SET	1	115,500	품절
2-2	9342096	90081036000 BEARING, BALL	2	4,400	품절
2-3	9342097	10021261830 OILSEAL	2	4,400	품절
2-4	9342098	V102000240 GASKET,CRANKCASE	1	1,100	품절
2-5	9394718	BOLT,TORX 5	3	1,100	품절
2-6	9342099	V485003140 LEAD	1	2,200	품절
2-7	9361834	BOLT,TORX 4	1	1,100	품절
3-1	9342100	A409001360 ROTOR, MAGNETO	1	66,000	품절
3-2	9342101	A411001810 COIL, IGNITION	1	55,000	품절
3-3	9342102	9210506000 NUT L, FLANGE	1	1,100	품절
3-5	9361835	OLT,TORX 4	2	1,100
3-6	9342105	A514000260 PAWL	2	3,300	품절
3-7	9350910	와셔	2	1,100	품절
3-8	9342106	17807010860 SPACER	2	2,200	품절
3-9	9361842	BOLT,TORX 5	2	1,100	품절
3-10	9342107	V452001370 SPRING,TORSION	2	3,300	품절
3-11	9342089	V485001220 LEAD	1	2,200	품절
3-12	9342090	V135000150 GROMMET,HT CORD	1	1,100	품절
3-13	9394469	A425000000 SPARK PLUG	1	13,200
3-14	9394471	A427000013 CAP,SPARK PLUG	1	5,500	품절
3-15	9394470	TERMINAL,SPARKPLUG	1	3,300

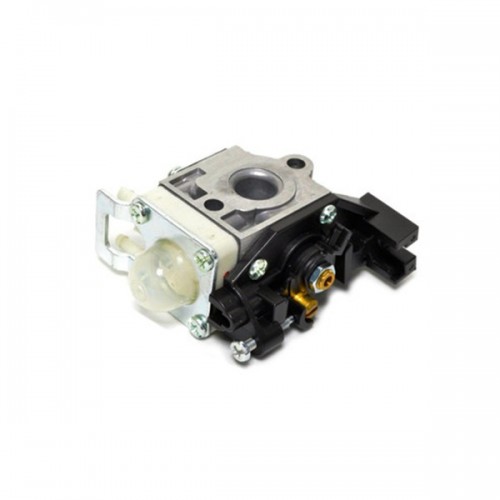

4-1	9342091	카뷰레터 아세이	1	71,500
4-2	9361826	V490001100 CLIP	1	3,300	품절
4-3	9342092	V103002030 GASKET,INTAKE	1	2,200	품절
4-4	9342104	A200001200 INSULATOR, INTAKE	1	5,500	품절
4-5	9342093	V103002020 GASKET,INTAKE	1	1,100	품절
4-6	9342114	A209000610 PLATE, INSULATOR	1	2,200	품절
4-7	9342095	V103001740 GASKET,INTAKE	1	3,300	품절
4-8	9361843	V805000170 BOLT,TORX 5	2	1,100	품절
4-9	9342116	P100008830 CASE,CLEANER	1	6,600	품절
4-10	9342117	A244000070 PLATE,PREVENT	1	3,300	품절
4-11	9361839	V805000100 BOLT,TORX 5	2	1,100	품절
4-12	9342118	P021050320 CLEANER LID ASSY	1	12,100	품절
4-13	9392213	V299000410 KNOB	1	6,600	품절

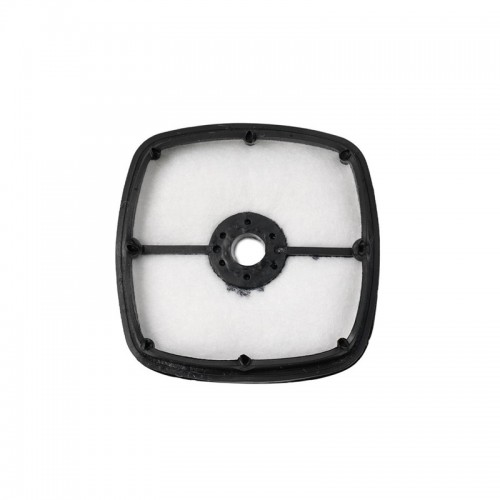

4-14	9361750	ELEMENT,AIR FILTER	1	11,000
4-15	9360238	89033252730 LABEL,CHOKE	1	1,320	품절
4-16	9394725	LABEL	1	1,650	품절
5-1	9342091	카뷰레터 아세이	1	71,500
5-2	9342120	P005000010 STRAINER	1	2,200	품절
5-3	9361549	12533708260 VALVE, INLET NEEDLE	1	7,150	품절
5-4	9361550	12533813930 PIN, METERING ARM	1	1,650	품절
5-5	9342121	P005000940 SPRING, METER. LEVER	1	2,200	품절
5-6	9361544	12532308260 ARM, VALVE	1	3,850	품절
5-7	9342122	12533942030 SCREW	1	2,200	품절
5-8	9342123	P005002050 COVER ASSY, ROTOR	1	35,200	품절
5-9	9342124	P005000100 SCREW, THROTTLEADJUST	1	6,600	품절
5-10	9342125	12534413931 SCREW	3	2,200	품절
5-11	9342126	P005002200 POST	1	4,400	품절
5-12	9342127	P005000190 E-RING	1	2,200	품절
5-13	9342128	P005003760 DIAPHRAGM, METERING	1	11,000	품절
5-14	9342129	P005000200 GASKET, METERING	1	2,200	품절
5-15	9361554	12534252130 COVER, DIAPHRAGM	1	6,050	품절
5-16	9361556	12534452130 SCREW	3	1,650	품절
5-17	9342130	P005000510 DIAPHRAGM, PUMP	1	6,600	품절
5-18	9342131	P005000520 GASKET, PUMP	1	3,300	품절
5-19	9342132	P005004240 BASE, ASSY PRIMER	1	19,800	품절
5-20	9342133	P005003110 PUMP, PRIMER	1	4,400	품절
5-21	9342134	P005000250 RETAINER	1	3,300	품절
5-22	9342135	P005001900 SCREW	4	1,100	품절
5-23	9342136	P005000270 SCREW	1	2,200	품절
5-24	9342137	P005004260 RING,O	1	4,400	품절
5-25	9342138	P005001000 ROLLER, GUIDE	1	2,200	품절
5-26	9342139	P005001250 RETAINER, PLUG BALL	1	2,200	품절
5-27	9342140	P005001260 SCREW, MAINN MIXTURE	1	5,500	품절
5-28	9342141	P005001270 PLUG, AJUST SCREW	1	2,200	품절
5-29	9342142	A259000010 CAP, LIMITER	1	1,100	품절
6-1	9342143	A350002520 TANK, FUEL	1	19,800	품절
6-2	9342144	V420004490 CUSHION	2	1,100	품절
6-3	9350903	BOLT, TORX 5	2	1,100	품절
6-5	9342145	P100008820 CAP,FUEL ASSY	1	2,200	품절
6-6	9350866	GASKET,FUEL CAP	1	2,200	품절
6-7	9394466	CONNECTOR,CAP	1	1,650
6-8	9342146	13211544331 GROMMET, FUEL	1	2,200	품절
6-9	9342147	V137000150 GROMMET, FUEL	1	1,100	품절
6-10	9342148	13131435430 VALVE, CHECK	1	2,200	품절
6-11	9394596	VALVE,CHECK	1	4,400
6-12	9342149	A369000480 STRAINER, FUEL	1	5,500	품절
6-13	9394706	클립	1	1,100	품절
6-14	9342150	V471005540 PIPE	1	2,200	품절
6-15	9350139	13201056330 PIPE 3690	1	3,300	품절
7-1	9342151	P100009110 MUFFLER ASSY	1	46,200	품절
7-2	9342152	A313002120 GUIDE, EXHAUST	1	4,400	품절
7-3	9342153	V104002530 GASKET, EXHAUST	1	2,200	품절
7-6	9342154	V104002190 GASKET, EXHAUST	1	5,500	품절
7-7	9361844	V805000190 BOLT,TORX 5	2	550	품절
8-1	9342155	A051003500 STARTER,RECOIL	1	71,500	품절
8-2	9342156	P022055640 CASE, STARTER	1	27,500	품절
8-3	9350841	GUIDE, ROPE	1	4,400	품절
8-5	9342157	P022051650 DRUM, STARTER	1	5,500	품절
8-6	9342158	P022019680 SPRING, SPIRAL	1	6,600	품절
8-8	9342159	P022039290 ROPE, STARTER	1	3,300	품절
8-9	9342160	P022051660 GRIP, STARTER	1	5,500	품절
8-10	9361835	OLT,TORX 4	4	1,100
8-11	9394712	BOLT,TORX 5	2	1,100	품절
8-12	9342161	X562001570 LABEL,SHINDAIWA	1	6,600	품절
9-1	9342162	P100006070 CASE,GEAR ASSY	1	28,600	품절
9-2	9342163	88011054230 NIPPLE, GREASE	1	2,200	품절
9-3	9342164	C539000190 LID,GEARCASE	1	14,300	품절
9-4	9342165	V110000230 GASKET,GEAR CASE	1	1,100	품절
9-5	9350424	BOLT, TORX 4	4	1,100	품절
9-6	9342166	GEAR,SPUR	1	20,900
9-7	9342066	A556001840 DRUM, CLUTCH	1	27,500	품절
9-8	9342067	90080006002 BEARING, BALL	1	5,500	품절
9-9	9394035	볼베어링	1	12,100
9-12	9342068	V541000750 SEAL	1	2,200	품절
9-14	9342069	A056000790 CLUTCH ASSY	1	19,800	품절
10-1	9342070	CUTTER SET	1	110,000	품절

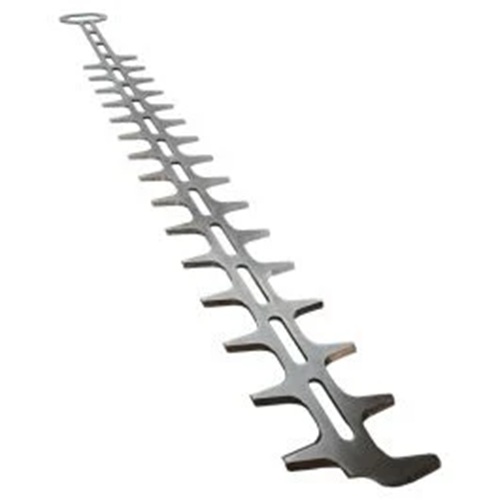

10-2	9342071	CUTTER	2	38,500
10-3	9342072	X425001150 SUPPORT,CUTTER	1	33,000	품절
10-4	9342073	V805000370 BOLT, TORX 5	1	2,200	품절
10-5	9392168	볼트	4	1,650
10-6	9342074	69911804560 WASHER	4	1,100	품절
10-8	9394717	BOLT,TORX 5	3	1,100	품절
10-9	9342075	V150004720 PLATE,EYE	1	5,500	품절
10-10	9342076	V353000250 COLLAR	4	3,300	품절
10-11	9361714	NUT	4	1,650
10-12	9341468	X431000200 BLUNT	1	11,000	품절
10-13	9361692	9210805000 NUT,FLANGE	1	1,100	품절
11-1	9361692	9210805000 NUT,FLANGE	2	1,100	품절
11-2	9342077	C400000533 HANDLE, FRONT	1	35,200	품절
11-3	9361713	35161105360 WASHER	1	6,050	품절
11-4	9342078	C410000921 HANDLE,REAR	1	33,000	품절
11-5	9361765	C411000030 LID,HANDLE	1	5,500	품절
11-6	9361768	CONTROL,THROTTLE	1	1,100
11-7	9361818	SPRING,TORSION	1	3,300
11-8	9361769	C460000510 LOCKOUT,THROTTLE	1	5,500	품절
11-9	9361816	V430004670 CABLE,BOWDEN	1	6,050	품절
11-10	9361727	90051500006 NUT,FLANGE 6	1	1,100	품절
11-11	9392193	NUT	1	1,100
11-12	9361707	16340003460 SWITCH,IGNITION	1	6,050	품절
11-13	9342079	V485003150 LEAD	1	2,200	품절
11-14	9342080	V475007040 TUBE	1	2,200	품절
11-15	9361846	V805000280 BOLT,TORX 5	2	1,100	품절
11-16	9361692	9210805000 NUT,FLANGE	2	1,100	품절
11-17	9361857	X505002030 LABEL,CAUTION	1	1,100	품절
12-1	9361420	SPANNER 8X10	1	2,750	품절
12-2	9360562	WRENCH,W/S. DRIVER	1	6,600
12-3	9361854	X495000640 SCABBARD,BLADE	1	8,250	품절
