신다이와 DH221 전정기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 113개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9361787	CASE ASSY,GEAR	1	82,500
1-3	9361717	61041105361 LID,GEARCASE	1	6,600	품절
1-4	9361718	GASKET,GEAR HOUSING	1	1,100	품절
1-7	9393823	볼베어링	1	13,200	품절
1-8	9392717	볼베어링	1	8,800
1-10	9361834	BOLT,TORX 4	6	1,100	품절
1-17	9361773	C532000121 ROD,CONNECTING	1	22,000	품절

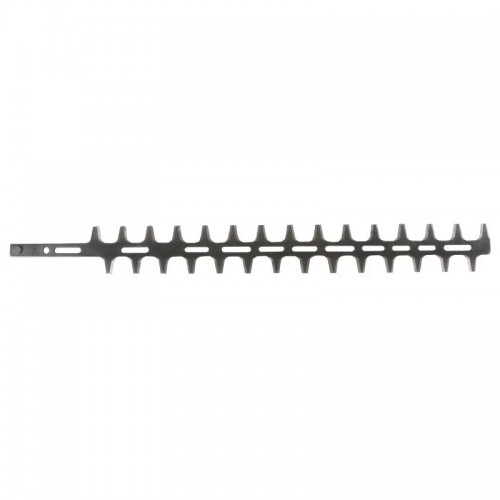

1-18	9361850	CUTTER	2	33,000
1-19	9341468	X431000200 BLUNT	1	11,000	품절
1-20	9361720	61044004560 HOLDER,FRAME	1	3,300	품절
1-22	9392168	볼트	4	1,650
1-23	9361714	NUT	5	1,650
1-24	9392535	와셔	5	1,100
2-1	9361735	A011000313 CRANKSHAFT,ASSY	1	99,000	품절

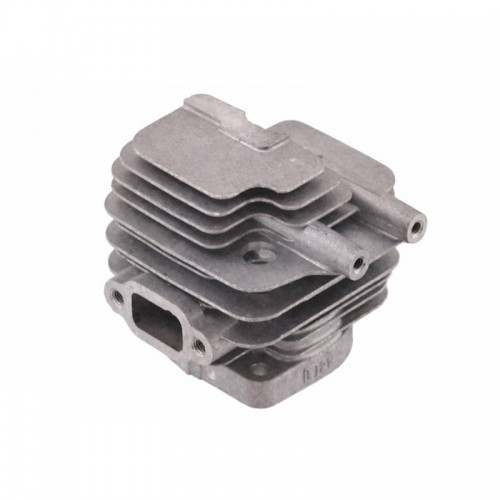

2-2	9361744	CYLINDER	1	44,000
2-3	9361804	V100000160 GASKET,CYL	1	2,200	품절
2-4	9361782	PISTON KIT	1	44,000
2-5	9361743	A101000090 RING,PISTON	1	5,500	품절
2-6	9361694	10001311520 PIN,PISTON	1	3,300	품절
2-7	9360072	CIRCLIP,PISTON PIN	2	1,100	품절
2-8	9361696	10011305930 BEARING,NEEDLE	1	7,700	품절
2-9	9361695	10001408960 SPACER,PISTON PIN	2	2,750	품절
2-10	9394436	90016205022 BOLT,H.S.	2	880	품절
2-11	9361697	10020411521 CRANKCASE KIT	1	55,000	품절
2-13	9360493	볼베어링	2	4,950
2-14	9361698	10021242031 OIL SEAL	2	4,400	품절
2-15	9361699	10024242030 GASKET,CRANKCASE	1	1,100	품절
2-16	9361723	90016205028 BOLT,H.S. 5*28	3	1,100	품절
2-20	9361747	A160002960 COVER,CYLINDER	1	7,700	품절
2-21	9361832	BOLT,TORX 4	2	1,100	품절
2-22	9361842	BOLT,TORX 5	1	1,100	품절

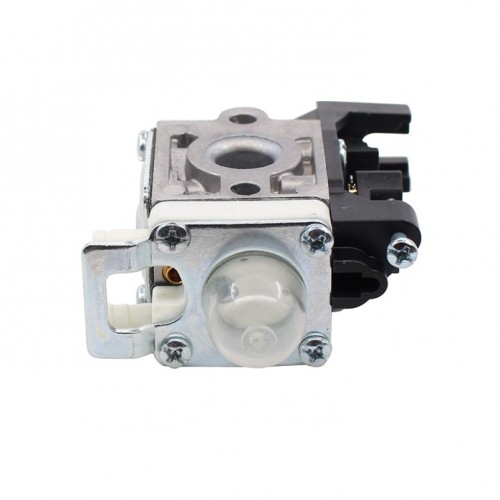

3-1	9361736	CARBURETOR, DIAPHRAGM	1	88,000
3-1	9361755	A409000150 ROTOR,MAGNETO	1	33,000	품절
3-2	9361826	V490001100 CLIP	1	3,300	품절
3-2	9361756	A411000212 COIL, IGNITION	1	66,000	품절
3-3	9361805	V103001580 GASKET,INTAKE	1	1,100	품절
3-3	9361822	V475007510 TUBE	1	2,200	품절
3-4	9361823	V485000870 LEAD	1	2,200	품절
3-4	9361748	INSULATOR,INTAKE	1	4,400
3-5	9361836	V804000070 BOLT,TORX 4	2	1,100	품절
3-5	9361843	V805000170 BOLT,TORX 5	2	1,100	품절
3-6	9394469	A425000000 SPARK PLUG	1	13,200
3-6	9361806	V103001590 GASKET,INTAKE	1	4,400	품절
3-7	9361785	CASE,AIR CLEANER	1	8,800
3-7	9394471	A427000013 CAP,SPARK PLUG	1	5,500	품절
3-8	9361700	12901152730 PLATE,PREVENT	1	3,300	품절
3-8	9394470	TERMINAL,SPARKPLUG	1	3,300
3-9	9361839	V805000100 BOLT,TORX 5	2	1,100	품절
3-10	9361750	ELEMENT,AIR FILTER	1	11,000
3-10	9361742	A056000740 CLUTCH ASSY	1	16,500	품절

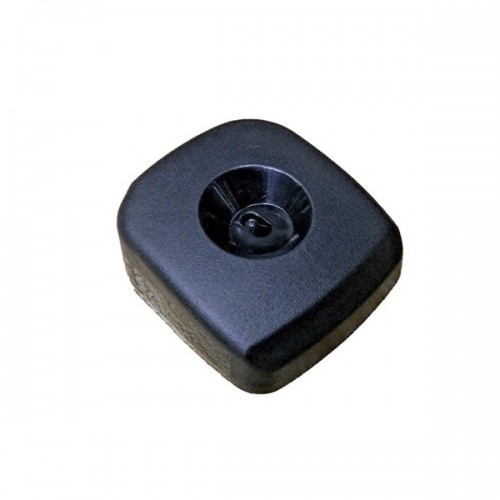

3-11	9361701	13031305863 LID,AIR CLEANER	1	5,500
3-12	9361712	BOLT,WING	1	1,100
3-12	9361708	17501744331 SHOE,CLUTCH	2	12,100	품절
3-13	9361757	A552000380 HUB,CLUTCH	1	9,900	품절
3-15	9360238	89033252730 LABEL,CHOKE	1	1,320	품절
3-15	9361761	A570000310 CASE,CLUTCH	1	22,000	품절
3-16	9361835	OLT,TORX 4	4	1,100
4-1	9361736	CARBURETOR, DIAPHRAGM	1	88,000
4-2	9361826	V490001100 CLIP	1	3,300	품절
4-3	9361805	V103001580 GASKET,INTAKE	1	1,100	품절
4-4	9361748	INSULATOR,INTAKE	1	4,400
4-5	9361843	V805000170 BOLT,TORX 5	2	1,100	품절
4-6	9361806	V103001590 GASKET,INTAKE	1	4,400	품절
4-7	9361785	CASE,AIR CLEANER	1	8,800
4-8	9361700	12901152730 PLATE,PREVENT	1	3,300	품절
4-9	9361839	V805000100 BOLT,TORX 5	2	1,100	품절
4-10	9361750	ELEMENT,AIR FILTER	1	11,000
4-11	9361701	13031305863 LID,AIR CLEANER	1	5,500
4-12	9361712	BOLT,WING	1	1,100
4-15	9360238	89033252730 LABEL,CHOKE	1	1,320	품절
5-1	9361753	A350000680 TANK,FUEL	1	22,000	품절
5-2	9394712	BOLT,TORX 5	2	1,100	품절
5-4	9361703	13192061830 CUSHION,FUEL TANK	1	3,300	품절
5-5	9361786	P021035680 FUEL CAP ASSY	1	3,300	품절
5-6	9394593	13101655830 GASKET, FUEL CAP	1	1,650	품절
5-8	9361705	13211546730 GROMMET,FUEL	1	1,650	품절
5-11	9361819	V470000580 PIPE	1	2,200	품절
5-13	9361820	V471001200 PIPE	1	2,200	품절
5-14	9361704	13201040830 PIPE	1	2,200	품절
5-15	9394596	VALVE,CHECK	1	4,400
5-16	9394706	클립	1	1,100	품절
5-17	9361702	13120507321 STRAINER,FUEL	1	6,600	품절
5-18	9394706	클립	1	1,100	품절
6-1	9361789	P021045640 MUFFLER ASSY	1	55,000	품절
6-7	9361808	V104001990 GASKET,EXHAUST	1	3,850	품절
6-8	9361810	V150000371 PLATE,EYE	1	1,100	품절
6-9	9361844	V805000190 BOLT,TORX 5	1	550	품절
7-1	9361740	A051002940 STARTER,RECOIL	1	44,000	품절
7-10	9361741	A052000160 PULLEY,ASSY STARTER	1	6,600	품절
7-11	9360308	PAWL,STARTER	2	2,200	품절
7-12	9360222	SPRING,PAWL	2	1,650	품절
7-16	9361835	OLT,TORX 4	4	1,100
7-17	9361856	X504007680 LABEL,BRAND	1	1,100	품절
7-18	9361858	X543004370 LABEL,MODEL	1	2,200	품절
7-19	9360279	LABEL,CAUTION	1	1,650	품절
8-1	9361763	HANDLE,FRONT	1	33,000	품절
8-2	9361713	35161105360 WASHER	1	6,050	품절
8-3	9361692	9210805000 NUT,FLANGE	1	1,100	품절
8-5	9361764	HANDLE,REAR	1	33,000
8-6	9361765	C411000030 LID,HANDLE	1	5,500	품절
8-7	9361768	CONTROL,THROTTLE	1	1,100
8-8	9361818	SPRING,TORSION	1	3,300
8-9	9361769	C460000510 LOCKOUT,THROTTLE	1	5,500	품절
8-10	9361816	V430004670 CABLE,BOWDEN	1	6,050	품절
8-11	9361727	90051500006 NUT,FLANGE 6	1	1,100	품절
8-12	9392193	NUT	1	1,100
8-15	9361707	16340003460 SWITCH,IGNITION	1	6,050	품절
8-16	9361824	V485002540 LEAD	1	2,200	품절
8-17	9361825	V485002550 LEAD	1	2,750	품절
8-18	9361821	V475001280 TUBE	1	1,650	품절
8-20	9361846	V805000280 BOLT,TORX 5	2	1,100	품절
8-21	9361692	9210805000 NUT,FLANGE	2	1,100	품절
8-27	9361857	X505002030 LABEL,CAUTION	1	1,100	품절
