신다이와 DH230/24 전정기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 179개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

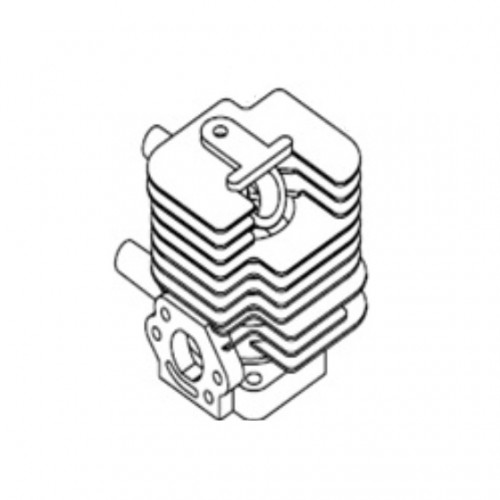

1-1 9361745 A130001381 CYLINDER 1 52,800
1-2 9392197 GASKET 1 1,650
1-3 9392068 90010505025 BOLT 1 1,100

품절
1-4 9361749 INSULATOR,INTAKE 1 5,500
1-5 9392198 GASKET 1 1,650
1-7 9392428 BOLT-SPW 1 1,650
1-8 9392199 A030000300 MUFFLER ASSY 1 33,000

품절
1-9 9392200 A300001260 MUFFLER 1 25,300

품절
1-10 9392201 A310000240 SPARK ARRESTER 1 7,700

품절
1-11 9392202 9137403006 SCREW,TAPPING 1 1,100

품절
1-12 9392203 V104001450 GASKET 1 7,150

품절
1-14 9391871 와셔 1 1,100

품절
1-15 9391801 볼트 1 1,100
1-16 9392204 P021018900 CRANKCASE,PTO COMP 1 23,100

품절
1-17 9391473 V592000070 BALL BEARING 1 6,600

품절
1-18 9391474 OIL SEAL 1 2,750
1-19 9392205 P021018910 CRANKCASE,M COMP 1 25,300

품절
1-20 9391473 V592000070 BALL BEARING 1 6,600

품절
1-21 9392067 OIL SEAL 1 3,300
1-22 9391700 V622000040 ROLLER 1 1,100

품절

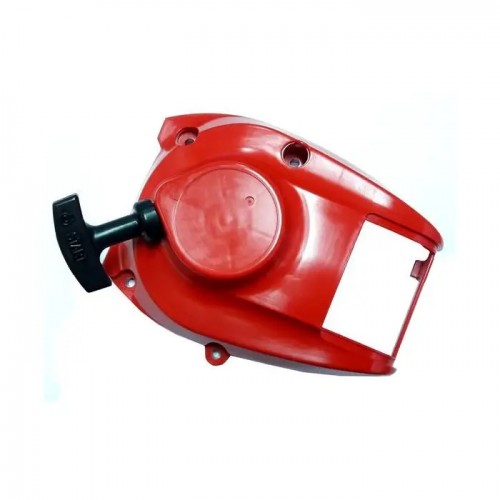

1-23 9392328 A051001830 FAN COVER SUBASSY 1 34,100
1-24 9392206 A500001010 FAN COVER 1 19,800

품절
1-25 9392207 A506000330 REEL 1 7,150

품절
1-26 9392095 RECOIL SPRING 1 12,100

품절
1-27 9392208 V303000230 WASHER 1 1,650

품절
1-28 9392209 V253000560 SCREW 1 1,100

품절
1-29 9392210 A509000300 ROPE 1 6,050

품절
1-30 9392098 A511000160 STARTER KNOB 1 4,950

품절
1-31 9392099 A522000040 STOPPER 1 2,200

품절
1-32 9392309 V203001010 BOLT,ADHESIVE 1 1,650

품절
1-33 9392211 A160001780 CYLINDER COVER 1 12,650

품절
1-34 9392308 V136000060 GROMMET 1 1,100

품절
1-35 9391731 BOLT,ADHESIVE 1 1,650

품절
1-36 9392212 A160001800 COVER 1 6,050

품절
1-37 9392213 V299000410 KNOB 1 6,600

품절
1-38 9392421 V323000080 COLLAR 1 1,100

품절

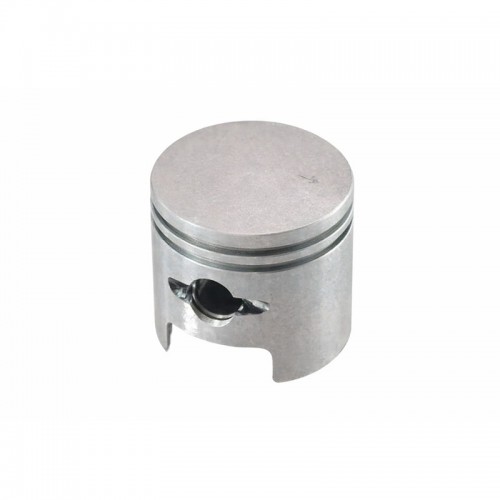

1-39 9392076 PISTON 1 33,000

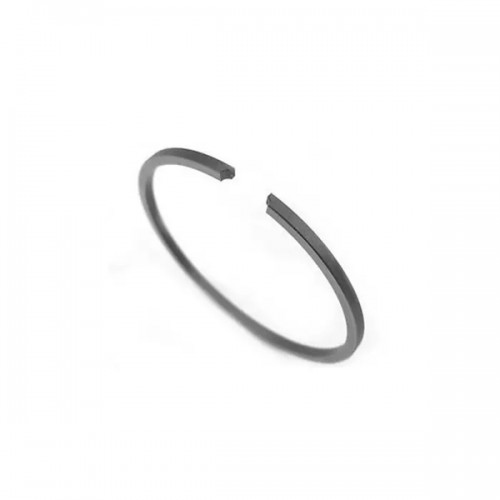

1-40 9392214 PISTON RING 1 4,400
1-41 9392215 PISTON PIN 1 2,750
1-42 9392077 SNAP RING 1 1,100
1-43 9392078 V553000080 NEEDLE BEARING 1 6,050

품절
1-44 9392079 37013-41240 THRUST WASHER 1 1,650

품절
1-45 9392314 A011000910 CRANKSHAFT 1 82,500

품절
1-46 9392216 A056000510 CLUTCH SHOE SUBASSY 1 22,000

품절
1-47 9392081 A553000060 CLUTCH SHOE 1 8,800

품절
1-48 9392082 코일스프링 1 2,750
1-49 9392317 볼트 1 1,650
1-50 9392083 SPRING PLATE 1 1,100
1-51 9392318 와셔 1 1,100
1-52 9392217 A552000130 CLUTCH BOSS 1 8,250

품절
1-53 9392319 V204000480 BOLT 1 1,650

품절
1-54 9392218 A409000720 ROTOR 1 36,300

품절
1-55 9392325 A514000190 RATCHET 1 1,650

품절
1-56 9392326 V452000620 COIL SPRING 1 1,100

품절
1-57 9392219 COIL ASSY 1 47,300
1-58 9392220 V485001930 CORD 1 3,300

품절
1-59 9391578 A427000060 PLUG CAP 1 5,500

품절
1-60 9392091 A426000050 SPRING,PLUG 1 1,100

품절
1-61 9392453 튜브 1 1,100

품절
1-62 9392092 INSULATOR 1 1,100
1-63 9392093 V202000330 BOLT-SLPW 1 1,650

품절
1-64 9391577 9311503010 KEY 1 1,650

품절
1-65 9392086 NUT 1 1,100

품절

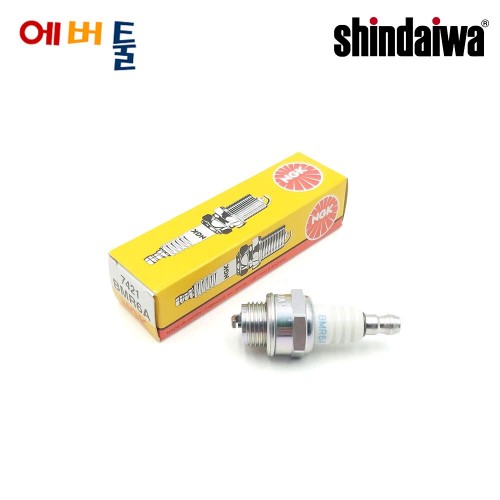

1-66 9392094 점화플러그 NGK BMR6A 1 9,900
1-67 9392221 CLEANER BODY SUBASSY 1 18,700

품절
1-68 9392222 A225000520 CLEANER BODY 1 6,600

품절
1-70 9392413 CHOKE LEVER 1 1,650

품절
1-71 9392417 E140000090 CHOKE SHAFT 1 3,850

품절
1-72 9392415 90060500006 SPRING WASHER 1 550

품절
1-73 9392416 V264000110 U NUT 1 1,650

품절

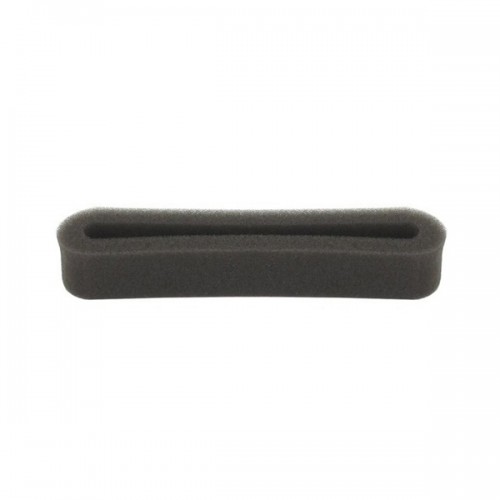

1-74 9392419 FILTER 1 1,650
1-75 9392420 CLEANER COVER 1 7,150
1-76 9392223 GASKET 1 3,300
1-77 9392224 90010505055 BOLT 1 1,100

품절
1-79 9392343 FUEL TANK ASSY 1 41,800
1-80 9392227 A350001480 FUEL TANK 1 16,500

품절
1-81 9392335 V470001190 FUEL PIPE 1 4,950

품절

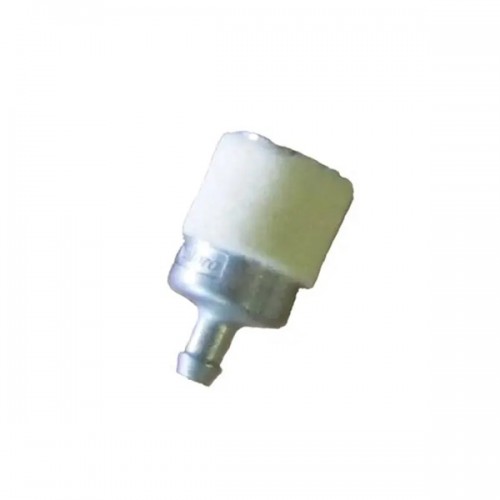

1-82 9392117 FUEL FILTER 1 6,050
1-83 9392228 V471002760 PIPE 1 1,650

품절
1-84 9392476 JOINT 1 1,650

품절
1-85 9391827 CLIP 1 1,100
1-86 9392337 V471002770 PIPE 1 1,100

품절
1-87 9392336 JOINT 1 1,650
1-88 9392334 V490000610 CLAMP,B 1 1,100

품절
1-90 9392230 A033000110 FUEL CAP 1 17,600

품절
1-91 9392230 A033000110 FUEL CAP 1 17,600

품절
1-92 9392333 V107000050 PACKING 1 1,650

품절
1-93 9392332 2087085170 HOLDER COMP 1 3,300

품절
1-94 9392232 E263000040 VALVE,FUEL 1 7,700

품절
1-95 9392233 V540000280 PACKING 1 1,650

품절
1-96 9392234 V303000240 COLLAR 1 1,100

품절
1-97 9392235 V324000000 COLLAR 1 1,650

품절
1-98 9392236 V203001690 BOLT 1 1,650

품절
1-100 9392101 7011775311 NAME PLATE 1 1,650

품절
1-101 9392239 2087098310 COIL SET 1 51,700

품절

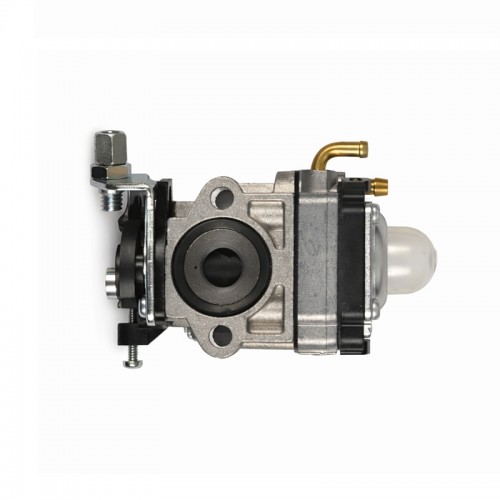

2-1 9392243 A021002690 카뷰레터 아세이 1 99,000
2-2 9392397 12311440630 SCREW 1 1,100

품절
2-3 9392104 12318340630 O RING 1 1,100

품절
2-4 9392403 12318444330 MAIN JET 1 8,250

품절
2-5 9392106 GASKET,PUMP 1 3,850
2-6 9392107 12311240630 DIAPHRAGM 1 6,600
2-7 9392422 12317905560 PUMP BODY COMP 1 55,000

품절
2-8 9391596 12312610631 SCREEN 1 1,100

품절
2-9 9391851 LEVER 1 3,300

품절
2-10 9391853 PIN 1 1,100

품절
2-11 9392404 12312205560 SPRING 1 2,750

품절
2-12 9391602 NEEDLE VALVE 1 4,400

품절
2-13 9392405 12313905560 SCREW 1 3,300

품절
2-14 9391605 DIAPHRAGM ASSY 1 16,500
2-15 9392406 GASKET 1 1,650
2-16 9392407 12318005560 PUMP BASE COMP 1 15,400

품절
2-17 9392410 12314205560 PUMP COVER 1 3,300

품절
2-18 9392409 12318140630 PRIMER PUMP 1 4,400
2-19 9392411 12311005560 SCREW 1 1,100

품절
2-20 9392402 12314312110 RING GASKET 1 1,650

품절
2-21 9392396 12317245130 SWIVEL 1 6,050

품절
2-22 9392398 12314954230 WASHER 1 1,100

품절
2-23 9392401 12317307930 E RING 1 1,100

품절
2-24 9392399 P003002590 BRACKET 1 19,250

품절
2-25 9392400 12316156431 CABLE ADJUSTER 1 3,850

품절
2-26 9392241 12315356430 NUT 1 2,200

품절
2-27 9394176 2087081220 THROTTLE VALVE SET 1 49,500

품절
3-1 9392255 P021018920 GEAR CASE COMP 1 56,100

품절
3-3 9392358 90081206201 BALL BEARING 1 12,100

품절
3-4 9392069 9404406000 BALL BEARING 1 8,250

품절
3-5 9392245 P021018930 CASE COVER COMP 1 40,700

품절
3-6 9392246 C539000070 CASE COVER 1 24,200

품절
3-7 9392069 9404406000 BALL BEARING 1 8,250

품절
3-8 9392362 V060000080 GEAR COMP 1 74,800

품절
3-9 9392247 V655000050 PINION SHAFT 1 27,500

품절
3-10 9392355 CLUTCH DRUM 1 20,900
3-11 9392361 ROD COMP 1 44,000
3-12 9392359 V307000240 COLLAR 1 1,100

품절
3-13 9392248 V150002430 PLATE 1 4,950

품절
3-14 9392249 C538000140 PLATE 1 3,850

품절
3-15 9392360 V541000210 PACKING 1 3,300

품절
3-16 9392250 GASKET,CASE 1 1,650
3-17 9391801 볼트 1 1,100
3-18 9392363 90010504014 BOLT 1 1,100

품절
3-19 9392156 V187000080 GREASE NIPPLE 1 1,650

품절
3-20 9393703 CUTTER ASSY 1 132,000

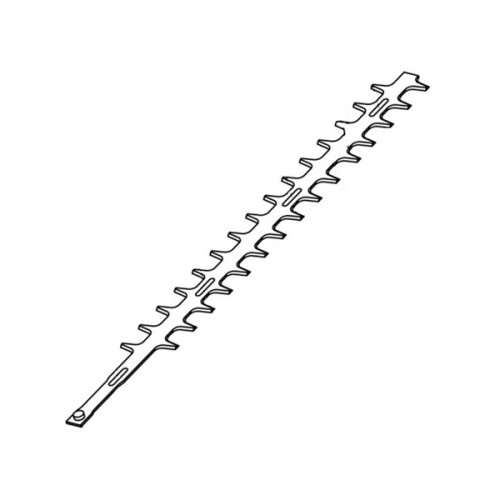

3-22 9393701 블레이드(날) 2 44,000
3-23 9392168 볼트 1 1,650
3-24 9392354 V204000510 BOLT 1 1,650

품절
3-25 9392535 와셔 1 1,100
3-26 9392171 락너트 1 1,100
3-27 9392346 V152002330 HOLDER 1 2,200

품절
3-28 9392170 FLANGE NUT 1 1,100
3-29 9392171 락너트 1 1,100
3-30 9392356 X505003390 LABEL,CAUTION 1 1,650

품절
3-32 9392357 90010506016 BOLT 1 1,100

품절
4-1 9392278 C040000420 FRONT HANDLE ASSY 1 47,300

품절
4-2 9392256 C400000880 FRONT HANDLE 1 37,400

품절
4-3 9392257 V340000290 WASHER 1 1,100

품절
4-4 9392258 V203000390 BOLT,TAPPING 1 1,650

품절
4-5 9392387 V204000530 BOLT-SW 1 1,650

품절
4-6 9392259 V304000380 WASHER 1 1,100

품절
4-7 9392277 C041000040 REAR HANDLE ASSY 1 69,300

품절
4-8 9392260 C410000680 RIGHT HANDLE 1 20,900

품절
4-9 9392262 C450000570 THROTTLE LEVER 1 5,500

품절
4-10 9392263 C460000230 LOCK LEVER 1 3,300

품절
4-11 9392264 V452000680 COIL SPRING 1 1,100

품절
4-13 9392266 V430003130 THROTTLE CABLE 1 15,950

품절
4-14 9392366 V162000410 PLUG 1 1,100

품절
4-15 9392261 C410000690 LEFT HANDLE 1 20,900

품절
4-16 9392379 C461000080 BUTTON 1 2,200

품절
4-17 9392380 V450001010 COIL SPRING 1 1,100

품절
4-18 9392271 V252000340 SCREW,TAPPING 1 1,100

품절
4-19 9392272 V420002580 CUSHION 1 1,100

품절
4-20 9392384 COLLAR 1 1,650
4-21 9392273 V304000320 COLLAR 1 1,100

품절
4-22 9392387 V204000530 BOLT-SW 1 1,650

품절
4-23 9392382 V475005090 TUBE 1 1,100

품절
4-24 9392381 V495002400 BAND 1 1,100

품절
4-25 9392274 P021028250 TOOL SET 1 8,250

품절
4-26 9392391 X602000170 PLUG WRENCH 1 4,400

품절
4-27 9392062 X603000030 DRIVER 1 1,650

품절
4-28 9392275 X605000080 HEXA-WRENCH 1 2,200

품절
4-29 9391631 X705000130 POLY-BAG 1 2,200

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
