신다이와 P230S 고지톱 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 234개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9361745 A130001381 CYLINDER 1 52,800
1-2 9392084 GASKET 1 2,200
1-3 9392068 90010505025 BOLT 2 1,100

품절
1-4 9361749 INSULATOR,INTAKE 1 5,500
1-5 9392427 GASKET 1 1,100
1-7 9392428 BOLT-SPW 2 1,650
1-8 9392429 MUFFLER 1 29,150

품절
1-9 9392066 V104001500 GASKET 1 7,150

품절
1-11 9391871 와셔 2 1,100

품절
1-12 9391801 볼트 1 1,100
2-1 9392447 CRANKCASE,S COMP 1 45,100
2-2 9392431 CRANKCASE,S 1 8,800

품절
2-4 9391474 OIL SEAL 1 2,750
2-5 9392432 CRANKCASE,M COMP 1 23,100
2-6 9392433 CRANKCASE,M 1 9,900

품절
2-8 9392067 OIL SEAL 1 3,300
2-9 9361508 90033040080 PIN, DOWEL 2 1,100

품절
2-10 9392068 90010505025 BOLT 3 1,100

품절
2-11 9392434 FAN COVER COMP 1 73,700

품절
2-12 9392435 FAN COVER 1 33,000

품절
2-13 9392069 9404406000 BALL BEARING 1 8,250

품절
2-14 9392070 9242426000 SNAP RING 1 1,100

품절
2-15 9392071 CLUTCH DRUM 1 23,100
2-16 9392072 V583000160 SNAP RING 1 1,100

품절
2-17 9392436 CUSHION 1 1,650

품절
2-18 9392074 BOLT-SPW 2 1,100
2-19 9392073 V203000610 BOLT-SPW 2 1,650

품절
2-20 9361784 CYLINDER COVER ASSY 1 33,000
2-21 9392438 CYLINDER COVER 1 12,100
2-22 9392439 KNOB 1 3,300

품절
2-23 9392440 INSULATOR 1 1,650

품절
2-24 9392441 클립 1 1,100

품절
2-25 9392111 CONE WASHER 1 1,100
2-26 9392442 JOINT 1 17,600
2-27 9392443 FRONT CUSHION 1 3,300
2-28 9392444 REAR CUSHION 1 3,850
2-29 9392166 BOLT-DW 1 1,650
2-31 9392445 캡 1 7,700
2-32 9392074 BOLT-SPW 4 1,100
2-33 9392446 LABEL,TRADE 1 11,550

품절
3-1 9392076 PISTON 1 33,000
3-2 9392214 PISTON RING 2 4,400
3-3 9392215 PISTON PIN 1 2,750
3-4 9392077 SNAP RING 2 1,100
3-5 9392078 V553000080 NEEDLE BEARING 1 6,050

품절
3-6 9392079 37013-41240 THRUST WASHER 2 1,650

품절
3-7 9361794 P021048010 CRANK SHAFT ASSY 1 53,900

품절
3-8 9392080 A056000260 CLUTCH SHOE ASSY 1 22,000
3-9 9392081 A553000060 CLUTCH SHOE 2 8,800

품절
3-10 9392082 코일스프링 1 2,750
3-11 9392317 볼트 2 1,650
3-12 9392083 SPRING PLATE 2 1,100
3-13 9392318 와셔 2 1,100
3-14 9392084 GASKET 1 2,200
3-15 9392450 PISTON SET 1 44,000
3-16 9392085 PISTON SET 1 37,400
4-1 9392456 ROTOR 1 25,300

품절
4-2 9391577 9311503010 KEY 1 1,650

품절
4-3 9392086 NUT 1 1,100

품절
4-4 9392451 COIL ASSY 1 44,000
4-5 9392452 CORD 1 3,850

품절
4-6 9394243 PLUG CAP COMP 1 3,850

품절
4-7 9392087 PLUG CAP 1 5,500
4-8 9392088 캡커버 1 1,650
4-9 9392089 V495001440 COVER,BAND 1 1,100

품절
4-10 9392090 V151000050 SHIELD 1 4,400

품절
4-11 9392091 A426000050 SPRING,PLUG 1 1,100

품절
4-12 9392453 튜브 1 1,100

품절
4-13 9392454 GROMMET 1 1,100

품절
4-14 9392455 튜브 1 1,100

품절
4-15 9392092 INSULATOR 2 1,100
4-16 9392093 V202000330 BOLT-SLPW 2 1,650

품절
4-17 9392094 점화플러그 NGK BMR6A 1 9,900
5-1 9361739 STARTER,RECOIL ASSY 1 47,300

품절
5-2 9392457 STARTER CASE 1 17,600
5-3 9392458 REEL 1 7,700

품절
5-5 9392460 SPRING, DAMPER 1 7,150
5-6 9392095 RECOIL SPRING 1 12,100

품절
5-7 9392096 V253000310 SCREW 1 1,650

품절
5-8 9392097 A509000310 ROPE 1 2,200

품절
5-9 9392098 A511000160 STARTER KNOB 1 4,950

품절
5-10 9392099 A522000040 STOPPER 1 2,200

품절
5-11 9392461 STARTER PULLEY ASSY 1 8,800

품절
5-12 9392100 V202000380 BOLT,ADHESIVE 4 1,650

품절
5-13 9392101 7011775311 NAME PLATE 1 1,650

품절
6-1 9361737 카뷰레터 아세이 1 72,600
6-2 9392102 12311605160 VALVE ASSY 1 29,150

품절
6-3 9392103 12311444330 SCREW 2 3,300

품절
6-4 9392104 12318340630 O RING 1 1,100

품절
6-5 9392105 P003000860 MAIN JET 1 9,900

품절
6-6 9392106 GASKET,PUMP 1 3,850
6-7 9392107 12311240630 DIAPHRAGM 1 6,600
6-8 9392463 PUMP BODY COMP 1 55,550

품절
6-9 9391596 12312610631 SCREEN 1 1,100

품절
6-10 9391602 NEEDLE VALVE 1 4,400

품절
6-11 9392108 P003000450 SPRING 1 3,300

품절
6-12 9392405 12313905560 SCREW 1 3,300

품절
6-13 9391853 PIN 1 1,100

품절
6-14 9391851 LEVER 1 3,300

품절
6-15 9392109 DIAPHRAGM 1 11,000
6-16 9392406 GASKET 1 1,650
6-17 9392407 12318005560 PUMP BASE COMP 1 15,400

품절
6-18 9392410 12314205560 PUMP COVER 1 3,300

품절
6-19 9392409 12318140630 PRIMER PUMP 1 4,400
6-20 9392411 12311005560 SCREW 4 1,100

품절
6-21 9392110 90072000015 O RING 1 1,100

품절
6-22 9392464 GASKET 1 1,100
6-23 9392465 CLEANER BODY COMP 1 6,600

품절
6-24 9392466 에어필 1 4,400
6-25 9392467 CLEANER COVER 1 4,950
6-26 9392468 KNOB,CLEANER COVER 1 3,850
6-27 9392469 O RING 1 1,100
6-28 9392111 CONE WASHER 1 1,100
6-29 9392470 BACK PLATE 1 4,400

품절
6-31 9392112 X506000130 LABEL,CHOKE 1 1,100

품절
6-32 9392113 A259000000 PLUG 1 2,200

품절
7-1 9392479 FUEL TANK ASSY 1 46,200
7-2 9392472 FUEL TANK 1 14,300
7-3 9361738 A033000330 CAP,FUEL 1 7,700
7-4 9392115 FUEL CAP 1 1,650

품절
7-9 9392116 V107000010 GASKET 1 1,650

품절
7-10 9392474 FUEL PIPE 1 5,500
7-11 9391827 CLIP 2 1,100
7-12 9392117 FUEL FILTER 1 6,050
7-13 9392475 PIPE 1 1,650

품절
7-14 9392476 JOINT 1 1,650

품절
7-15 9392118 VALVE 1 6,050
7-16 9392477 VALVE HOLDER 1 1,100

품절
7-18 9391827 CLIP 1 1,100
7-19 9392478 TANK CUSHION 4 1,100

품절
7-20 9392120 A175000220 TANK GUARD 1 6,600
7-21 9392074 BOLT-SPW 2 1,100
8-1 9392508 OUTER PIPE COMP 1 64,900
8-2 9392480 OUTER PIPE 1 31,350

품절
8-3 9392481 GRIP 1 13,200

품절
8-4 9393993 부시 8 3,300
8-5 9392483 MAIN SHAFT 1 17,050
8-6 9392484 JOINT CASE 1 28,600
8-7 9392485 JOINT SHAFT 1 29,150
8-8 9392161 볼베어링 1 8,800
8-9 9392162 SNAP RING 1 1,100

품절
8-10 9392486 와셔 1 1,100
8-11 9392487 COLLAR 1 1,100
8-12 9392488 KNOB 1 6,050
8-13 9392489 NUT 1 1,100
8-14 9392490 LOCK LEVER 1 13,200

품절
8-15 9392491 COIL SPRING 1 1,100
8-16 9392492 COVER 1 4,400
8-17 9392493 COIL SPRING 1 1,100
8-18 9392494 COLLAR 1 1,650
8-19 9392527 CREW,PM-SLPW 1 1,100
8-20 9392165 SHIM 1 1,100
8-21 9392166 BOLT-DW 1 1,650
8-22 9391801 볼트 1 1,100
8-23 9392495 OUTER PIPE COMP 1 55,000

품절
8-25 9392497 GRIP 1 9,350

품절
8-26 9392498 MAIN SHAFT ASSY 1 19,800
8-29 9392500 HANGER 1 8,800

품절
8-30 9393413 V203000700 BOLT-SPW 1 1,100

품절
8-31 9392127 NUT 1 1,100
8-32 9392132 V495001330 CLAMP 1 2,200

품절
8-33 9392133 V363000110 COLLAR 1 2,200

품절
8-34 9392134 9157804016 SCREW,PM 1 1,100

품절
8-35 9392135 90050000004 NUT 1 1,100

품절
8-36 9392128 X504002780 LABEL,TRADE 1 3,300

품절
8-37 9392502 LABEL,CAUTION 1 2,200

품절
8-39 9392504 LABEL,DECIBEL 1 1,650

품절
8-40 9392505 LABEL,INST 1 1,100

품절
8-41 9392506 LABEL,INST 1 1,100
8-42 9392507 LINER CAP 2 2,200

품절
8-43 9342560 JOINT CASE COMP 1 60,500

품절
9-1 9392537 GEAR CASE,LEFT COMP 1 81,400

품절
9-3 9392509 볼베어링 1 11,000

품절
9-4 9392510 GEAR CASE RIGHT COMP 1 112,200
9-6 9392511 볼베어링 1 7,150
9-7 9391801 볼트 5 1,100
9-8 9392156 V187000080 GREASE NIPPLE 1 1,650

품절
9-9 9392512 SCREW,ADHESIVE 1 1,100
9-10 9392513 SLIDE PIECE 1 3,300

품절
9-11 9392514 OLT 1 1,100
9-12 9392165 SHIM 1 1,100
9-13 9392166 BOLT-DW 1 1,650
9-14 9392515 BAR HOLDER 1 15,400
9-15 9392516 FLANGE NUT 1 1,100

품절
9-16 9392517 WORM GEAR 1 2,750

품절

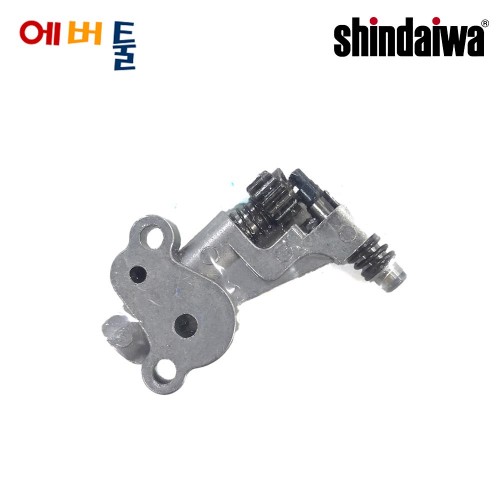

9-17 9391703 OIL PUMP ASSY 1 62,700
9-18 9392519 CREW,PM-PW 2 1,100

품절
9-19 9392520 GASKET,PUMP 1 1,650

품절
9-20 9392521 OIL PIPE ASSY 1 15,950

품절
9-21 9392522 OIL PIPE 1 3,300

품절
9-22 9392523 FILTER 1 2,750

품절
9-23 9392524 OIL TANK ASSY 1 13,200
9-24 9392525 OIL TANK 1 8,800
9-25 9392526 COLLAR 2 1,100

품절
9-27 9392527 CREW,PM-SLPW 2 1,100
9-28 9392528 OIL CAP ASSY 1 4,400
9-29 9392529 GASKET 1 1,650

품절
9-32 9392160 볼베어링 1 7,700
9-33 9392161 볼베어링 1 8,800
9-34 9392162 SNAP RING 1 1,100

품절
9-35 9392163 SNAP RING 1 1,100
9-36 9392532 COLLAR 1 3,300

품절
9-37 9392533 SPROCKET 1 18,700
9-38 9392534 LABEL,CAUTION 1 8,800

품절
9-39 9392535 와셔 1 1,100
9-40 9392536 CREW,BUTTON 1 1,100
9-50 9394557 CASE ASSY, GEAR 1 330,000

품절
9-51 9350411 GEAR SET, P230S 1 44,000
10-1 9392541 THROTTLE LEVER ASSY 1 46,200
10-2 9392182 C401000140 BODY,RIGHT 1 5,500

품절
10-3 9392183 C401000150 BODY,LEFT 1 5,500

품절
10-4 9392184 LEVER 1 7,700
10-5 9392185 LOCK LEVER 1 3,850
10-6 9392186 HOLDER 1 2,200
10-7 9392187 V452000700 COIL SPRING 1 1,650

품절
10-8 9392188 V452000500 COIL SPRING 1 1,650

품절
10-9 9392538 SWITCH 1 22,000
10-10 9392189 V252000380 SCREW,TAPPING 3 1,650

품절
10-12 9392190 9157505020 SCREW,PM-SPW 1 1,100

품절
10-13 9392191 9201705000 NUT 1 1,100

품절
10-14 9392192 PLUG 1 1,650
10-15 9392539 THROTTLE CABLE 1 6,600
10-16 9392193 NUT 2 1,100
10-17 9392540 튜브 1 1,650

품절
10-18 9392194 GRIP 1 7,700
11-1 9392542 PLUG WRENCH 1 4,400
11-2 9392064 X605000100 HEXA-WRENCH 1 1,100

품절
11-3 9392195 X600000020 SPANNER 1 1,100

품절
11-4 9392196 STRAP ASSY 1 18,700
11-5 9392543 HOOK SPANNER 1 13,200

품절
11-6 9392544 ROD 1 15,400

품절
11-7 9392545 COLLAR 1 7,700

품절

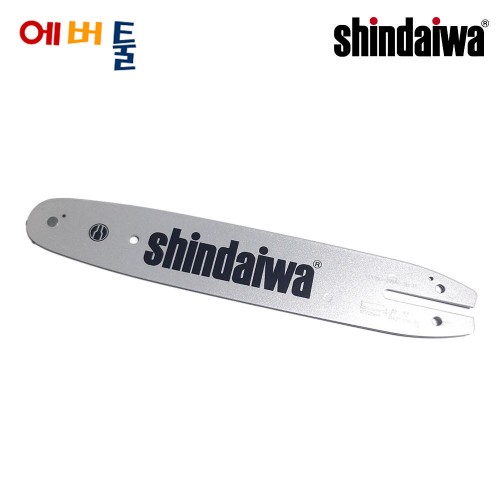

A01 9377015 가이드바 10인치 1 29,700
A02 5793960-01 체인오일 1리터 (허스크바나) 1 8,000

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
