신다이와 AH230S-LW 고지전정기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 181개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9361794 P021048010 CRANK SHAFT ASSY 1 53,900

품절
1-2 9361745 A130001381 CYLINDER 1 52,800

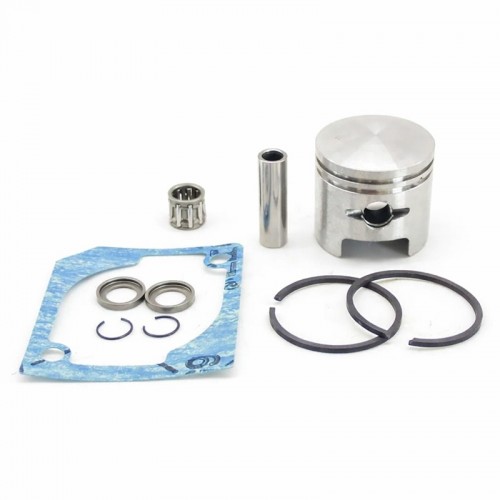

1-3 9392450 PISTON SET 1 44,000

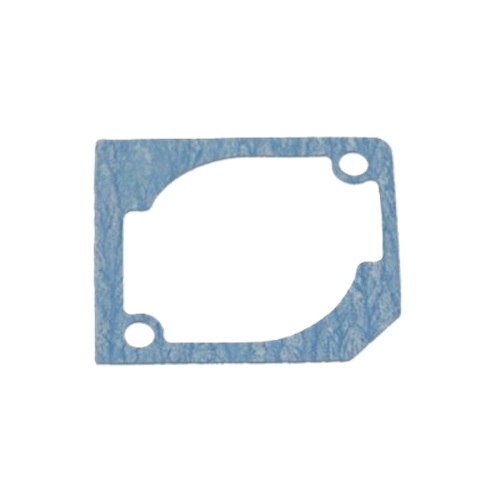

1-4 9392084 GASKET 1 2,200
1-5 9361812 V306000250 WASHER,CIRCULAR 8 2 0

품절
1-6 9392214 PISTON RING 2 4,400
1-7 9392215 PISTON PIN 1 2,750
1-8 9392077 SNAP RING 2 1,100
1-9 9392078 V553000080 NEEDLE BEARING 1 6,050

품절
1-10 9392068 90010505025 BOLT 2 1,100

품절
1-11 9361784 CYLINDER COVER ASSY 1 33,000
1-12 9361746 A160001841 COVER,CYLINDER 1 14,300

품절
1-13 9392439 KNOB 1 3,300

품절
1-14 9392440 INSULATOR 1 1,650

품절
1-15 9392441 클립 1 1,100

품절
1-16 9392111 CONE WASHER 1 1,100
1-17 9392075 X504003230 LABEL,TRADE 1 3,300

품절
2-1 9392447 CRANKCASE,S COMP 1 45,100
2-2 9392431 CRANKCASE,S 1 8,800

품절
2-4 9391474 OIL SEAL 1 2,750
2-5 9392432 CRANKCASE,M COMP 1 23,100
2-6 9392433 CRANKCASE,M 1 9,900

품절
2-8 9392067 OIL SEAL 1 3,300
2-9 9392068 90010505025 BOLT 3 1,100

품절
3-1 9392456 ROTOR 1 25,300

품절
3-2 9391577 9311503010 KEY 1 1,650

품절
3-3 9392086 NUT 1 1,100

품절
3-4 9392451 COIL ASSY 1 44,000
3-5 9392452 CORD 1 3,850

품절
3-6 9394243 PLUG CAP COMP 1 3,850

품절
3-7 9392087 PLUG CAP 1 5,500
3-8 9392088 캡커버 1 1,650
3-9 9392089 V495001440 COVER,BAND 1 1,100

품절
3-10 9392090 V151000050 SHIELD 1 4,400

품절
3-11 9392091 A426000050 SPRING,PLUG 1 1,100

품절
3-12 9392453 튜브 1 1,100

품절
3-13 9392454 GROMMET 1 1,100

품절
3-14 9392455 튜브 1 1,100

품절
3-15 9392092 INSULATOR 2 1,100
3-16 9392093 V202000330 BOLT-SLPW 2 1,650

품절
3-17 9392094 점화플러그 NGK BMR6A 1 9,900

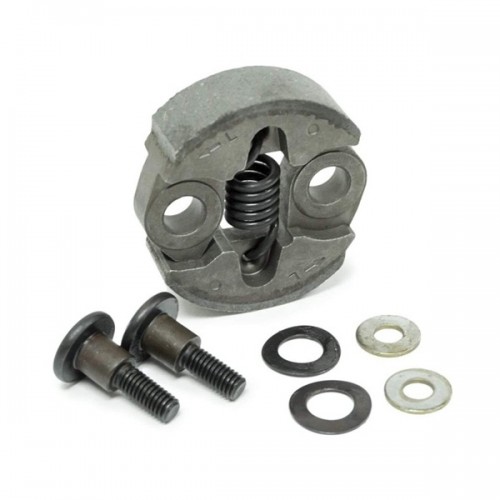

4-1 9392080 A056000260 CLUTCH SHOE ASSY 1 22,000
4-2 9392081 A553000060 CLUTCH SHOE 2 8,800

품절
4-3 9392082 코일스프링 1 2,750
4-4 9392317 볼트 2 1,650
4-5 9392083 SPRING PLATE 2 1,100
4-6 9392318 와셔 2 1,100
4-7 9361783 P021027662 FAN COVER COMP 1 88,000

품절
4-8 9392435 FAN COVER 1 33,000

품절
4-9 9392069 9404406000 BALL BEARING 2 8,250

품절
4-10 9392070 9242426000 SNAP RING 1 1,100

품절
4-11 9392071 CLUTCH DRUM 1 23,100
4-12 9392072 V583000160 SNAP RING 1 1,100

품절
4-13 9392436 CUSHION 1 1,650

품절
4-14 9392074 BOLT-SPW 2 1,100
4-15 9392073 V203000610 BOLT-SPW 2 1,650

품절
4-16 9392442 JOINT 1 17,600
4-17 9392443 FRONT CUSHION 1 3,300
4-18 9392444 REAR CUSHION 1 3,850
4-20 9392445 캡 1 7,700
4-21 9392074 BOLT-SPW 4 1,100
5-1 9361749 INSULATOR,INTAKE 1 5,500
5-2 9392427 GASKET 1 1,100
5-3 9392428 BOLT-SPW 2 1,650

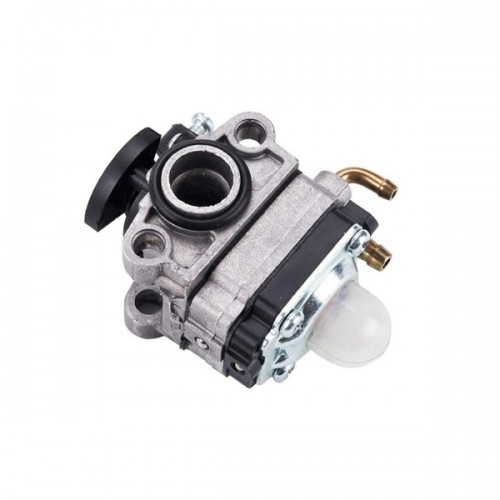

5-4 9361737 카뷰레터 아세이 1 72,600
5-5 9392464 GASKET 1 1,100
5-6 9392465 CLEANER BODY COMP 1 6,600

품절

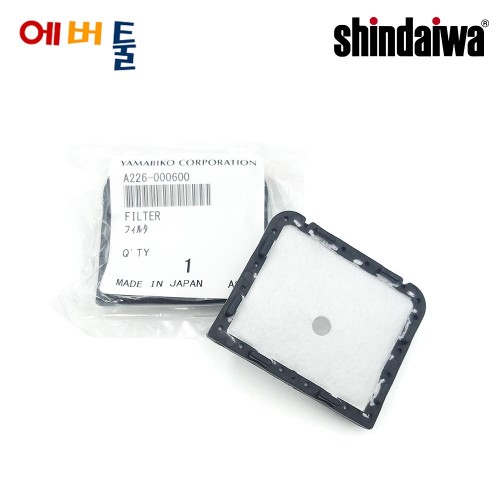

5-7 9392466 에어필 1 4,400

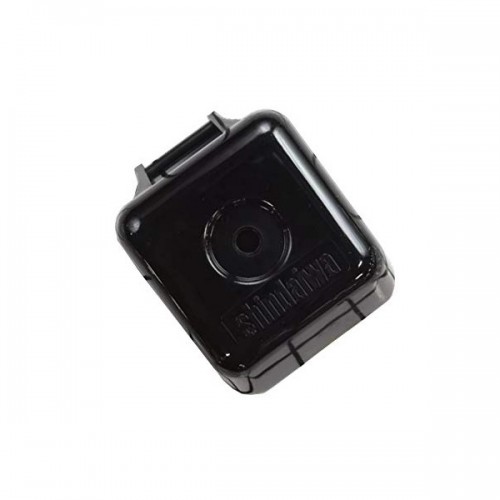

5-8 9392467 CLEANER COVER 1 4,950
5-9 9392468 KNOB,CLEANER COVER 1 3,850
5-10 9392469 O RING 1 1,100
5-11 9392111 CONE WASHER 1 1,100
5-12 9392112 X506000130 LABEL,CHOKE 1 1,100

품절
5-13 9392470 BACK PLATE 1 4,400

품절
6-1 9392472 FUEL TANK 1 14,300

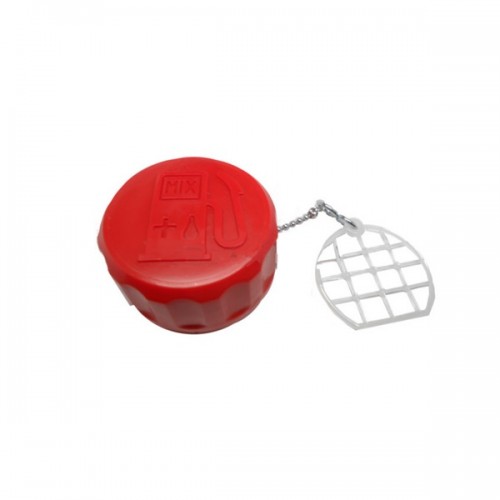

6-2 9361738 A033000330 CAP,FUEL 1 7,700
6-3 9392115 FUEL CAP 1 1,650

품절
6-5 9392116 V107000010 GASKET 1 1,650

품절
6-6 9391827 CLIP 1 1,100
6-7 9392474 FUEL PIPE 1 5,500
6-8 9392117 FUEL FILTER 1 6,050
6-9 9392475 PIPE 1 1,650

품절
6-10 9391827 CLIP 1 1,100
6-11 9392476 JOINT 1 1,650

품절
6-12 9392118 VALVE 1 6,050
6-13 9392477 VALVE HOLDER 1 1,100

품절
6-14 9391827 CLIP 1 1,100
6-16 9392478 TANK CUSHION 4 1,100

품절
6-17 9392120 A175000220 TANK GUARD 1 6,600
6-18 9392074 BOLT-SPW 2 1,100

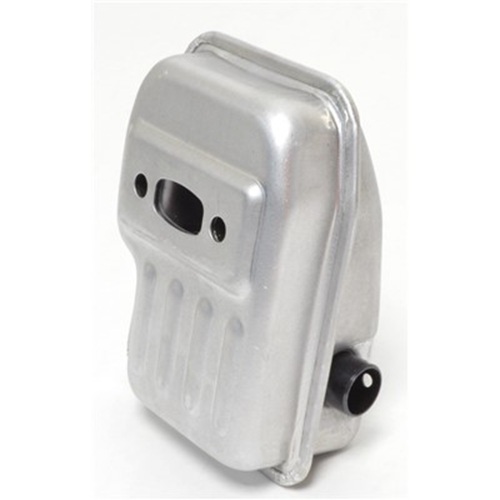

7-1 9392429 MUFFLER 1 29,150

품절
7-2 9392066 V104001500 GASKET 1 7,150

품절
7-4 9391871 와셔 2 1,100

품절
7-5 9391801 볼트 1 1,100

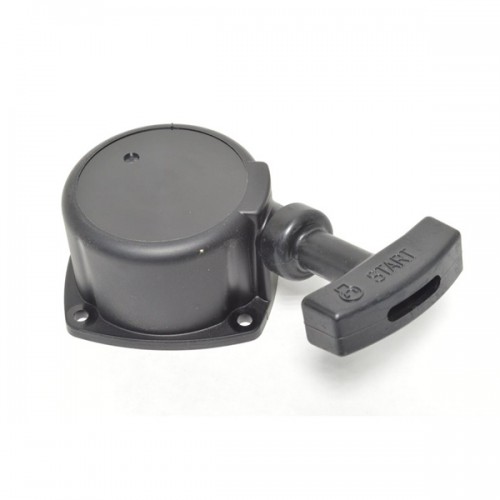

8-1 9361739 STARTER,RECOIL ASSY 1 47,300

품절
8-2 9392457 STARTER CASE 1 17,600
8-5 9392460 SPRING, DAMPER 1 7,150
8-7 9392096 V253000310 SCREW 1 1,650

품절
8-9 9360538 GRIP,STARTER 1 6,050

품절
8-10 9360163 CLIP,STARTER ROPE 1 880

품절
8-11 9392461 STARTER PULLEY ASSY 1 8,800

품절
8-13 9360222 SPRING,PAWL 2 1,650

품절
8-15 9392100 V202000380 BOLT,ADHESIVE 4 1,650

품절
9-1 9361790 CASE ASSY,GEAR 1 132,000
9-13 9361830 GEAR,SPUR 1 16,500
9-14 9361814 V356000730 COLLAR 10 2 2,200

품절
9-15 9361774 ROD,CONNECTING 2 5,500
9-16 9361829 SEAL 1 1,100
9-17 9361809 V110000180 GASKET,GEAR CASE 1 3,300

품절
9-18 9361777 C539000130 LID,GEARCASE 1 8,800

품절
9-19 9361837 BOLT,TORX 4 7 1,100
9-20 9361791 GEAR,BEVEL SET 1 22,000
9-21 9392111 CONE WASHER 2 1,100
9-22 9392193 NUT 1 1,100
9-23 9361728 NUT,LOCK 1 1,100
9-24 9361793 CASE ASSY,GEAR 1 40,700

품절
9-25 9361772 C531001080 CASE,GEAR 1 16,500

품절
9-26 9361803 BEVEL PINION 1 12,100
9-27 9392160 볼베어링 1 7,700
9-28 9392161 볼베어링 1 8,800
9-29 9361436 CIRCLIP 9 1 550

품절
9-30 9392163 SNAP RING 1 1,100
9-31 9392165 SHIM 1 1,100
9-32 9361843 V805000170 BOLT,TORX 5 1 1,100

품절
9-34 9361770 RESETTER,LATCH 1 16,500
9-36 9361779 LEVER, RELEASE 1 5,500
9-38 9392174 SAFETY LEVER 1 4,950
9-40 9392175 PIN,RATCHET 2 1,650
9-41 9392176 V452000710 COIL SPRING 1 2,200

품절
9-42 9392177 HANDLE 1 4,950
9-44 9392178 9146306020 SCREW,TRUSS 2 1,100

품절
9-48 9361730 E-RING 5 1 1,100

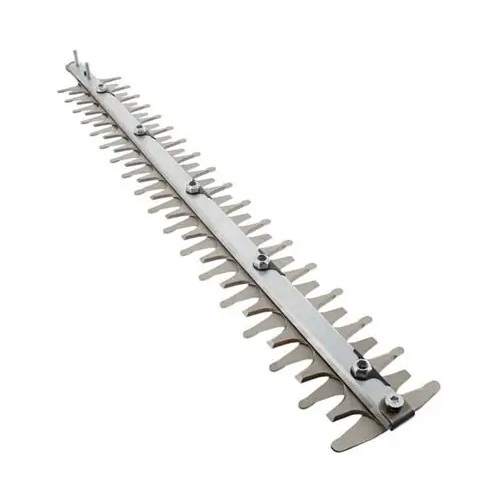

10-1 9361848 CUTTER,ASSY 1 143,000
10-2 9361851 SUPPORT,CUTTER 1 33,000
10-3 9361852 SUPPORT,CUTTER 5 2,200
10-4 9361849 CUTTER 2 60,500
10-5 9392168 볼트 5 1,650
10-6 9392535 와셔 5 1,100
10-7 9361714 NUT 5 1,650
10-10 9361815 SPACER 1 1,100
10-11 9392535 와셔 1 1,100
10-12 9361845 BOLT,TORX 5 1 1,100

품절
10-13 9392170 FLANGE NUT 2 1,100
10-14 9361853 X495000600 SCABBARD,BLADE 1 8,800

품절
11-1 9361792 MAIN PIPE ASSY 1 44,000
11-2 9393993 부시 6 3,300
11-4 9392123 C403000470 GRIP 1 11,000

품절
11-5 9361767 GUARD,HAND 1 11,000
11-8 9392127 NUT 1 1,100
11-10 9392130 HANGER ASSY 1 9,900
11-11 9392131 C670000060 HANGER 1 3,850

품절
11-12 9392132 V495001330 CLAMP 1 2,200

품절
11-13 9392133 V363000110 COLLAR 1 2,200

품절
11-14 9392134 9157804016 SCREW,PM 1 1,100

품절
11-15 9392135 90050000004 NUT 1 1,100

품절
11-16 9392124 MAIN SHAFT 1 24,200
11-17 9361766 C412000261 GRIP,HANDLE 1 11,000

품절
11-18 9392128 X504002780 LABEL,TRADE 1 3,300

품절

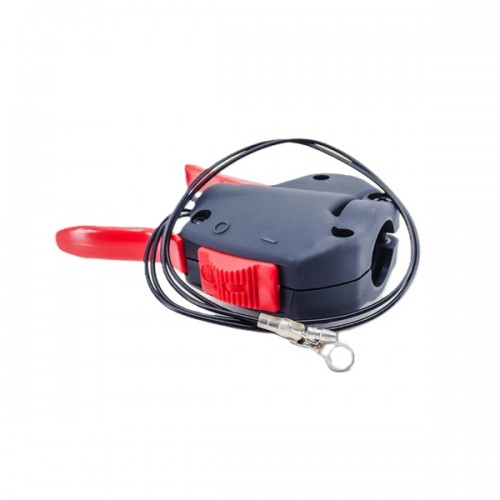

12-1 9392541 THROTTLE LEVER ASSY 1 46,200
12-2 9392182 C401000140 BODY,RIGHT 1 5,500

품절
12-3 9392183 C401000150 BODY,LEFT 1 5,500

품절
12-4 9392184 LEVER 1 7,700
12-5 9392185 LOCK LEVER 1 3,850
12-6 9392186 HOLDER 1 2,200
12-7 9392187 V452000700 COIL SPRING 1 1,650

품절
12-8 9392188 V452000500 COIL SPRING 1 1,650

품절
12-9 9392538 SWITCH 1 22,000
12-10 9392189 V252000380 SCREW,TAPPING 3 1,650

품절
12-11 9392190 9157505020 SCREW,PM-SPW 1 1,100

품절
12-12 9392191 9201705000 NUT 1 1,100

품절
12-13 9392192 PLUG 1 1,650

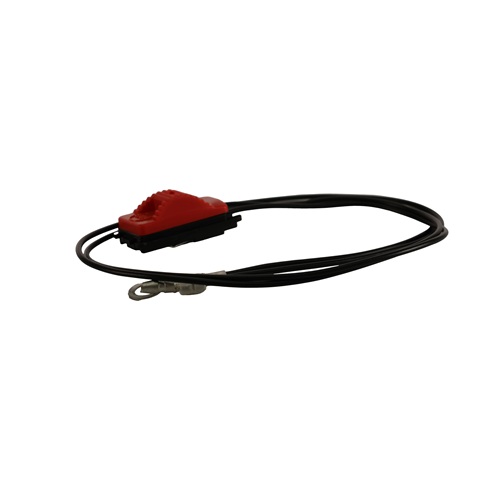

12-14 9392539 THROTTLE CABLE 1 6,600
12-15 9392193 NUT 2 1,100
12-16 9392540 튜브 1 1,650

품절
13-1 9392391 X602000170 PLUG WRENCH 1 4,400

품절
13-2 9392064 X605000100 HEXA-WRENCH 1 1,100

품절
13-3 9394726 TOOL,L WRENCH 1 3,300

품절
13-4 9392195 X600000020 SPANNER 1 1,100

품절
13-5 9391631 X705000130 POLY-BAG 1 2,200

품절

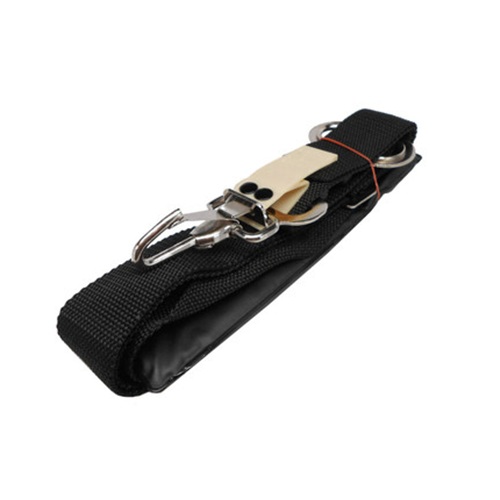

13-6 9392196 STRAP ASSY 1 18,700
13-8 9393844 PROTECTOR 1 3,850

품절
