신다이와 BP30L 예초기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 180개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9393889 CYLINDER 1 68,200

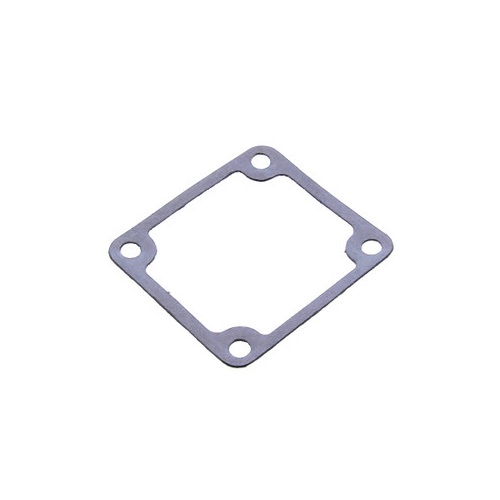

1-2 9393890 V100000420 GASKET 1 1,100
1-3 9393891 V203000710 BOLT-SW 4 1,100

품절
1-4 9393892 INSULATOR 1 17,600
1-5 9393893 GASKET,INSULATOR 2 1,100
1-6 9393894 INLET PIPE 1 8,800
1-7 9393895 V203000620 BOLT-SW 2 1,100

품절
1-8 9393897 MUFFLER 1 27,500
1-9 9393898 MUFFLER GUARD 1 14,300
1-10 9393899 GASKET 1 6,050
1-11 9393900 9157404008 SCREW,PM-SPW 3 1,100

품절
1-14 9391871 와셔 2 1,100

품절
1-15 9393901 9157405012 SCREW,PM-SPW 1 1,100

품절
1-16 9393902 TAIL PIPE 1 4,950
1-17 9393903 9157804010 SCREW,PM 1 1,100

품절
1-18 9392135 90050000004 NUT 1 1,100

품절
1-19 9393896 MUFFLER ASSY 1 66,000
2-1 9393904 CRANKCASE,S 1 26,400
2-2 9393905 A120000870 CRANKCASE,M 1 27,500

품절
2-3 9391902 V623000060 ROLLER 4 1,100

품절
2-5 9392067 OIL SEAL 2 3,300
2-6 9392068 90010505025 BOLT 4 1,100

품절
2-7 9393906 A172001340 FAN COVER 1 36,300

품절
2-8 9392509 볼베어링 2 11,000

품절
2-9 9392142 0243228120 SNAP RING 1 1,100

품절
2-10 9393907 7006131151 NAME PLATE 1 1,650

품절
2-11 9393908 A556000900 CLUTCH DRUM 1 24,200

품절
2-12 9393909 V583000170 SNAP RING 1 1,100

품절
2-13 9393910 9157405020 SCREW,PM-SPW 4 550

품절
2-14 9393911 CYLINDER COVER 1 8,250
2-15 9393901 9157405012 SCREW,PM-SPW 2 1,100

품절
2-16 9393912 A570000230 JOINT CASE 1 24,200

품절
2-17 9393913 PIN COMP 1 9,350
2-18 9392910 V203000350 BOLT-SPW 4 1,100

품절

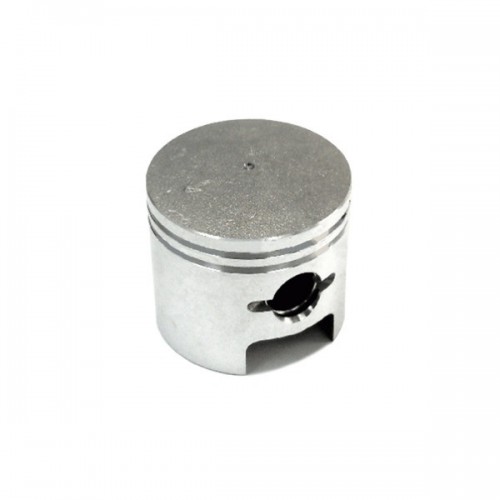

3-1 9393914 PISTON 1 27,500
3-2 9392214 PISTON RING 2 4,400
3-3 9393915 PISTON PIN 1 4,400
3-4 9392590 SNAP RING 2 1,100
3-5 9393916 NEEDLE BEARING 1 6,050
3-6 9392592 THRUST WASHER 2 1,650
3-7 9393917 A011000780 CRANKSHAFT ASSY 1 85,800

품절
3-8 9393919 A553000070 CLUTCH SHOE 2 10,450
3-9 9393920 A557000070 BOLT 2 2,200

품절
3-10 9393921 SPRING 1 1,650
3-11 9392318 와셔 2 1,100

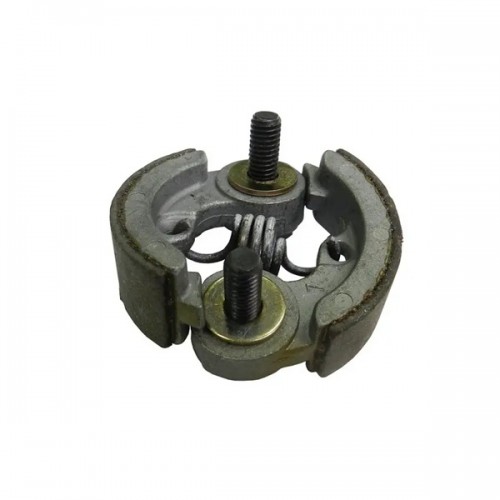

3-12 9393918 CLUTCH SHOE ASSY 1 24,200
4-1 9393922 ROTOR 1 71,500

품절
4-2 9391577 9311503010 KEY 1 1,650

품절
4-3 9391997 V265000180 NUT 1 1,100

품절
4-5 9393923 COIL 1 49,500
4-6 9393924 V475005020 TUBE 2 1,100

품절
4-7 9393925 9110004024 BOLT 2 1,100

품절
4-8 9392323 90060500004 SPRING WASHER 2 1,100

품절
4-9 9393926 90060000004 WASHER 2 1,100

품절
4-10 9393743 UNIT 1 44,000
4-12 9393927 V252000180 SCREW,PM-SPW 2 1,100

품절
4-13 9393928 V135000090 GROMMET 1 1,650

품절
4-14 9392968 A427000100 PLUG CAP 1 1,650

품절
4-15 9392091 A426000050 SPRING,PLUG 1 1,100

품절

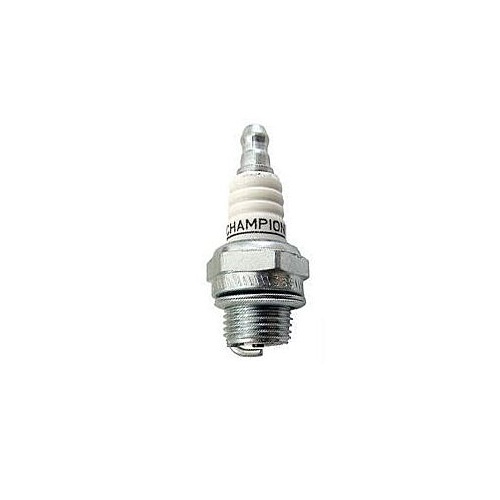

4-16 9393746 CJ8 SPARK PLUG CHAMPION CJ8 1 5,500

품절
4-17 9393829 SWITCH 1 13,200
4-18 9393929 A439000470 BRACKET 1 1,650

품절
5-2 9393932 X504003020 NAME PLATE 1 1,650

품절
5-3 9393750 REEL 1 9,900

품절
5-4 9393751 RATCHET 1 2,200
5-5 9393752 SPRING 1 13,200
5-6 9393753 FRICTION PLATE 1 4,950

품절
5-7 9393754 FRICTION SPRING 1 3,850

품절
5-8 9393755 SCREW 1 1,100

품절
5-9 9393756 ROPE 1 6,050

품절
5-10 9393933 A511000180 STARTER KNOB 1 4,950

품절
5-11 9393934 A513000000 CAP,KNOB 1 1,650

품절
5-12 9393757 RETURN SPRING 1 1,650

품절
5-13 9393758 PULLEY, STARTING 1 5,500
5-14 9393759 NUT 1 1,100

품절
5-15 9392074 BOLT-SPW 3 1,100

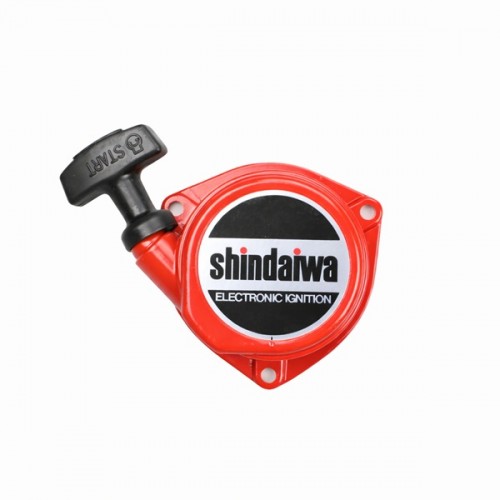

5-16 9393930 RECOIL STARTER SUBASSY 1 33,000
6-1 9393936 12415846630 CABLE ADJUSTER 1 12,100

품절
6-2 9393779 NUT 1 1,100

품절
6-3 9393937 12416849930 ADJUST PIPE 1 11,000

품절
6-8 9393781 SPRING RECEIVE 1 1,100
6-9 9393940 P004002200 THROTTLE VALVE 1 18,700

품절
6-19 9393792 NEEDLE VALVE 1 15,400
6-27 9393779 NUT 1 1,100

품절
6-41 9393762 CLEANER BODY 1 6,600

품절
6-42 9393763 SCREW 2 1,100

품절

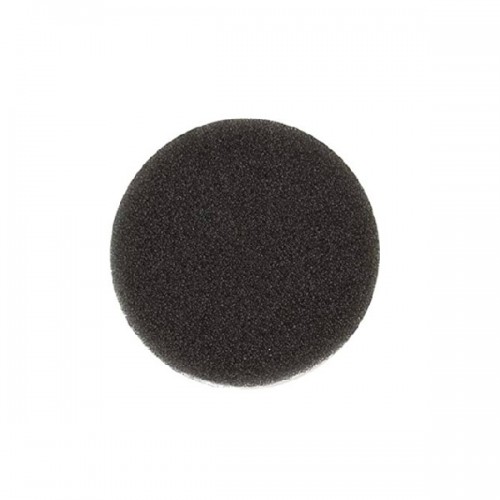

6-43 9393764 FILTER 1 3,300
6-44 9393765 NET 1 1,650
6-45 9393766 NET,B 1 4,950

품절
6-46 9393768 SPRING,NET 1 1,100

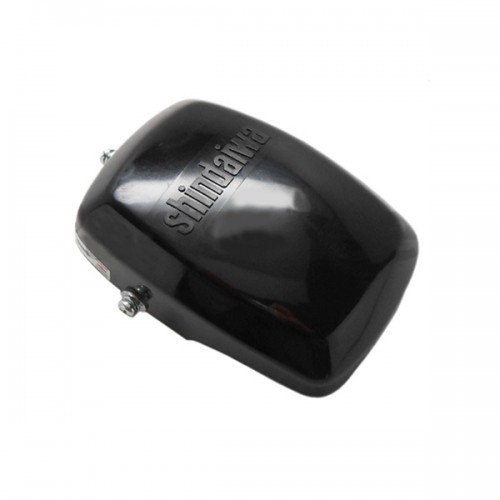

6-47 9393767 CLEANER COVER 1 7,150

품절
6-49 9393769 SCREW 3 1,100

품절
6-50 9393950 THROTTLE CABLE 1 9,900
6-51 9393951 V475004890 PIPE 1 1,100

품절
6-52 9393952 C487000330 CABLE HOLDER 1 1,650

품절
6-53 9393953 C487000300 CABLE CLAMP 1 1,100

품절
6-54 9393954 A246000020 CABLE CAP 1 1,100

품절
6-55 9393935 P004003360 CARBURETOR BODY 1 55,000
6-56 9393949 CLEANER SUBASSY 1 22,000
7-1 9393956 FUEL TANK 1 18,700
7-2 9393811 FUEL CAP ASSY 1 2,750
7-3 9393957 FUEL PIPE 1 9,350
7-4 9393958 클립 2 1,100
7-5 9393959 ELBOW 1 3,300
7-6 9393960 V252000240 SCREW,HILO 3 1,100

품절
7-7 9393962 FUEL PIPE 1 4,950
7-8 9393963 V470001130 FUEL PIPE,A 1 4,400

품절
7-9 9393966 A369000050 FILTER 1 3,300

품절
7-10 9393967 클립 1 1,100
7-11 9393968 V490000640 CLIP 1 550

품절
7-12 9393813 CLIP,A 1 1,100

품절
7-13 9393969 V451000870 SPRING 1 1,650

품절
7-14 9393970 밴드 2 3,850
7-15 9393971 FRAME 1 84,700
7-16 9393972 PAD 1 27,500
7-17 9393901 9157405012 SCREW,PM-SPW 4 1,100

품절
7-18 9393973 V495001450 CLAMP 1 1,100

품절
7-19 9394371 밴드 아세이 2 36,300
7-22 9393975 C640000120 JOINT BAND 1 1,650

품절
7-23 9393976 90021606014 SCREW,TRUSS 2 1,100

품절
7-24 9392171 락너트 2 1,100
7-25 9393978 C632000190 BRACKET,A 1 29,700
7-26 9393979 C627000130 BRACKET,B 1 13,200

품절
7-27 9393980 C628000050 RETAINER 1 6,050

품절
7-28 9393981 90080406005 BALL BEARING 1 14,300

품절
7-30 9393983 9242325000 SNAP RING 1 1,100

품절
7-31 9393984 C629000030 STOP CUSHION 1 1,100

품절
7-32 9392725 CUSHION 3 6,600
7-33 9393985 MOUNT HOLDER 3 1,650
7-35 9392127 NUT 1 1,100
7-37 9393987 V485001780 EARTH CORD 1 2,750

품절
7-38 9393965 FILTER,A 1 1,100
7-39 9393955 FUEL TANK ASSY 1 55,000
7-40 9393961 A037000010 FILTER SUBASSY 1 16,500
7-41 9393964 FILTER SET 1 4,400
7-42 9393977 브라켓 아세이 1 60,500

품절
7-43 9393986 V263000200 FLANGE NUT 2 1,100

품절
8-1 9393989 C508000070 FLEXIBLE PIPE 1 110,000

품절
8-2 9393990 C506000220 FLEXIBLE SHAFT 1 28,600

품절
8-3 9393991 V581000240 O RING 1 2,200

품절
8-6 9393993 부시 4 3,300
8-7 9393994 JOINT PIPE 1 38,500
8-8 9393995 GRIP 1 10,450
8-9 9393996 SCREW 1 1,100
8-10 9393832 BOLT-SPW 1 1,650

품절
8-14 9393998 MAIN SHAFT 1 33,000
8-16 9394000 9242310000 SNAP RING 1 1,100

품절
8-17 9394001 CUSHION 1 1,650
8-18 9394002 THRUST PLATE 2 1,100
8-19 9394003 V363000170 COLLAR 1 3,300

품절
8-23 9393854 THROTTLE LEVER 1 11,000
8-24 9393839 HANDLE LABEL 1 1,100

품절
8-25 9394004 9157805012 SCREW,PM 1 1,100

품절
8-26 9393988 C057000110 FLEXIBLE SET 1 79,200

품절
8-27 9393992 C050001990 OUTER PIPE COMP 1 55,000

품절
9-2 9394009 90081200626 BALL BEARING 1 7,150

품절
9-3 9393865 볼베어링 1 6,600

품절
9-4 9394010 V509000000 OIL SEAL 1 2,750

품절
9-5 9392070 9242426000 SNAP RING 1 1,100

품절
9-6 9394011 9103006010 BOLT 1 1,100

품절
9-7 9394012 V304000180 GASKET 1 1,100

품절
9-8 9394013 GEAR SHAFT 1 15,400
9-9 9394014 V651000690 BEVEL GEAR 1 14,300

품절
9-10 9394015 COLLAR 1 2,200
9-11 9394016 V651000700 BEVEL PINION SET 1 17,600

품절
9-12 9394017 90080000608 BALL BEARING 1 5,500

품절
9-13 9394018 90080400608 BALL BEARING 1 5,500

품절
9-14 9394019 V582000140 SNAP RING 1 1,100

품절
9-15 9394020 9242422000 SNAP RING 1 1,100

품절
9-16 9392074 BOLT-SPW 1 1,100
9-19 9392166 BOLT-DW 1 1,650
9-20 9392165 SHIM 1 1,100
9-21 9394021 HOLDER,A 1 18,700
9-22 9394022 HOLDER,B 1 9,900
9-23 9394023 볼트 GUARD 1 3,300
9-24 9394024 볼트 1 2,750

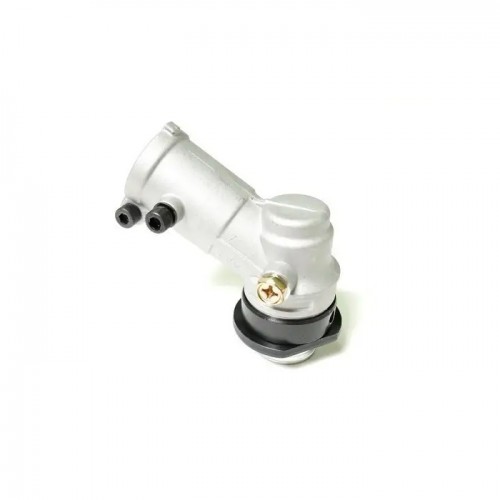

9-26 9394006 GEAR CASE ASSY 1 93,500
10-1 9360989 SHIELD ASSY 1 22,000
10-2 9394178 V263000390 NUT 1 550

품절
10-8 9392305 V203000630 BOLT-SPW 1 1,100

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
