신다이와 BP40L 예초기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 222개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

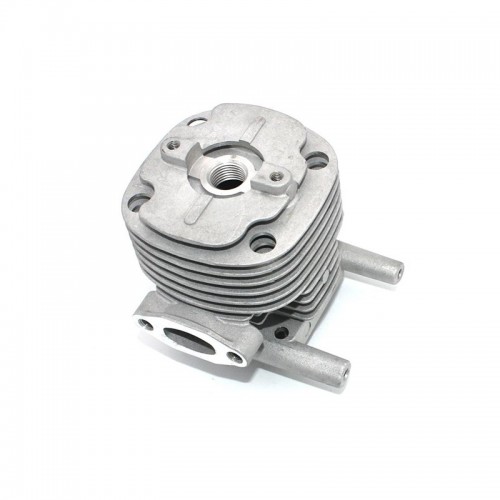

1-1 9393707 CYLINDER 1 93,500
1-2 9393708 GASKET 1 1,650
1-3 9392068 90010505025 BOLT 4 1,100

품절
1-5 9394026 A201000040 INLET PIPE 1 4,400

품절
1-6 9394027 GASKET,INSULATOR 2 1,100
1-7 9394028 A200000700 INSULATOR 1 8,800

품절
1-8 9392305 V203000630 BOLT-SPW 2 1,100

품절
1-9 9394029 A300001190 MUFFLER 1 35,200
1-10 9394030 GASKET,MUFFLER 1 7,150
1-11 9394031 MUFFLER GUARD 1 19,800
1-12 9393718 BOLT-SLPW 3 1,100

품절
1-13 9393902 TAIL PIPE 1 4,950
1-14 9393903 9157804010 SCREW,PM 1 1,100

품절
1-15 9392135 90050000004 NUT 1 1,100

품절
1-16 9392914 90010506025 BOLT 2 550

품절
2-1 9394032 A120000420 CRANKCASE,S 1 27,500

품절
2-2 9394033 A120000440 CRANKCASE,M 1 36,300

품절
2-3 9391902 V623000060 ROLLER 4 1,100

품절
2-4 9391745 볼베어링 2 8,250

품절
2-5 9393721 OIL SEAL 2 3,850
2-6 9391649 90010505030 BOLT 4 1,100

품절
2-7 9394034 FAN COVER 1 55,000
2-8 9394035 볼베어링 2 12,100
2-9 9393860 SNAP RING 1 1,100

품절
2-10 9394334 X504006080 NAME PLATE 1 1,650

품절
2-11 9394037 CLUTCH DRUM 1 38,500
2-12 9394038 SNAP RING 1 550
2-13 9392910 V203000350 BOLT-SPW 2 1,100

품절
2-14 9394039 V203000600 BOLT-SPW 2 1,650

품절
2-17 9394040 CYLINDER COVER 1 8,800
2-19 9394355 90010505014 BOLT 1 550

품절
2-20 9394042 A570000210 JOINT CASE 1 22,000

품절
2-21 9393913 PIN COMP 1 9,350
2-22 9392910 V203000350 BOLT-SPW 4 1,100

품절
2-24 9394369 V303000210 WASHER 1 550

품절
3-1 9393729 PISTON 1 26,400

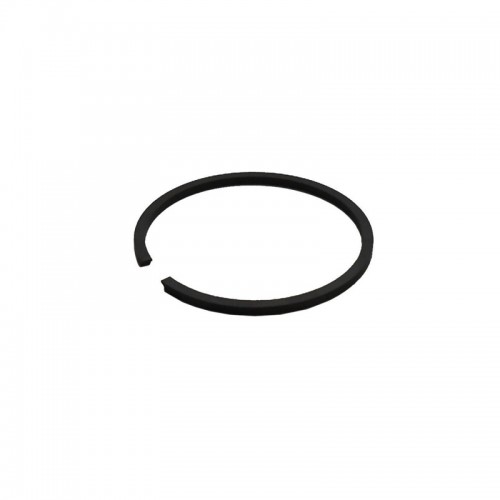

3-2 9393730 PISTON RING 2 5,500

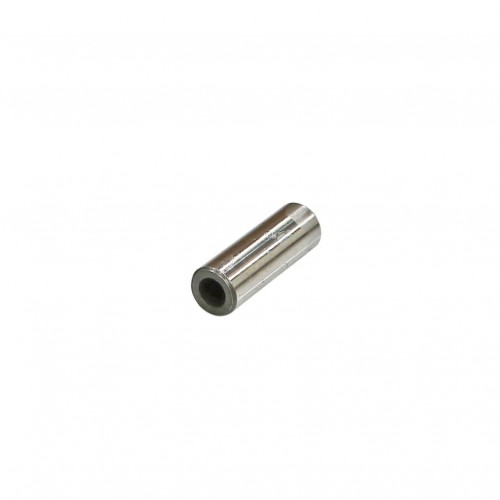

3-3 9391522 PISTON PIN 1 4,950
3-4 9391941 SNAP RING (낱개) 2 1,100
3-5 9391523 NEEDLE BEARING 1 8,800
3-6 9394045 THRUST WASHER 2 4,400
3-7 9393732 CRANKSHAFT ASSY 1 66,000
3-8 9394047 CLUTCH SHOE 2 13,200
3-9 9394048 CLUTCH SPRING 2 2,200
3-10 9394049 CLUTCH BOLT 2 2,750
3-11 9393737 와셔 2 1,100
3-12 9394046 CLUTCH SHOE ASSY 1 34,100
3-13 9393708 GASKET 1 1,650

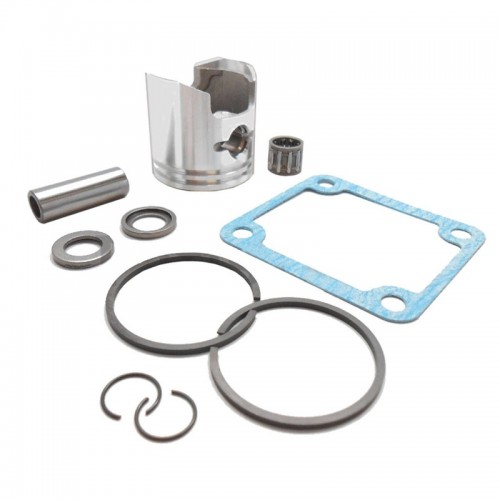

3-14 9394050 PISTON SET 1 55,000
4-1 9394728 ROTOR,MAGNETO,KIT 1 82,500
4-3 9393925 9110004024 BOLT 2 1,100

품절
4-4 9392323 90060500004 SPRING WASHER 2 1,100

품절
4-5 9394368 와셔 2 550

품절
4-6 9394052 COIL 1 49,500
4-7 9393738 ROTOR 1 55,000
4-8 9393739 NUT 1 1,100

품절
4-9 9393740 SPRING WASHER 1 550

품절
4-10 9391577 9311503010 KEY 1 1,650

품절
4-11 9393742 SPACER,COIL 2 1,650
4-12 9392968 A427000100 PLUG CAP 1 1,650

품절
4-13 9392091 A426000050 SPRING,PLUG 1 1,100

품절
4-14 9394053 V475004880 TUBE 1 1,100

품절
4-15 9393746 CJ8 SPARK PLUG CHAMPION CJ8 1 5,500

품절
5-1 9394056 A500000880 STARTER CASE 1 25,300

품절
5-2 9394374 X504006070 NAME PLATE 1 1,650

품절
5-3 9394058 REEL 1 10,450
5-4 9393751 RATCHET 1 2,200
5-5 9394059 A504000140 SPRING 1 13,200

품절
5-6 9393753 FRICTION PLATE 1 4,950

품절
5-7 9393754 FRICTION SPRING 1 3,850

품절
5-8 9393755 SCREW 1 1,100

품절
5-9 9394060 A509000190 ROPE 1 7,700

품절
5-10 9392098 A511000160 STARTER KNOB 1 4,950

품절
5-11 9392099 A522000040 STOPPER 1 2,200

품절
5-12 9393757 RETURN SPRING 1 1,650

품절
5-13 9393312 X707000050 TAPE 1 1,650

품절
5-14 9393758 PULLEY, STARTING 1 5,500
5-15 9393759 NUT 1 1,100

품절
5-16 9392827 V202000580 BOLT-SPW 4 1,100

품절
5-17 9394061 GASKET,STARTER 1 1,100

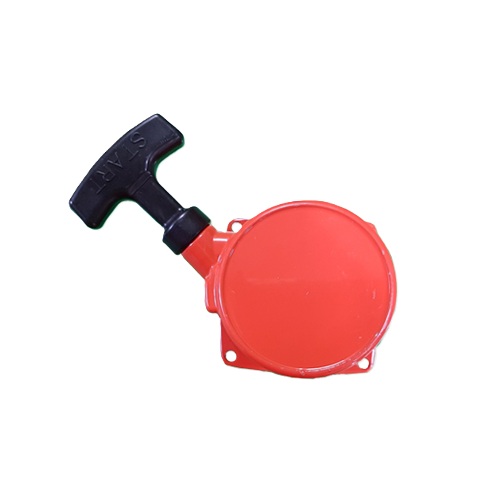

5-18 9394055 RECOIL STARTER SUBASSY 1 38,500
6-1 9393936 12415846630 CABLE ADJUSTER 1 12,100

품절
6-2 9393779 NUT 2 1,100

품절
6-3 9393937 12416849930 ADJUST PIPE 1 11,000

품절
6-5 9394373 P004000700 BODY CAP 1 3,300

품절
6-6 9393939 P004002180 CAP 1 3,850

품절
6-7 9393780 SPRING 1 1,100

품절
6-8 9393781 SPRING RECEIVE 1 1,100
6-9 9393940 P004002200 THROTTLE VALVE 1 18,700

품절
6-10 9393942 P004002220 JET NEEDLE 1 9,350

품절
6-11 9393943 P004000660 NEEDLE JET 1 6,600

품절
6-12 9393944 12412213210 MAIN JET 1 6,600

품절
6-13 9394295 P004002170 FLOAT CHAMBER 1 12,100

품절
6-14 9393787 SCREW 2 1,100

품절
6-15 9393788 PACKING 1 4,400

품절
6-16 9393789 FLOAT 1 8,250

품절
6-17 9393790 FLOAT HINGE 1 9,900

품절
6-18 9393791 HINGE PIN 1 1,650

품절
6-19 9393792 NEEDLE VALVE 1 15,400
6-20 9393793 SCREW 1 1,100

품절
6-25 9393779 NUT 1 1,100

품절
6-26 9393796 밴드 1 8,800

품절
6-27 9393797 밴들 볼트 1 3,300

품절
6-28 9394365 12415113020 NUT 1 550

품절
6-29 9393799 와셔 1 1,100

품절
6-30 9393800 FLANGE PACKING 1 1,100

품절
6-31 9393804 SLOW STOP SCREW 1 4,400

품절
6-32 9393805 SPRING 1 1,100

품절
6-33 9393806 O RING 1 1,650

품절
6-34 9393807 SLOW AIR SCREW 1 2,750

품절
6-35 9393808 SPRING 1 1,100

품절
6-36 9393762 CLEANER BODY 1 6,600

품절
6-37 9393770 PLATE 1 3,300

품절
6-38 9393763 SCREW 2 1,100

품절
6-39 9393764 FILTER 1 3,300
6-40 9393765 NET 1 1,650
6-41 9393766 NET,B 1 4,950

품절
6-42 9393768 SPRING,NET 1 1,100
6-43 9393767 CLEANER COVER 1 7,150

품절
6-44 9392112 X506000130 LABEL,CHOKE 1 1,100

품절
6-45 9393769 SCREW 3 1,100

품절
6-50 9393950 THROTTLE CABLE 1 9,900
6-51 9393951 V475004890 PIPE 1 1,100

품절
6-54 9394353 V475004900 COIL TUBE 3 880

품절
6-55 9393952 C487000330 CABLE HOLDER 1 1,650

품절
6-56 9393953 C487000300 CABLE CLAMP 1 1,100

품절
6-57 9393954 A246000020 CABLE CAP 1 1,100

품절
6-58 9394267 A020000190 CARBURETOR BODY 1 55,000
6-59 9393761 AIR CLEANER SUBASSY 1 22,000

품절
6-60 9394283 THROTTLE CABLE ASSY 1 17,600
6-61 9393941 P004002210 JET NEEDLE KIT 1 28,600

품절
7-1 9394284 A350001420 FUEL TANK 1 22,000
7-2 9393811 FUEL CAP ASSY 1 2,750
7-3 9394316 FUEL PIPE 2 4,400
7-4 9393958 클립 4 1,100
7-5 9394298 FUEL COCK ASSY 1 9,900
7-7 9393962 FUEL PIPE 1 4,950
7-8 9394322 FUEL PIPE A 1 3,850
7-9 9393965 FILTER,A 1 1,100
7-10 9393966 A369000050 FILTER 1 3,300

품절
7-11 9393967 클립 1 1,100
7-12 9393968 V490000640 CLIP 1 550

품절
7-13 9393813 CLIP,A 1 1,100

품절
7-14 9393969 V451000870 SPRING 1 1,650

품절
7-15 9394256 C066000090 FRAME 1 104,500
7-16 9393972 PAD 1 27,500
7-18 9393901 9157405012 SCREW,PM-SPW 4 1,100

품절
7-19 9393973 V495001450 CLAMP 1 1,100

품절
7-20 9394371 밴드 아세이 2 36,300
7-21 9393975 C640000120 JOINT BAND 1 1,650

품절
7-22 9393976 90021606014 SCREW,TRUSS 2 1,100

품절
7-23 9392171 락너트 2 1,100
7-24 9394278 브라켓A 1 26,400
7-25 9393979 C627000130 BRACKET,B 1 13,200

품절
7-26 9393980 C628000050 RETAINER 1 6,050

품절
7-27 9393981 90080406005 BALL BEARING 1 14,300

품절
7-29 9393983 9242325000 SNAP RING 1 1,100

품절
7-30 9393984 C629000030 STOP CUSHION 1 1,100

품절
7-31 9392725 CUSHION 3 6,600
7-32 9393985 MOUNT HOLDER 3 1,650
7-34 9392127 NUT 1 1,100
7-36 9393987 V485001780 EARTH CORD 1 2,750

품절
7-37 9393986 V263000200 FLANGE NUT 4 1,100

품절
7-38 9392501 볼트 SW 2 550

품절
7-39 9394321 A392000060 BAND 2 3,850
7-40 9393959 ELBOW 1 3,300
7-41 9393960 V252000240 SCREW,HILO 3 1,100

품절
7-42 9394293 FILTER SUB ASSY 1 16,500
7-43 9394265 FUEL TANK ASSY 1 60,500
7-44 9394261 브라켓 아세이 1 73,700
7-45 9393964 FILTER SET 1 4,400
8-1 9393989 C508000070 FLEXIBLE PIPE 1 110,000

품절
8-2 9393990 C506000220 FLEXIBLE SHAFT 1 28,600

품절
8-3 9393991 V581000240 O RING 1 2,200

품절
8-6 9394313 C501000120 BUSHING 4 4,950

품절
8-7 9393994 JOINT PIPE 1 38,500
8-8 9393995 GRIP 1 10,450
8-9 9393996 SCREW 1 1,100
8-10 9393832 BOLT-SPW 1 1,650

품절
8-14 9394272 C504000770 MAIN SHAFT 1 28,600

품절
8-16 9394000 9242310000 SNAP RING 1 1,100

품절
8-17 9394001 CUSHION 1 1,650
8-18 9394002 THRUST PLATE 2 1,100
8-19 9393839 HANDLE LABEL 1 1,100

품절
8-20 9393840 LABEL,CAUTION 1 3,300

품절
8-22 9394345 브라켓 1 1,100
8-23 9394308 SWITCH 1 8,800
8-24 9394327 V485001800 EARTH CORD C 1 2,750

품절
8-25 9393854 THROTTLE LEVER 1 11,000
8-26 9394367 9157805016 SCREW PM 1 550

품절
8-27 9394005 X505003200 LABEL,CAUTION 1 1,100

품절
8-28 9393988 C057000110 FLEXIBLE SET 1 79,200

품절
8-29 9394262 OUTER PIPE COMP 1 36,300
9-1 9393856 GEAR CASE 1 24,200

품절
9-2 9393857 볼베어링 1 6,600

품절
9-4 9393859 OIL SEAL 1 4,400

품절
9-5 9393860 SNAP RING 1 1,100

품절
9-6 9393861 SHAFT, GEAR 1 24,200
9-7 9393862 베벨기어 1 20,900

품절
9-8 9393863 COLLAR 1 3,300

품절
9-9 9393864 BEVEL PINION SET 1 23,100

품절
9-12 9392069 9404406000 BALL BEARING 1 8,250

품절
9-13 9392072 V583000160 SNAP RING 1 1,100

품절
9-14 9392070 9242426000 SNAP RING 1 1,100

품절
9-15 9393866 볼트 1 1,100
9-16 9393867 GASKET 1 1,100
9-17 9393832 BOLT-SPW 1 1,650

품절
9-19 9391801 볼트 1 1,100
9-20 9393869 HOLDER 1 16,500
9-22 9393871 볼트 GUARD 1 2,750
9-23 9393872 볼트 1 2,200
9-24 9393873 PIN, SNAP 1 1,650
9-26 9391871 와셔 1 1,100

품절
9-28 9393855 CASE, GEAR 1 104,500
9-29 9394252 7208413000 GEAR CASE ASSY 1 121,000

품절
10-1 9394297 7247616101 GUARD ASSY 1 14,300

품절
10-2 9393842 GUARD CLAMP 1 2,750

품절
10-3 9393910 9157405020 SCREW,PM-SPW 2 550

품절
10-4 9394178 V263000390 NUT 2 550

품절
10-5 9394292 HANDLE 1 13,200
10-6 9394314 C423000790 CLAMP A 1 4,400
10-7 9392305 V203000630 BOLT-SPW 4 1,100

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
