신다이와 BP230S 예초기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 216개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9350093 A011001160 CRANKSHAFT,ASSY 1 110,000

품절

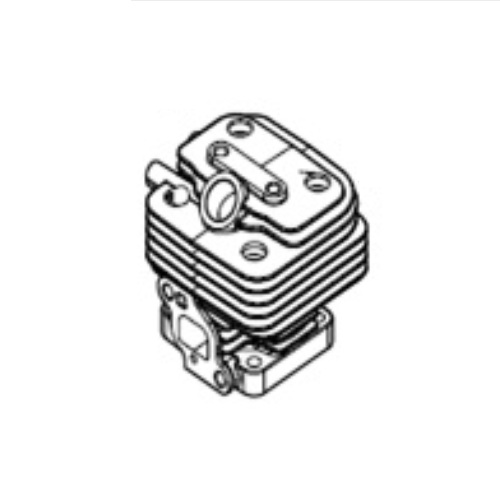

1-2 9350105 CYLINDER 1 77,000
1-3 9350106 V100000700 GASKET,CYLINDER 1 2,200

품절
1-4 9350107 9112805025 BOLT HSH 4 1,100

품절
1-5 9350108 P021037090 PISTON KIT 1 39,600

품절
1-6 9361743 A101000090 RING,PISTON 1 5,500

품절
1-7 9361694 10001311520 PIN,PISTON 1 3,300

품절
1-8 9360072 CIRCLIP,PISTON PIN 2 1,100

품절
1-9 9350109 V553000050 BEARING,NEEDLE 8 1 6,600

품절
1-10 9360457 SPACER, PISTON PIN 2 4,400

품절
1-11 9350110 A160002680 COVER,CYLINDER 1 18,700

품절
1-12 9350151 A160002650 COVER,CYLINDER 1 18,700

품절
1-13 9360028 SCREW 4X10 1 1,100
1-14 9350152 A162000200 GUARD,TOP 1 4,400

품절
1-15 9350153 90023805025 SCREW 5*25 1 1,100

품절
1-16 9350154 90025305014 SCREW 5*14 1 1,100

품절
1-17 9350071 A209000530 PLATE,INSULATOR 1 4,400

품절
1-18 9350072 9112105010 BOLT,FLANGE 1 1,100

품절
1-20 9350074 X505007710 LABEL,CAUTION 1 1,100

품절
2-1 9350076 P021012890 CRANKCASE KIT 1 99,000

품절
2-2 9360458 OILSEAL ISCD 12X28X7 1 4,400

품절
2-3 9360113 CIRCLIP 28 1 1,100

품절
2-4 9360519 BEARING,BALL 6001 1 5,500
2-5 9360472 OILSEAL 1 6,050
2-6 9360519 BEARING,BALL 6001 1 5,500
2-7 9350077 V102000020 GASKET,CRANKCASE 1 1,650

품절
2-8 9350078 9112805028 BOLT HSH 4 1,100

품절
2-9 9350079 V485002590 LEAD 1 5,500

품절
2-10 9360022 90024205010 SCREW 5*10 1 1,100

품절
3-1 9350096 A409000231 ROTOR,MAGNETO 1 66,000

품절
3-2 9350097 COIL,IGNITION 1 60,500
3-3 9360043 NUT 8 1 1,100

품절
3-4 9360005 와셔 8 1 1,100
3-6 9350098 V352000080 COLLAR 4 2 1,100

품절
3-7 9350099 V202000130 BOLT 4 2 1,100

품절
3-9 9394469 A425000000 SPARK PLUG 1 13,200
3-10 9360522 점화플러그캡 1 5,500
3-11 9360184 COIL,SPARK PLUG 1 1,100

품절
3-12 9350100 A429000000 COVER,CAP 1 1,100

품절
4-1 9350131 P021044820 CLUTCH SHOE SET 1 18,700

품절
4-2 9350132 V452000160 SPRING,TORSION 1 3,300

품절
4-3 9360478 SHAFT,CLUTCH 2 4,400

품절
4-5 9350133 17504805530 WASHER 2 1,650

품절
4-6 9360131 WASHER,CIRCULAR 8 2 1,100

품절
4-7 9350134 FAN COVER ASSY 1 46,200
4-8 9350135 A172002280 COVER,FAN 1 22,000

품절
4-9 9350165 A556001560 DRUM,CLUTCH 1 18,700

품절
4-10 9361433 CIRCLIP 12 1 1,100

품절
4-11 9350166 C661000020 LEVER,RELEASE 1 1,100

품절
4-12 9350167 C663000000 SHAFT,RELEASE 1 3,300

품절
4-13 9350168 V452000290 SPRING,TORSION 1 1,100

품절
4-14 9361730 E-RING 5 1 1,100
4-15 9360924 SCREW 5X22 4 1,100

품절

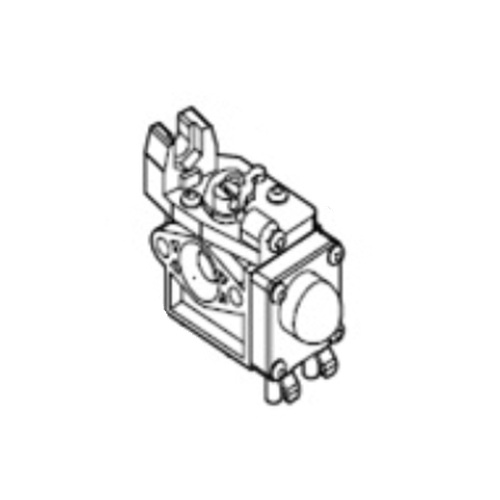

5-1 9350171 카뷰레터 아세이 1 77,000
5-2 9350040 V490000440 CLIP 1 1,100

품절
5-3 9350173 V103001630 GASKET,INTAKE 1 2,200

품절
5-4 9350174 A128000070 PLATE,DUST 1 2,200

품절
5-5 9350175 A200000920 INSULATOR,INTAKE 1 3,300

품절
5-6 9350176 V103000270 GASKET,INTAKE 2 1,100

품절
5-7 9350080 A209000540 PLATE,INSULATOR 1 1,100

품절
5-8 9360106 볼트 H.S. 5X20 2 1,100

품절
5-9 9350111 V430004350 CABLE,BOWDEN 1 13,200

품절
5-10 9360182 NUT,FLANGE 1 1,100
5-11 9392193 NUT 1 1,100
5-12 9350138 P021041440 CASE,AIR CLEANER 1 8,800

품절
5-13 9350149 12901156330 PLATE,PREVENT 1 3,300

품절
5-14 9350150 90024205060 SCREW 5*60 2 1,100

품절

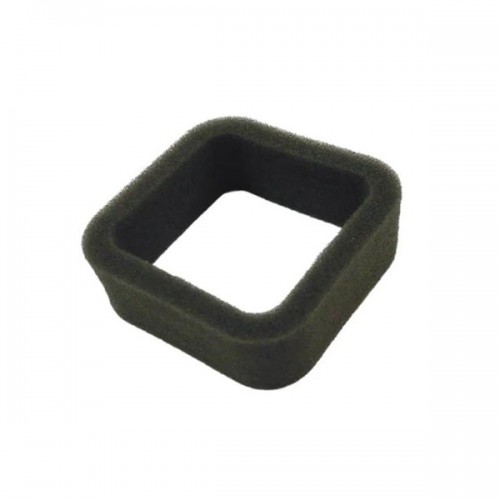

5-15 9350030 ELEMENT,AIR FILTER 1 4,400
5-16 9350101 P021046840 LID,CLEANER ASSY 1 6,600

품절
5-17 9350102 V299000240 KNOB,FASTENER 1 1,650

품절
5-18 9350103 X506000180 LABEL,CHOKE 1 1,650

품절
6-1 9350104 A350000531 TANK,FUEL 1 14,300

품절
6-2 9360123 9114705020 BOLT HS FL TAPP 3 1,100

품절
6-3 9361577 17721402830 WASHER 3 1,100

품절
6-4 9350120 13211555930 GROMMET,FUEL 1 1,650

품절
6-5 9360336 PIPE 1 2,750

품절
6-6 9394595 A369000001 STRAINER, FUEL 1 5,500
6-7 9394406 13201326630 CLIP 1 550

품절
6-8 9394405 13201309820 CLIP 1 1,100

품절
6-9 9350139 13201056330 PIPE 3*6*90 1 3,300

품절
6-10 9360204 PIPE 1 1,100
6-11 9361155 13130056431 VALVE,CHECK(G) 1 4,950

품절
6-12 9350112 P021013970 CAP,FUEL ASSY 1 5,500

품절
6-13 9394593 13101655830 GASKET, FUEL CAP 1 1,650

품절
6-14 9394594 13105156030 CLIP, FUEL CAP 1 1,650

품절
6-15 9350113 A175000052 STAND 1 13,200

품절
6-16 9350114 A443000150 PLATE,CONTACT 1 3,300

품절
6-17 9360028 SCREW 4X10 1 1,100
6-18 9394401 VALVE, CHECK 1 4,950
6-19 9350116 C633000060 SHAFT,ROTATION 1 5,500

품절
6-20 9360873 OLT, FLANGE 2 1,100

품절
6-21 9350117 9112105030 BOLT,FLANGE 2 1,100

품절
7-1 9350118 A320000980 COVER,MUFFLER 1 22,000

품절
7-2 9350119 V353000600 COLLAR,5 1 1,100

품절
7-3 9394441 90023805014 SCREW 2 1,100

품절
7-4 9350147 MUFFLER ASSY 1 49,500
7-5 9350136 A313001700 GUIDE,EXHAUST 1 3,300

품절
7-7 9350140 V104001760 GASKET,EXHAUST 1 3,300

품절
7-8 9350141 9136704010 SCREW 5 1,100

품절
7-9 9350172 V104002050 GASKET,EXHAUST 1 4,400

품절
7-10 9392224 90010505055 BOLT 2 1,100

품절
7-11 9361810 V150000371 PLATE,EYE 1 1,100

품절
7-12 9391871 와셔 2 1,100

품절
8-1 9350081 A051002651 STARTER, RECOIL ASSY 1 132,000

품절
8-2 9350082 A500001550 CASE,STARTER 1 13,200

품절
8-3 9360401 GUIDE,ROPE 1 3,300

품절
8-4 9350083 A506000480 REEL, ROPE 1 14,300

품절
8-5 9350084 A514000060 PAWL 1 2,200

품절
8-6 9350085 V450000440 SPRING,COMPRESSION 1 1,100

품절
8-7 9360634 SPRING,SPIRAL 1 9,900

품절
8-8 9360132 COLLAR 8 1 1,100

품절
8-9 9350137 A503000020 PLATE,STARTER 1 1,100

품절
8-10 9350086 A509000480 ROPE 1 5,500

품절
8-11 9350087 V471004030 PIPE 1 2,200

품절
8-12 9350088 A522000080 STOPPER,ROPE 1 2,200

품절
8-13 9350089 A511000061 GRIP,STARTER 1 8,800

품절
8-14 9350090 P021037780 POWER SPRING ASSY 1 15,400

품절
8-15 9350121 A520000060 PULLEY,STARTING 1 2,200

품절
8-16 9360086 SCREW 5 1 1,100

품절
8-17 9350122 V376001990 SPACER 1 14,300

품절
8-18 9350123 A128000091 PLATE,DUST 1 2,200

품절
8-19 9350124 9111804040 BOLT 4 1,100

품절
8-20 9350125 X504006500 LABEL,BRAND 1 1,100

품절
8-21 9350094 X530000300 LABEL,EYE CATCHER 1 1,100

품절
8-22 9360594 PAWL ASSY,STARTE R 1 12,100
8-23 9360308 PAWL,STARTER 2 2,200

품절
8-24 9360222 SPRING,PAWL 2 1,650

품절
9-1 9350155 V358000180 COLLAR 14 1 5,500

품절
9-2 9350156 90060500012 WASHER,SPRING 12 1 1,100

품절
9-3 9350157 90050000012 NUT 12 1 1,100

품절
9-4 9350158 C627000160 PLATE,ROTATION 1 17,600

품절
9-5 9350169 V401000200 CUSHION 3 6,600

품절
9-6 9392170 FLANGE NUT 6 1,100
9-7 9350170 C617000590 STOPPER 1 5,500

품절
9-8 9350161 90061000005 LOCKWASHER 5 1 1,100

품절
9-9 9350162 C620000370 FRAME 1 44,000

품절
9-10 9350163 V453000140 PLATE 3 2,200

품절
9-11 9391915 V202000260 BOLT-SPW 6 1,100

품절
9-12 9350164 V262000200 FLANGE NUT 6 1,100

품절
9-13 9350126 P021044860 FRAME,BACKPACK 1 29,700

품절
9-14 9350127 C625000040 CLAMP 3 1,100

품절
9-15 9391768 BOLT,TAPPING 4 1,650

품절
9-16 9350128 9111905010 BOLT 2 1,100

품절
9-17 9350129 C630000180 SEAT,BACKPACK 1 49,500

품절
9-18 9350130 V491000430 CLIP 5 1,100

품절
9-19 9350142 HARNESS,ASM BACKPACK 1 60,500
9-20 9350143 C645000060 BUCKLE,HARNESS 1 3,300

품절
10-1 9350144 HOUSING ASSY,GEAR 1 121,000
10-2 9361595 90022004006 SCREW 4*6 1 1,100

품절
10-3 9350145 V000000040 GEAR SET,BEVEL 1 35,200

품절
10-4 9350146 C534000291 SHAFT,GEAR 1 22,000

품절
10-5 9350095 9240106000 RING C 1 1,100

품절
10-6 9393857 볼베어링 1 6,600

품절
10-7 9394009 90081200626 BALL BEARING 1 7,150

품절
10-10 9350160 90070200026 CIRCLIP 26 1 1,100

품절
10-11 9350020 90070200022 CIRCLIP 22 1 1,100

품절
10-12 9392072 V583000160 SNAP RING 1 1,100

품절
10-13 9350091 C535001190 FIXTURE,BLADE 1 18,700
10-14 9350092 V151000120 PLATE,CUP 1 3,300

품절
10-15 9350177 C535001140 FIXTURE,BLADE 1 13,200

품절
10-16 9350178 FIXTURE,BLADE 1 14,300
10-17 9350179 볼트 7 1 1,650
10-18 9361335 볼트 8X8 1 1,100

품절
10-19 9350180 61044355931 PLATE,GUARD 1 4,400

품절
10-20 9350019 9111805012 BOLT 1 1,100

품절
10-21 9350050 9111805025 BOLT 1 1,100

품절
10-22 9350021 9111804010 BOLT 1 1,100

품절
10-23 9350022 C055000051 SHIELD,ASM BLADE 1 19,800

품절
10-24 9350023 P022044100 BRACKET,SHIELD 1 5,500

품절
10-25 9350024 P022044110 BOLT 4 1,100

품절
11-1 9350025 MAIN PIPE ASSY 1 49,500
11-2 9350026 61025756330 BOLT 1 1,100

품절
11-3 9391871 와셔 1 1,100

품절
11-4 9361683 X505005890 LABEL,CAUTION 1 2,750

품절
11-5 9350027 C504000430 SHAFT,DRIVE 1 25,300

품절
11-6 9350028 61027556330 COVER,CONNECTOR 1 3,300

품절
11-7 9350029 C670000190 HOOK,LIFTING 1 4,400

품절
11-8 9350019 9111805012 BOLT 1 1,100

품절
11-9 9350060 61028054131 COLLAR 1 4,400

품절
11-10 9350031 90025304025 SCREW 4*25 2 1,100

품절
11-11 9350032 22492452130 CLIP 1 3,300

품절
11-12 9350033 P100001650 HANDLE ASSY 1 15,400

품절
11-13 9350034 C403000780 GRIP,HANDLE 1 11,000

품절
11-14 9350035 C423001000 FIXTURE,HANDLE 1 13,200

품절
11-15 9360143 볼트 H.S. 5X16 2 1,100

품절
11-16 9350036 C423000990 FIXTURE,HANDLE 1 5,500

품절
11-17 9350037 KNOB,FASTENER 1 5,500
11-18 9350038 C433000030 REST,ELBOW 1 4,400

품절
11-19 9350039 BRACKET,HANDLE 1 2,200
11-20 9350068 C551000030 BRACKET,SHIELD 1 2,200

품절
11-21 9350041 9111805020 BOLT 2 1,100

품절
11-22 9350042 89016042230 LABEL,CAUTION 1 4,400

품절
11-23 9350043 89015204930 LABEL,CAUTION 2 1,100

품절
11-24 9350044 30050007131 ROPE,ELASTIC 1 8,800

품절
11-25 9350045 FLEX SHAFT,ASM 1 110,000
11-26 9350046 61001350131 SHAFT,FLEXIBLE 1 29,700

품절
11-27 9350047 C508000080 COVER,FLEX SHAFT 1 82,500

품절
11-28 9360115 O-RING 18 2 1,100
11-29 9350048 FRONT HANDLE ASSY 1 27,500
11-30 9350049 C400001480 HANDLE,FRONT 1 13,200

품절
11-31 9350069 C423001010 FIXTURE,HANDLE 1 3,300

품절
12-1 9350051 C044001551 CONTROL,THROTTLE 1 29,700

품절
12-2 9350052 P022039220 STAY 1 8,800

품절
12-3 9350053 P022035810 LONG LEVER COMP 1 7,700

품절
12-4 9350054 C451000100 SHAFT,THROTTLE 1 2,200

품절
12-6 9350055 90070000006 E-RING 6 1 1,100

품절
12-7 9350056 P022034160 COVER COMPLETE 1 13,200

품절
12-8 9350057 P022033370 OUTER GUIDE 1 1,100

품절
12-10 9350058 17812856130 SLEEVE 1 2,200

품절
12-11 9360923 SCREW 5X30 1 1,100

품절
12-12 9360029 SCREW 1 1,100
12-13 9350059 V430004431 CABLE,BOWDEN 1 5,500

품절
12-14 9360906 CONNECTOR,CABLE 1 4,950
12-15 9350070 V475007710 TUBE 1 2,200

품절
12-16 9350061 15061114530 TUBE 6*7*110 1 1,100

품절
12-17 9350062 30031856330 HOOK 3 2,200

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
