에코 RM-4300KS-SI 예초기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 179개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

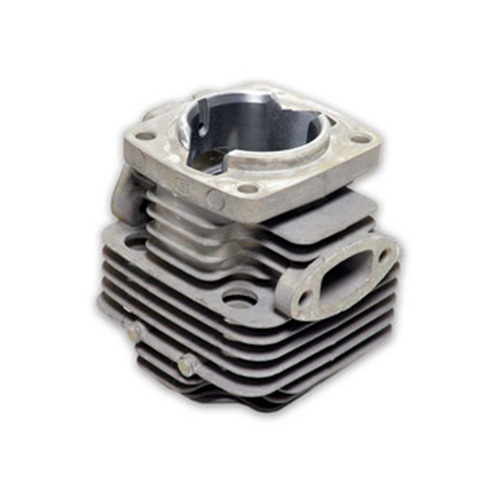

1-2	9360931	CYLINDER	1	104,500
1-3	9394435	90016205020 BOLT,H.S.	4	880	품절

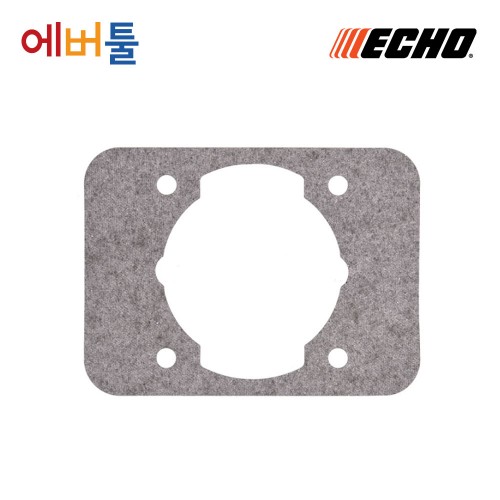

1-4	9361033	실린더가스켓	1	1,650

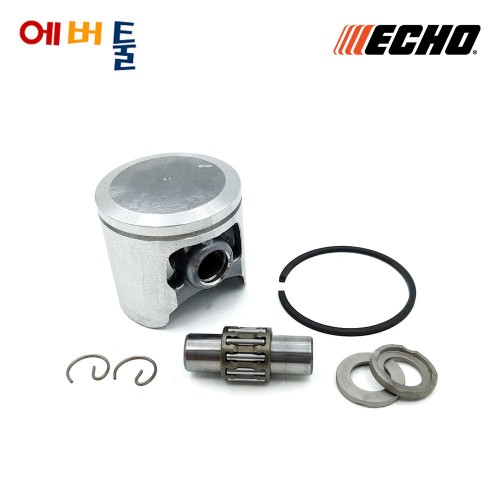

1-9	9360947	피스톤 키트	1	44,000
1-10	9360874	RING, PISTON	1	6,050
1-11	9361047	PIN,ENG 10	1	4,400	품절
1-12	9360071	10001500120 CIRCLIP,PISTON PIN	2	550	품절
1-13	9360609	10001212331 BEARING,NEEDLE	1	8,800	품절
1-14	9361040	WASHER,CIRCULAR 10	2	2,200
1-15	9360927	CRANKSHAFT,ASM	1	107,800
1-16	9360948	CRANKCASE SET	1	148,500	품절
1-17	9360472	OILSEAL	1	6,050
1-18	9360493	볼베어링	1	4,950
1-19	9392717	볼베어링	1	8,800
1-20	9361034	GASKET,CRANKCASE	1	1,320
1-21	9360087	10021503930 PIN,DOWEL	4	550	품절
1-22	9360468	OILSEAL	1	4,400
1-23	9360921	BOLT, H.S. 5X35	4	880	품절
1-31	9360934	COVER,FAN	1	38,500	품절
1-32	9360894	CLAMP	1	880	품절
1-33	9394442	90023805020 SCREW	4	550	품절
1-36	9360924	SCREW 5X22	1	1,100	품절
1-37	9361041	COLLAR,5	1	1,320	품절
1-38	9360933	GUARD,TOP	1	8,250
1-39	9360932	COVER,CYLINDER	1	26,400
1-41	9394441	90023805014 SCREW	1	1,100	품절
1-42	9361050	LABEL,ECHO	1	1,320	품절
2-1	9360524	점화플러그캡	1	6,050
2-2	9360164	점화플러그터미널	1	1,100
2-3	9360604	PLUG,SPARK (BPM-7A)	1	9,900
2-4	9361038	GROMMET,PLUG	1	3,300
2-5	9361044	튜브	1	1,100	품절
2-6	9360893	GROMMET	1	880	품절
2-7	9360895	LEAD, GROUND	1	1,650	품절
2-8	9361045	LEAD	1	3,300	품절
2-9	9394435	90016205020 BOLT,H.S.	2	880	품절

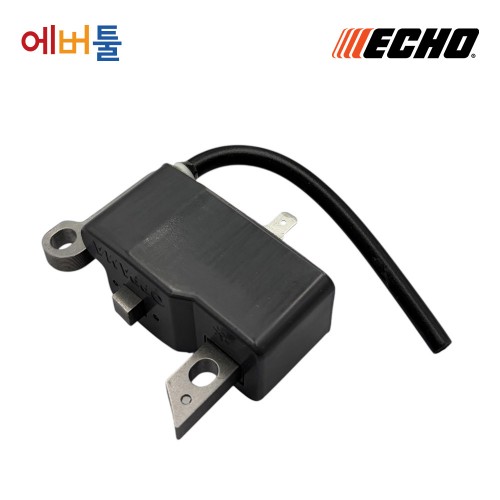

2-10	9360941	COIL,IGNITION	1	63,800
2-11	9360900	BOLT, CLUTCH	2	5,500
2-12	9360899	SPRING, CLUTCH	1	2,200
2-13	9360901	와셔	2	880
2-14	9360898	SHOE, CLUTCH	2	14,850
2-15	9360902	와셔	2	1,320
2-17	9360926	NUT, FLANGE 10	1	33,000	품절
2-20	9360930	PULLEY,ASM STARTER	1	8,800
2-23	9360307	17721840630 PAWL,STARTER	1	2,200	품절

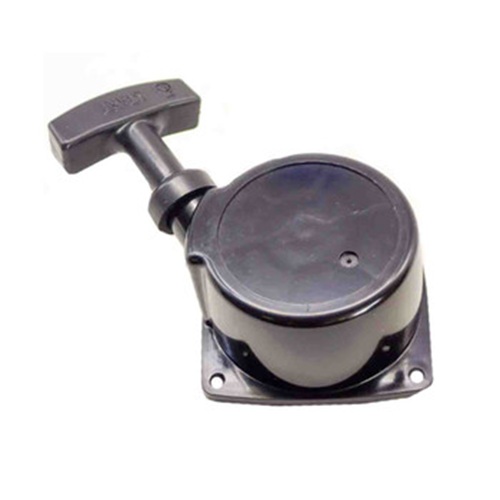

2-26	9360929	STARTER,RECOIL	1	77,000
2-27	9360957	SCREW	1	2,200	품절
2-28	9360961	REEL,ROPE	1	9,350	품절
2-29	9360960	SPRING, SPIRAL	1	8,250	품절
2-30	9360954	ROPE,STARTER	1	4,400	품절
2-31	9360401	GUIDE,ROPE	1	3,300	품절
2-32	9360538	GRIP,STARTER	1	6,050	품절
2-35	9361048	LABEL,ECHO	1	1,320	품절
2-36	9360950	ROTOR,MAGNETO KIT	1	82,500	품절
2-38	9360144	KEY WOODRUFF	1	1,100
2-39	9361042	SPACER	1	10,450	품절
2-40	9360873	OLT, FLANGE	4	1,100	품절
2-41	9360962	PLATE,CAM	1	3,850	품절
2-42	9360963	COMPLETE,SPRING	1	38,500	품절
2-43	9360959	PAWL, STARTER	1	4,950	품절
2-44	9360958	SPRING, RETURN	1	2,200	품절
2-45	9360956	PAWL, STARTER	2	2,200
2-46	9360955	SPRING, RETURN	2	1,320
2-47	9392099	A522000040 STOPPER	1	2,200	품절
2-49	9394445	SCREW	3	550
3-1	9361035	GASKET,INTAKE	1	550
3-2	9360935	INSULATOR,INTAKE	1	6,050
3-3	9360923	SCREW 5X30	2	1,100	품절
3-4	9361036	GASKET,INTAKE	1	880
3-5	9360936	FLANGE,INTAKE CARB	1	6,050
3-6	9360904	트로틀와이어	1	7,700
3-7	9360905	LOCKNUT	1	880

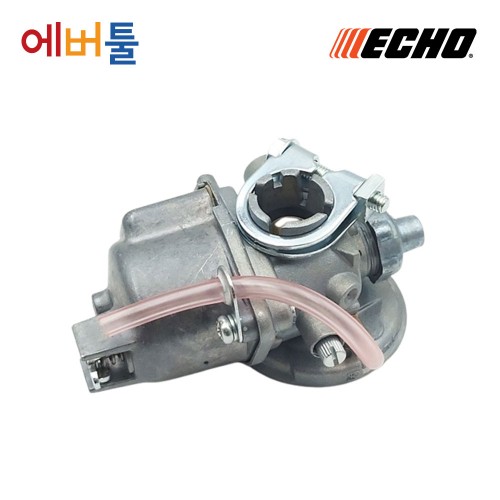

3-8	9360928	카뷰레터	1	80,300
3-9	9360892	VALVE ASSY, FUEL	1	8,250
3-12	9360883	CASE, AIR CLEANER	1	6,600
3-13	9360882	PLATE	1	3,300
3-14	9360925	SCREW 4X10	2	550
3-15	9360301	GRID,AIR CLEANER	1	2,200

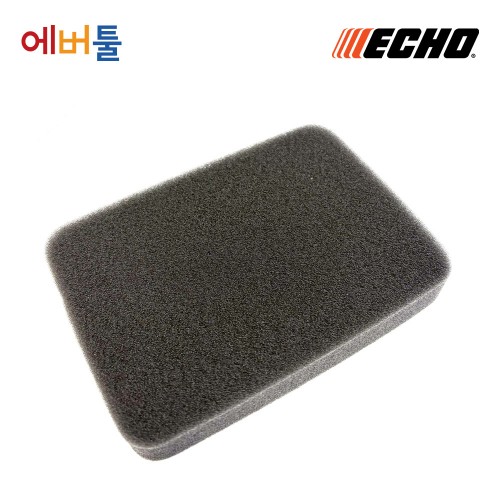

3-16	9360937	에어필터	1	4,400
3-17	9360300	GRID,AIR CLEANER	1	2,200
3-18	9360938	LID,CLEANER	1	4,400
3-20	9360889	PIPE, FUEL	1	3,850	품절
3-21	9360206	밴드	1	1,320
3-22	9360891	COIL, FUEL PIPE	1	4,400	품절
3-25	9361037	GASKET,EXHAUST	1	5,500
3-26	9360920	BOLT, H.S. 5X12	1	550	품절
3-27	9360939	MUFFLER,EXHAUST	1	27,500
3-28	9361039	PLATE,EYE	1	2,200	품절
3-29	9360919	BOLT, H.S. 6X60	2	880
3-30	9360940	COVER,MUFFLER	1	10,450
3-31	9394441	90023805014 SCREW	1	1,100	품절
3-32	9360945	G234000030 GUIDE,EXH	1	2,750
3-33	9361046	밴드	1	550
4-1	9360970	FLAME, BACKPACK	1	55,000
4-3	9360975	CUSHION,BACKPACK	1	27,500
4-4	9360966	CAP BOLT	2	1,100	품절
4-5	9360908	BRACKET, CUSHION	2	3,300	품절
4-6	9360909	BRACKET,CUSHION	2	3,850	품절
4-7	9360968	볼트	6	550	품절
4-8	9360875	BRACKET,FUEL TANK	1	19,800
4-9	9360965	NUT	2	880	품절
4-10	9361008	밴드	1	1,100	품절
4-11	9361009	TANK FUEL	1	19,800
4-12	9360887	STRAINER, FUEL	1	4,400
4-13	9360885	CUP SET, VENT	1	4,950
4-14	9360886	연료뚜껑 연료캡	1	6,600
4-15	9360888	연료탱크 밴드	2	6,050
5-1	9360952	NUT, FRANGE	1	1,320
5-2	9360943	PLATE,ENG	1	30,800
5-3	9360964	볼트	4	550	품절
5-4	9360944	SHAFT,ROTATION	1	7,700
5-5	9361010	NUT	1	550	품절
5-6	9361011	NUT,FLANGE 6	6	880	품절
5-7	9361043	SPRING,COMPRESSION	3	3,300
5-8	9360876	BRACKET, ENGINE	1	38,500
5-9	9360967	CAP BOLT	1	1,100	품절
5-10	9361012	볼트 6X16	6	550	품절
5-11	9361013	와셔 CONICAL	1	550	품절
5-12	9361014	NUT 10X1.25	1	550
6-1	9360977	DRUM,CLUTCH	1	33,000
6-2	9361015	CIRCLIP	1	880
6-3	9361016	볼베어링 6202	1	5,500
6-4	9360890	클립	1	2,750	품절
6-5	9360942	CASE,CLUTCH	1	57,200
6-6	9361017	SCREW 5X16	4	550	품절
6-7	9361018	RING C	1	550
6-8	9361019	E-RING 5	1	550
6-9	9360913	SPRING	1	1,100
6-10	9361031	LOCK PIN	1	7,150
7-1	9360980	SHAFT KIT,FLEXIBLE	1	104,500
7-2	9361027	COVER,FLEXIBLE	1	99,000	품절
7-3	9360981	SHAFT,FLEXIBLE	1	20,900
7-4	9360914	COVER	1	7,700	품절
7-5	9361020	O-RING 18	1	550	품절
7-6	9360983	BRACKET ASSY,M.PIPE	1	33,000
7-7	9360979	볼트	1	550	품절
7-8	9361021	WASHER,SPRING 5	1	550	품절
7-9	9360978	볼트	1	880	품절
7-10	9361022	볼트 5X10	1	550	품절
7-11	9360911	SHAFT, DRIVE	1	24,200	품절
7-12	9360897	BRACKET, SWITCH	1	2,200	품절
7-13	9360896	SWITCH, IGNITION	1	8,250
7-14	9360903	CONTROL, THROTTLE	1	15,400

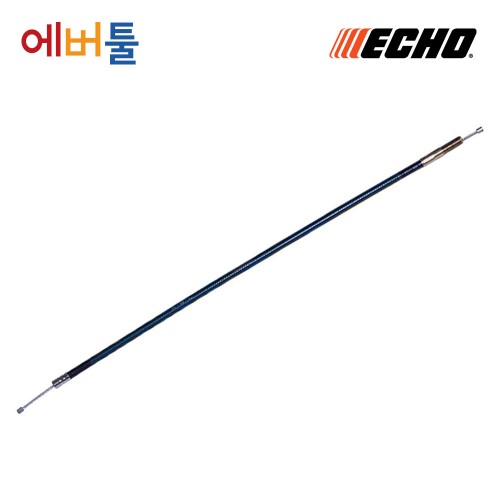

7-15	9361024	CABLE,THROTTLE	1	8,250
7-17	9360906	CONNECTOR,CABLE	1	4,950
7-18	9361029	PIPE,MAIN	1	33,000	품절
7-19	9361030	HANDLE,ASSY	1	15,400
7-20	9361023	SCREW NUT PACK ASSY	1	880	품절
7-23	9360916	LABEL,CAUTION	1	6,050	품절
7-24	9360910	SHAFT, DRIVE	1	28,600
7-25	9360986	PIPE,MAIN	1	41,800
7-26	9360989	SHIELD ASSY	1	22,000
7-27	9361012	볼트 6X16	2	550	품절
7-28	9360988	BRACKET,SHIELD	1	2,200	품절
7-29	9360984	LEAD	1	6,600	품절
7-30	9360990	BRACKET ASSY,M.PIPE	1	23,100
7-31	9360976	볼트	1	550	품절
7-32	9361025	KNOB	1	3,300
7-33	9361026	볼트	1	550	품절
7-34	9361049	LABEL,EYE CATCHER	1	1,320	품절
8-1	9360991	CASE ASSY,GEAR	1	126,500
8-2	9360996	CIRCLIP 24	1	550	품절
8-3	9360997	CIRCLIP 9	1	550	품절
8-4	9360998	볼베어링	1	6,050	품절
8-5	9360999	볼베어링	1	4,950	품절
8-6	9361032	GEAR SET	1	40,700	품절
8-7	9361000	볼트	1	550	품절
8-8	9360973	볼트	1	550	품절
8-9	9360974	볼트	1	550	품절
8-10	9361001	볼베어링	1	10,450	품절
8-11	9361002	SHAFT,EAR	1	30,800	품절
8-12	9361003	볼베어링	1	5,500	품절
8-14	9361005	PLATE,GUARD	1	6,050
8-15	9361006	SCREW	3	550	품절
8-16	9361007	PLATE,CUTTER	1	18,700
8-17	9360972	PLATE,ADAPTER(L)	1	12,100	품절
8-18	9360971	PLATE,COVER	1	6,600
8-19	9360915	NUT	1	1,650	품절
8-21	9360951	SCABBARD,BLADE	1	8,250	품절
