에코 RM-315SI 예초기 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 180개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9394435 90016205020 BOLT,H.S. 4 880

품절

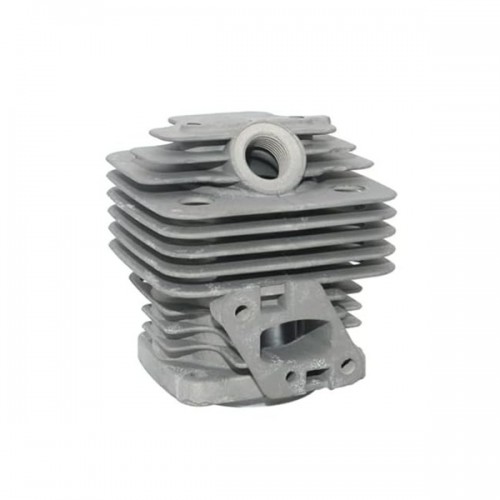

1-2 9361316 CYLINDER 1 82,500
1-10 9360040 SCREW 5X12 2 550

품절
1-11 9361389 COVER,CYLINDER 1 8,250

품절
1-12 9361390 GASKET,CYL.BASE 1 1,650

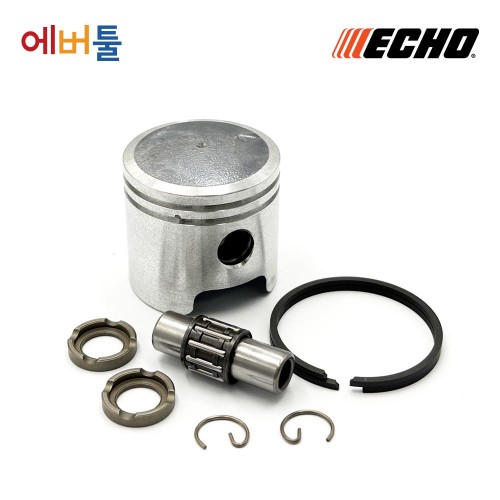

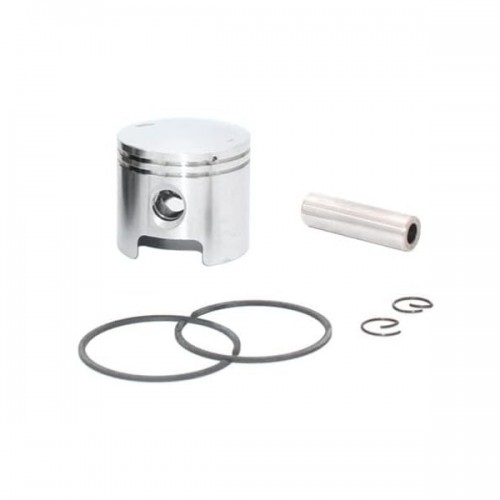

1-13 9361312 PISTON KIT 1 48,400
1-14 9361313 RING,PISTON 1 7,700
1-15 9361314 PIN,PISTON 1 4,400

품절
1-16 9394381 10001503931 CIRCLIP,PISTON PIN 2 1,100

품절
1-17 9394379 10001216131 BEARING,NEEDLE 1 8,800

품절
1-18 9394380 10001453630 SPACER,PISTON PIN 2 3,300

품절
1-19 9361315 CRANKSHAFT ASSY 1 107,800

품절
1-20 9361391 CRANKCASE KIT 1 187,000

품절
1-21 9361392 OILSEAL 2 4,400
1-22 9360087 10021503930 PIN,DOWEL 4 550

품절
1-23 9361440 볼베어링 6201 2 3,850

품절
1-24 9361393 GASKET,CRANKCASE 1 2,200
1-27 9361394 COVER,FAN 1 38,500
1-28 9361445 LABEL,MODEL 1 2,750

품절
1-29 9361395 볼트 8 1 2,200
1-31 9361396 SPRING 1 550
1-33 9361397 LOCKPIN 1 7,150
1-35 9360024 SCREW 5X20 4 550

품절
1-36 9361433 CIRCLIP 12 1 1,100

품절
1-37 9361439 볼베어링 6001VV 2 7,150

품절
1-38 9360113 CIRCLIP 28 1 1,100

품절
1-39 9361398 DRUM,CLUTCH 1 41,800

품절
1-42 9361399 BRACKET,THR.WIRE 1 1,650
2-1 9360604 PLUG,SPARK (BPM-7A) 1 9,900
2-2 9361400 COIL,SPARK PLUG CAP 1 1,100

품절
2-3 9360522 점화플러그캡 1 5,500
2-4 9361401 GROMMET 1 1,100

품절
2-5 9394435 90016205020 BOLT,H.S. 2 880

품절
2-6 9361331 COIL,IGNITION 1 55,000
2-7 9361332 ROTOR,MAGNET 1 71,500
2-9 9361402 와셔 2 1,650

품절
2-10 9361403 ARM, CLUTCH 2 12,100
2-11 9361404 SPRING, CLUTCH 1 2,750
2-12 9361333 BOLT,CLUTCH 2 4,950
2-13 9360043 NUT 8 1 1,100

품절
2-15 9360005 와셔 8 1 1,100
2-16 9361405 LEAD,GROUND 1 2,750

품절
2-17 9360929 STARTER,RECOIL 1 77,000
2-18 9392099 A522000040 STOPPER 1 2,200

품절
2-19 9360538 GRIP,STARTER 1 6,050

품절
2-20 9360955 SPRING, RETURN 2 1,320
2-21 9360956 PAWL, STARTER 2 2,200
2-22 9360960 SPRING, SPIRAL 1 8,250

품절
2-23 9360954 ROPE,STARTER 1 4,400

품절
2-24 9360961 REEL,ROPE 1 9,350

품절
2-25 9360958 SPRING, RETURN 1 2,200

품절
2-26 9360959 PAWL, STARTER 1 4,950

품절
2-27 9360963 COMPLETE,SPRING 1 38,500

품절
2-28 9360962 PLATE,CAM 1 3,850

품절
2-29 9360957 SCREW 1 2,200

품절
2-30 9360021 90024204014 SCREW 4*14 4 550

품절
2-32 9361406 LEAD 1 2,750

품절
2-33 9361407 COVER,PIPE 1 1,100

품절
2-35 9361449 SPACER 1 12,100

품절
2-37 9394445 SCREW 3 550
2-40 9361447 PULLEY,ASM STARTER 1 9,900
2-41 9360307 17721840630 PAWL,STARTER 2 2,200

품절
3-4 9361320 GASKET,INTAKE 1 1,100
3-5 9361408 INSULATOR 1 3,300
3-6 9361321 GASKET,INTAKE 1 550
3-7 9361328 ADAPTER, INTAKE 1 5,500
3-8 9361426 SCREW 5X14 2 880

품절
3-9 9392127 NUT 2 1,100
3-10 9361428 SCREW 5X18 2 550

품절
3-11 9361446 카뷰레터 1 71,500
3-12 9361338 WIRE,THROTTLE 1 7,150
3-13 9360905 LOCKNUT 1 880
3-19 9361427 SCREW 4X22 2 550

품절
3-20 9361339 COIL,FUEL PIPE 1 4,400

품절
3-21 9361340 CLIP,FUEL PIPE 1 1,100

품절
3-23.1 9361441 연료뚜껑 연료캡 1 5,500
3-25 9361337 FUEL TANK PACKING 1 1,100

품절
3-26 9361341 TANK,FUEL 1 16,500
3-28 9361343 CUSHION,F.TANK 1 1,650

품절
3-29 9361409 GASKET,MUFFLER 1 2,750
3-30 9361410 MUFFLER 1 48,400
3-31 9360920 BOLT, H.S. 5X12 1 550

품절
3-32 9391871 와셔 2 1,100

품절
3-33 9392418 90010505060 BOLT 2 880

품절
3-34 9361411 COVER,MUFFLER 1 16,500

품절
3-35 9360023 SCREW 5X14 3 550

품절
3-36 9361344 LABEL,CHOKE 1 1,100

품절
3-37 9360892 VALVE ASSY, FUEL 1 8,250
3-38 9361330 CLIP,PIPE 2 1,100

품절
3-39 9361329 PIPE,FUEL 1 2,750

품절
3-40 9361412 COVER,PIPE 1 550

품절
3-43 9361451 LABEL,CHOKE 1 3,300

품절
3-44 9360883 CASE, AIR CLEANER 1 6,600
3-45 9360882 PLATE 1 3,300
3-46 9360925 SCREW 4X10 2 550
3-47 9360301 GRID,AIR CLEANER 1 2,200

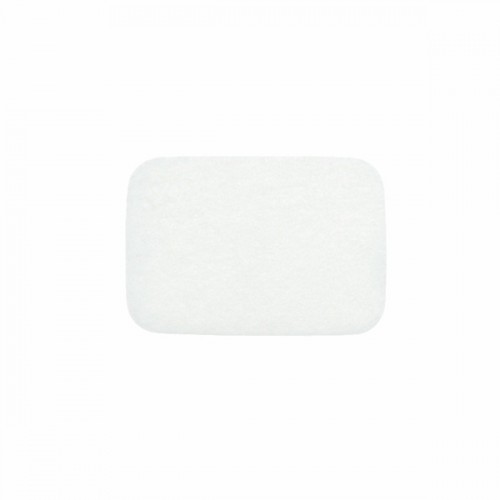

3-48 9360399 FILTER,AIR 1 3,300

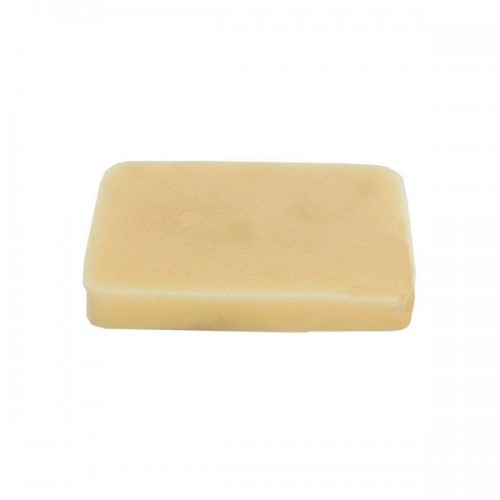

3-49 9360420 FILTER,AIR 1 3,630
3-50 9360300 GRID,AIR CLEANER 1 2,200
3-51 9361325 COVER,AIR CLEANER 1 3,300
4-7 9361419 HARNESS,BACKPACK 1 24,200

품절
4-8 9361345 RING,HARNESS 2 1,100

품절
4-9 9361346 CUSHION,KNAPSACK 1 27,500
4-12 9360040 SCREW 5X12 9 550

품절
4-13 9361347 FRAME,KNAPSACK 1 41,800
4-14 9361348 BRACKET,CUSHION/S 2 2,750

품절
4-15 9361349 BRACKET,CUSHION/L 2 3,300

품절
4-23 9361413 COLLOR 16 1 3,300

품절
4-24 9360023 SCREW 5X14 4 550

품절
4-25 9361450 압축스프링 3 3,300
4-26 9361423 BOLT,H.S. 5X12 6 550

품절
4-27 9361350 NUT,FLANGE 5 3 1,100

품절
4-28 9361351 BRACKET,ENGINE 1 29,700
4-29 9361352 HOLDER,BEARING 1 6,050

품절
4-30 9361311 볼베어링 6202 1 5,500

품절
4-31 9361353 STOPPER 1 2,750

품절
4-33 9361414 PLATE,SWIVEL 1 14,300
4-34 9360925 SCREW 4X10 2 550
4-35 9361432 와셔 10 1 550

품절
4-36 9393740 SPRING WASHER 1 550

품절
4-37 9361422 볼트 10X20 1 550

품절
5-1 9361354 COVER,FLEXIBLE 1 82,500

품절
5-2 9361355 SHAFT,INNER,FLX 1 27,500
5-3 9361356 STOPPER,FLEX SHAFT 1 550

품절
5-6 9361358 GRIP 1 12,100
5-7 9360115 O-RING 18 4 1,100
5-8 9361360 CONNECTOR 1 22,000
5-13 9391871 와셔 1 1,100

품절
5-17 9392511 볼베어링 1 7,150
5-18 9361363 HOLDER,BEARING 1 2,200
5-32 9361364 WIRE,THROTTLE 1 8,250
5-33 9361365 COVER,CONNECTOR 1 1,100
5-34 9360905 LOCKNUT 1 880
5-35 9361366 CONNECTOR 1 1,100
5-36 9361367 CONNECTOR,THR.WIRE 1 3,850
5-40 9361368 부싱 4 7,150

품절
5-41 9361442 HOUSING ASSY,D.SFT 1 55,000
5-42 9361369 SHAFT,DRIVE 1 25,300
5-43 9392127 NUT 4 1,100
5-44 9361370 BRACKET,HANDLE/25S 1 4,400

품절
5-46 9361371 PLATE,PORT SET 1 550

품절
5-47 9361372 BRACKET,HANDLE/25L 1 11,000

품절
5-48 9360023 SCREW 5X14 2 550

품절
5-49 9361443 HANDLE ASSY,LOOP 1 16,500

품절
5-51 9361374 STRAP ASSY 1 9,900

품절
5-54 9392162 SNAP RING 1 1,100

품절
5-55 9361434 CIRCLIP 25 1 550

품절
5-56 9361438 볼베어링 609 1 6,050

품절
5-57 9392160 볼베어링 2 7,700
5-58 9361375 GEAR SET 1 44,000

품절
5-59 9361425 볼트 5X28 2 550

품절
5-60 9360022 90024205010 SCREW 5*10 1 1,100

품절
5-61 9361335 볼트 8X8 1 1,100

품절
5-62 9361444 HOUSING ASSY,GEAR 1 99,000
5-64 9361377 SHAFT,P.T.O. 1 36,300

품절
5-67 9361378 SPACER 1 4,950

품절
5-68 9361379 OILSEAL 1 4,400

품절
5-69 9361380 PLATE,ADAPTER/U 1 13,200
5-70 9361381 SHILED,BLADE 1 9,350

품절
5-71 9361382 BRACKET,SHIELD UPPER 1 1,650

품절
5-72 9361383 PLATE,ADAPTER/L 1 11,000
5-73 9360915 NUT 1 1,650

품절
5-74 9361431 PIN,SPLIT 2X22 1 550

품절
5-75 9361429 SCREW 5X30 2 550

품절
5-76 9361384 BRACKET,SHIELD LOWER 1 2,200

품절
5-80 9361385 PLATE,GUARD 1 4,950
5-81 9360024 SCREW 5X20 3 550

품절
5-90 9361386 WRENCH,W/S.DRIVER 1 6,600

품절
5-91 9361420 SPANNER 8X10 1 2,750

품절
5-92 9361421 LOCKING TOOL 1 1,100

품절
5-97 9361387 CAP,FLX.SHAFT 2 1,100

품절
5-98 9361415 STOP SWITCH 1 6,600
5-99 9361416 LEAD 1 2,750

품절
5-101 9361388 PIPE,COVER 1 1,650

품절
5-102 9361417 RING,HARNESS 2 2,750

품절
5-103 9361418 BRACKET,SWITCH 1 1,100

품절
5-104 9361334 CONTROL,THROTTLE 1 12,100
5-105 9361359 COVER 1 1,100

품절
5-106 9361373 HANDLE 1 16,500

품절
5-107 9361376 HOUSING,GEAR 1 38,500

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
