계양 KH-350S GX35 4사이클 예초기 분해도

제품이미지

7 베어링 슬리브

266898-7

1,100

총 45개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9398998	10100-ZOZ-405 CASE SET ASS'Y	1	198,000	품절
1-2	9399000	COVER COMP, HEAD	1	19,800
1-3	9390977	12312-ZOZ-300 SEAL, HEAD COVER	1	3,300	품절

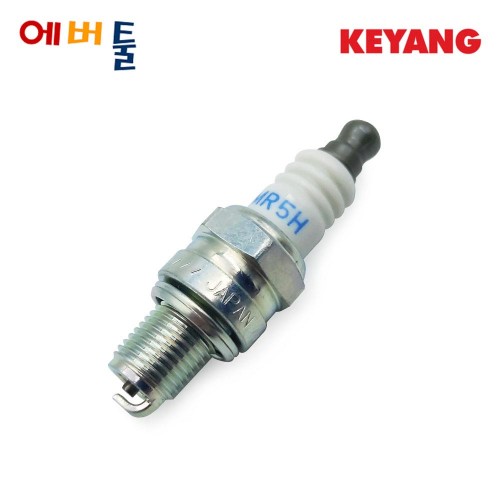

1-13	9395570	PLUG, SPARK(CMR5H)	1	13,200	품절
1-30	9399127	Z0Z-000 LIFTER COMP,IN VALVE	1	18,700	품절
1-31	9399128	Z0Z-000 LIFTER COMP,EX VALVE	1	19,800	품절
1-32	9391414	ARM,ROKER EXHAUST	1	14,300
1-33	9391415	14431-ZOH-003 ARM,ROKER INHALE	1	12,100	품절
2-1	9390978	13010-ZM5-000 RING SET, PISTON	1	18,150	품절
2-2	9390979	PISTON	1	35,200
2-4	9390981	CRANKSHAFT COMP	1	127,600
2-5	9390501	OIL SEAL,10X20X5	1	2,750	품절
2-6	9395575	91214-ZM3-003 OIL SEAL, 15256	1	4,400	품절
3-3	9390982	ZOZ-000 PULLEY COMP, CAMSHAFT	1	24,200	품절
3-4	9390983	14400-ZOZ-003 BELT, TIMING	1	23,100	품절
3-5	9390984	14711-ZOZ-000 VALVE, INHALE	1	13,200	품절
3-6	9390985	14721-ZOZ-000 VALVE, EXHAUST	1	13,200	품절

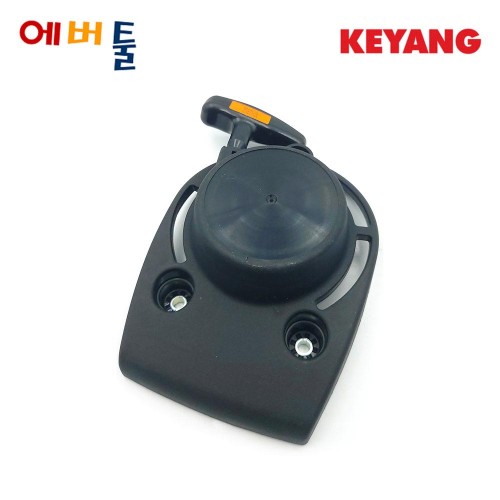

4-1	9395565	리코일스타터	1	33,000
4-2	9395579	PULLEY RECOIL STARTER	1	6,600
4-5	9398818	90043-Z0H-000 BOLT	1	4,400
4-6	9390516	BOLT,SOCKET,5X16	1	1,100	품절

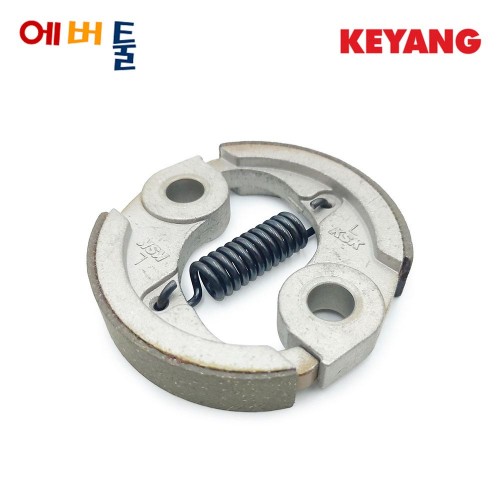

5-2	9395564	22000-ZM5-003 CLUTCH ASS'Y	1	30,800

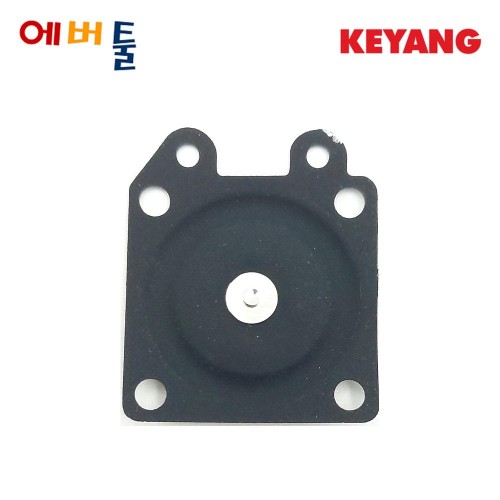

6-3	2420720	DIAPHRAGM ASSY,METERING	1	8,800	품절

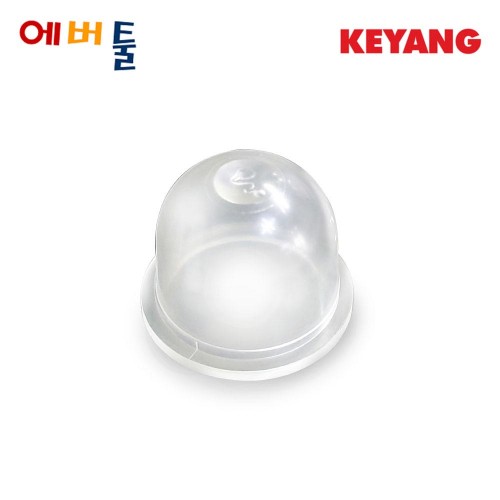

6-21	2420728	PUMP,PRIMER	1	4,950	품절

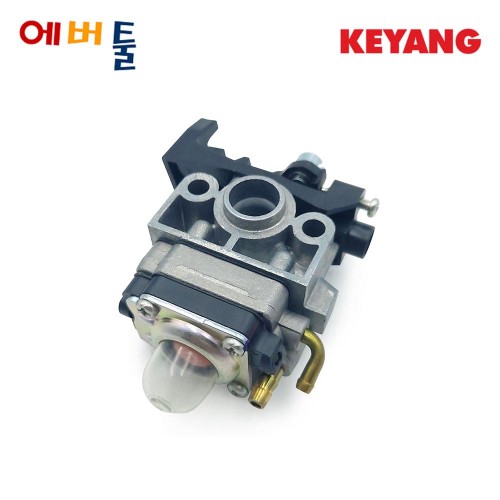

6-23	9395551	카뷰레터 아세이	1	99,000

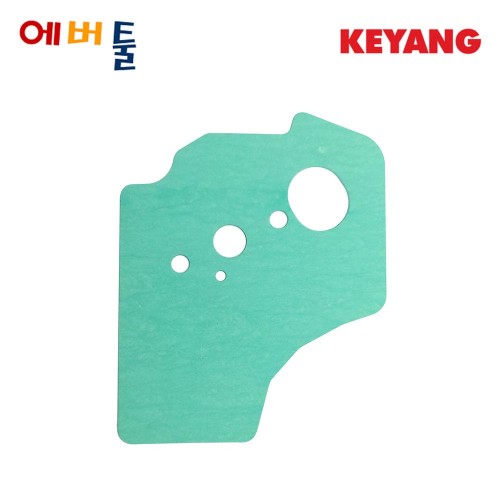

6-24	9395552	16221-ZOZ-000 PKG, CARBURETOR	1	8,250	품절
6-25	9395562	19631-ZOZ-000 SHROUD	1	24,200	품절
6-50	3159059	트로틀와이어(B)	1	3,850

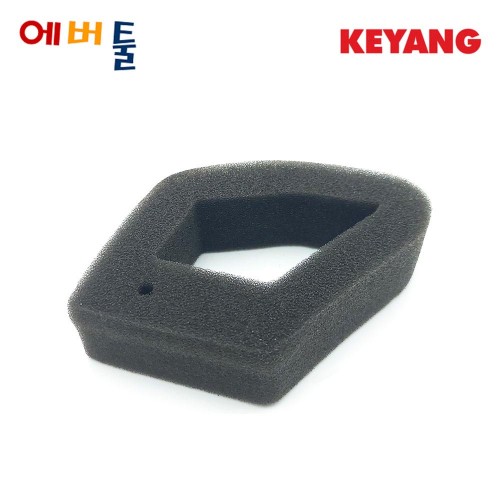

7-1	9395553	ELEMENT, AIR CLEANER	1	4,400	품절

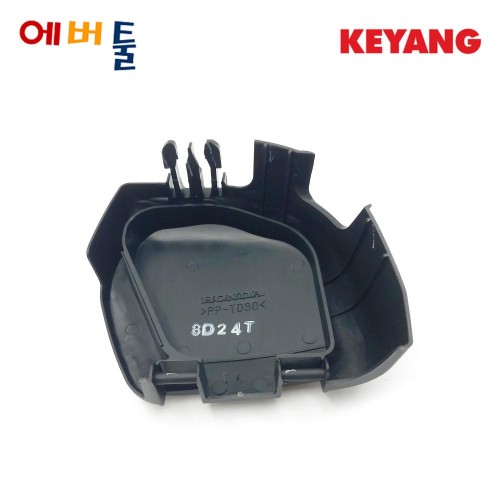

7-2	9395554	CASE COMP, AIR CLEANER	1	14,300	품절
7-3	9395555	COVER, AIR CLEANER	1	8,250	품절

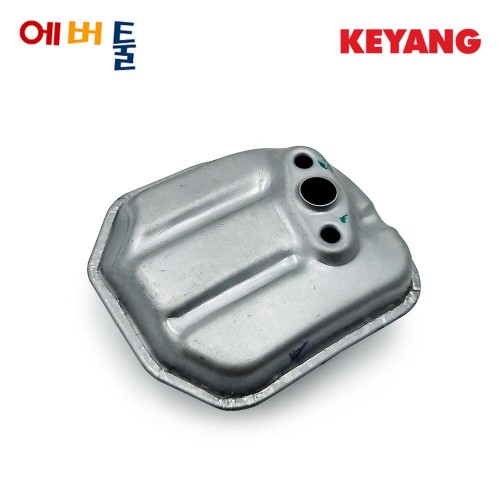

8-1	9395561	18310-ZOZ-010 MUFFLER COMP	1	33,000	품절
8-4	9395918	GUIDE COMP,UNDER AIR	1	8,800	품절
9-1	9390472	GROMMET,FUEL TUBE	1	3,850	품절

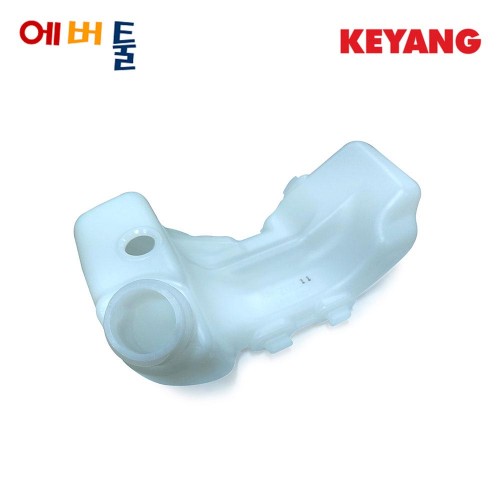

9-2	9395556	17511-ZOZ-013 TANK, FUEL	1	26,400	품절
9-3	9390537	RUBBER,TANK MOUNTING	4	2,200	품절
9-4	9342359	17555-ZOZ-000 TANK GUARD	1	30,800	품절

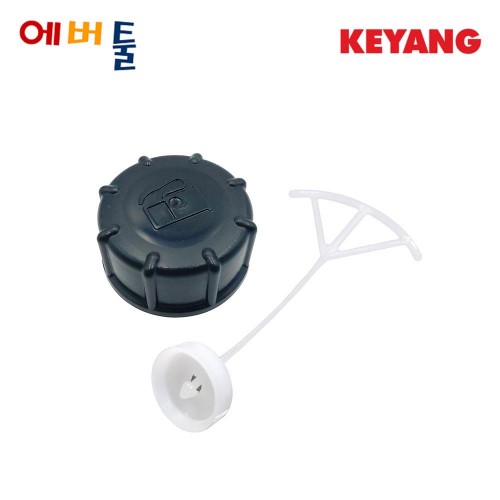

9-6	9395557	연료뚜껑 연료캡	1	18,700

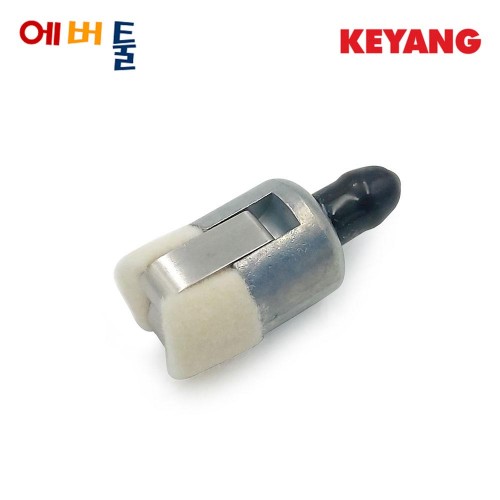

9-7	9395558	연료필터	1	6,600

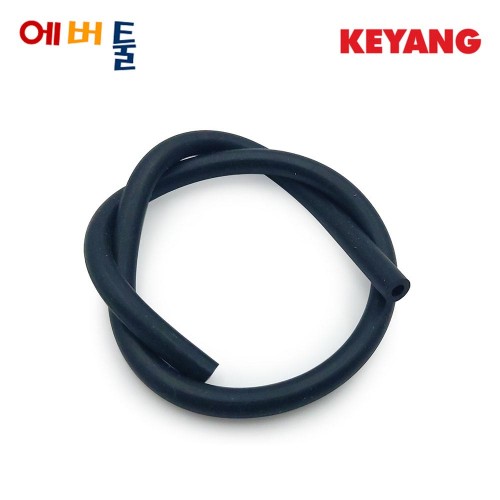

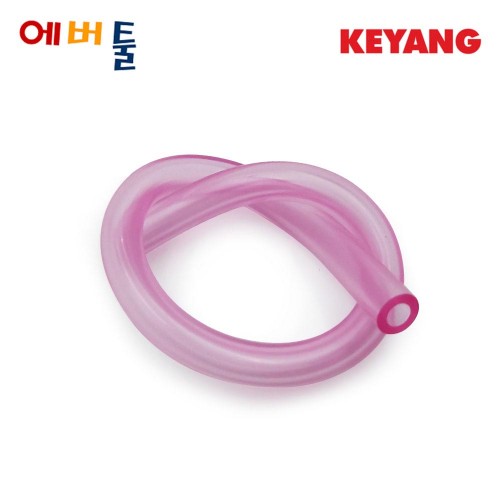

9-8	9395559	17701-ZOZ-000 TUBE, FUEL	1	9,350	품절
9-9	9395560	TUBE, FUEL RETURN	1	3,850	품절

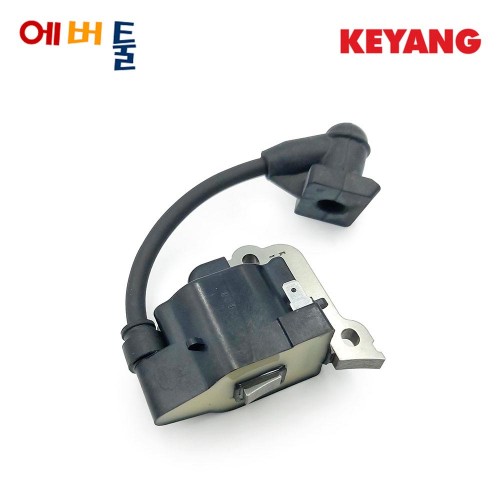

10-1	9395568	06310-ZOZ-305 COIL ASS'Y IGNITION	1	66,000	품절

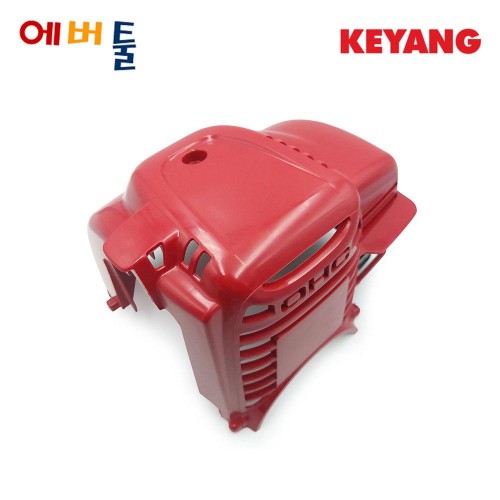

11-1	9395563	COVER COMP, TOP	1	58,300	품절
11-3	9395572	87531-ZOZ-000 MARK, HONDA	1	3,300	품절
11-4	9395573	87660-ZOZ-000 MARK, 4STROKE	1	5,500	품절
