에코 CS-3510L 엔진톱 부품

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 149개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

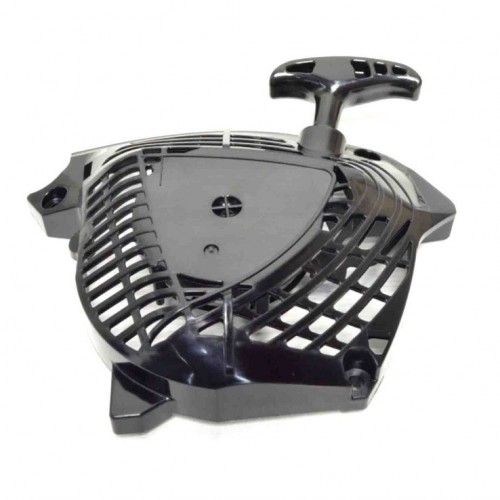

1-1 9343309 STARTER,RECOIL ASSY 1 53,900
1-2 9343310 CASE,STARTER 1 13,200

품절
1-3 9343311 DRUM, STARTER 1 5,500

품절
1-4 9360669 스프링 키트 1 13,200
1-5 9394685 SPRING CASE 1 1,650

품절
1-6 9394649 CATCHER,PAWL 1 5,500
1-7 9394698 SPRING,TORSION 1 5,500
1-8 9392096 V253000310 SCREW 1 1,650

품절
1-9 9394510 ROPE,STARTER 1 3,850
1-10 9360500 GRIP,STARTER 1 4,950
1-11 9394713 BOLT,TORX 5 1 1,100
1-12 9343312 COVER,FAN 1 6,600

품절
2-2 9343261 COIL, IGNITION 1 66,000

품절
2-3 9394471 A427000013 CAP,SPARK PLUG 1 5,500

품절
2-4 9394470 TERMINAL,SPARKPLUG 1 3,300
2-5 9394469 A425000000 SPARK PLUG 1 13,200
2-7 9394447 90051500008 NUT,FLANGE 1 1,100

품절
2-8 9394410 스페이서 1 2,200
2-9 9394717 BOLT,TORX 5 1 1,100

품절
2-10 9360373 PAWL 1 2,750

품절
2-11 9394415 17723435430 SPRING,RETURN 1 1,650

품절
2-12 9350548 BOLT,5 1 1,100
2-13 9343262 LEAD 1 3,300
3-1 9343306 MUFFLER ASSY 1 19,800
3-2 9343307 GUIDE, EXHAUST 1 2,200

품절
3-4 9343308 GASKET,EXHAUST 1 2,200
3-5 9361845 BOLT,TORX 5 1 1,100

품절
4-1 9343239 CYL. CRANKCASE SET 1 82,500

품절
4-2 9394717 BOLT,TORX 5 1 1,100

품절

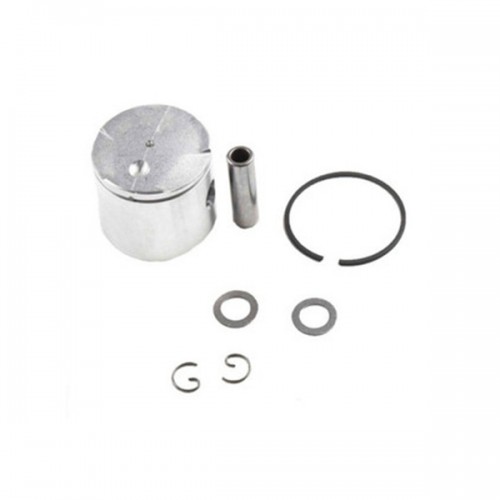

4-3 9343240 PISTON KIT 1 41,800
4-4 9394455 A101000160 RING,PISTON 1 5,500

품절
4-5 9394549 V607000000 PIN,ENG 1 4,400

품절
4-6 9394381 10001503931 CIRCLIP,PISTON PIN 1 1,100

품절
4-7 9343241 WASHER,CIRCULAR 8 1 1,100
4-8 9343242 CRANKSHAFT ASSY 1 101,200
4-9 9343243 니들베어링 9 1 7,700
4-10 9360492 SEAL,OIL 12 1 5,500

품절
4-11 9360493 볼베어링 1 4,950
5-1 9343263 GASKET,INTAKE 1 1,100
5-2 9343264 INSULATOR, INTAKE 1 6,600
5-3 9394717 BOLT,TORX 5 1 1,100

품절
5-4 9343265 GASKET,INTAKE 1 1,100

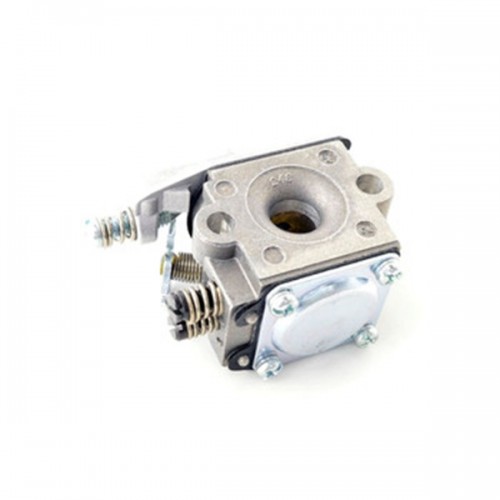

5-5 9343266 카뷰레터 아세이 1 58,300
5-6 9343267 GASKET,INTAKE 1 1,100

품절
5-7 9343268 HOLDER, ELEMENT 1 4,400

품절
5-8 9343269 DUCT, AIR 1 3,300

품절
5-9 9343270 BOLT, TORX 5 1 1,100
5-10 9343271 ELEMENT, AIR FILTER 1 8,800
5-11 9343272 LEAD 1 2,200

품절
5-12 9343273 KNOB, SWITCH 1 2,200
5-13 9343274 PLATE, CONTACT 1 1,100

품절
6-1 9343244 COVER ENGINE ASSY 1 62,700
6-2 9350524 PUMP, FUEL 1 12,100
6-3 9343245 PIPE 1 2,200

품절
6-4 9392601 9144904006 SCREW,TAPPING 1 1,100

품절
6-5 9394717 BOLT,TORX 5 1 1,100

품절
6-6 9343246 오토오일러 1 23,100
6-7 9350597 GROMMET 1 1,100

품절
6-8 9361705 13211546730 GROMMET,FUEL 1 1,650

품절
6-9 9343245 PIPE 1 2,200

품절
6-10 9343245 PIPE 1 2,200

품절
6-11 9361686 STRAINER,FUEL 1 7,700

품절
6-12 9343252 클립 1 1,100
6-13 9343245 PIPE 1 2,200

품절
6-14 9394596 VALVE,CHECK 1 4,400
6-15 9343252 클립 1 1,100
6-16 9343249 KNOB, CHOKE 1 6,600
6-17 9350597 GROMMET 1 1,100

품절
6-18 9343251 CYLINDER COVER ASSY 1 23,100

품절
6-19 9394399 13033832430 PLUG,COVER 1 1,100

품절
6-20 9343252 클립 1 1,100
6-21 9343253 체인캐처 1 2,200
6-22 9350548 BOLT,5 1 1,100
6-23 9343254 캡 아세이 1 5,500
6-26 9343257 GROMMET,OIL 1 1,100

품절
6-27 9350432 JOINT,PIPE 1 1,100
6-28 9343245 PIPE 1 2,200

품절
6-30 9343259 캡 아세이 1 5,500
7-1 9343323 DRUM, CLUTCH 1 24,200
7-2 9391948 NEEDLE BEARING 1 8,800
7-3 9343324 PLATE, CLUTCH 1 2,200

품절
7-4 9343325 CLUTCH ASSY 1 25,300
7-5 9343326 HUB, CLUTCH 1 9,900
7-6 9343327 CLUTCH SHOE SET 1 22,000
7-7 9343328 SPRING, CLUTCH 1 3,300
7-8 9343329 GUARD, SPROCKET ASSY 1 56,100
7-9 9343330 GUARD, SPROCKET 1 27,500

품절
7-10 9361181 C309000030 TENSIONER,CHAIN(G) 1 3,850

품절
7-11 9394522 V203000110 BOLT,5 1 4,400

품절
7-12 9394550 GEAR,BEVEL 1 7,150
7-13 9394551 GEAR,BEVEL 1 6,600
7-14 9360168 칼라8 1 1,100
7-15 9394710 BOLT,TORX 4 1 1,100
7-16 9343331 COVER,BRAKE 1 5,500
7-17 9394710 BOLT,TORX 4 1 1,100
7-18 9394658 CONNECTOR,BRAKE 1 8,800

품절
7-19 9394535 SPRING,COMPRESSION 1 1,650
7-20 9360577 브레이크 밴드 1 7,150
7-21 9394378 9305030098 ROLLER 1 550

품절
7-22 9391830 너트 1 1,650
7-23 9343332 LEVER, BRAKE 1 12,100
7-24 9350499 BOLT,5 1 1,100
7-26 9343333 RETAINING RING 1 1,100

품절
7-27 9343334 GEAR,WORM 1 2,200

품절
7-28 9343335 LABEL,ECHO 1 1,100

품절
8-1 9343266 카뷰레터 아세이 1 58,300
8-2 9343275 VALVE, INLET NEEDLE 1 6,600

품절
8-3 9343276 LEVER, METERING 1 1,100

품절
8-4 9343277 PIN, METERING LEVER 1 1,100

품절
8-5 9343278 SCREW 1 1,100

품절
8-6 9343279 SPRING,METERING 1 1,100

품절
8-7 9343280 NEEDLE 1 5,500

품절
8-8 9343281 NEEDLE 1 5,500

품절
8-9 9343282 RETAINER 1 2,200

품절
8-10 9343283 SCREEN,INLET 1 2,200

품절
8-11 9343284 COVER, PUMP 1 6,600

품절
8-12 9343285 SCREW 1 1,100

품절
8-13 9343286 DIAPHRAGM, METERING 1 11,000
8-14 9343287 COVER, METERING 1 4,400

품절
8-15 9343288 GASKET, METERING 1 2,200

품절
8-16 9343289 GASKET, FUEL PUMP 1 3,300
8-17 9343290 DIAPHRAGM PUMP 1 3,300
8-18 9343291 VALVE, THROTTLE 1 4,400

품절
8-19 9343292 SCREW 1 1,100

품절
8-20 9343293 SHAFT ASSY,THROTTLE 1 8,800

품절
8-21 9343294 SPRING,THROTTLE RETURN 1 1,100
8-22 9343295 와셔 1 1,100

품절
8-23 9343296 VALVE, CHOKE 1 4,400

품절
8-24 9343297 SHAFT, CHOKE ASSY 1 9,900

품절
8-25 9343298 LEVER,THROTTLE 1 3,300

품절
8-26 9343299 LEVER 1 4,400

품절
8-27 9343300 E-RING 1 1,100

품절
8-28 9343301 E-RING 1 2,200

품절
8-29 9343302 SCREW 1 1,100

품절
8-30 9343303 SCREW 1 4,400

품절
8-31 9343304 SPRING, IDLE ADJUST 1 2,200

품절
8-32 9343305 SPRING 1 3,300

품절
9-1 9343314 ROD, THROTTLE 1 3,300

품절
9-2 9343315 HANDLE, REAR 1 48,400
9-3 9343316 LID,HANDLE 1 6,600
9-4 9343317 TRIGGER,THROTTLE 1 4,400

품절
9-5 9391773 SPRING,LEVER 1 2,750

품절
9-6 9343318 LOCKOUT,THROTTLE 1 1,100

품절
9-7 9343319 SPRING,COMPRESSION 1 1,100
9-8 9343320 BOLT, TORX 5 1 1,100

품절
9-9 9343321 SPRING,COMPRESSION 1 2,200
9-10 9394712 BOLT,TORX 5 1 1,100

품절
9-11 9343322 SPRING,COMPRESSION 1 3,300

품절
9-12 9394712 BOLT,TORX 5 1 1,100

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
