에코 CS-280TES 엔진톱 부품

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 156개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

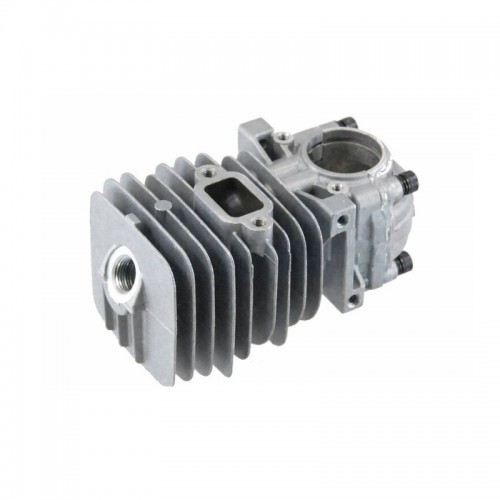

1-1 9351133 CYLINDER KIT 1 63,800
1-2 9394436 90016205022 BOLT,H.S. 1 880

품절
1-3 9351137 P100000820 CRANKSHAFT ASSY 1 126,500

품절
1-4 9351145 V505000001 SEAL,OIL 1 4,400

품절
1-5 9360519 BEARING,BALL 6001 1 5,500

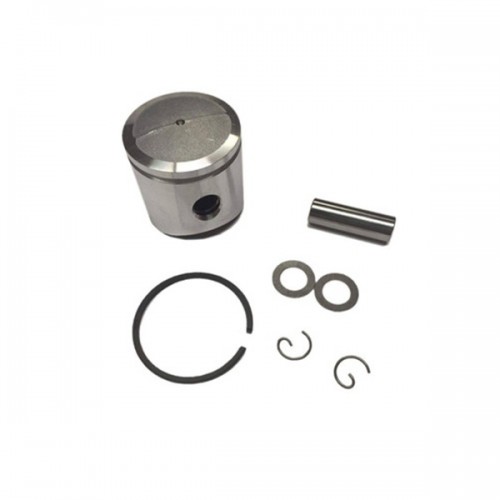

1-6 9351134 PISTON KIT 1 44,000
1-7 9351119 RING, PISTON 1 7,700
1-8 9360449 PIN,PISTON 1 4,400

품절
1-9 9360072 CIRCLIP,PISTON PIN 1 1,100

품절
1-10 9351113 10001411520 SPACER, PISTON PIN 1 2,750

품절
1-11 9394478 오토오일러 1 38,500
1-12 9394440 SCREW 1 550
1-13 9394524 WASHER,CIRCULAR 1 1,650
1-14 9394552 GEAR,WORM 1 7,700
1-15 9360276 COLLAR 10 1 1,650
1-16 9360570 STRAINER,OIL 1 7,150

품절
1-17 9360251 PIPE 1 1,650

품절
1-18 9361669 클립 1 1,100
1-19 9360134 GROMMET 1 880

품절
1-20 9351115 13201211961 PIPE 1 2,200

품절
1-21 9360148 NIPPLE 1 880
2-1 9351140 P100007041 COVER ENGINE ASSY 1 77,000

품절
2-2 9392735 PRIMER/PUMP 1 19,800
2-3 9351144 V471001252 PIPE 1 3,300

품절
2-4 9360346 PIPE 1 2,420

품절
2-5 9351143 V225000400 BOLT,STUD 8 1 1,100

품절
2-6 9360221 PLUG 1 1,320

품절
2-8 9360121 O-RING 1 1,100

품절
2-9 9360336 PIPE 1 2,750

품절
2-10 9360517 PIPE 1 5,500
2-11 9360147 JOINT,PIPE 1 1,100
2-12 9394405 13201309820 CLIP 1 1,100

품절
2-13 9361686 STRAINER,FUEL 1 7,700

품절
2-14 9342146 13211544331 GROMMET, FUEL 1 2,200

품절
2-15 9350433 VENT ASSEMBLY, FUEL 1 4,950

품절
2-16 9360161 GROMMET,FUEL 1 1,100

품절
2-17 9360118 볼트,4 1 1,100

품절
2-18 9360110 볼트 H.S. 5X18 1 550

품절
2-19 9360107 볼트 H.S. 5X25 1 550

품절
2-20 9360240 COVER,DUST 1 1,650
2-21 9360029 SCREW 1 1,100
2-22 9360258 인테이크 파이프 1 2,200
2-23 9360269 체인캐처 1 1,650
2-24 9394445 SCREW 1 550
2-25 9360540 스프로켓 플레이트 1 6,050

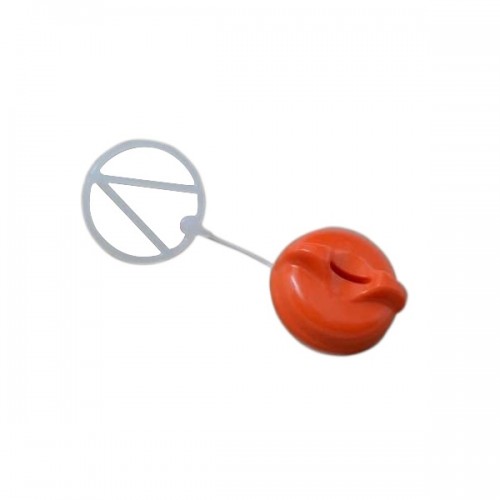

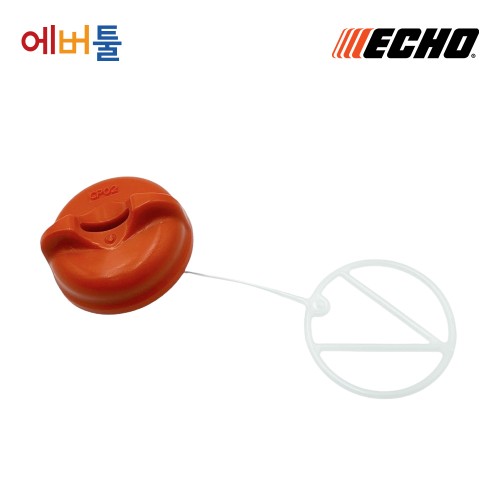

2-26 9351132 FUEL CAP ASSY 1 4,950
2-27 9351146 V581000590 RING,O 1 1,100

품절
2-28 9394466 CONNECTOR,CAP 1 1,650
2-29 9360520 오일뚜껑 오일캡 1 5,500
2-30 9360115 O-RING 18 1 1,100
2-31 9394466 CONNECTOR,CAP 1 1,650
2-32 9351148 X505002441 LABEL,CAUTION 1 1,650

품절
3-1 9351124 A409001130 ROTOR, MAGNETO 1 70,400

품절
3-2 9351125 COIL, IGNITION 1 55,000
3-3 9394447 90051500008 NUT,FLANGE 1 1,100

품절
3-4 9360039 90023805018 SCREW 5*18 1 550

품절
3-6 9394410 스페이서 1 2,200
3-7 9360155 부싱 1 880

품절
3-8 9360139 튜브 1 880

품절
3-9 9360169 튜브 1 880

품절
3-10 9360375 LEAD 1 2,750
3-11 9360158 GROMMET 1 880

품절
3-12 9361131 PLUG,SPARK(BPM-8Y)(G) 1 8,800

품절
3-13 9394471 A427000013 CAP,SPARK PLUG 1 5,500

품절
3-14 9394470 TERMINAL,SPARKPLUG 1 3,300
3-15 9360373 PAWL 1 2,750

품절
3-16 9360128 볼트 5 1 880

품절
3-18 9360243 SPRING,TORSION 1 1,650

품절
3-19 9394417 17724704630 SPACER,RATCHET 1 1,650

품절

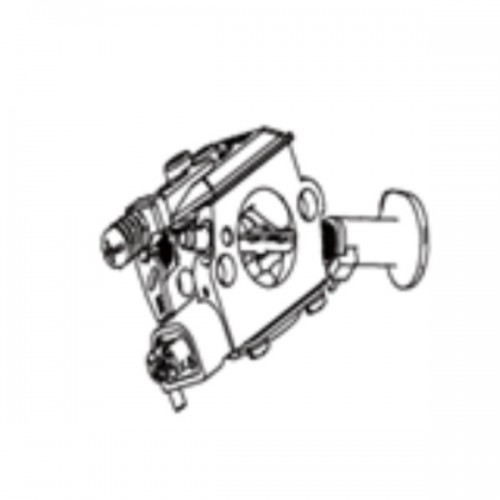

4-1 9351117 카뷰레터 아세이 1 104,500
4-3 9360646 흡기 벨로우즈 1 10,450
4-4 9360109 볼트 H.S. 4X12 1 550

품절
4-5 9351121 A225000025 CASE,CLEANER 1 9,350

품절
4-6 9350527 COLLAR,14 1 1,100
4-7 9360408 PLATE,PREVENT 1 3,300
4-8 9361221 에어필터 엘리먼트 1 6,050
4-9 9351138 P100002770 CLEANER COVER ASSY 1 16,500

품절
4-10 9360505 에어크리너 노브 1 5,500
4-11 9351114 13192502310 WASHER,CIRCULAR 8 1 1,100

품절
4-12 9351147 X503012600 LABEL,MODEL 1 2,200

품절
5-1 9351139 P100003450 MUFFLER ASSY 1 33,000

품절
5-2 9360709 MUFFLER,EXHAUST 1 19,800

품절
5-3 9360626 LID,MUFFLER 1 9,900
5-4 9360455 PLATE,MUFFLER 1 4,400

품절
5-5 9351116 9110705042 BOLT HSH, FLANGE 1 1,100

품절
5-6 9351141 V104001860 GASKET,EXHAUST 1 1,650

품절
5-7 9351122 A312000060 PLATE, EXHUST 1 3,300

품절
5-8 9351123 COVER,MUFFLER 1 5,500
5-9 9360030 SCREW 4X16 1 550

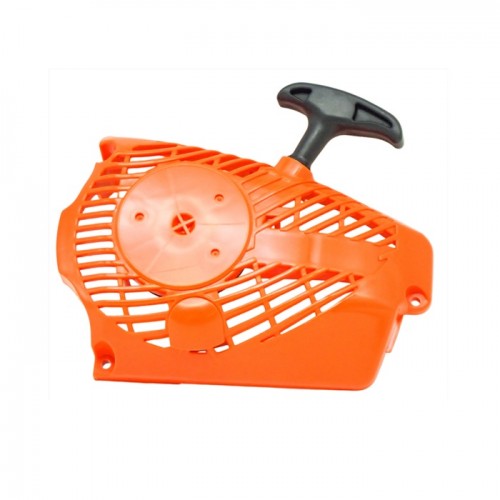

6-1 9351118 STARTER,RECOIL ASSY 1 55,000
6-2 9360394 PLUG 1 3,300

품절
6-3 9394648 REEL,ROPE 1 11,000

품절
6-4 9394649 CATCHER,PAWL 1 5,500
6-5 9394698 SPRING,TORSION 1 5,500
6-6 9392096 V253000310 SCREW 1 1,650

품절
6-7 9360443 ROPE 1 3,850
6-8 9360669 스프링 키트 1 13,200
6-9 9394685 SPRING CASE 1 1,650

품절
6-10 9360294 GRIP,STARTER 1 2,750
6-11 9392099 A522000040 STOPPER 1 2,200

품절
6-12 9351136 P022037530 STARTER,RECOIL 1 16,500

품절
6-13 9351120 A172002040 COVER,FAN 1 7,700

품절
6-14 9360050 SCREW 4X16 1 550
6-15 9361677 X502000780 LABEL,ECHO 1 2,750

품절
7-1 9360610 SWITCH,ON OFF 1 8,800
7-2 9351131 HANDLE SET, REAR 1 30,800
7-3 9394396 13002033330 NUT 1 1,650

품절
7-4 9360050 SCREW 4X16 1 550
7-5 9360361 SPRING,COMPRESSION 1 2,750
7-6 9360728 프론트핸들 1 26,400

품절
7-7 9394445 SCREW 1 550
7-8 9360050 SCREW 4X16 1 550
7-9 9360487 TRIGGER,THROTTLE 1 5,500
7-10 9360438 ROD,THROTTLE 1 4,400
7-11 9360242 SPRING,TORSION 1 1,650
7-12 9360439 LOCKOUT,THROTTLE 1 3,850
7-13 9360352 SPRING,COMPRESSION 1 2,420
7-14 9360029 SCREW 1 1,100
7-15 9351142 V150003810 PLATE,EYE 1 1,100

품절
7-16 9360385 볼트,4 1 3,300

품절
7-17 9360395 볼트,4 1 3,300
7-18 9360546 CUSHION 1 6,600
7-19 9394386 CAP 1 2,200
8-1 9360737 클러치드럼 1 33,000
8-3 9391948 NEEDLE BEARING 1 8,800
8-4 9360756 클러치 1 60,500
8-5 9360621 HUB,CLUTCH 1 9,350

품절
8-6 9360823 SHOE,CLUTCH SET 1 22,000
8-7 9360310 텐션스프링 1 2,200
8-8 9360323 클러치플레이트 1 3,850

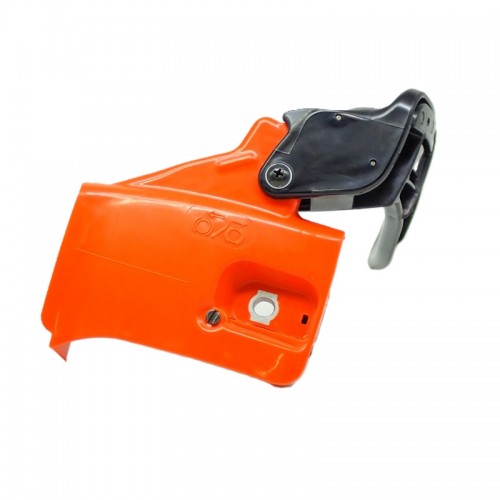

8-9 9351135 BRAKE,ASM/CHAIN 1 64,900
8-10 9351126 C300000173 GUARD,SPROCKET 1 8,800

품절
8-11 9360535 스프로켓 플레이트 1 6,050
8-12 9360029 SCREW 1 1,100
8-13 9394482 체인텐셔너 1 3,850
8-14 9360463 볼트 5 1 4,400
8-15 9394550 GEAR,BEVEL 1 7,150
8-16 9394551 GEAR,BEVEL 1 6,600
8-17 9394691 COLLAR,8 1 1,100
8-18 9360507 COVER, BRAKE 1 5,500

품절
8-19 9360029 SCREW 1 1,100
8-20 9360706 LEVER,BRAKE 1 19,800
8-21 9360069 ROLLER 3X26 1 550
8-22 9360037 CREW 1 550
8-23 9360192 SPACER 1 1,100
8-24 9360495 COLLAR 5 1 4,950
8-25 9360126 LOCK NUT 5 1 1,100
8-26 9360183 SPRING,TORSION 1 1,100
8-27 9351127 C334000060 CONNECTOR, BRAKE 1 7,150

품절
8-28 9394423 43311635430 SPACER 1 2,200

품절
8-29 9394535 SPRING,COMPRESSION 1 1,650
8-30 9360576 브레이크 밴드 1 7,150
8-31 9361170 9305030098 ROLLER(G) 1 550

품절
8-32 9394531 SPACER 1 550
8-33 9391830 너트 1 1,650
8-34 9360296 LABEL,ECHO 1 2,200

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
