신다이와 403S 18인치 엔진톱 부품

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 201개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9394441 90023805014 SCREW 2 1,100

품절
1-2 9394458 흡기 벨로우즈 1 10,450
1-3 9394514 V103000290 GASKET,INTAKE 1 880

품절
1-4 9361200 CRANKCASE SET(G) 1 105,050

품절
1-5 9394436 90016205022 BOLT,H.S. 4 880

품절

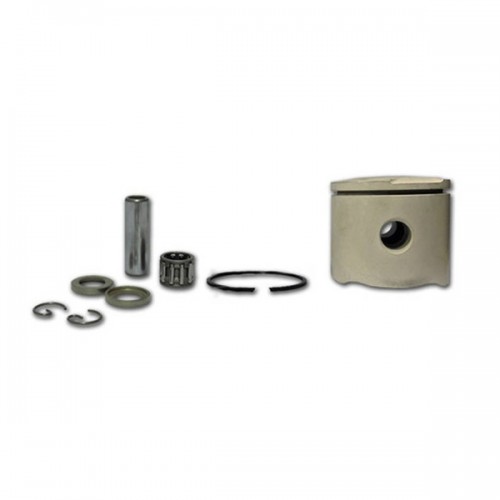

1-6 9394681 PISTON KIT 1 46,200
1-7 9394455 A101000160 RING,PISTON 1 5,500

품절
1-8 9394549 V607000000 PIN,ENG 1 4,400

품절
1-9 9394381 10001503931 CIRCLIP,PISTON PIN 2 1,100

품절
1-10 9394380 10001453630 SPACER,PISTON PIN 2 3,300

품절
1-11 9394379 10001216131 BEARING,NEEDLE 1 8,800

품절
1-13 9361090 P021012141 CRANKSHAFT ASS'Y(G ) 1 121,000

품절
1-14 9360492 SEAL,OIL 12 2 5,500

품절
1-15 9394451 90088836201 BEARING,BALL 2 3,850

품절
1-16 9394461 KNOB,CLEANER LID 1 4,400
1-18 9394460 LID,CLEANER 1 6,600

품절
1-19 9394399 13033832430 PLUG,COVER 1 1,100

품절
1-21 9394442 90023805020 SCREW 3 550

품절
1-22 9394456 A160001220 COVER,CYLINDER 1 20,900

품절
1-23 9394516 V135000010 GROMMET,HT CORD 1 880

품절
1-24 9394624 89063138131 LABEL,CAUTION 1 550

품절
1-25 9394459 A209000000 PLATE,INSULATOR 1 3,850

품절
1-26 9394480 C304000010 SPIKE D 1 13,200

품절
1-27 9394377 9114505020 BOLT HS TAPPING 2 550

품절
1-29 9394483 C310000000 CATCHER,CHAIN 1 1,650

품절
1-30 9394409 15011404920 BUSHING 1 1,100

품절
1-31 9394678 P021016782 COVER ENGINE ASS'Y 1 66,000

품절
1-32 9394525 V341000050 WASHER,SQUARE 1 1,650

품절
1-34 9361584 STUD, GUIDE BAR 2 2,750

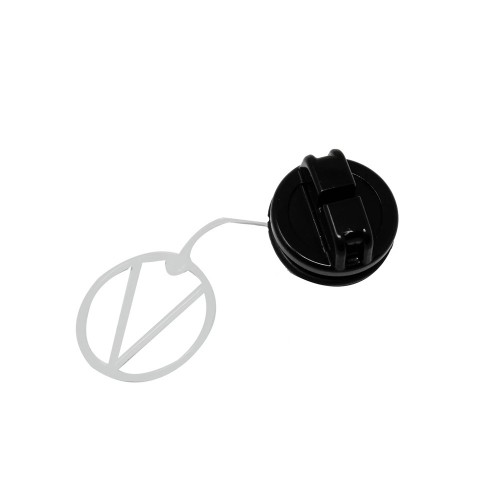

1-35 9394500 CAP ASSY,TANK 1 9,350

품절
1-36 9394450 90072100025 O-RING 1 1,100

품절
1-37 9394466 CONNECTOR,CAP 1 1,650
1-38 9361103 10091815130 CAP(G) 2 2,200

품절
1-39 9394385 10091533930 SCREW 2 3,300

품절
1-40 9394383 CUSHION 2 7,150
1-42 9394533 V420001250 CUSHION 2 1,650

품절
1-44 9394622 LABEL,SWITCH 1 1,650

품절
1-45 9394725 LABEL 1 1,650

품절
1-47 9361107 V341000070 WASHER,SQUARE(G) 1 3,300

품절
1-48 9394526 V341000060 WASHER,SQUARE 1 2,750

품절
2-1 9394534 V420001420 CUSHION 1 3,300

품절
2-2 9394395 13000739932 INSULATOR 1 9,900

품절
2-3 9394396 13002033330 NUT 2 1,650

품절
2-4 9394513 GASKET,INTAKE 1 550
2-6 9394706 클립 1 1,100

품절

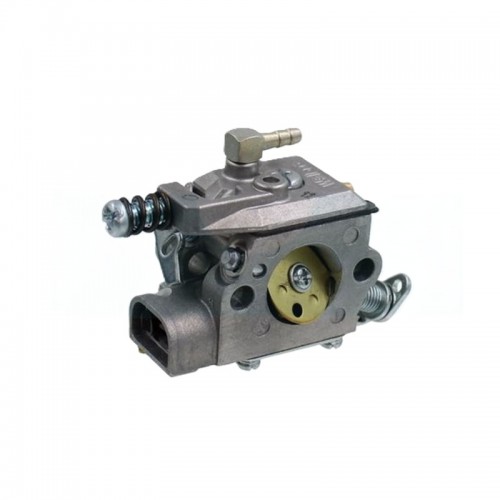

2-7 9361113 카뷰레터 (기화기) 1 110,000
2-8 9361656 HOLDER,ELEMENT ASSY 1 5,500

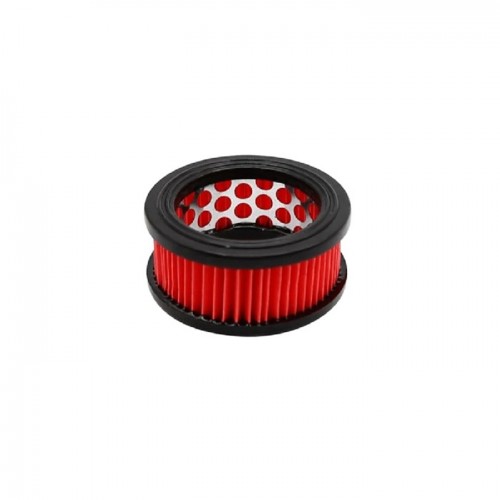

2-9 9394397 CLEANER ASSY,AIR 1 22,000
2-10 9394398 13030139935 ADAPTER,INTAKE 1 5,500

품절
2-12 9394445 SCREW 1 550
2-13 9391871 와셔 1 1,100

품절
2-14 9394491 C454000100 ROD,THROTTLE 1 3,300

품절
2-15 9394472 A439000430 BRACKET,SWITCH 1 7,700

품절
2-16 9394540 PIPE 1 2,200
2-17 9394541 V471001470 PIPE 1 3,300

품절
2-18 9392735 PRIMER/PUMP 1 19,800
2-19 9394546 V486000021 TERMINAL,LEAD 1 1,650

품절
2-20 9394420 35113439930 CUSHION 2 550

품절
2-22 9394411 16340038330 SWITCH,IGNITION 1 8,250
2-23 9394418 17881014534 GROMMET 1 1,100

품절
2-24 9394462 KNOB,CHOKE 1 7,150
2-25 9394439 90022004008 SCREW 2 550

품절
2-26 9394642 A313001002 GUIDE,EXHAUST 1 4,400

품절
2-28 9394448 NUT,FLANGE 2 880
2-29 9394640 A300000802 MUFFLER,EXHAUST 1 38,500

품절
2-30 9361129 V104000732 GASKET,EXHAUST(G) 1 2,750

품절
2-31 9361130 V203000120 BOLT,5(G) 2 2,750

품절
3-1 9361131 PLUG,SPARK(BPM-8Y)(G) 1 8,800

품절
3-2 9394470 TERMINAL,SPARKPLUG 1 3,300
3-3 9394471 A427000013 CAP,SPARK PLUG 1 5,500

품절
3-4 9394410 스페이서 2 2,200
3-5 9394547 V490000310 CLIP 1 1,100

품절
3-6 9394468 A411000264 COIL,IGNITION 1 77,000
3-7 9394545 V485000680 LEAD 1 4,400

품절
3-8 9394544 V485000620 LEAD 1 3,850

품절
3-9 9394435 90016205020 BOLT,H.S. 2 880

품절
3-10 9394467 A409000272 ROTOR,MAGNETO 1 71,500

품절
3-11 9394447 90051500008 NUT,FLANGE 1 1,100

품절
3-12 9394415 17723435430 SPRING,RETURN 2 1,650

품절
3-13 9394417 17724704630 SPACER,RATCHET 2 1,650

품절
3-14 9394475 A514000050 PAWL 2 2,200

품절
3-16 9394521 V203000090 BOLT,5 2 550

품절
3-17 9394632 A172002360 COVER,FAN 1 33,000

품절

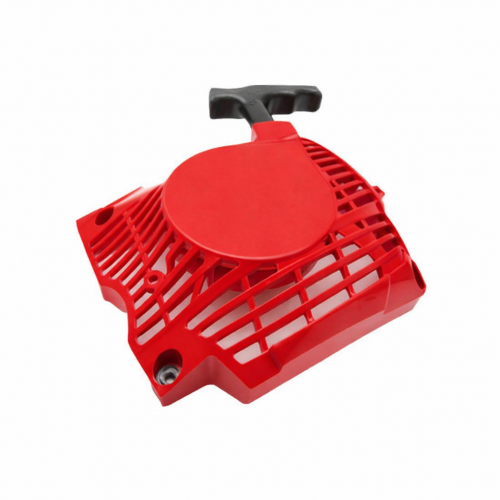

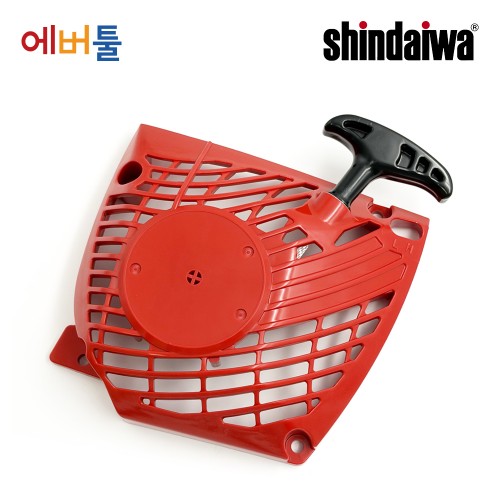

3-18 9394627 STARTER,RECOIL 1 55,000

품절
3-19 9394416 SCREW 1 2,200

품절
3-20 9394650 ROPE,STARTER 1 3,850

품절
3-21 9394648 REEL,ROPE 1 11,000

품절
3-22 9394511 SPRING KIT,REWIND 1 13,200
3-23 9360500 GRIP,STARTER 1 4,950
3-25 9394649 CATCHER,PAWL 1 5,500
3-26 9394698 SPRING,TORSION 1 5,500
3-27 9394377 9114505020 BOLT HS TAPPING 4 550

품절
4-1 9361161 LEVER, BRAKE(G) 1 20,350
4-3 9394529 V356000300 COLLAR,10 1 880

품절
4-5 9394423 43311635430 SPACER 1 2,200

품절
4-6 9394414 17721403930 WASHER 1 880

품절
4-7 9394520 V202000070 BOLT,4 1 550

품절
4-8 9394481 PLATE,SPROCKET GUARD 1 6,050
4-9 9361531 9132503005 SCREW 1 550

품절
4-10 9394519 볼트,4 2 550
4-11 9394680 체인브레이크 아세이 1 60,500

품절
4-12 9394487 C345000360 COVER,BRAKE 1 5,500

품절
4-13 9394519 볼트,4 3 550
4-14 9394423 43311635430 SPACER 1 2,200

품절
4-15 9394486 C334000090 CONNECTOR,BRAKE 1 9,900

품절
4-16 9361170 9305030098 ROLLER(G) 1 550

품절
4-17 9394485 브레이크 밴드 1 8,250
4-18 9394531 SPACER 1 550
4-19 9394535 SPRING,COMPRESSION 1 1,650
4-20 9394680 체인브레이크 아세이 1 60,500

품절
4-21 9391946 RIM 1 15,400
4-22 9361452 A556001270 DRUM,CLUTCH(G) 1 39,050
4-23 9360614 니들베어링 10 1 8,800
4-24 9394413 17501939430 PLATE,CLUTCH 1 3,300

품절
4-25 9394454 CLUTCH ASSY 1 57,200
4-26 9394536 SPRING,TENSION 3 2,750
4-27 9394676 P021007051 CLUTCH SHOE SET 1 25,300

품절
4-28 9394476 A552000070 HUB,CLUTCH 1 10,450

품절
4-29 9394421 PLATE,GUIDE 1 6,050
4-30 9394522 V203000110 BOLT,5 1 4,400

품절
4-31 9394482 체인텐셔너 1 3,850
4-32 9394691 COLLAR,8 1 1,100
4-33 9394551 GEAR,BEVEL 1 6,600
4-34 9394550 GEAR,BEVEL 1 7,150
4-36 9391830 너트 2 1,650
5-1 9394427 PIPE 1 8,250

품절
5-3 9394692 COLLAR,10 1 1,650
5-4 9394552 GEAR,WORM 1 7,700
5-5 9394524 WASHER,CIRCULAR 1 1,650
5-6 9394478 오토오일러 1 38,500
5-7 9394440 SCREW 2 550
5-8 9361669 클립 1 1,100
5-9 9394426 43721035430 PIPE 1 2,750

품절
5-10 9394407 GROMMET 1 880
5-11 9394425 43620514730 STRAINER,OIL 1 7,150

품절
5-12 9394433 89851039130 BAG,TOOL 1 2,750

품절
5-13 9394556 X602000080 TOOL,WRENCH 1 6,600

품절
5-14 9394432 89581203930 DRIVER,SCREW 1 1,650

품절
5-15 9394727 X605000200 TOOL,L WRENCH 1 2,200

품절
5-16 9394720 CHAIN COVER 1 11,000
6-1 9361113 카뷰레터 (기화기) 1 110,000
6-2 9391596 12312610631 SCREEN 1 1,100

품절
6-3 9361196 P003003930 COVER,FUEL PUMP(G) 1 9,900

품절
6-4 9394387 SCREW,PUMP COVER 1 1,100

품절
6-5 9391599 GASKET,PUMP 1 5,500
6-6 9391601 DIAPHRAGM,PUMP 1 8,800
6-7 9391854 GASKET 1 2,750

품절
6-8 9392974 DIAPHRAGM 1 11,000

품절
6-9 9391602 NEEDLE VALVE 1 4,400

품절
6-10 9394389 12312239330 SPRING,METER. LEVER 1 1,650

품절
6-11 9391853 PIN 1 1,100

품절
6-12 9391852 SCREW 1 2,750

품절
6-13 9394331 LEVER, METERING 1 2,750

품절
6-14 9391606 12314203930 COVER,DIAPHRAGM 1 6,600

품절
6-15 9394393 PLUG,WELCH 1 1,650

품절
6-16 9361197 12313304260 SPRING,IDLE ADJUST(G) 1 1,650

품절
6-17 9394392 SCREW,IDLE ADJUST 1 2,200

품절
6-18 9393370 12312122130 SPRING,NEEDLE 1 2,750

품절
6-19 9393371 12311830330 NEEDLE 1 9,350

품절
6-20 9393373 12311922130 SPRING,NEEDLE 1 3,300

품절
6-21 9360515 NEEDLE POWER 1 5,500

품절
6-22 9392038 STOPPER 1 550

품절
6-23 9394497 P003001810 SHAFT ASSY,THROTTLE 1 9,900

품절
6-24 9394495 P003001780 LEVER,THROTTLE 1 3,850

품절
6-25 9391609 12311610530 THROTTLE VALVE 1 3,850

품절
6-26 9391859 RETURN SPRING 1 2,200

품절
6-27 9391612 SCREW 1 2,200

품절
6-28 9391682 NUT 1 2,200
6-29 9392036 12314926030 WASHER 1 1,650

품절
6-30 9394493 P003000150 CHOKE,SHAFT 1 12,100

품절
6-31 9394496 P003001790 VALVE,CHOKE 1 2,200

품절
6-33 9392031 SCREW 1 2,200

품절
6-34 9394494 LEVER-FAST IDLE 1 3,850

품절
6-36 9394391 12312703930 CLIP,THROTTLE SHAFT 1 1,650

품절
7-1 9394444 90025304014 SCREW 1 550

품절
7-2 9394663 C411000061 LID,HANDLE 1 7,150

품절
7-3 9394492 C460000150 LOCKOUT,THROTTLE 1 3,300

품절
7-4 9361629 CONTROL,THROTTLE 1 4,950
7-5 9394539 V452000260 SPRING,TORSION 1 1,650

품절
7-6 9394446 90034540030 PIN,SPRING 1 1,100

품절
7-7 9361103 10091815130 CAP(G) 2 2,200

품절
7-8 9394434 90010504020 BOLT,H.S. 2 550

품절
7-9 9394384 10091515131 SUPPORTER,CUSHION 2 3,300

품절
7-10 9394532 V400000051 CUSHION,4 2 6,600

품절
7-11 9394419 35111119830 GRIP,HANDLE 1 4,400

품절
7-12 9394408 GROMMET 1 1,650

품절
7-13 9394403 PIPE,FUEL 1 2,200

품절
7-14 9394706 클립 1 1,100

품절
7-15 9361458 13120519832 STRAINER, FUEL 1 5,500

품절
7-16 9394518 V162000040 PLUG 1 880

품절
7-17 9394679 P021016824 HANDLE SET,REAR 1 60,500

품절
7-18 9361155 13130056431 VALVE,CHECK(G) 1 4,950

품절
7-19 9394402 COVER, VENT 1 1,100
7-20 9361669 클립 1 1,100
7-21 9394404 13201239931 PIPE 1 7,150

품절
7-22 9394675 연료뚜껑 연료캡 1 6,600

품절
7-23 9394466 CONNECTOR,CAP 1 1,650
7-24 9361673 V581000610 RING,O 1 550

품절
7-25 9361159 C400000431 HANDLE,FRONT(G) 1 66,550

품절
7-26 9394377 9114505020 BOLT HS TAPPING 2 550

품절
7-28 9394543 V475003970 TUBE 1 550

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
