신다이와 452S 18인치 엔진톱 부품

제품이미지

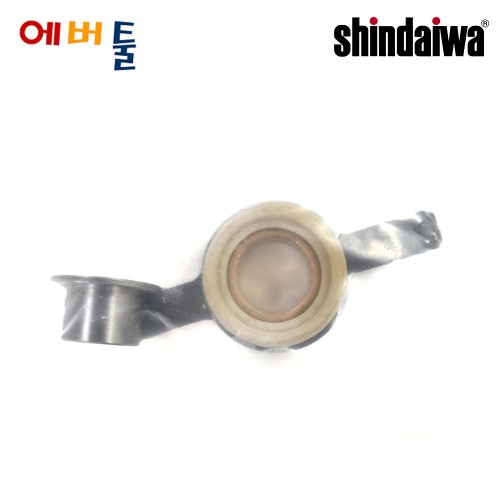

7 베어링 슬리브

266898-7

1,100

총 177개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9391736	CYLINDER	1	107,800
1-2	9391741	GASKET	1	1,650
1-3	9391822	볼트	4	1,100	품절
1-4	9391727	SPRING	1	1,650	품절
1-5	9391728	BOOT	1	12,100	품절
1-6	9391729	SLEEVE	1	2,200	품절
1-7	9391730	브라켓	1	4,950	품절
1-8	9391731	BOLT,ADHESIVE	2	1,650	품절
1-9	9391732	MUFFLER ASSY	1	41,800	품절
1-10	9391733	TAIL PIPE	1	14,300	품절
1-11	9391734	TAIL PLATE	1	4,950	품절
1-12	9391467	9157804006 SCREW,PM	2	1,100	품절
1-13	9391735	GASKET	1	3,850
1-14	9391822	볼트	4	1,100	품절
2-1	9391744	SET, CRANKCASE	1	154,000
2-3	9391474	OIL SEAL	1	2,750
2-6	9391745	볼베어링	1	8,250	품절
2-7	9391746	OIL SEAL	1	4,400	품절
2-8	9391901	BOLT,BAR	2	2,750
2-9	9391747	PULSE JOINT	1	6,050	품절
2-10	9391700	V622000040 ROLLER	2	1,100	품절
2-11	9391748	ROLLER	2	1,100	품절
2-12	9391749	GASKET	1	2,750	품절
2-13	9391750	볼트	3	1,650	품절
2-14	9391822	볼트	2	1,100	품절
2-15	9391751	체인캐처	1	2,200
2-17	9391871	와셔	1	1,100	품절
2-18	9391753	캡 아세이	1	8,800
2-19	9391754	GASKET	1	4,950	품절
2-20	9391761	SWITCH ASSY	1	16,500
2-21	9391755	LEAD WIRE	1	2,750	품절
2-22	9394200	V141000100 PLUG	1	1,100	품절
2-23	9391756	와셔	1	1,100	품절
2-24	9391757	SCREW	1	1,100	품절
2-25	9391758	SLIDE RING	1	1,100	품절
2-26	9391759	SUPPORTER	1	2,750	품절
2-27	9391760	SUPPORTER	1	1,100	품절
2-28	9391762	캡	1	1,650	품절
2-29	9391764	PROTECTOR	1	1,650	품절
3-1	9391788	CYLINDER COVER	1	6,600
3-2	9391766	SHUTTER	1	2,200	품절
3-3	9391731	BOLT,ADHESIVE	3	1,650	품절
3-4	9391767	FRONT HANDLE	1	69,300
3-5	9391768	BOLT,TAPPING	41	1,650	품절
3-6	9391769	REAR HANDLE ASSY	1	116,600	품절
3-7	9391770	SPRING PIN	1	1,100	품절
3-8	9391771	PIN	1	1,100	품절
3-9	9391772	THROTTLE LEVER	1	2,200	품절
3-10	9391773	SPRING,LEVER	1	2,750	품절
3-11	9391774	LOCK LEVER	1	2,200	품절
3-12	9391775	UPPER GRIP	1	6,600
3-13	9391776	GRIP	1	13,750	품절
3-14	9391777	CREW,TAPPING	1	1,100	품절

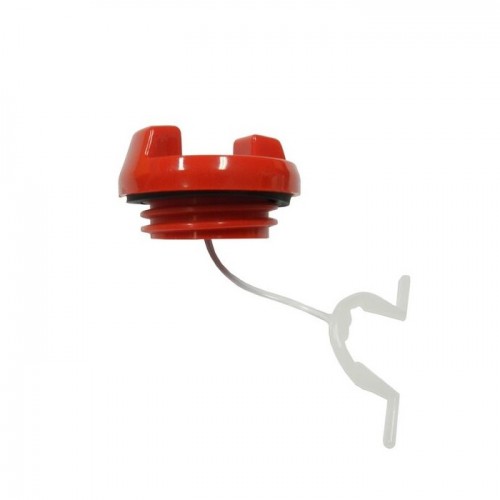

3-15	9391778	CAP, FUEL	1	10,450
3-16	9391779	GASKET	1	5,500	품절
3-18	9391928	FUEL PIPE	1	3,850
3-19	9391505	FUEL FILTER SUBASSY	1	5,500
3-20	9391507	A371000000 FILTER	2	2,750	품절
3-21	9394808	A371000010 ELEMENT	2	1,650	품절
3-22	9391827	CLIP	1	1,100
3-23	9391780	PIPE	1	1,650	품절
3-24	9391781	VALVE	1	7,700	품절
3-25	9391782	STOPPER CUSHION	1	6,050	품절
3-26	9391783	CUSHION	1	9,350
3-27	9391915	V202000260 BOLT-SPW	1	1,100	품절
3-28	9391784	CUSHION	4	4,950
3-29	9391785	PLUG	4	3,300
3-30	9391786	STOPPER BOLT	4	2,750	품절
3-31	9391517	X505003790 LABEL,CAUTION	1	1,100	품절
3-32	9391787	LABEL,DECIBEL	1	1,650	품절
3-33	9391519	X532001140 LABEL,INST	1	1,100	품절
4-1	9391743	PISTON	1	31,900
4-2	9391737	PISTON RING	2	10,450
4-3	9391738	PISTON PIN	1	3,850	품절

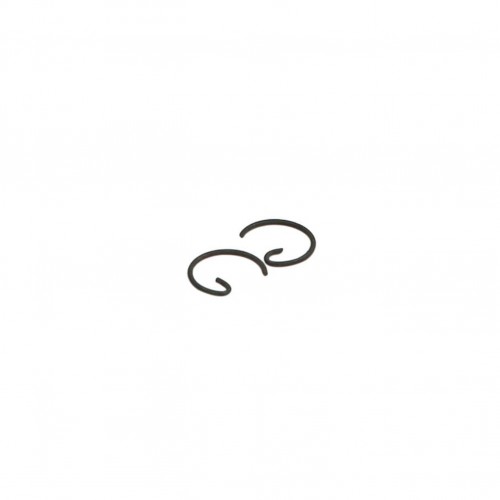

4-4	9391941	SNAP RING (낱개)	2	1,100
4-5	9391942	NEEDLE BEARING	1	10,450
4-6	9391739	CRANKSHAFT SET	1	74,800	품절
4-7	9391740	NUT	1	3,300	품절
4-8	9391741	GASKET	1	1,650

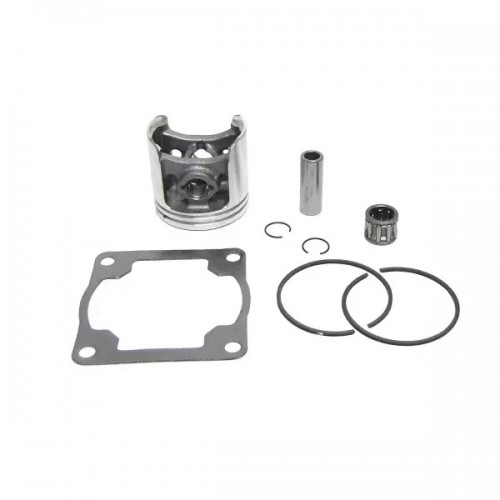

4-9	9391742	PISTON SET	1	60,500
5-1	9391833	CLUTCH DRUM	1	44,000
5-2	9391946	RIM	1	15,400
5-3	9391789	COLLAR	1	2,750
5-4	9391740	NUT	2	3,300	품절
5-5	9391790	CLUTCH ASSY	1	41,800
5-6	9391791	CLUTCH SHOE	3	7,150
5-7	9391792	CLUTCH BOSS	1	6,050
5-8	9391793	CLUTCH SPRING	3	1,650
5-9	9391794	CLUTCH BOSS,B	1	8,800
5-10	9391948	NEEDLE BEARING	1	8,800
5-11	9391795	SLIDE SCREW	1	6,600	품절
5-12	9391534	SLIDE PIECE	1	2,200
5-13	9391796	GUIDE	1	1,650
5-14	9391797	ADJUST GEAR	1	8,250	품절
5-15	9391798	GUIDE PLATE	1	18,700
5-16	9391799	SCREW	1	1,100	품절
5-17	9391800	SPIKE	1	19,250	품절
5-18	9391801	볼트	2	1,100

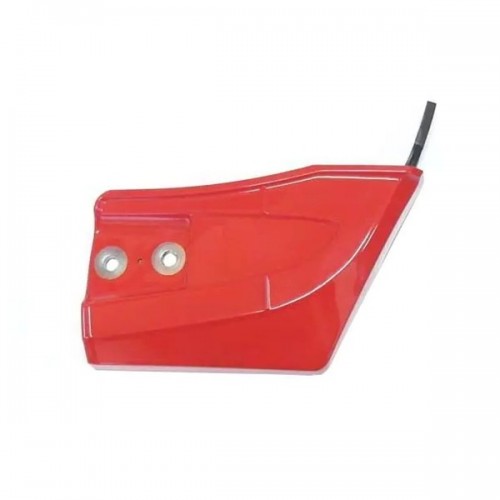

5-19	9391803	CLUTCH COVER	1	10,450	품절
5-20	9391805	GUIDE PLATE	1	13,200
5-21	9391806	CREW,TAPPING	1	1,100	품절
5-22	9391804	PROTECTOR	1	1,650	품절
5-23	9391830	너트	2	1,650
5-24	9391807	BRAKE BAND COMP	1	51,700	품절
5-25	9391808	브레이크 밴드	1	20,900	품절
5-26	9391809	HOLDER	1	2,200	품절
5-27	9391810	CREW,TAPPING	1	1,100	품절
5-28	9391811	PIN	1	1,100	품절
5-29	9391812	INNER LEVER	1	12,650	품절
5-30	9391813	TIE STRAP	1	3,300	품절
5-31	9391970	V629000010 ROLLER	2	1,100	품절
5-32	9391814	COIL SPRING	1	4,400	품절
5-33	9391815	PLATE	1	3,850	품절
5-34	9391816	GUARD COMP	1	24,200	품절
5-35	9361508	90033040080 PIN, DOWEL	1	1,100	품절
5-36	9391817	BOLT,ADHESIVE	1	1,650	품절
5-37	9391818	COIL SPRING	1	4,400	품절
5-38	9391819	COVER,BRAKE	1	3,850	품절
5-39	9391462	V202000520 BOLT,ADHESIVE	3	1,650	품절
5-40	9391820	와셔	1	1,100	품절
5-41	9391821	COLLAR	1	7,700	품절
5-42	9391822	볼트	1	1,100	품절
5-43	9391823	기어(오일)	1	42,900	품절
5-44	9391703	OIL PUMP ASSY	1	62,700
5-45	9391825	OIL PIPE	1	6,600	품절
5-46	9391826	OIL FILTER	1	6,600	품절
5-47	9391827	CLIP	1	1,100
5-48	9391828	FILTER	1	1,650	품절
5-49	9391829	PUMP COVER	1	3,300	품절
5-50	9391462	V202000520 BOLT,ADHESIVE	3	1,650	품절
5-51	9391802	CLUTCH COVER ASSY	1	35,200
5-54	9391832	LABEL,INST	1	1,650	품절
6-1	9391848	ROTOR	1	47,300
6-2	9391571	A514000220 RATCHET	2	3,850	품절
6-3	9391572	V452000870 SPRING,RATCHET	2	1,650	품절
6-4	9391995	V304000270 WASHER	2	1,100	품절
6-5	9391573	V204000620 BOLT	2	1,650	품절
6-6	9391577	9311503010 KEY	1	1,650	품절
6-7	9391834	NUT	1	1,100	품절
6-9	9391835	튜브	1	1,650	품절
6-10	9391579	SPRING,PLUG	1	1,100
6-11	9391578	A427000060 PLUG CAP	1	5,500	품절

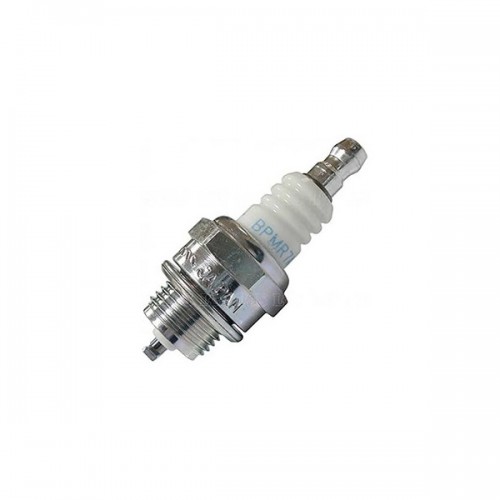

6-12	9391582	SPARK PLUG	1	10,450
6-13	9391836	BOLT,ADHESIVE	2	1,100	품절

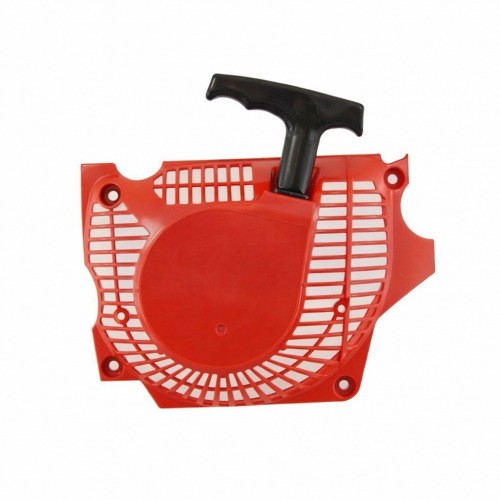

6-14	9391837	RECOIL STARTER ASSY	1	62,700
6-15	9391838	STARTER CASE	1	28,600	품절
6-16	9392007	A510000130 GUIDE	1	3,850	품절
6-17	9391585	A506000390 REEL	1	11,000	품절
6-18	9391586	A507000050 CAM	1	6,050	품절
6-19	9391839	SPRING, TORSION	1	7,700
6-20	9391588	COIL SPRING	1	13,200
6-21	9391589	V253000640 SCREW	1	1,650	품절
6-22	9391590	A509000380 ROPE	1	7,700	품절
6-23	9391840	KNOB	1	5,500	품절
6-24	9391841	COIL SPRING	1	2,750	품절
6-25	9391842	SPACER	1	2,200	품절
6-26	9391843	AIR PLATE	1	5,500	품절
6-27	9391731	BOLT,ADHESIVE	4	1,650	품절
6-28	9391844	GROMMET	1	1,650	품절
6-30	9391847	COVER	1	2,200	품절
6-31	9391846	COIL, IGNITION	1	64,900	품절

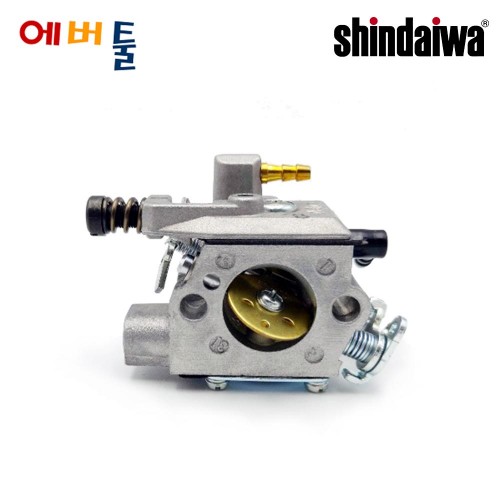

7-1	9391865	카뷰레터 아세이	1	71,500
7-31	9391864	GASKET KIT	1	9,350
7-32	9391617	다이어프램 키트, 22128-81910	1	24,200
7-33	9391885	PIPE	1	7,700	품절

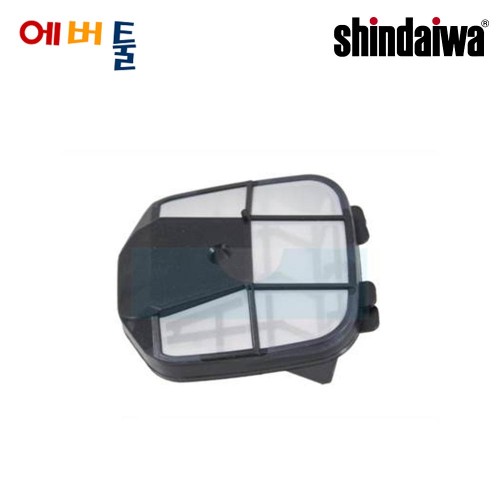

7-34	9391876	에어크리너아세이	1	20,900
7-35	9391866	LID, CLEANER	1	8,250	품절
7-36	9391867	KNOB, CLEANER LID	1	4,400
7-37	9391868	ELBOW	1	4,400
7-38	9391869	GASKET	1	1,100	품절
7-39	9391731	BOLT,ADHESIVE	2	1,650	품절
7-40	9391870	OLT	2	1,100	품절
7-41	9391871	와셔	2	1,100	품절
7-42	9391872	CHOKE ROD	1	3,850
7-43	9391873	GROMMET	1	2,750
7-44	9391874	THROTTLE ROD	1	3,850	품절
7-45	9391875	GROMMET,ROD	1	6,050	품절
