신다이와 405S 엔진톱 부품

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 230개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9361200 CRANKCASE SET(G) 1 105,050

품절
1-2 9394436 90016205022 BOLT,H.S. 4 880

품절

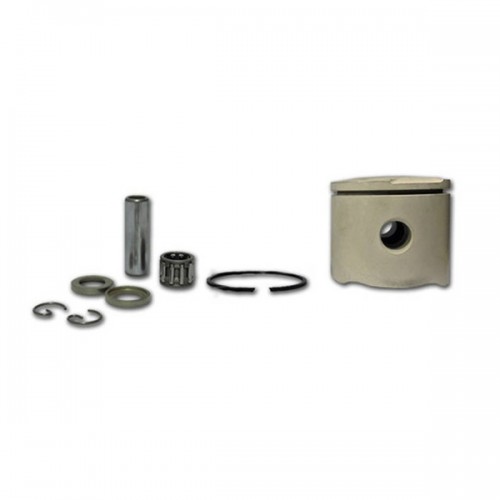

1-3 9394681 PISTON KIT 1 46,200
1-4 9394455 A101000160 RING,PISTON 1 5,500

품절
1-5 9394549 V607000000 PIN,ENG 1 4,400

품절
1-6 9394381 10001503931 CIRCLIP,PISTON PIN 2 1,100

품절
1-7 9394379 10001216131 BEARING,NEEDLE 1 8,800

품절
1-8 9394380 10001453630 SPACER,PISTON PIN 2 3,300

품절
1-9 9394504 P021012140 CRANKSHAFT ASSY 1 115,500

품절
1-10 9360492 SEAL,OIL 12 2 5,500

품절
1-11 9394451 90088836201 BEARING,BALL 2 3,850

품절
2-1 9394409 15011404920 BUSHING 1 1,100

품절
2-2 9394506 COVER ENGINE ASSY 1 60,500
2-3 9361584 STUD, GUIDE BAR 2 2,750
2-4 9394525 V341000050 WASHER,SQUARE 1 1,650

품절
2-7 9394480 C304000010 SPIKE D 1 13,200

품절
2-8 9394377 9114505020 BOLT HS TAPPING 2 550

품절
2-9 9394456 A160001220 COVER,CYLINDER 1 20,900

품절
2-10 9394459 A209000000 PLATE,INSULATOR 1 3,850

품절
2-11 9394526 V341000060 WASHER,SQUARE 1 2,750

품절
2-12 9361107 V341000070 WASHER,SQUARE(G) 1 3,300

품절
2-13 9394442 90023805020 SCREW 3 550

품절
2-14 9394383 CUSHION 2 7,150
2-15 9394385 10091533930 SCREW 2 3,300

품절
2-16 9394421 PLATE,GUIDE 1 6,050
2-17 9394519 볼트,4 1 550
2-18 9394483 C310000000 CATCHER,CHAIN 1 1,650

품절
2-20 9394622 LABEL,SWITCH 1 1,650

품절
2-22 9394725 LABEL 1 1,650

품절
2-23 9394624 89063138131 LABEL,CAUTION 1 550

품절
2-24 9394478 오토오일러 1 38,500
2-25 9394440 SCREW 2 550
2-26 9394524 WASHER,CIRCULAR 1 1,650
2-27 9394552 GEAR,WORM 1 7,700
2-28 9394692 COLLAR,10 1 1,650
2-29 9394427 PIPE 1 8,250

품절
2-30 9394406 13201326630 CLIP 1 550

품절
2-31 9394500 CAP ASSY,TANK 1 9,350

품절
2-32 9394450 90072100025 O-RING 1 1,100

품절
2-33 9394466 CONNECTOR,CAP 1 1,650
2-34 9360570 STRAINER,OIL 1 7,150

품절
2-35 9394426 43721035430 PIPE 1 2,750

품절
2-36 9394406 13201326630 CLIP 1 550

품절
2-37 9394407 GROMMET 1 880
2-38 9361103 10091815130 CAP(G) 2 2,200

품절
3-1 9394619 MUFFLER 1 30,800
3-2 9394620 PLATE,MUFFLER 1 8,250

품절
3-3 9394641 LID,MUFFLER 1 9,900

품절
3-4 9394515 V104000731 GASKET,EXHAUST 1 2,750

품절
3-5 9394613 볼트,5 2 1,100
3-6 9394448 NUT,FLANGE 2 880

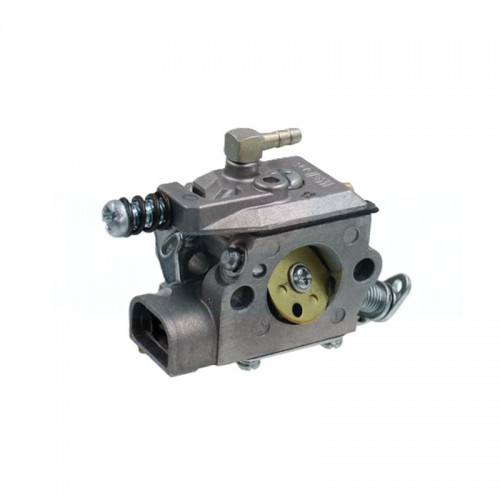

4-1 9361113 카뷰레터 (기화기) 1 110,000
4-3 9394458 흡기 벨로우즈 1 10,450
4-4 9394441 90023805014 SCREW 2 1,100

품절
4-5 9394514 V103000290 GASKET,INTAKE 1 880

품절
4-6 9394513 GASKET,INTAKE 1 550
4-7 9394395 13000739932 INSULATOR 1 9,900

품절
4-8 9394396 13002033330 NUT 2 1,650

품절
4-9 9394398 13030139935 ADAPTER,INTAKE 1 5,500

품절
4-10 9394445 SCREW 1 550
4-11 9391871 와셔 1 1,100

품절
4-13 9394706 클립 1 1,100

품절
4-14 9394534 V420001420 CUSHION 1 3,300

품절

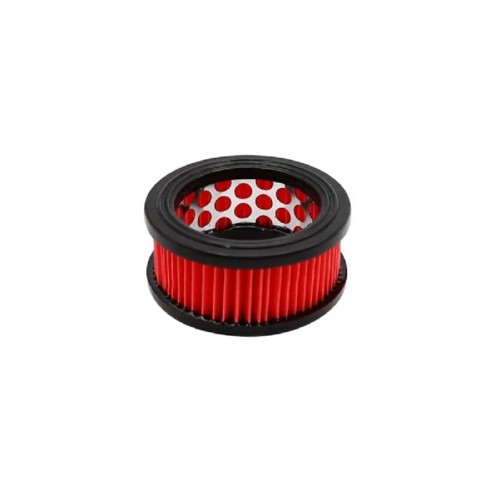

4-15 9394397 CLEANER ASSY,AIR 1 22,000
4-16 9361656 HOLDER,ELEMENT ASSY 1 5,500
4-17 9394460 LID,CLEANER 1 6,600

품절
4-18 9394461 KNOB,CLEANER LID 1 4,400
4-19 9394399 13033832430 PLUG,COVER 1 1,100

품절
4-20 9394491 C454000100 ROD,THROTTLE 1 3,300

품절
4-21 9394462 KNOB,CHOKE 1 7,150
4-22 9394418 17881014534 GROMMET 1 1,100

품절
4-23 9392735 PRIMER/PUMP 1 19,800
4-24 9394540 PIPE 1 2,200
4-25 9394541 V471001470 PIPE 1 3,300

품절
4-26 9394411 16340038330 SWITCH,IGNITION 1 8,250
4-27 9394544 V485000620 LEAD 1 3,850

품절
4-28 9394545 V485000680 LEAD 1 4,400

품절
4-29 9394546 V486000021 TERMINAL,LEAD 1 1,650

품절
4-30 9394472 A439000430 BRACKET,SWITCH 1 7,700

품절
4-31 9394420 35113439930 CUSHION 2 550

품절
5-2 9391596 12312610631 SCREEN 1 1,100

품절
5-3 9361196 P003003930 COVER,FUEL PUMP(G) 1 9,900

품절
5-4 9394387 SCREW,PUMP COVER 1 1,100

품절
5-5 9391599 GASKET,PUMP 1 5,500
5-6 9391601 DIAPHRAGM,PUMP 1 8,800
5-7 9391854 GASKET 1 2,750

품절
5-8 9392974 DIAPHRAGM 1 11,000

품절
5-9 9391602 NEEDLE VALVE 1 4,400

품절
5-10 9394389 12312239330 SPRING,METER. LEVER 1 1,650

품절
5-11 9391853 PIN 1 1,100

품절
5-12 9391852 SCREW 1 2,750

품절
5-13 9394331 LEVER, METERING 1 2,750

품절
5-14 9391606 12314203930 COVER,DIAPHRAGM 1 6,600

품절
5-15 9394393 PLUG,WELCH 1 1,650

품절
5-16 9361197 12313304260 SPRING,IDLE ADJUST(G) 1 1,650

품절
5-17 9394392 SCREW,IDLE ADJUST 1 2,200

품절
5-18 9393370 12312122130 SPRING,NEEDLE 1 2,750

품절
5-19 9393371 12311830330 NEEDLE 1 9,350

품절
5-20 9393373 12311922130 SPRING,NEEDLE 1 3,300

품절
5-21 9360515 NEEDLE POWER 1 5,500

품절
5-22 9392038 STOPPER 1 550

품절
5-23 9394497 P003001810 SHAFT ASSY,THROTTLE 1 9,900

품절
5-24 9394495 P003001780 LEVER,THROTTLE 1 3,850

품절
5-25 9391609 12311610530 THROTTLE VALVE 1 3,850

품절
5-26 9391859 RETURN SPRING 1 2,200

품절
5-27 9391612 SCREW 5 2,200

품절
5-28 9391862 SPRING 1 4,400

품절
5-29 9392036 12314926030 WASHER 1 1,650

품절
5-30 9394493 P003000150 CHOKE,SHAFT 1 12,100

품절
5-31 9394496 P003001790 VALVE,CHOKE 1 2,200

품절
5-33 9392031 SCREW 3 2,200

품절
5-34 9394494 LEVER-FAST IDLE 1 3,850

품절
5-36 9394391 12312703930 CLIP,THROTTLE SHAFT 1 1,650

품절
6-1 9394467 A409000272 ROTOR,MAGNETO 1 71,500

품절
6-2 9394468 A411000264 COIL,IGNITION 1 77,000
6-3 9394410 스페이서 2 2,200
6-4 9394435 90016205020 BOLT,H.S. 2 880

품절
6-5 9394447 90051500008 NUT,FLANGE 1 1,100

품절
6-7 9361131 PLUG,SPARK(BPM-8Y)(G) 1 8,800

품절
6-8 9394471 A427000013 CAP,SPARK PLUG 1 5,500

품절
6-9 9394470 TERMINAL,SPARKPLUG 1 3,300
6-10 9394516 V135000010 GROMMET,HT CORD 1 880

품절
6-11 9394547 V490000310 CLIP 1 1,100

품절
6-12 9394475 A514000050 PAWL 2 2,200

품절
6-14 9394415 17723435430 SPRING,RETURN 2 1,650

품절
6-15 9394521 V203000090 BOLT,5 2 550

품절
6-16 9394417 17724704630 SPACER,RATCHET 2 1,650

품절
7-1 9394679 P021016824 HANDLE SET,REAR 1 60,500

품절
7-2 9394663 C411000061 LID,HANDLE 1 7,150

품절
7-3 9394401 VALVE, CHECK 1 4,950
7-4 9394402 COVER, VENT 1 1,100
7-5 9394404 13201239931 PIPE 1 7,150

품절
7-6 9394406 13201326630 CLIP 1 550

품절
7-8 9394444 90025304014 SCREW 1 550

품절
7-9 9394488 HANDLE, FRONT 1 66,000

품절
7-11 9394377 9114505020 BOLT HS TAPPING 2 550

품절
7-12 9394533 V420001250 CUSHION 2 1,650

품절
7-13 9394532 V400000051 CUSHION,4 2 6,600

품절
7-14 9361103 10091815130 CAP(G) 2 2,200

품절
7-15 9361685 볼트,4 2 550

품절
7-16 9361629 CONTROL,THROTTLE 1 4,950
7-17 9394446 90034540030 PIN,SPRING 1 1,100

품절
7-18 9394518 V162000040 PLUG 1 880

품절
7-19 9394539 V452000260 SPRING,TORSION 1 1,650

품절
7-20 9394492 C460000150 LOCKOUT,THROTTLE 1 3,300

품절
7-21 9394675 연료뚜껑 연료캡 1 6,600

품절
7-22 9361673 V581000610 RING,O 1 550

품절
7-23 9394466 CONNECTOR,CAP 1 1,650
7-24 9394403 PIPE,FUEL 1 2,200

품절
7-25 9361686 STRAINER,FUEL 1 7,700

품절
7-26 9394706 클립 1 1,100

품절
7-27 9394408 GROMMET 1 1,650

품절
7-28 9394543 V475003970 TUBE 1 550

품절

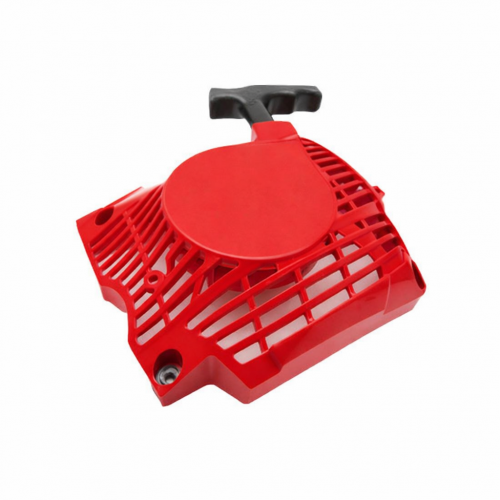

8-1 9394627 STARTER,RECOIL 1 55,000

품절
8-2 9394687 P022036960 CASE,STARTER 1 49,500

품절
8-3 9394648 REEL,ROPE 1 11,000

품절
8-4 9394649 CATCHER,PAWL 1 5,500
8-5 9394698 SPRING,TORSION 1 5,500
8-6 9394511 SPRING KIT,REWIND 1 13,200
8-7 9394685 SPRING CASE 1 1,650

품절
8-8 9394416 SCREW 1 2,200

품절
8-9 9394650 ROPE,STARTER 1 3,850

품절
8-10 9360500 GRIP,STARTER 1 4,950
8-11 9394377 9114505020 BOLT HS TAPPING 4 550

품절
8-12 9394632 A172002360 COVER,FAN 1 33,000

품절
9-1 9361452 A556001270 DRUM,CLUTCH(G) 1 39,050
9-2 9391946 RIM 1 15,400
9-3 9394454 CLUTCH ASSY 1 57,200
9-4 9394476 A552000070 HUB,CLUTCH 1 10,450

품절
9-5 9394676 P021007051 CLUTCH SHOE SET 1 25,300

품절
9-6 9394536 SPRING,TENSION 3 2,750
9-7 9394413 17501939430 PLATE,CLUTCH 1 3,300

품절
9-8 9360614 니들베어링 10 1 8,800
9-9 9391830 너트 2 1,650
9-10 9394481 PLATE,SPROCKET GUARD 1 6,050
9-11 9361531 9132503005 SCREW 1 550

품절
9-12 9394519 볼트,4 1 550
9-13 9394482 체인텐셔너 1 3,850
9-14 9361180 볼트,5(G) 1 4,400
9-15 9394550 GEAR,BEVEL 1 7,150
9-16 9394551 GEAR,BEVEL 1 6,600
9-17 9394691 COLLAR,8 1 1,100
9-18 9394484 LEVER,BRAKE 1 19,800
9-20 9394529 V356000300 COLLAR,10 1 880

품절
9-22 9394414 17721403930 WASHER 1 880

품절
9-23 9394520 V202000070 BOLT,4 1 550

품절
9-24 9394423 43311635430 SPACER 1 2,200

품절
9-25 9394680 체인브레이크 아세이 1 60,500

품절
9-27 9394487 C345000360 COVER,BRAKE 1 5,500

품절
9-28 9394519 볼트,4 3 550
9-29 9394486 C334000090 CONNECTOR,BRAKE 1 9,900

품절
9-30 9394535 SPRING,COMPRESSION 1 1,650
9-31 9394485 브레이크 밴드 1 8,250
9-32 9361170 9305030098 ROLLER(G) 1 550

품절
9-33 9394423 43311635430 SPACER 1 2,200

품절
9-34 9394531 SPACER 1 550
10-1 9394433 89851039130 BAG,TOOL 1 2,750

품절
10-2 9394556 X602000080 TOOL,WRENCH 1 6,600

품절
10-3 9394432 89581203930 DRIVER,SCREW 1 1,650

품절
10-4 9394727 X605000200 TOOL,L WRENCH 1 2,200

품절

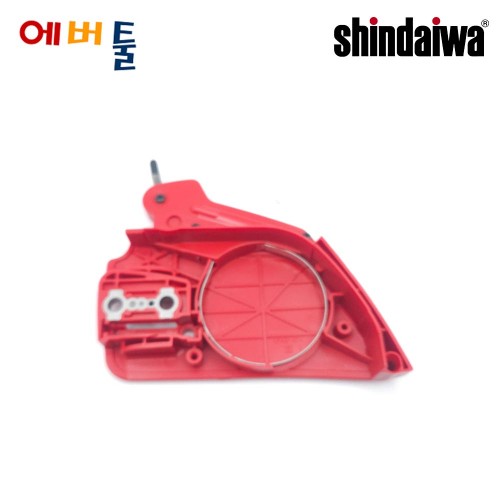

10-5 9394720 CHAIN COVER 1 11,000
11-1 9361113 카뷰레터 (기화기) 1 110,000
11-3 9394458 흡기 벨로우즈 1 10,450
11-4 9394441 90023805014 SCREW 2 1,100

품절
11-5 9394514 V103000290 GASKET,INTAKE 1 880

품절
11-6 9394513 GASKET,INTAKE 1 550
11-7 9394395 13000739932 INSULATOR 1 9,900

품절
11-8 9394396 13002033330 NUT 2 1,650

품절
11-9 9394398 13030139935 ADAPTER,INTAKE 1 5,500

품절
11-10 9394445 SCREW 1 550
11-11 9391871 와셔 1 1,100

품절
11-13 9394405 13201309820 CLIP 1 1,100

품절
11-14 9394534 V420001420 CUSHION 1 3,300

품절
11-15 9361115 CLEANER ASM.,AIR(G) 1 22,000
11-16 9361656 HOLDER,ELEMENT ASSY 1 5,500
11-17 9394460 LID,CLEANER 1 6,600

품절
11-18 9394461 KNOB,CLEANER LID 1 4,400
11-19 9394399 13033832430 PLUG,COVER 1 1,100

품절
11-20 9394491 C454000100 ROD,THROTTLE 1 3,300

품절
11-21 9394462 KNOB,CHOKE 1 7,150
11-22 9394418 17881014534 GROMMET 1 1,100

품절
11-23 9392735 PRIMER/PUMP 1 19,800
11-24 9394540 PIPE 1 2,200
11-25 9394541 V471001470 PIPE 1 3,300

품절
11-26 9394411 16340038330 SWITCH,IGNITION 1 8,250
11-27 9394544 V485000620 LEAD 1 3,850

품절
11-28 9394545 V485000680 LEAD 1 4,400

품절
11-29 9394546 V486000021 TERMINAL,LEAD 1 1,650

품절
11-30 9394472 A439000430 BRACKET,SWITCH 1 7,700

품절
11-31 9394420 35113439930 CUSHION 2 550

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
