신다이와 377 엔진톱 부품

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 167개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9393485 CYLINDER 1 88,000
1-2 9391457 GASKET,CYLINDER 1 1,650
1-3 9391458 V203001200 BOLT 4 1,100

품절
1-4 9392550 A202000110 BOOT 1 33,000

품절
1-5 9391729 SLEEVE 1 2,200

품절
1-6 9391460 A200000780 BRACKET 1 7,150

품절
1-7 9391461 V202000390 BOLT,ADHESIVE 2 1,650

품절
1-9 9391462 V202000520 BOLT,ADHESIVE 2 1,650

품절
1-10 9393486 V203001210 BOLT,ADHESIVE 2 1,650

품절
1-11 9391871 와셔 2 1,100

품절
1-12 9393351 MUFFLER SUBASSY 1 42,900
1-13 9393352 A310000290 SCREEN 1 1,650

품절
1-14 9391466 A313001490 TAIL PLATE 1 6,050

품절
1-15 9391467 9157804006 SCREW,PM 2 1,100

품절
1-16 9391468 GASKET 1 1,650
1-17 9391469 V203000720 BOLT-SW 2 1,100

품절
1-18 9391470 V203001420 BOLT,ADHESIVE 2 550

품절
2-3 9391473 V592000070 BALL BEARING 1 6,600

품절
2-4 9391474 OIL SEAL 1 2,750
2-5 9393097 오일뚜껑 오일캡 1 9,350
2-6 9391476 V106000080 GASKET,CAP 1 1,650

품절
2-7 9391478 2215921512 CRANKCASE,C 1 83,600

품절
2-8 9391479 BOLT,BAR 2 1,650
2-9 9391700 V622000040 ROLLER 2 1,100

품절
2-10 9391897 V592000110 BALL BEARING 1 6,600

품절
2-11 9391474 OIL SEAL 1 2,750
2-12 9391480 V203000370 BOLT,ADHESIVE 3 1,100

품절
2-13 9391481 V203001230 BOLT,ADHESIVE 1 1,650

품절
2-14 9391482 V203001240 BOLT,ADHESIVE 2 1,650

품절
2-15 9393355 A045000450 SWITCH ASSY 1 12,100

품절
2-18 9391484 V136000110 GROMMET 1 6,600

품절
2-19 9391486 CRANKCASE,M COMP 1 63,800
2-20 9391477 P021022200 CRANKCASE,C COMP 1 63,800
2-21 9391485 GASKET,CASE 1 4,400
3-1 9393356 A160001920 CYLINDER COVER 1 23,100

품절
3-2 9393357 V131000050 GROMMET,HL 1 2,750

품절
3-4 9391490 A235000280 KNOB,CLEANER COVER 1 4,400

품절
3-6 9391491 V202000470 BOLT,ADHESIVE 3 1,650

품절
3-7 9391492 C040000460 FRONT HANDLE 1 59,400

품절
3-8 9391666 V203001370 BOLT,HLP 2 1,100

품절
3-9 9391665 V203001360 BOLT,HLP 2 1,100

품절
3-10 9393361 C041000240 REAR HANDLE 1 53,900

품절
3-11 9391498 C412000560 GRIP 1 2,750

품절
3-12 9393110 C561000050 SLIDE STOPPER 1 1,100

품절
3-13 9391495 C450000600 THROTTLE LEVER 1 1,650

품절
3-14 9393111 C460000270 LOCK LEVER 1 1,650

품절
3-15 9391497 V452000720 COIL SPRING 1 1,650

품절
3-16 9391770 SPRING PIN 2 1,100

품절
3-17 9391511 CUSHION,22 5 4,400

품절
3-18 9391513 V420002660 SUPPORTER 1 1,100

품절
3-19 9391512 PLUG,22 5 1,100
3-20 9391514 V203001380 BOLT,HLP 3 3,300

품절
3-21 9391515 V203001250 STOPPER BOLT,22 2 1,650

품절

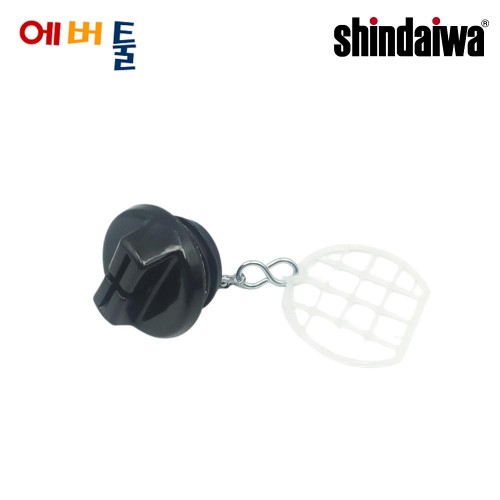

3-22 9393114 FUEL CAP ASSY 1 9,350

품절
3-23 9391476 V106000080 GASKET,CAP 1 1,650

품절
3-24 9391500 A356000120 ELEMENT 1 2,750

품절
3-25 9391501 V470001240 PIPE 1 3,300

품절
3-26 9391503 22155-33930 JOINT 1 2,750

품절
3-27 9391504 FUEL PIPE 1 6,050
3-28 9391506 22128-85410 FUEL LINE WEIGHT 1 2,750

품절
3-29 9391507 A371000000 FILTER 2 2,750

품절
3-30 9391508 V490000750 CLIP,FILTER 1 1,650

품절
3-31 9391509 22118-85460 FUEL SCREEN 2 1,100

품절
3-32 9391430 22128-85470 FUEL FILTER BODY 1 3,300

품절
3-33 9391510 V583000200 RING 1 1,650

품절
3-34 9391827 CLIP 1 1,100
3-36 9393491 P021035480 REAR HANDLE SUB ASSY 1 73,700

품절
3-37 9391499 A356000110 BREATHER ASSY 1 7,700

품절
3-38 9393115 FUEL PIPE ASSY 1 15,400
3-39 9391505 FUEL FILTER SUBASSY 1 5,500
3-41 9393410 X505003890 LABEL,CAUTION 1 1,650

품절

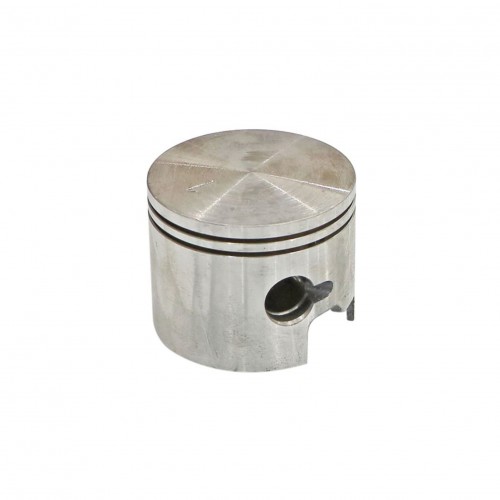

4-1 9391526 PISTON A100000800 1 33,000

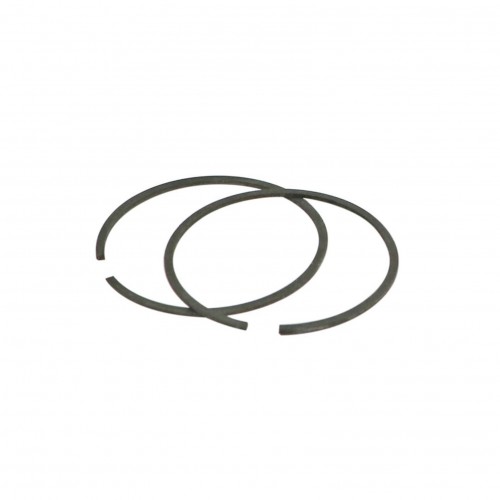

4-2 9391521 PISTON RING (낱개) 2 8,800
4-3 9391522 PISTON PIN 1 4,950
4-4 9391941 SNAP RING (낱개) 2 1,100
4-5 9391523 NEEDLE BEARING 1 8,800
4-6 9391524 V307000260 THRUST WASHER 2 5,500

품절
4-7 9393507 A011000970 CRANKSHAFT ASSY 1 96,800

품절
5-1 9393494 A556001020 CLUTCH DRUM 1 40,700

품절
5-2 9391946 RIM 1 15,400
5-4 9393117 CLUTCH SHOE 3 4,950
5-5 9391529 V451000890 CLUTCH SPRING 1 3,850

품절
5-6 9391530 A552000150 CLUTCH BOSS,B 1 5,500

품절
5-7 9391531 A552000160 CLUTCH BOSS,A 1 6,050

품절
5-8 9391532 V555000110 NEEDLE BEARING 1 8,800

품절
5-9 9393261 V265000230 NUT 2 2,750

품절
5-10 9391533 SLIDE SCREW 1 1,650
5-11 9391534 SLIDE PIECE 1 2,200
5-12 9393455 C305000170 GUIDE PLATE,A 1 6,600

품절
5-13 9391536 C304000090 SPIKE 1 3,850

품절

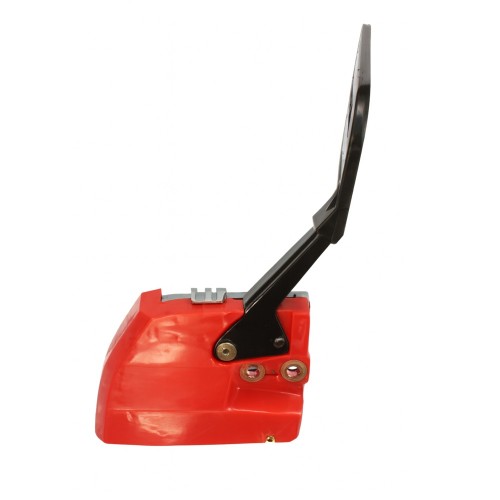

5-14 9393498 CLUTCH COVER 1 26,400
5-15 9391560 C305000130 GUIDE PLATE,B 1 7,150

품절
5-16 9391561 9137404008 SCREW,TAPPING 1 1,100

품절
5-17 9393499 C328000230 BRAKE BAND 1 20,900

품절
5-18 9391542 C334000130 HOLDER,SPRING 1 13,200

품절
5-19 9391699 V450001110 BRAKE SPRING 1 3,300

품절
5-20 9391547 V456000170 STOPPER 1 2,200

품절
5-21 9391543 C329000020 ADJUST PLATE 2 2,750

품절
5-22 9393500 V352000170 HOLDER 1 4,950

품절
5-23 9393501 V262000120 NUT,LEVER 1 4,400

품절
5-24 9391549 90010504012 BOLT 1 1,100

품절
5-25 9391548 V622000050 ROLLER 1 1,100

품절
5-26 9391544 C334000140 INNER LEVER 1 2,750

품절
5-27 9391545 C334000150 TIE STRAP 1 3,300

품절
5-28 9391700 V622000040 ROLLER 2 1,100

품절
5-29 9391555 V452000900 SPRING,LEVER 1 2,200

품절
5-30 9393502 C320000260 LEVER 1 36,300

품절
5-31 9393503 V641000170 PIN,LEVER 1 1,100

품절
5-32 9393504 SNAP RING 1 1,100
5-33 9391556 C345000370 COVER 1 10,450

품절
5-34 9391557 9137404012 SCREW,TAPPING 2 1,100

품절
5-35 9391558 C310000040 CHAIN CATCHER 1 1,650

품절
5-36 9391559 9143903010 SCREW,TRUSS,T 1 1,100

품절
5-38 9391980 GEAR 1 1,650
5-39 9391981 V307000330 THRUST PLATE 1 1,650

품절
5-40 9391703 OIL PUMP ASSY 1 62,700
5-41 9391564 OIL PIPE 1 3,300
5-42 9391565 C209000050 OIL FILTER 1 5,500

품절
5-43 9391566 V490000720 CLIP,OIL 1 1,100

품절
5-44 9391434 9157304012 SCREW,PM-PW 2 1,100

품절
5-45 9391567 PUMP COVER 1 2,750
5-46 9391568 11260-04120 SCREW ADHESIVE 4 550

품절
5-47 9391535 V260000020 PUSH NUT 1 1,100

품절
5-48 9393493 A055000030 CLUTCH DRUM ASSY 1 61,600

품절
5-49 9393116 CLUTCH ASSY 1 23,100
5-50 9393496 브레이크 아세이 1 110,000
5-51 9393497 P021032160 CLUTCH COVER SUBASSY 1 36,300

품절
5-52 9391563 C021000000 OIL PIPE ASSY 1 9,900

품절
6-2 9393141 COIL 1 63,800
6-3 9391575 INSULATOR 2 1,650
6-4 9393506 V202000420 BOLT,ADHESIVE 2 1,650

품절
6-5 9391577 9311503010 KEY 1 1,650

품절
6-7 9391997 V265000180 NUT 1 1,100

품절
6-8 9391578 A427000060 PLUG CAP 1 5,500

품절
6-9 9391579 SPRING,PLUG 1 1,100
6-10 9391580 V475005180 TUBE 1 1,650

품절
6-11 9391581 V490000700 CLIP 1 1,650

품절
6-12 9391582 SPARK PLUG 1 10,450
7-1 9393146 P022024950 RECOIL CASE 1 43,450

품절
7-2 9393147 A506000350 REEL 1 11,000

품절
7-3 9393148 A504000170 RECOIL SPRING 1 13,200

품절
7-4 9393149 A507000040 RATCHET 1 7,150

품절
7-5 9393150 GUIDE 1 2,750
7-6 9393151 V452000750 FRICTION SPRING 1 1,650

품절
7-7 9393152 THRUST WASHER 1 1,650
7-8 9393153 V304000260 WASHER 1 1,650

품절
7-9 9392209 V253000560 SCREW 1 1,100

품절
7-10 9393154 A509000330 ROPE 1 8,250

품절
7-11 9393445 A511000220 KNOB,RECOIL 1 7,150

품절
7-12 9392013 E184000010 STOPPER 1 2,200

품절
7-13 9393312 X707000050 TAPE 1 1,650

품절
7-15 9393158 A172001390 AIR PLATE 1 3,300

품절
7-16 9391593 11060-04200 BOLT ADHESIVE 4 1,100

품절
7-17 9393516 RECOIL STARTER SUBASSY 1 45,100
7-18 9392007 A510000130 GUIDE 1 3,850

품절
8-1 9393508 카뷰레터 아세이 1 101,200
8-34 9393513 CHOKE ROD 1 4,950
8-35 9391627 GROMMET,CHOKE 1 2,200
8-36 9393381 C454000270 THROTTLE ROD 1 3,300

품절
8-37 9391628 V133000000 GROMMET,ROD 1 2,200

품절
8-39 9391624 A219000010 SHUTTER 1 2,750

품절
8-44 9393514 ELBOW 1 3,850
8-45 9393383 에어크리너 1 16,500
8-46 9393382 링 가스켓 1 4,950
8-47 9391625 에어크리너 1 5,500
8-48 9391864 GASKET KIT 1 9,350
8-49 9391617 다이어프램 키트, 22128-81910 1 24,200

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
