계양 PG-604 핸드그라인더 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 50개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

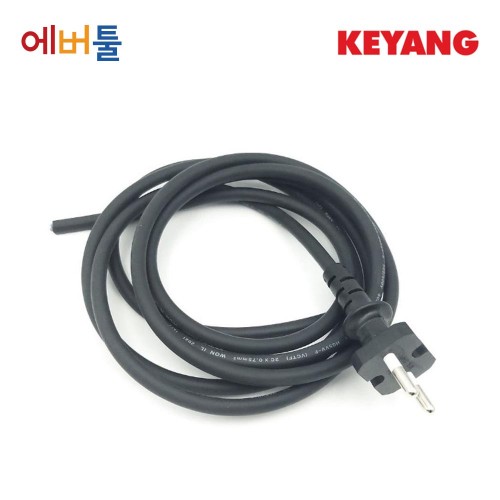

1-1	3111003	전원선(코드선) (IEC53,2CX0.75X2500)	1	3,630
1-2	2070312	CORD ARMOR(삽입형,PVC)	1	550
1-3	2141913	테일커버	1	2,200
1-4	2072102	RUBBER CAP(SWITCH)	1	1,100
1-5	2008114	TOG. SWITCH(KN12)	1	4,400
1-7	2012518	콘덴서(TNS-2TH,0.22,80MM,YL)	1	1,100
1-8	2034904	SCREW	2	1,100
1-10	2417842	BALL BEARING(626VV,LFB)	1	2,200
1-12	2100013	브러시캡	2	1,100
1-13	3011287	STATOR ASSY,220V	1	14,300

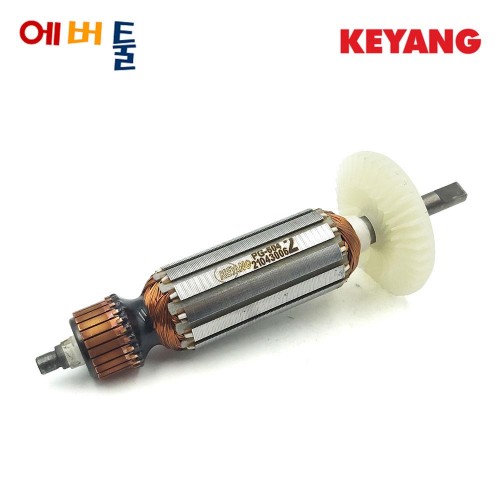

1-14	3000230	아마추어 회전자	1	40,700
1-15	2110190	HOUSING(A/S)	1	11,000	품절
1-16	2110576	FAN GUIDE(PP+GF40%)	1	1,100
1-17	2412047	리테이닝링(D22,구멍）	1	1,100
1-18	2417841	BALL BEARING	1	1,650
1-19	2048108	INNER COVER	1	11,000
1-20	2405051	SCREW (M5X35백색ZN도금)	4	1,100
1-21	2411762	SPRING	1	1,100
1-22	2185008	COUPLING	1	1,100
1-23	2400037	리테이닝링(구멍용,C형,D26,3+CR)	1	330
1-24	2060902	WAVE WASHER	1	1,100
1-28	2412005	리테이닝링(D12,C형,축)	1	1,100
1-29	2417834	BALL BEARING(6901ZZ,LFB)	1	4,400

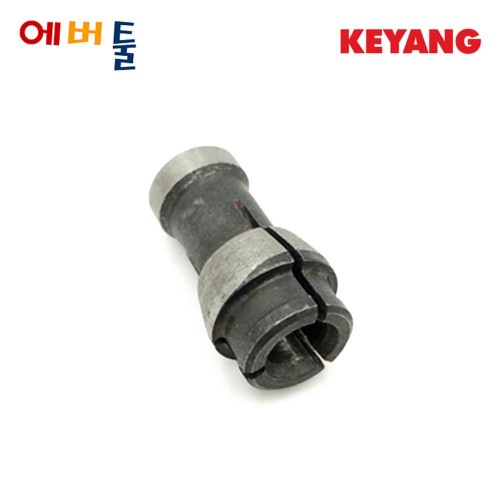

1-31	2030605	콜렛척(구형)	1	16,500
1-33	2405013	+PAN HD TAP SCREW(M4X12,2종)	2	1,100

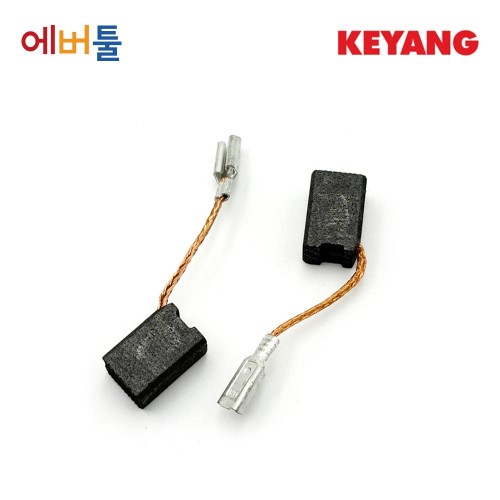

1-34	2012500	CARBON BRUSH(AS,WH,L48F12)	1	2,200
1-35	3149060	BRUSH HOLDER ASSY	2	2,200
1-36	2141603	S/W HOLDER	1	1,100
1-37	2405069	+PAN HD TAP SCREW(2종,M4*50)	2	1,100
1-38	2405013	+PAN HD TAP SCREW(M4X12,2종)	1	1,100
1-39	2405081	+PAN HD TAP SCREW(M4X80)	2	1,100
1-40	2006122	TERMINAL BLOCK(SCREW,2HOLE)	1	1,100
1-42	2030405	CHUCK SLEEVE(D3,SK-4)	1	19,800	품절
1-43	7751167	BOX ASS'Y	1	2,200	품절
1-45	2141606	CORD CLIP	1	1,100
1-46	2059124	SPANNER(B)	1	2,200
2-1	3150040	콜렛척 어셈블리	1	13,200
2-3	2030054	FRINGER	1	3,300
2-4	2040042	NOSE BRACKET	1	22,000
2-5	2070137	RUBBER GRIP(NBR BLACK)	1	3,300
2-6	2412462	O-RING(ID23)	1	550
2-7	2412463	O-RING(ID25)	1	550
2-8	2023177	SPINDLE	1	13,200
2-9.1	2417833	BALL BEARING(6000ZZ,LFB)	1	4,400
2-10	2400036	리테이닝링(축용,C형,D12)	1	1,100
2-11	2417833	BALL BEARING(6000ZZ,LFB)	1	4,400
2-12	2400035	WASHER (20.5X25.5XT0.3,SUS304)	1	330
2-13	2060902	WAVE WASHER	1	1,100
2-14	2400037	리테이닝링(구멍용,C형,D26,3+CR)	1	330
2-15	3152708	NOSE BRACKET SUB ASSY	1	71,500
