에버툴

계양 ACT-100SN 그라인더 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 60개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	2036715	외부만조 휠너트(M10X1.5)	1	1,100
3.1	2201433	내부만조 양면(철재질,15/16mm)	1	1,100
3.2	2201437	내부만조 양면(고무코팅,15/16mm)	1	1,100
3.3	2201425	내부만조 (NEW,16mm)	1	1,100
3.4	2201405	내부만조 (16mm)	1	1,100
4	3140745	안전커버 휠가드(4인치,100mm)	1	3,300
5	2054410	FRINGER(SCP1 PRESS)	1	1,100
6	2023119	SPINDLE(M10X1.5)	1	4,400
7	2408201	WOODRUFF KEY(2.5X8)	1	1,100
8	2404082	SCREW (M4X12,COAT,흑,3+CR)	1	1,100
9	2040015	PACKING GLAND(EN,SILVER)	1	3,300
10	2054213	FELT PACKING(양모)	1	1,100
11	2417430	[SZ]BALL BEARING,(6001UUCMM)	1	2,420
12	2050628	BEARING COVER(B)(SPCC,3HOLE)	1	1,100
14	2024477	GEAR	1	4,400
15	2417366	NEEDLE BEARING (HK0709B,SUZHOU)	1	1,320
16	2412409	O-RING(C)(D45.4,NBR)	1	1,100
17	2405402	+PAN HD T/T-B(M5X25,은색)	1	1,100
18	2043381	GEAR COVER	1	6,600
18.1	3152706	GEAR COVER SUB ASSY	1	9,000
19	2412381	O-RING(B)	1	1,100
20	2030038	LOCK PIN	1	1,100
21	2411822	스프링(SWPA,RIGHT,L8,D0.7)	1	1,100
22	2111862	푸시버튼	1	1,100
23	2412392	O-RING(A)	1	1,100
24	2403047	HEX NUT(M6 TYPE2,3+CR)	1	1,100
25	2024478	PINION	1	3,300
26	2412047	리테이닝링(D22,구멍）	1	1,100	품절
27	2417841	BALL BEARING(608,2RS,LFB)	1	1,650
27.1	2417980	BALL BEARING(608ZZ/TP,LFK)	1	2,200
28	2044543	INNER COVER(R1)	1	2,200
29	3000175	아마추어 회전자	1	20,900
30	2130513	DUST COVER	1	1,100
31	2417842	BALL BEARING(626VV,LFB)	5	2,200
32	2072333	RUBBER PACKING(NBR)	1	1,100
33	2110576	FAN GUIDE(PP+GF40%)	1	1,100
34	2405081	+PAN HD TAP SCREW(M4X80)	1	1,100

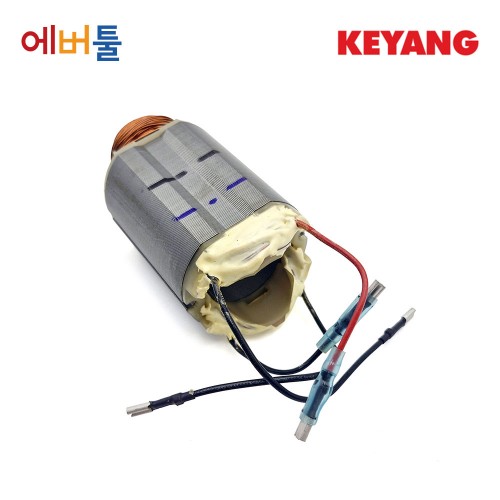

35	3011368	STATOR ASSY,220V	1	9,900
36	2110190	HOUSING(A/S)	1	11,000
39	3149060	BRUSH HOLDER ASSY	1	2,200
40	2012500	CARBON BRUSH(AS,WH,L48F12)	1	2,200
40.1	2012498	CARBON BRUSH(AUTO STOP,낱개)	2	2,200
42	2034904	SCREW	1	1,100
43	2100013	브러시캡	1	1,000	품절
44	2072102	RUBBER CAP(SWITCH)	1	1,100
45	2008114	TOG. SWITCH(KN12)	1	4,400
46	2012518	콘덴서(TNS-2TH,0.22,80MM,YL)	1	1,100
47	2141603	S/W HOLDER	1	1,100
48	2141606	CORD CLIP	1	1,100
49	2405013	+PAN HD TAP SCREW(M4X12,2종)	1	1,100
50	2006122	TERMINAL BLOCK(SCREW,2HOLE)	1	1,100
51	2070331	코드아머	1	1,000
51.1	2070312	CORD ARMOR(삽입형,PVC)	1	550
52	2141913	테일커버	1	2,000	품절
53	3111003	전원선(코드선) (IEC53,2CX0.75X2500)	1	3,300
54	2405069	+PAN HD TAP SCREW(2종,M4*50)	1	1,100
55	2061511	렌치	1	1,100
56	3111312	LEAD WIRE ASSY	1	1,100
57	3501997	PACKING GLAND ASSY(진이표준)	1	19,800
58	3111312	LEAD WIRE ASSY	1	1,100
