GBH36V-LI / 3611J00R00

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1
0 / 0

부품 목록

총 85개
2 2610942109
Pole housing
16,390
13 2600905052
Groove ball bearing
4,840
17 1614652006
Spiral Spring
2,530
18 2603100056
Damping rubber
1,430
24 16170006EJ
Toothed Shaft
18,480
26 1600A01U34
Hammer Piston
14,190
26/27 1610311018
Striker
12,430
26/29 1613105012
Piston Pin
2,530
26/56 1610210187
O-Ring
1,650
26/71 1610101011
Shim washer
1,430
30 1600A01U33
Drive bearing
14,190
30/35 1610202024
Plain bearing
3,080
31 1610913016
Needle-Roller Assembly
2,530
32 1612026037
Clamp Handle
6,380
32/46 1614690002
Driver Pin
1,430
32/49 1612026035
Switch Button
1,430
32/76 1610210046
O-Ring
1,650
32/83 1614611006
Compression Spring
2,530

품절

36 1611016003
Holding Plate
1,650
44 1610508047
Protective Cap
1,650
45 1601010058
Insulating Plate
3,740
47 1613100030
Needle Roller
2,200
55 1610290226
Seal Ring
2,530
57 1610210068
O-Ring
1,430
64/1 1610190060
Supporting Disc
1,650
66 1610202021
Plain bearing
1,980
70 1903230013
Ball
1,650
74 1614601027
Retaining ring
1,210
75 1610101629
Retaining Washer
1,210
76 160343000A
Thread-forming tap. Screw
1,210
77 1610290043
Locating Ring
1,650
79 1613435023
Thread-forming tap. Screw
1,210

품절

80 1610290084
Locating Ring
3,960
84 1613231017
Switch Slide
1,430
106 1614611022
Plain bearing
1,980
106105 1614611021
Compression Spring
1,430
189 1614610015
Compression Spring
2,860
190 2603490017
Torx Oval-Head Screw
1,650
191 2603490023
Torx Oval-Head Screw
1,210
321/22 1616312004
Cylindrical Gear
8,030
321/28 1613124081
Striker Pin
6,380
321/33 1610590014
Holding Jacket
1,650

품절

321/37 1613100019
Straight Pin
1,430
321/38 1600A008AG
Catch Disk
2,530
321/42 1610102073
Thrust Ring
3,080
321/46 1610390051
Guide Bushing
3,960
321/50 1614611020
Compression Spring
2,200
321/58 1610210178
O-Ring
1,430
321/59 1610283035
Rotary shaft lip seal
3,740
321-60 1610210176
O-Ring
1,210
321/62 1610210179
O-Ring
1,980
321/72 1604601027
Retaining ring
1,210
321/82 1614601034
Retaining ring
1,650
321/83 1604601028
Retaining ring
1,210

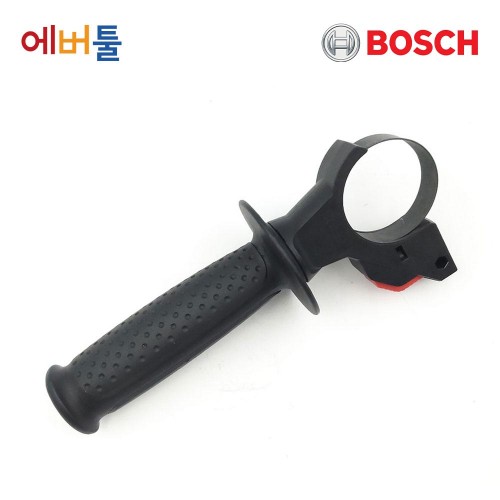

650 160202508X
Auxiliary Handle
12,430
650120 160202507H
Auxiliary Handle
6,930
650124 1611316021
Clamping Band
2,200
650125 1613490002
T-Head Bolt
2,860
650802 1617000475
Support clamp
6,380
651 1613001009
Depth-Gauge
2,530
653 1607A350R2
Battery Pack
210,760
654 2607226465
Charger
102,190
801 1617000A4W
Motor Housing
24,200
803 1617000473
Armature With Fan
91,850
804 1617000890
Electronics Module
91,850
805 1609280425
Contact retainer
11,220
806 1617000889
On-Off Switch
33,110
807 1607233209
Electronics Module
117,370
808 160111A3H9
Nameplate
1,980
816 1617014142
Carbon-Brush Set
6,930
820 1617000883
Intermediate Flange
30,140

품절

821 1617000564
Pipe
54,670
823 1617000884
Toothed Shaft
26,840
825 1617000598
Tool Holding Fixture
44,880
840 1617000V55
Gear Housing
26,840
840/48 1611098008
Tab Washer
1,650
840/63 1610910063
Needle bearing
3,740
840/68 1610283036
Rotary shaft lip seal
4,840
840/78 2603490022
Screw
1,210
843 1617000582
Protection Sleeve
6,930
861 1615820097
Switching Element
3,080
864 1617000A07
Supporting Disc
6,930
870/2 2603421207
Countersunk-Head Screw
1,430
871 1608571088
Chuck
21,450
872 2607950007
Chuck Wrench
3,960

부품 특성상 주문 후 반품이 어려운 점 양해 부탁드립니다.
목록에 없는 부품은 단종 또는 제조사 미공급 부품입니다.
