GTS10J / 3601M305B2

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1
0 / 0

부품 목록

총 179개
1 1619PB2487
Motor Housing
14,190

품절

2 1609B07856
Field
49,720

품절

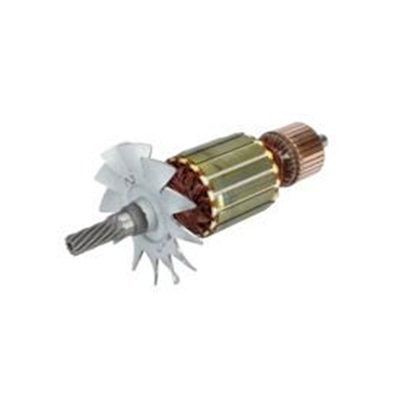

3 1619P03278
Armature
91,850
4 2610016997

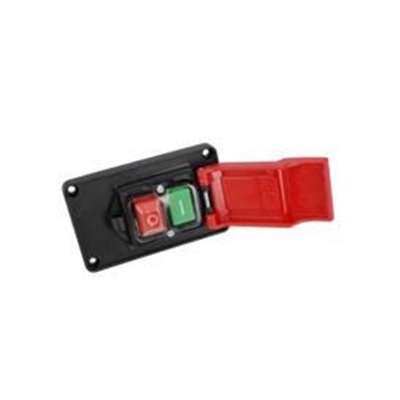

Switch
30,140
7 2610014693
Cable Clip
1,210

품절

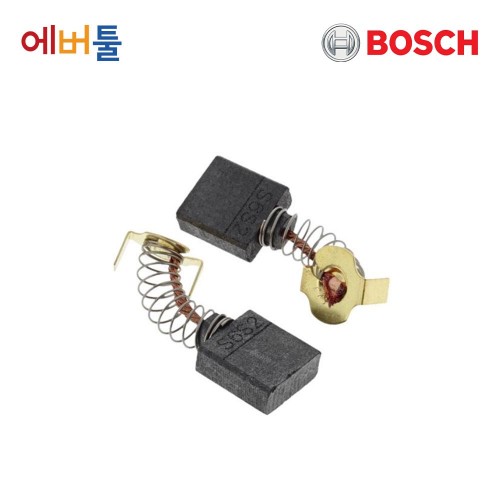

10 2610018332
Carbon-Brush Set
16,390

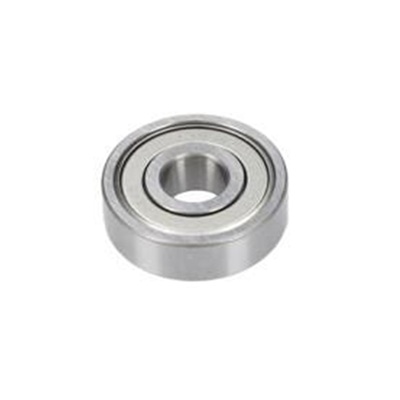

13 2610004595
Ball Bearing
8,030

품절

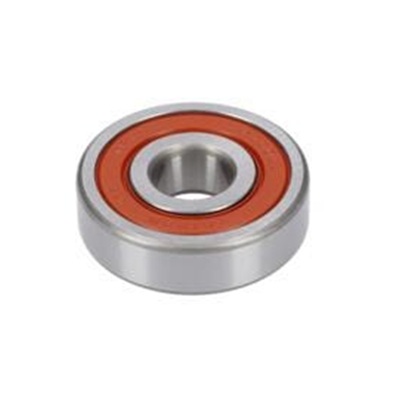

14 2610911927
Ball Bearing
18,480

품절

18 2610015078
Screw
1,210

품절

19 2610017002
Screw
1,210

품절

22 2610014697
Screw
1,210

품절

25 2610014698
Nut
1,210

품절

26 2610996920
Connecting Nut
3,740

품절

27 2610014699
Handle
3,960

품절

28 2610015000
Cam
6,930

품절

29 2610015001
Washer
1,210
30 2610015002
Spring retaining ring
1,210

품절

32 2610017003
Pin
1,210

품절

36 2610910015
Collar bolt
2,200
37 2610355325
Spring Washer
1,210

품절

38 2610910013
Washer
1,650
39 2610015008
Nut
1,210
41 2610015010
Pointer
1,430

품절

42 2610950077
Screw
1,210

품절

44 2610023173
Pad
1,650
72 2610950069
Screw
1,210

품절

73 2610015011
Washer
1,210

품절

74 2610015012
Bolt
1,210

품절

75 2610925438
Washer
1,210

품절

76 2610015014
Supporting foot
3,080
77 2610015015
Screw
1,210

품절

78 2610015016
Handle
8,030

품절

79 2610015017
Holding Plate
8,800

품절

81 2610015019
Key
5,500

품절

82 2610911566
Bearing cover
2,200

품절

83 2610015021
Nut
1,430

품절

84 2610015022
Workpiece Pusher
3,960
86 2610017007
Support bracket
1,980

품절

102 1609902670
Screw
1,210
103 2610327868
Nut
1,210

품절

109 2610998587
Screw
1,210

품절

112 2610017013
End cap
5,500

품절

113 2610911933
Connector
1,210

품절

118 2610950042
Spring Washer
1,210

품절

120 2610950044
Screw
1,210

품절

121 2610996949
Ball Bearing
9,900

품절

122 2610017015
Filter
8,030

품절

123 2610997281
Spring retaining ring
1,210

품절

124 2610998572
Screw
1,210
125 2610996875
Torsion Spring
1,430

품절

126 2610996874
Locking Lever
6,930

품절

127 2610996876
Shoulder Screw
1,430
128 2610998588
Screw
1,430

품절

129 1600A01D8R
Insert
18,480

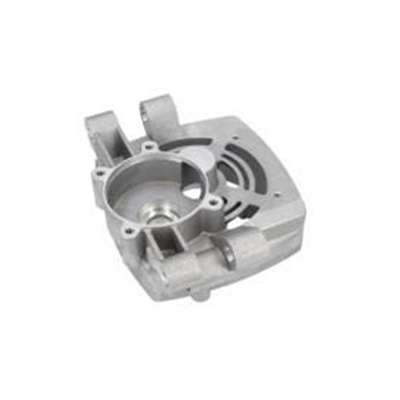

130 2610017017
Gear Housing
49,720

품절

131 2610937293
Retaining ring
1,210

품절

133 2610950108
Screw
1,210
138 1600A00724
Mounting Rail
1,650
140 1609902054
Set screw
1,210

품절

141 2610911929
Screw
1,210

품절

142 2610911901
Self-locking nut
1,430

품절

143 2610911569
Insert
1,980

품절

144 2610996948
Rubber Ring
1,430

품절

145 2610950071
Screw
1,210

품절

146 2610015030
End cap
1,430
149 2610015031
Spring retaining ring
1,210

품절

150 2610996932
Bearing Sleeve
1,980

품절

151 2610017001
Vacuum Connection
3,740

품절

152 2610997210
Ball Bearing
9,900

품절

153 2610997282
Spring retaining ring
1,210

품절

154 2610017021
Spindle
24,200

품절

155 2610012984
Woodruff Key
1,210

품절

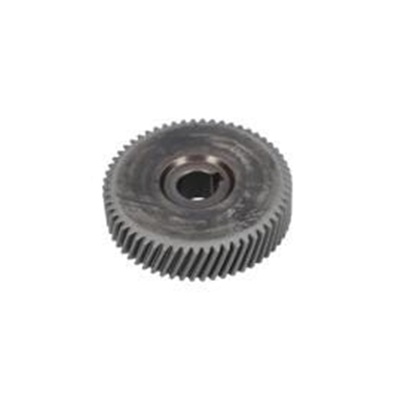

156 2610997208
Toothed Gear
30,140

품절

157 2610017018
Bushing
2,530

품절

158 2610998573
Spring retaining ring
1,210

품절

159 2610950427
Set screw
1,210

품절

160 2610017022
Chain
1,210

품절

161 2610950126
Mounting Bracket
5,500
162 2610950070
Bushing
1,210

품절

163 2610015035
Support bracket
5,500

품절

164 2610017023
Fastening parts kit
9,900

품절

165 2610017024
Holding Plate
60,610

품절

166 2610017025
Rod
8,800

품절

167 2610015038
Bolt
1,430

품절

168 2610015039
Washer
1,210

품절

169 2610015040
Support Plate
2,860
171 2610017026
Rod
5,500
172 2610015042
Bevel Gear
1,980
174 2610015043
Bushing
1,210
175 2610015044
Washer
1,210

품절

177 2610015045
Screw
1,210
178 2610017027
Shaft
5,500
179 2610015047
Support Plate
3,080
180 2610015048
Bushing
1,210

품절

181 2610016557
Washer
1,210

품절

182 2610016558
Nut
1,210

품절

183 2610015049
Bushing
4,840
184 2610013053
Set screw
1,210

품절

185 2610016559
Screw
1,210

품절

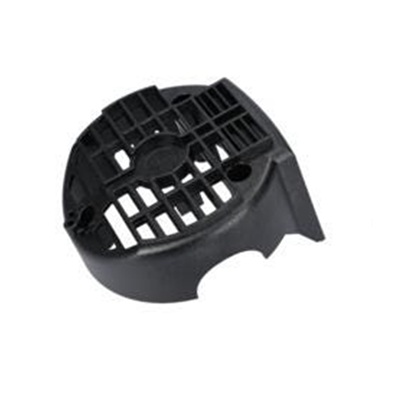

186 2610015050
Cover
8,800

품절

187 2610950049
Screw
1,210

품절

188 2610017037
Electronics Module
49,720
189 2610015051
Dust-Cover Holder
6,380

품절

190 2610015052
Screw
1,210

품절

191 2610015053
Spring retaining ring
1,210

품절

192 2610017028
Retaining clip
1,210

품절

193 2610016560
Stud bolt
1,210
196 2610015055
Guard Plate
1,430

품절

197 2610950132
Screw
1,210

품절

200 2610017029
Screw
1,210

품절

201 2610017030
Spring Clip
1,210

품절

202 2610017033
Safety Guard
2,530

품절

203 2610950439
Screw
1,210

품절

204 2610015054
Guard Plate
5,500

품절

205 2610016562
Rod
1,210

품절

206 2610016563
Contact strap
1,210

품절

207 2610923830
Plate
1,210

품절

208 2610010404
Screw
1,210

품절

209 2610017031
Screw
1,210

품절

210 2610015058
Washer
1,210
211 2610911920
Rubber Bushing
1,210
212 2610015059
Wrench Socket
1,430

품절

213 2610017032
Holding Plate
33,110

품절

214 2610017110
Washer
1,650

품절

215 2610347092
Plain Washer
1,210

품절

216 2610017046
Insulator
2,530
217 2610015061
Bushing
1,980

품절

218 2610015062
Handle
4,840
219 2610924961
Nut
1,210
220 2610015359
Screw
1,210
225 2610015064
Pointer
1,650

품절

226 2610015065
Screw
1,210
227 2610013054
Contact strap
1,210
230 2610996912
Fixing Plate
3,740
231 1600A01D8V
Rail
21,450
234 2610951945
Screw
1,210
235 1609203L56
Clamping Flange
8,030
237 2610950046
Clamping Flange
8,030
238 2610358858
Nut
1,980

품절

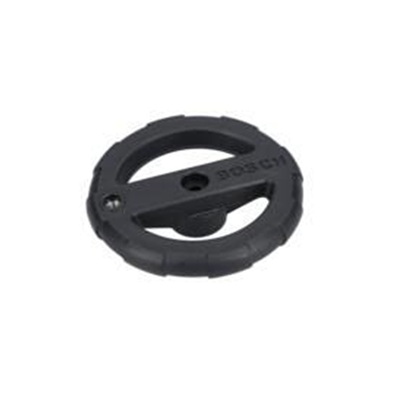

239 2610015069
Handwheel
6,380

품절

242 2610950059
Handle
1,210
243 2610950060
Screw
1,650
244 2610950389
Washer
1,210
248 2610017034
Safety Cover
2,530

품절

252 2610017035
Mitre Fence
18,480
253 2610017036
Rod
1,430

품절

254 2610017052
Screw
1,210

품절

256 2610998580
Screw
1,210

품절

257 2610017038
Nut
1,210

품절

259 2610016565
Contact strap
1,210

품절

261 2610015071
Switch Housing
1,980

품절

262 2610017040
Connecting Cable
3,960

품절

263 2610017041
Mitre Fence
21,450
264 1600A01D8U
Rail
18,480
265 2610015075
Washer
1,210

품절

266 2610015076
Device cap
1,210

품절

267 2610950134
Bolt
1,210
270 2610950117
Screw
1,210

품절

271 2610013365
Spring Washer
1,210
273 2610015080
Screw
1,210

품절

274 2610950135
Washer
1,210
275 2610016566
Washer
1,210
279 1600A01R18
Protective Cover
21,450
280 2610017047
Mitre Fence
91,850
281 2610015507
Mitre Gauge
21,450
283 2610016567
Hexagon Socket Wrench
1,430

품절

285 2610023174
Serrated Lock-Washer
1,210

품절

286 2610015093
Lock
26,840
288 1600A01D8L
Riving Knife
24,200
291 2610017051
Washer
1,210

품절

292 2610950109
Washer
1,210
294 2610017053
Holder
6,380

품절

295 2610017054
Holder
6,380

품절

298 2610017056
Rod
1,430

품절

299 2610017057
Screw
1,210

품절

300 2610017058
Torsion Spring
1,210

품절

302 2610017060
Safety Guard
1,980

품절

303 1609203K96
Cable Clip
1,210
816 1609B07133
Brush holder assembly
6,380

품절

부품 특성상 주문 후 반품이 어려운 점 양해 부탁드립니다.
목록에 없는 부품은 단종 또는 제조사 미공급 부품입니다.
