GWS18V-10SC / 3601JG34B1

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1
0 / 0

부품 목록

총 58개
1 16051082DU
Motor Housing
16,390
5 160661016E
Fan
2,200
6 1600591065
Air-Deflector Ring
1,980
9 160111C2MW

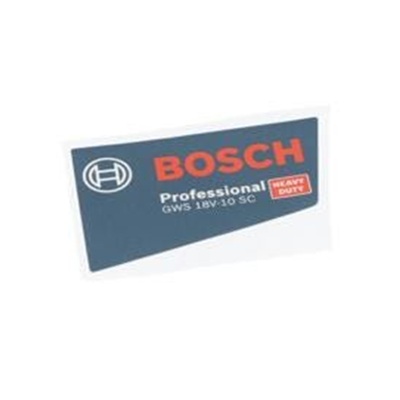

Manufacturer's nameplate
1,980

품절

12 1600A00RK2
Ferrite
1,650
17 1600100P12
Cover
1,430
18 1600A00P2P
Switch Handle
1,650
20 1600A00P14
Adjusting Slide
1,430
28/284 3600210109
O-Ring
1,650
28/32 1607000D6A
Grinding Spindle
4,840
28/80 1619P09390
Cover Disc
1,650
33 1600210035
O-Ring
1,430
35 1600136013
Shim
1,980
35 1600136014
Shim
1,980
35 1600136015
Shim
1,980
35 1600136020
Shim
2,530
36 1610100023
Washer
1,210
45 1603300016
Hex Nut
1,430
46 1609280477
Compression Spring
1,430
49 2914491410
Thread-forming tap. Screw UM4x16-St
1,210
50 1603435071
Thread-forming tap. Screw
1,210
53 1603435078
Torx Oval-Head Screw
1,210

품절

54 1603414026
Torx Oval-Head Screw
1,210
60 1600A00P18
Reverse-Transfer Lever
1,210
89 1600A00P2M
Light Conductor
1,650
90 16072335LX
Speed governor
21,450
91 1607503438
Electronics Module
9,900

품절

92 1600A00M53
Cover Panel
1,210
94 16055002BV
Cover
1,650

품절

95 1600A00P1B
Cover
1,210
321/7 1600591066
Air Distributor
2,200
321/14 1600905032
Groove ball bearing
3,740
321/27 1600206025
Rubber Ring
1,650
321/37 1600A00P17
Holder
1,210
321/40 1600119011
Retaining clip
1,650
321/41 1600200029
Plain bearing
2,860
321104 1600210044
O-Ring
1,210
343 1607000742
Catch Lever
4,840
343/44 1604611042
Compression Spring
1,430
650/1 16020250A0
Auxiliary Handle
6,930

품절

650/2 1600A029FC
Quick Acting Flange
8,030

품절

650/5 2605703014
Clamping Flange
4,840
652 1600A021MH
Protective Cover
6,380
653 2607225933
Charger
102,190
654 1607A350AS

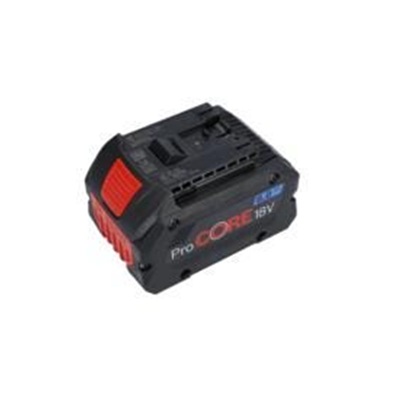

Battery Pack
188,650
654 2607337267

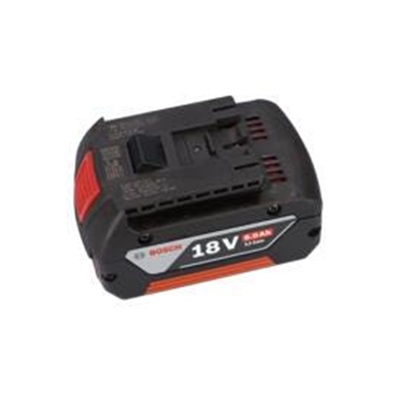

Battery Pack
152,240

품절

802 1607000CA4

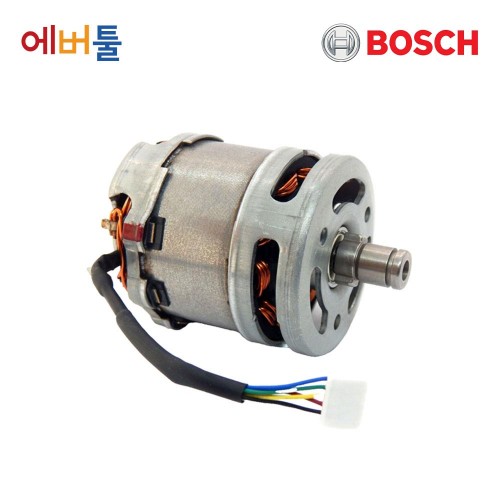

Motor
82,610
803 1607000CA5
Bevel Gear Shaft
8,030
808 160111A9BP
Nameplate
1,980

품절

821 16058065S3

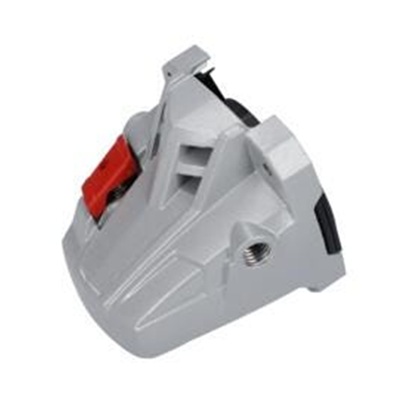

Gear Housing
26,840
828 1607000D6D
Bearing Flange
9,900
840 1607000V41
Push-Button
2,860
851 1607000D5W
Electronics Module
91,850
852 1600A02059
Protective Cover
8,030
884 1607000CA9
Filter Unit
6,930
891 160202509T
Auxiliary Handle
2,530

품절

893 1607950052
N-Type Face-Wrench
2,530

품절

899 1607000D33
Protective Cover
11,220

부품 특성상 주문 후 반품이 어려운 점 양해 부탁드립니다.
목록에 없는 부품은 단종 또는 제조사 미공급 부품입니다.
