GBH3-28DRE / 3611B3A0B0

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1
0 / 0

부품 목록

총 103개
2 2604220549
Field
26,840
3/13 1610905032
Groove ball bearing
3,080

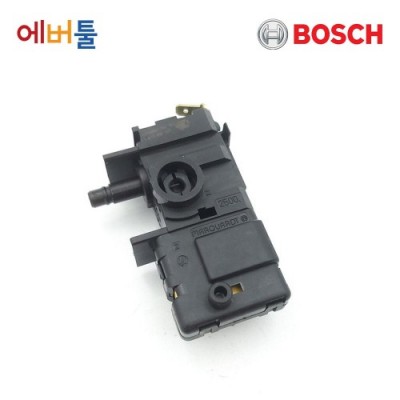

4/4 1617200127
Switch
21,450
4/6 1600703034
Grommet
1,980

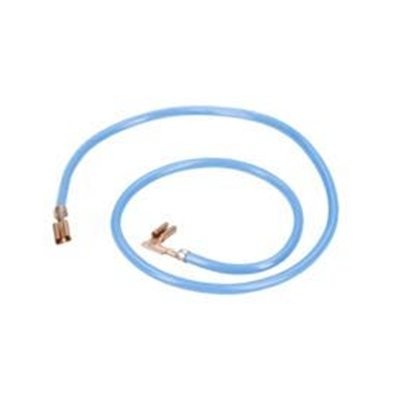

4/101 1614490015
Connecting Cable
2,200

품절

4/102 1614490016
Connecting Cable
2,200
7 1601302017
Fastening Clamp
1,210

품절

14 1610905044
Groove ball bearing
5,500

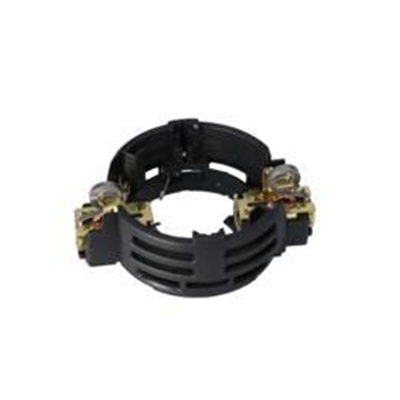

16 1614336064
Brush Plate
14,190
17 1614465011
Suppression Filter
3,960
19 1611329024
Switch Contact
1,430
22 1616312004
Cylindrical Gear
8,030
26 16170006A5
Hammer Piston
30,140
26/27 1610311019
Striker
14,190
26/29 1600A01TD0
Piston Pin
2,860
26/56 1610210121
O-Ring
1,980
26/71 1610100016
Guide Disc
1,430
28 1613124098
Striker Pin
14,190
32 1612026151
Clamp Handle
9,900
32/20 1614690009
Driver Pin
2,530
32/30 1612026035
Switch Button
1,430
32/40 1610210046
O-Ring
1,650
32/50 1614611006
Compression Spring
2,530
33 1610590020
Holding Jacket
3,960
37 1613100019
Straight Pin
1,430
38 1600A008AG
Catch Disk
2,530
39 1615808102
Gear Cover
8,800

품절

42 1610102084
Thrust Ring
5,500
45 1610591046
Air-Deflector Ring
1,430
46 1610390068
Guide Bushing
11,220
47 1610283047
Rotary shaft lip seal
8,030
48 1610290102
Bearing Ring
3,960
48/1 1610210208
O-Ring
1,430
49 1615700044
End Shield
1,650
50 1614615008
Compression Spring
3,740
52/18 1610290098
Clutch Sleeve
2,860
52/52 1615108154
Cover
6,380
53 1610210245
O-Ring
2,200
54 1600502023
Intermediate Ring
1,650
55 1610210206
Seal Ring
3,740
58 1610210105
O-Ring
2,860
59 1600A009VC
Shaft Seal
2,200
60 1610210209
O-Ring
1,430
63/63 1610910063
Needle bearing
3,740
63/64 1610390069
Bushing
1,650

품절

66 1610202021
Plain bearing
1,980
68 1610283036
Rotary shaft lip seal
4,840
72 1604601027
Retaining ring
1,210

품절

74 1613435037
Thread-forming tap. Screw
1,210
75 2603490023
Torx Oval-Head Screw
1,210
76 2603490027
Torx Oval-Head Screw
1,210
77 1613490017
Thread-forming tap. Screw
1,980
78/1 1610102086
Shim
1,650
78/1 1610102087
Shim
1,650
79 1613435023
Thread-forming tap. Screw
1,210

품절

80 1613435038
Lens Head Screw
1,210
81/80 1615133033
Handle
6,930
81/193 1612026126
Switch-Pawl
1,980

품절

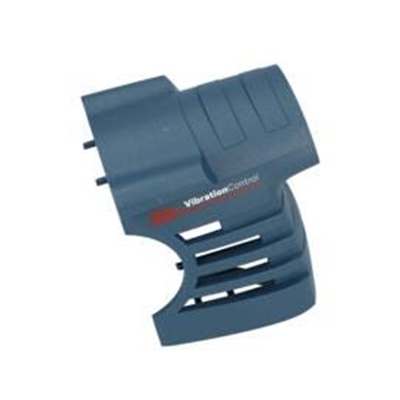

82 16170006AE
Handle Cover
8,030

품절

83/83 1614690008
Leaf Spring
3,080
83/194 1610099013
Screw Plate
1,650
85 1615500404
Cover
2,200

품절

86 1614601034
Retaining ring
1,650
87 1604601028
Retaining ring
1,210
100 1610026003
Damping rubber
1,430

품절

113 1616325002
Switching Panel
8,030
120 160202508Y
Auxiliary Handle
16,390
120120 160202507H
Auxiliary Handle
6,930
120124 1611316021
Clamping Band
2,200
120125 1613490001
T-Head Bolt
5,500
120802 1617000685
Support clamp
3,080
130 1616333049
Gear Sleeve
12,430
135 1614601067
Retaining ring
1,430
199/43 1612099002
Rocker Arm
1,980
199/44 1614611025
Rocker Foot
2,200

품절

199188 1610209008
Grip-Spring Tensioning E
2,530

품절

199199 1610284002
Bellows
3,740
200 1610284007
Bellows
3,740
203 1610508047
Protective Cap
1,650
206 1613230003
Ball
1,430
207 1614601027
Retaining ring
1,210
208 1610101629
Retaining Washer
1,210
209 1610102089
Friction Washer
2,200
661 1615430010
Grease Tube
3,740
688 1613001009
Depth-Gauge
2,530

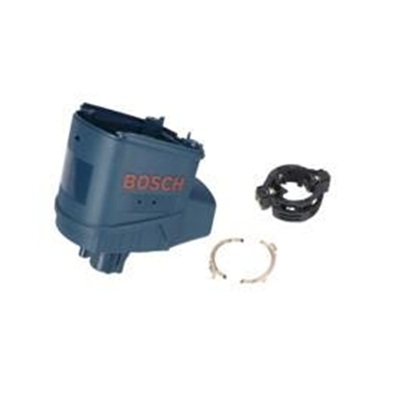

801 1617000689
Motor Housing
40,480

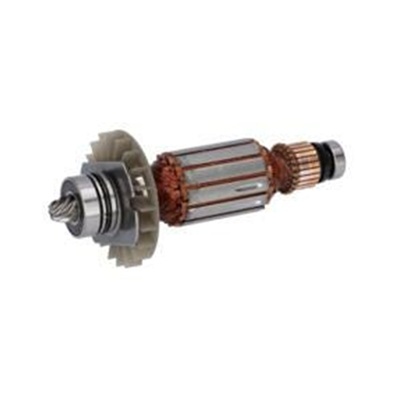

803 1617000690
Armature
73,480
805 1607000392
Power supply cord
14,190
808 160111A3H5
Nameplate
1,980

품절

811 1617000525
Carbon-Brush Set
6,930
818 2603410001
Socket head cap screw
1,430
820 1617000691
Intermediate Flange
30,140

품절

821 1617000692
Tool Holding Fixture
66,660

품절

821/1 1617000693
Tool Holding Fixture
82,610

품절

824 1617000A38
Jack Shaft
54,670
825 1617000695
Tool Holding Fixture
11,220
826136 1610205014
Felt Disc
1,210

품절

828 1617000697
Striker Pin
33,110
830 1617000698
Gear Sleeve
24,200
840 1617000699
Impact Mechanism Housing
21,450
870/2 2603421207
Countersunk-Head Screw
1,430
871 1608571069
Chuck
18,480
872 2607950007
Chuck Wrench
3,960

부품 특성상 주문 후 반품이 어려운 점 양해 부탁드립니다.
목록에 없는 부품은 단종 또는 제조사 미공급 부품입니다.
