DM-6110

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1
0 / 0

부품 목록

총 212개
1-3 9360648
10151406210 COVER,CYLINDER
10,450

품절

1-4 9360459
GASKET,MUFFLER
5,500
1-5 9394436
90016205022 BOLT,H.S.
880

품절

1-6 9361293
CYLINDER
121,000
1-7 9360022
90024205010 SCREW 5*10
1,100

품절

1-8 9361294
A160000680 COVER,CYLINDER
10,450

품절

1-9 9360097
GASKET,INTAKE
550
1-10 9360151
GASKET,CYL. BASE
880
1-11 9361302
PISTON KIT
49,500
1-12 9360531

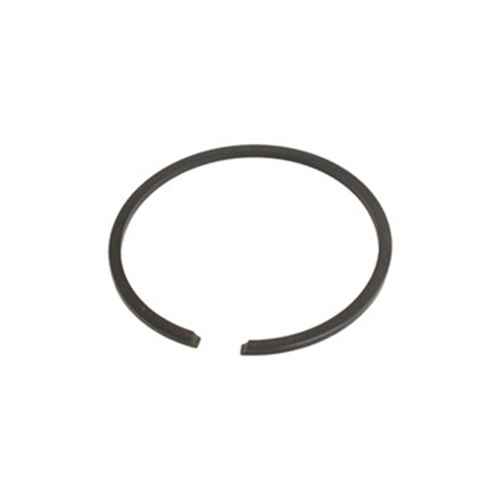

RING,PISTON
6,600
1-13 9360480
PIN,PISTON
4,950
1-14 9360071
10001500120 CIRCLIP,PISTON PIN
550

품절

1-15 9360609
10001212331 BEARING,NEEDLE
8,800

품절

1-18 9361301
P021014700 CRANKCASE SET
124,300

품절

1-19 9361508
90033040080 PIN, DOWEL
1,100

품절

1-20 9360138
90016205040 BOLT H.S. 5*40
880

품절

1-22 9360150
GASKET,CRANKCASE
880
1-23 9360468
OILSEAL
4,400
1-24 9392717
볼베어링
8,800
1-25 9360312
15912908261 COVER,DUST
2,200

품절

1-26 9360039
90023805018 SCREW 5*18
550

품절

1-27 9360176
15011200310 BUSHING
1,100

품절

1-28 9360180
90029205025 SCREW 5*25
1,100

품절

1-30 9360802
10010006210 CRANKSHAFT ASS'Y
102,300

품절

1-33 9360144
KEY WOODRUFF
1,100
1-34 9360744
10401606410 COVER,ENGINE
36,300

품절

1-35 9360179
90029205020 SCREW 5*20
1,100

품절

1-36 9360279
LABEL,CAUTION
1,650

품절

2-4 9361287
연료뚜껑 연료캡
13,200
2-5 9361286
13100305330 CUP SET,VENT
2,200

품절

2-6 9360285
13101621060 GASKET,FUEL CAP
2,200

품절

2-8 9361511
TANK,FUEL
19,800
2-9 9360011
90022006014 SCREW 6*14
550

품절

2-10 9392415
90060500006 SPRING WASHER
550

품절

2-11 9360058
14564200760 WASHER 6.5*18*1.6
550

품절

2-13 9361284
9133105060 SCREW
550

품절

2-17 9361519
V103000000 GASKET,INTAKE
1,650

품절

2-18 9361517
P021010213 INSULATOR,INTAKE KIT
7,700

품절

2-19 9360108
볼트 H.S.H. 5X30
550

품절

2-20 9361518
P021040350 GASKET,INTAKE
13,200

품절

2-21 9360237
89012165830 LABEL,CHOKE
1,320

품절

2-23 9361292

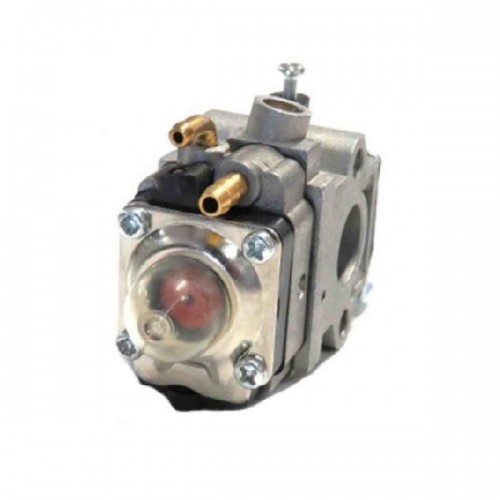

카뷰레터 아세이
88,000
2-27 9361309
V471000550 PIPE
3,300

품절

2-28 9361299
CLEANER CASE ASSY
14,300
2-29 9361295
A244000020 PLATE,PREVENT
3,850

품절

2-30 9360301
GRID,AIR CLEANER
2,200
2-31 9360399
FILTER,AIR
3,300
2-32 9360420
FILTER,AIR
3,630
2-33 9360300
GRID,AIR CLEANER
2,200
2-34 9361285
COVER,AIR CLEANER
3,850
2-37 9361459
13211556230 GROMMET, FUEL
2,200

품절

2-38 2075131
DRAIN FUEL HOSE (ECHO)
2,420
2-39 9394406
13201326630 CLIP
550

품절

2-40 9391505
FUEL FILTER SUBASSY
5,500
3-3 9360062
90050100010 NUT 10*1.25
550

품절

3-4 9393740
SPRING WASHER
550

품절

3-5 9360033
90060200010 WASHER 10
550

품절

3-6 9360771
FAN
62,700
3-7 9360080
90014805035 BOLT 5*35
550

품절

3-8 9360783
ROTOR,MAGNETO
71,500
3-9 9360039
90023805018 SCREW 5*18
550

품절

3-10 9360788
C.D. IGNITION MODULE
80,300
3-12 9360220
튜브
1,320
3-13 9361460
CAP, SPARK PLUG
5,500
3-14 9361461
ADAPTER, PLUG CAP
1,100

품절

3-15 9391582
SPARK PLUG
10,450
3-20 9360593
PULLEY, ASM STARTER
8,250
3-21 9360035
E-RING 4
550

품절

3-24 9360307
17721840630 PAWL,STARTER
2,200

품절

3-26 9361289

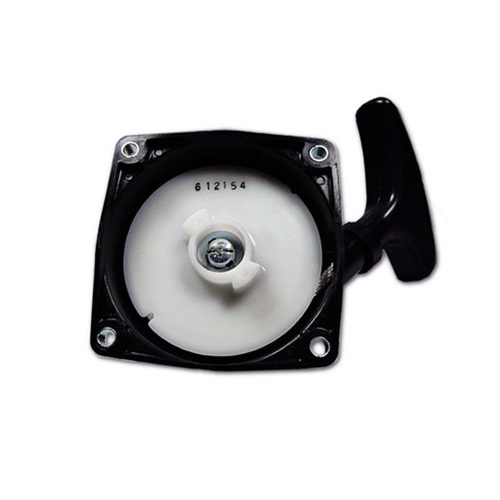

STARTER ASSY
55,000
3-27 9361291
17723640630 SCREW
2,200

품절

3-28 9361304
P022022280 WASHER
880

품절

3-29 9361290
17721511120 DRUM,STARTER
18,700

품절

3-30 9360442
17722611120 ROPE,STARTER
3,850

품절

3-31 9360401
GUIDE,ROPE
3,300

품절

3-32 9360511
17722811120 GRIP,STARTER
5,500

품절

3-35 9360081
90029204018 SCREW 4*18
550

품절

3-36 9360306
LABEL,ECHO
2,200

품절

3-37 9360583
30002906210 PLATE,ANGLE
7,700

품절

3-38 9360302
CUSHION
2,200

품절

3-41 9360366
GASKET,MUFFLER
2,750
3-42 9361300

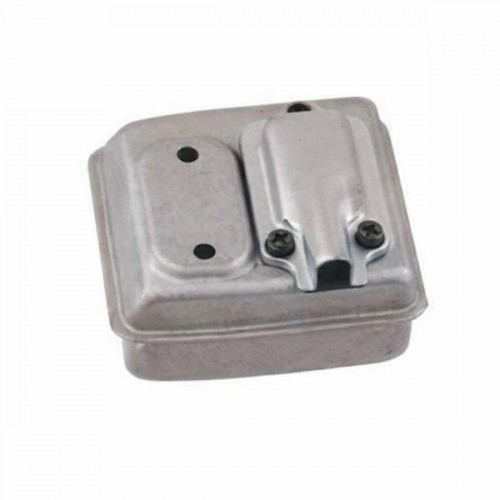

MUFFLER ASSY
33,000
3-43 9392788
90010506020 BOLT
550

품절

3-44 9360023
SCREW 5X14
550

품절

4-4 9360051
SCREW 5X25
550
4-5 9361514
E103001021 CASE, FAN
72,600

품절

4-6 9360252
21042504110 BOLT
1,650

품절

4-7 9360034
90060900005 WASHER,SPRING
550

품절

4-8 9360044
90060400005 WASHER 5
550

품절

4-9 9360729
TANK,LOWER
27,500
4-10 9360453
PACKING
4,400
4-11 9360226
PLATE
1,320
4-12 9360136
GUIDE,AIR
880
4-13 9360695
PIPE,DUST OUTLET
17,600
4-14 9360186
NUT 5B
1,100
4-15 9361462
20010507713 CASE, FAN
72,600

품절

4-16 9361502
70103306211 PIN, STRAIGHT 10
5,500

품절

4-17 9361510
90070300008 E-RING 8
550

품절

5-1 9361481
FRAME, BACKPACK
68,200
5-2 9360636
CUSHION
9,900
5-3 9360631
CUSHION
9,900
5-4 9360191
25091606210 NUT
1,100

품절

5-5 9360711
CUSHION,KNAPSACK
22,000
5-6 9360351
30033306160 CLIP
2,420

품절

5-7 9361482
30030204711 HARNESS, W/PAD
24,200

품절

5-9 9360010
90021605016 SCREW 5*16
550

품절

5-10 9360135
30032803210 WASHER,HARNESS
880

품절

5-11 9360076
NUT,LOCK 5
550

품절

6-5 9361506
89034805060 LABEL, SPEED
550

품절

6-6 9394428
89015739130 LABEL,SWITCH
1,650

품절

6-7 9360180
90029205025 SCREW 5*25
1,100

품절

6-8 9361456
7011106213 DIAL
6,600

품절

6-9 9360186
NUT 5B
1,100
6-10 9361503
70111206414 BRACKET, DIAL
7,700

품절

6-11 9360273
KNOB,LEVER
1,650
6-12 9361513
C453000131 LEVER,THROTTLE
8,800

품절

6-13 9360051
SCREW 5X25
550
6-14 9360178
90029205014 SCREW 5*14
1,100

품절

6-15 9360584
70100706610 KNOB,LEVER
7,700

품절

6-16 9392193
NUT
1,100
6-17 9361500
70101006610 LEVER, CONTROL
13,200

품절

6-18 9360379
CONNECTOR
2,750
6-19 9392127
NUT
1,100
6-20 9361501
70101406510 ROD, CONTROL LEVER
6,600

품절

6-21 9361499
60561206510 PIN, SNAP
1,100

품절

6-22 9361521
CABLE, BOWDEN
11,000
6-23 9360005
와셔 8
1,100
6-24 9360303
HOLDER,STOPPER
2,200
6-25 9361509
90050300006 NUT
550

품절

6-26 9393423
90060000006 WASHER
1,100

품절

7-5 9361464
PIPE, CURVED (GY)
6,600

품절

7-6 9361463
21001401610 PIPE, STRAIGHT
8,800

품절

7-7 9360460
PACKING,FLX. PIPE
4,400
7-8 9360828
CLAMP,FLEXIBLE PIPE
6,050
7-9 9360749
PIPE,FLEXIBLE
40,700
7-10 9360501
GASKET,FLX. PIPE
5,500
7-11 9361520
V419001201 CLAMP, FLEXIBLE PIPE
5,500

품절

7-12 9360698
ELBOW,BLOWING
17,600
7-13 9360023
SCREW 5X14
550

품절

7-14 9392127
NUT
1,100
7-15 9361471
CAP, CHEMICAL TANK
13,200
7-16 9361472
25001300310 CAP, INSIDE
1,100

품절

7-17 9360559
PACKING
6,600
7-18 9361473
TANK, CHEMICAL
121,000
7-19 9361523
X502000440 LABEL,ECHO
4,400

품절

7-20 9361505
89016009461 LABEL, CAUTION
2,200

품절

7-21 9361524
X503008360 LABEL, MODEL
2,200

품절

7-22 9361480
HOLDER ASSY, C.TANK
68,200

품절

7-23 9360141
9114805035 BOLT HS FL TAPP
880

품절

7-24 9361475
25091006310 HOLDER, C. TANK
11,000

품절

7-25 9361476
25091406210 PIN, TANK HOLDER
3,850

품절

7-26 9361474
BRACKET ASSY, C.TANK
27,500

품절

7-27 9361477
25091506310 BOLT, TANK HOLDER
19,800

품절

7-28 9360257
25093006210 CONNECTOR,BRACKET
1,650

품절

7-29 9360539
25093206210 BRACKET,TANK
6,050

품절

7-30 9360213
90033370380 PIN,STRAIGHT
1,320

품절

8-1 9360206
밴드
1,320
8-2 9361494
36301900310 NUT, CONNECTOR
1,100

품절

8-3 9361493
36301800310 WASHER
550

품절

8-4 9361496
36302200510 PLUG
2,200

품절

8-5 9361492
36301700310 CONNECTOR, PIPE
2,200

품절

8-6 9361490
36301100210 PIPE, AIR (OUTER)
1,100

품절

8-7 9361495
36302101110 PLUG
2,200

품절

8-8 9361515
E105000000 PIPE, AIR
4,400

품절

8-9 9361491
36301400310 PIPE (INNER)
2,200

품절

8-10 9361479
25421003210 FILTER
6,600

품절

8-12 9361046
밴드
550
8-13 9361478
PLATE, TANK BOTTOM
17,600
8-14 9360482
GASKET,SHUTTER
4,950
8-15 9361483
35701001110 NIPPLE, OUTLET
2,200

품절

8-16 9361485
35701401110 O-RING
1,100

품절

8-17 9361486
35701501110 NUT, HOLLOW
2,200

품절

8-18 9361497
36302301110 CLIP
1,100

품절

8-19 9361488
35791100111 CLIP, PIPE
1,100

품절

8-20 9361484
35701102410 PIPE (L-650)
1,650

품절

8-21 9361489
35810001111 COCK, LIQUID
9,900

품절

8-22 9361487
35703201110 PIPE (L-720)
2,200

품절

8-23 9361465
21250001112 NOZZLE ASS'Y
27,500

품절

8-24 9361469
21251501110 COLLAR, NOZZLE
6,600

품절

8-25 9361468
NUT, MISTING NOZZLE
2,200

품절

8-26 9361467
RING, MISTING NOZZLE
1,100

품절

8-27 9361470
22200001110 NOZZLE
4,400

품절

8-28 9361466
21250101111 HEAD, NOZZLE
11,000

품절

8-29 9361507
90024605012 SCREW 5*12
550

품절

8-30 9360565
X602000020 TOOL,WRENCH
6,600

품절

8-31 9361504
89003101110 LABEL, MIST
550

품절

8-32 9360041
90028605016 SCREW 5*16
550

품절

9-2 9361292
카뷰레터 아세이
88,000
9-3 9392397
12311440630 SCREW
1,100

품절

9-4 9361296
P003000180 BRACKET CABLE
6,050

품절

9-5 9392396
12317245130 SWIVEL
6,050

품절

9-6 9392398
12314954230 WASHER
1,100

품절

9-7 9392401
12317307930 E RING
1,100

품절

9-8 9392402
12314312110 RING GASKET
1,650

품절

9-9 9392104
12318340630 O RING
1,100

품절

9-10 9361297
P003000990 JET
4,400

품절

9-11 9392106
GASKET,PUMP
3,850
9-12 9392107
12311240630 DIAPHRAGM
6,600
9-13 9392422
12317905560 PUMP BODY COMP
55,000

품절

9-14 9391596
12312610631 SCREEN
1,100

품절

9-15 9391602
NEEDLE VALVE
4,400

품절

9-16 9392404
12312205560 SPRING
2,750

품절

9-17 9391853
PIN
1,100

품절

9-18 9391851
LEVER
3,300

품절

9-19 9392405
12313905560 SCREW
3,300

품절

9-20 9392406
GASKET
1,650
9-21 9392109
DIAPHRAGM
11,000
9-22 9392407
12318005560 PUMP BASE COMP
15,400

품절

9-23 9392409
12318140630 PRIMER PUMP
4,400
9-24 9392410
12314205560 PUMP COVER
3,300

품절

9-25 9392411
12311005560 SCREW
1,100

품절

9-26 9361298
P003001130 NEEDLE,HIGH SPEED
6,050

품절

부품 특성상 주문 후 반품이 어려운 점 양해 부탁드립니다.
목록에 없는 부품은 단종 또는 제조사 미공급 부품입니다.
